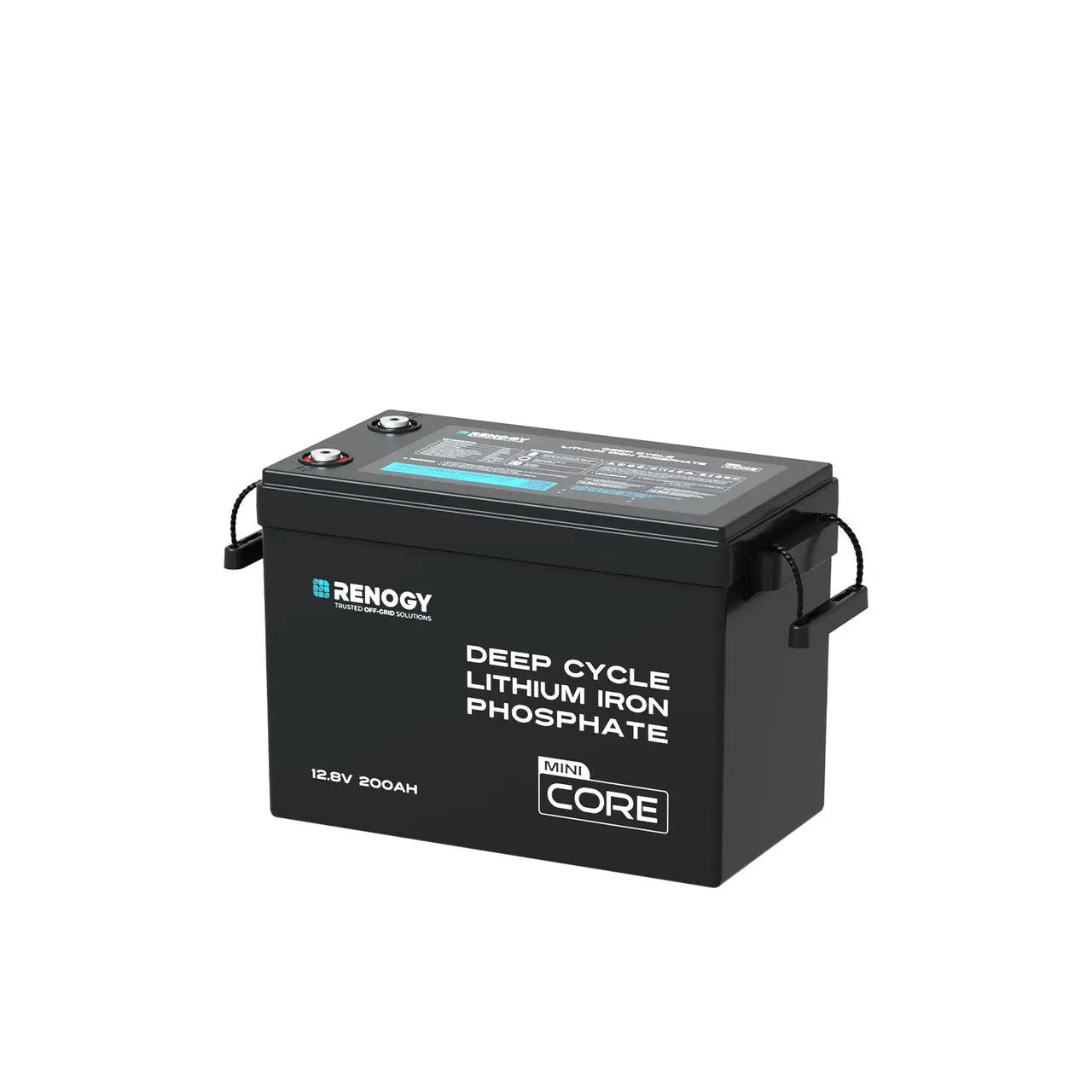

Renogy Mini 12V 200Ah LiFePO4 Battery w/ Low-Temperature Protection

Renogy Mini 12V 200Ah LiFePO4 Battery w/ Low-Temperature Protection

The Renogy Core Series 200Ah Mini Battery is engineered for superior performance and compact design. As a direct drop-in replacement for traditional deep-cycle lead-acid batteries with a standard Battery Council International (BCI) group size. This lithium battery offers cutting-edge features in a significantly smaller package, 1/3 smaller and half the weight of comparable 12V 200Ah lead-acid batteries.

Delivering twice the energy with 100% Depth of Discharge (DOD), it supports over 5000 charge cycles and is built using high-quality automotive-grade battery cells to ensure the highest safety and reliability. It Complies with FCC, UN38.3, ROHS, UKCA certifications and is backed by a 5-year warranty for peace of mind.

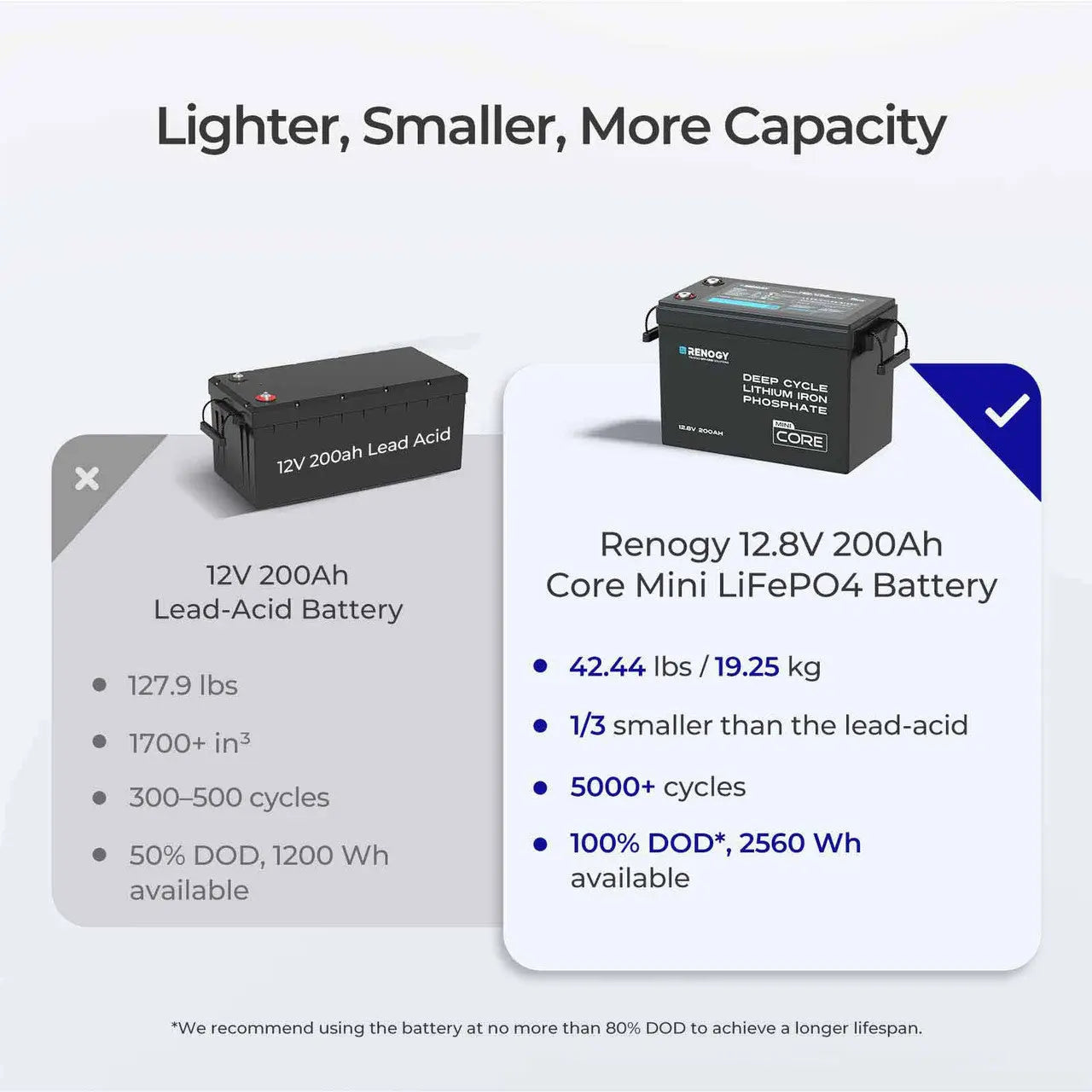

Smaller than ever! 1/3 smaller than 12V 200Ah lead-acid.

A 200A BMS, more robust than a 100A. Low-temp cut-off (charge & discharge).

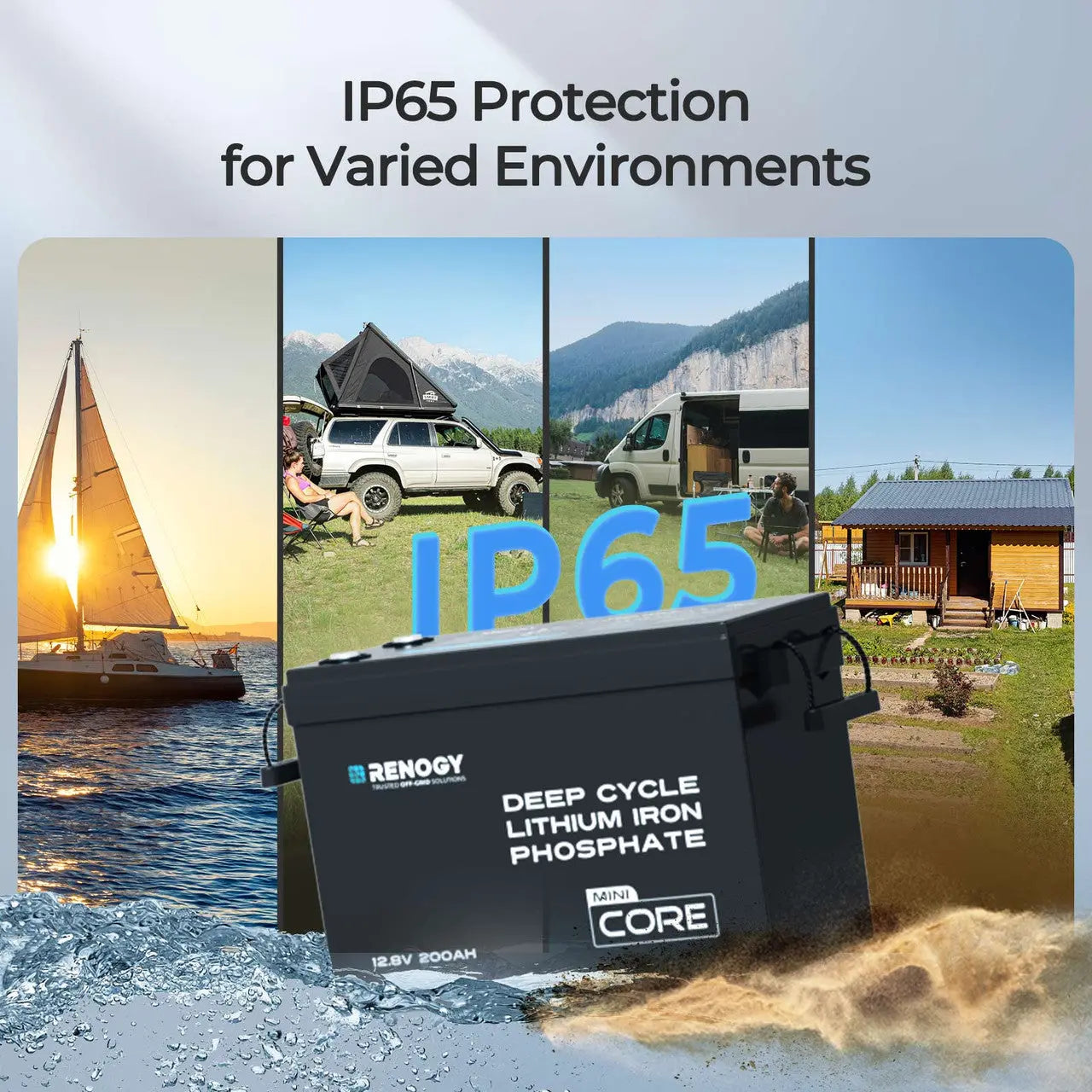

IP65 waterproof & vibration-resistant for enhanced outdoor performance.

Certified by FCC, UN38.3, ROHS, UKCA and more. 5-year warranty.

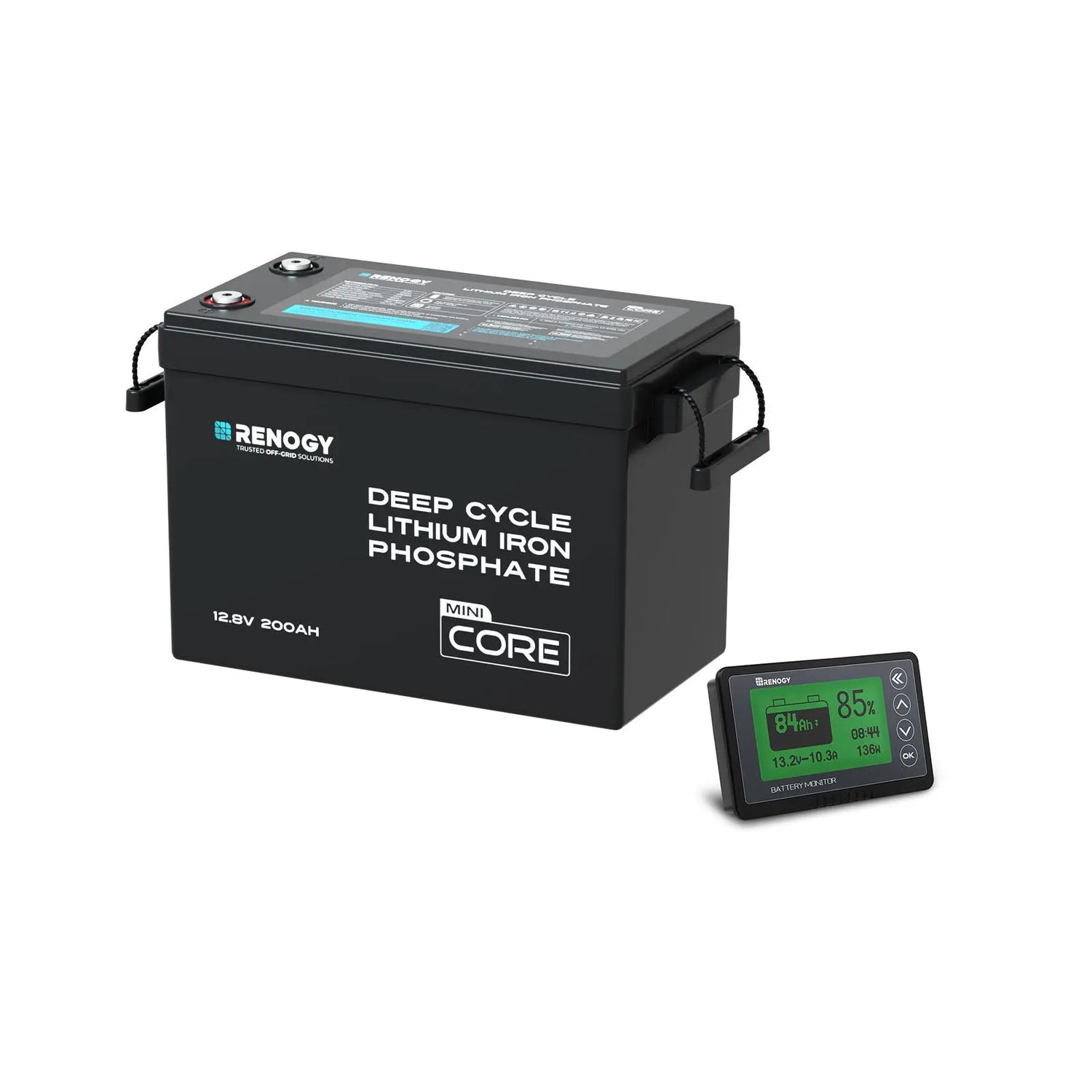

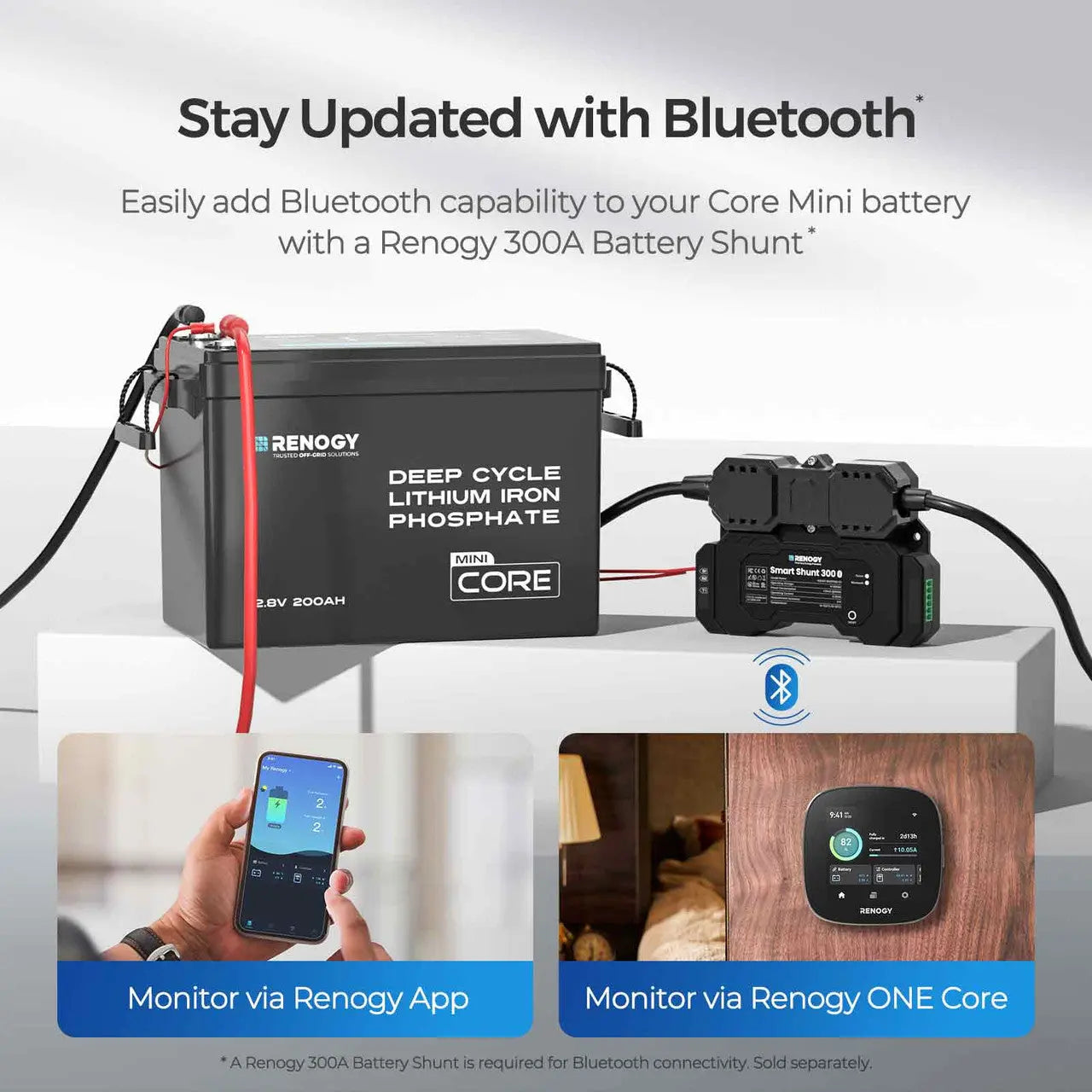

Works with a Renogy 300A Battery Shunt for Remote Monitoring.

Features

Features

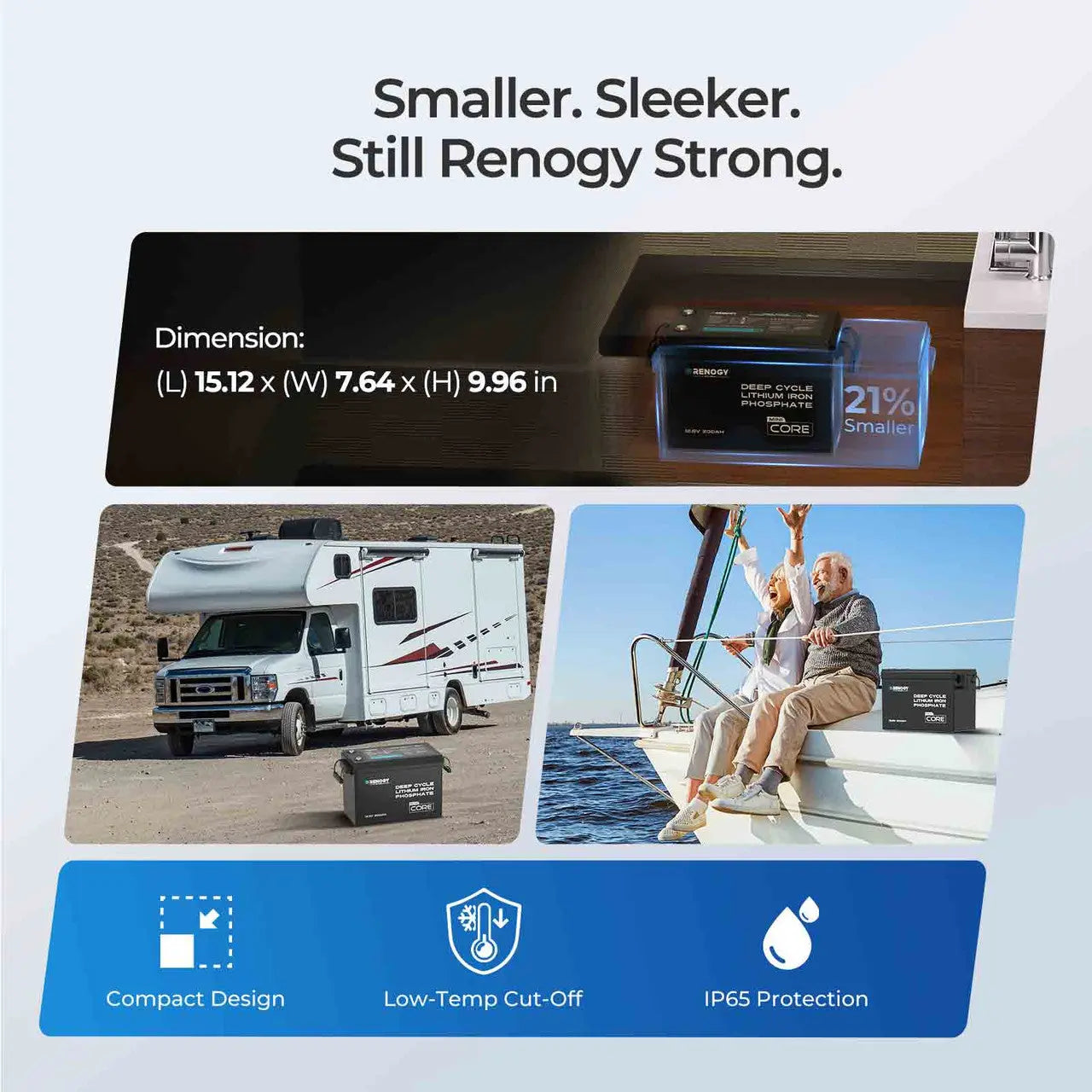

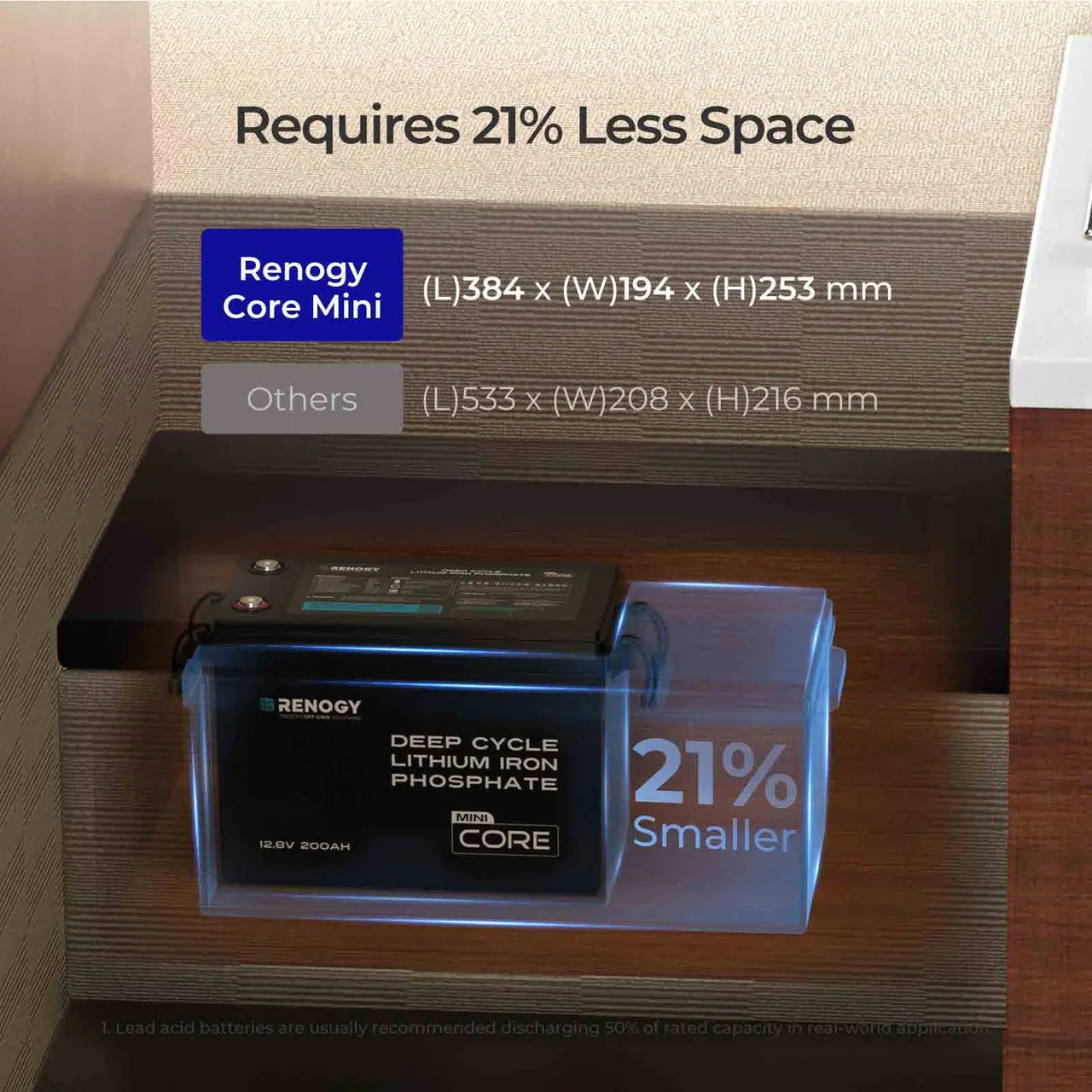

Smaller, Sleeker, Still Renogy Strong: Power up with compact confidence! The Renogy 12V 200Ah Core Mini LiFePO4 Battery is 21% smaller than its counterparts while maintaining a robust 200A BMS plus a low-temperature cut-off for enhanced protection. Perfect for both travel and home use, it’s the ideal solution for versatile power demands.

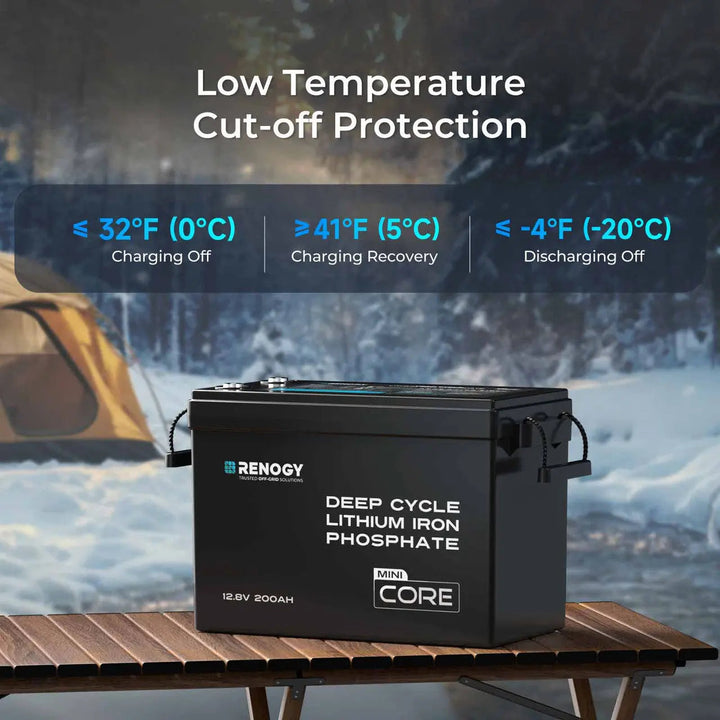

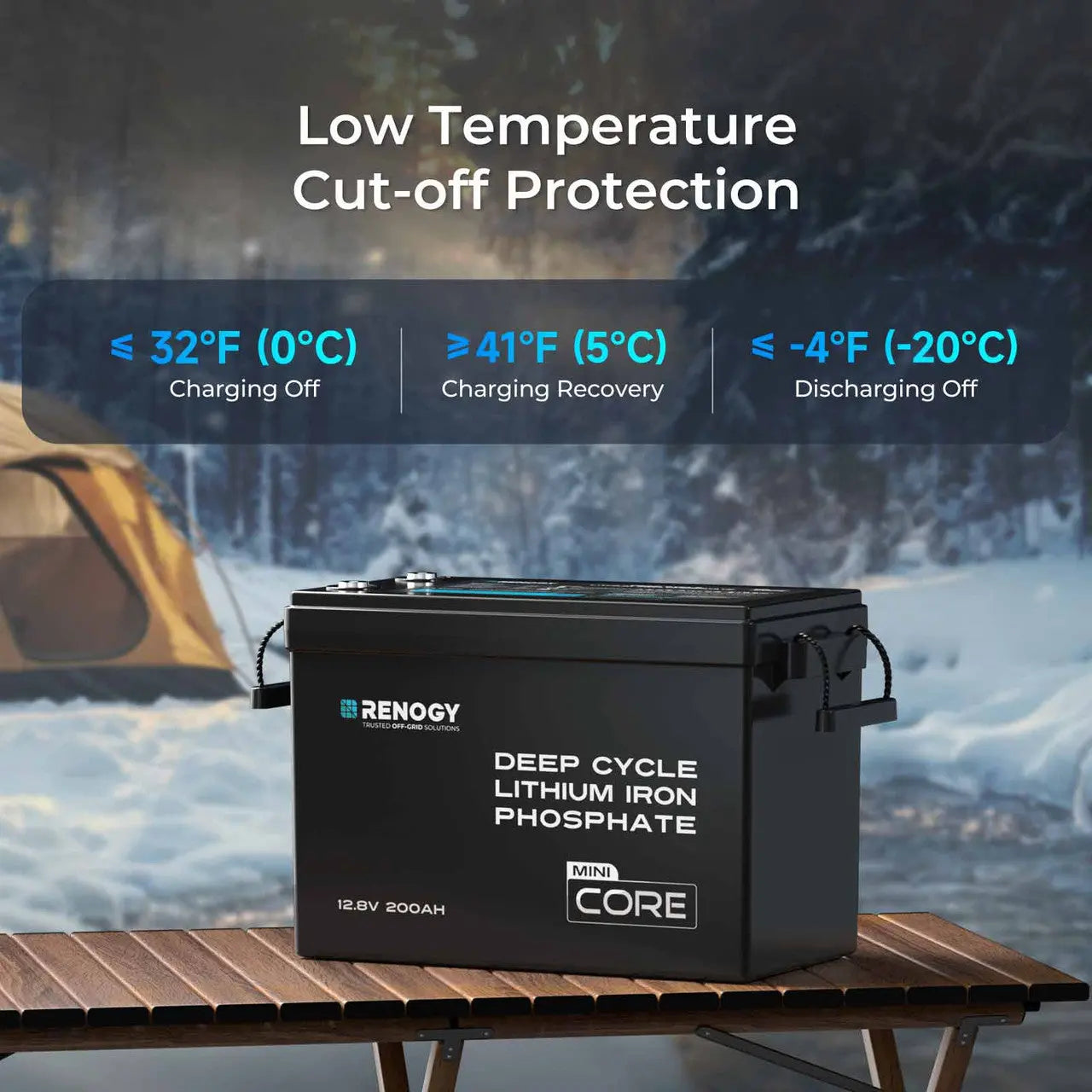

Hands-Free Low-Temp Cut-Off: The built-in BMS with an automatic low-temperature cut-off means you don't have to hover around your lithium battery, manually shutting it down. Stay relaxed and cozy during winter travels while your battery handles itself, letting you focus on the adventure.

Peak Power Output: Capable of discharging up to 380A within 10 seconds, this portable power beast can smoothly pump up energy-demanding appliances like microwaves that require a high start current.

Vibration-Resistant Design: Metal cell spacers prevent damage in rough terrain and choppy waters.

Tested & Trusted Power: Backed by rigorous testing & certifications including UL, FCC, and CE, this mini-sized 12.8V 200Ah LiFePO4 Battery delivers unmatched reliability and is ready for a wide range of uses.

Dimensional Reference Guide

Before installing the battery, ensure a clearance of 1.97-3.94 inches (5-10 cm) above the battery, and leave at least 7.87 inches (20 cm) on the side with the busbars for optimal installation.

Specifications

Specifications

• Electrical Specifications
  • Rated Capacity: 200Ah (0.5C, 25℃)
  • Voltage: 12V
  • Energy: 2560Wh
  • Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)
• Temperature Parameters
  • Operation Temperature Range:
    • Charge: 32°F to 131°F (0°C to 55°C)
    • Discharge: -4°F to 149°F (-20°C to 65°C)
  • Storage Temperature Range: -4°F to 140°F (-20°C to 60°C)
  • Operation Relative Humidity: 5% to 95%
• Charging Parameters
  • Voltage Range: 10V to 14.6V
  • Maximum Continuous Charge Current: 100A
• Discharging Parameters
  • Maximum Continuous Discharge Current: 200A
  • Peak Discharge Current: 380A @ 10s
• Physical Specifications
  • Dimensions (L x W x H): 15.12 × 7.64 × 9.96 in / 384 × 194 × 253 mm
  • Weight: 42.44 lbs / 19.25 kg
  • Terminal Bolt Size:
    • M8×1.25×12 mm
    • M8×1.25×16 mm
  • Protection Rating: IP65
• Warranty
  • 5-year prorated material and workmanship warranty: Yes
• Certifications
  • MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA: Yes
