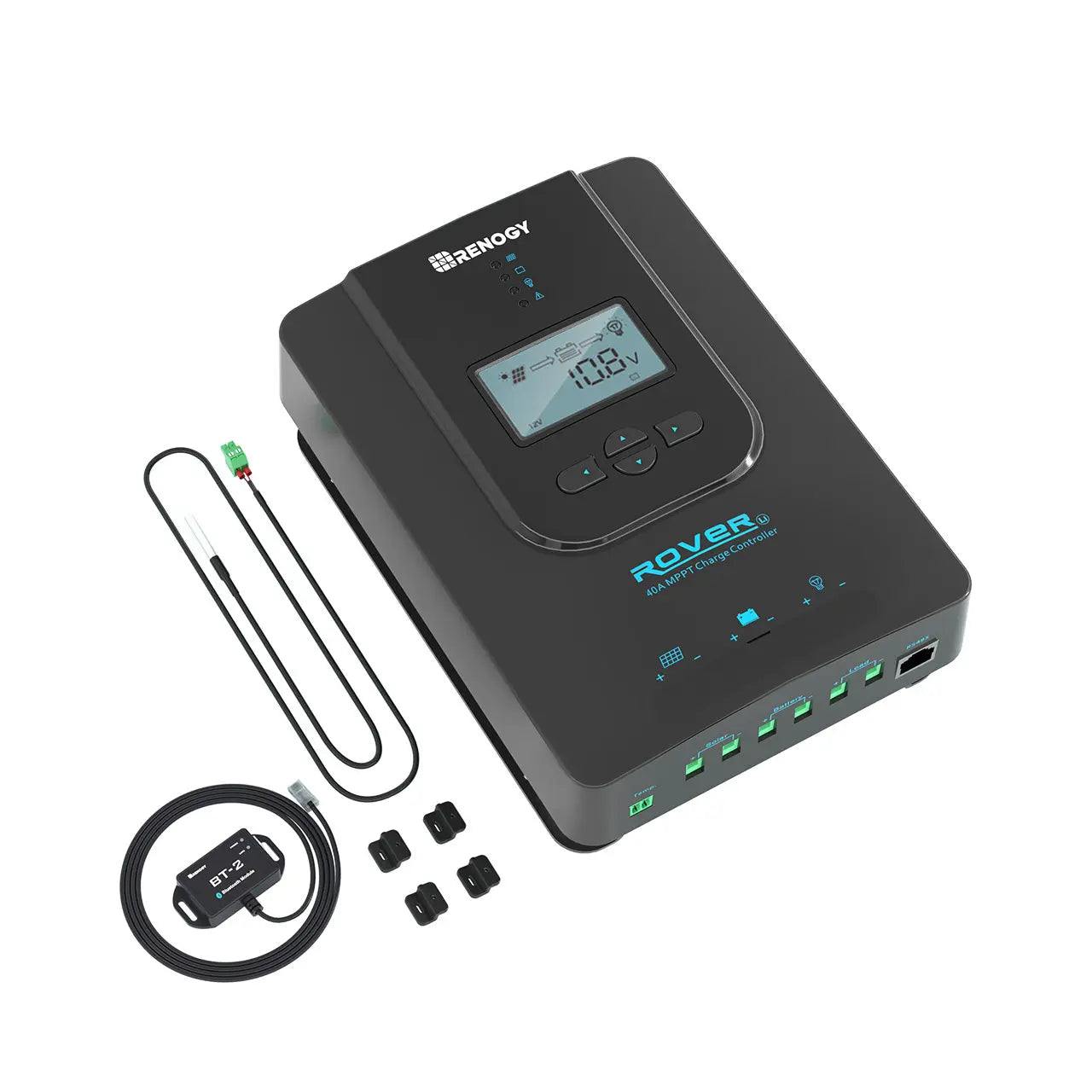

Renogy 40-Amp Rover Li MPPT Solar Charge Controller w/ Bluetooth
Rover Li 40 Amp MPPT Solar Charge Controller: An advanced charge controller that maximizes the performance of your solar system.
Maximize Your System Efficiency: The Rover 40A Solar Charge Controller is the ideal choice for both 12V and 24V systems, offering unparalleled versatility, superior performance, and peace of mind. By maximizing power from your solar panels, it ensures optimal charging efficiency, backed by smart features and the best warranty on the market. Perfect for customers who value top-class functionality and innovative design.

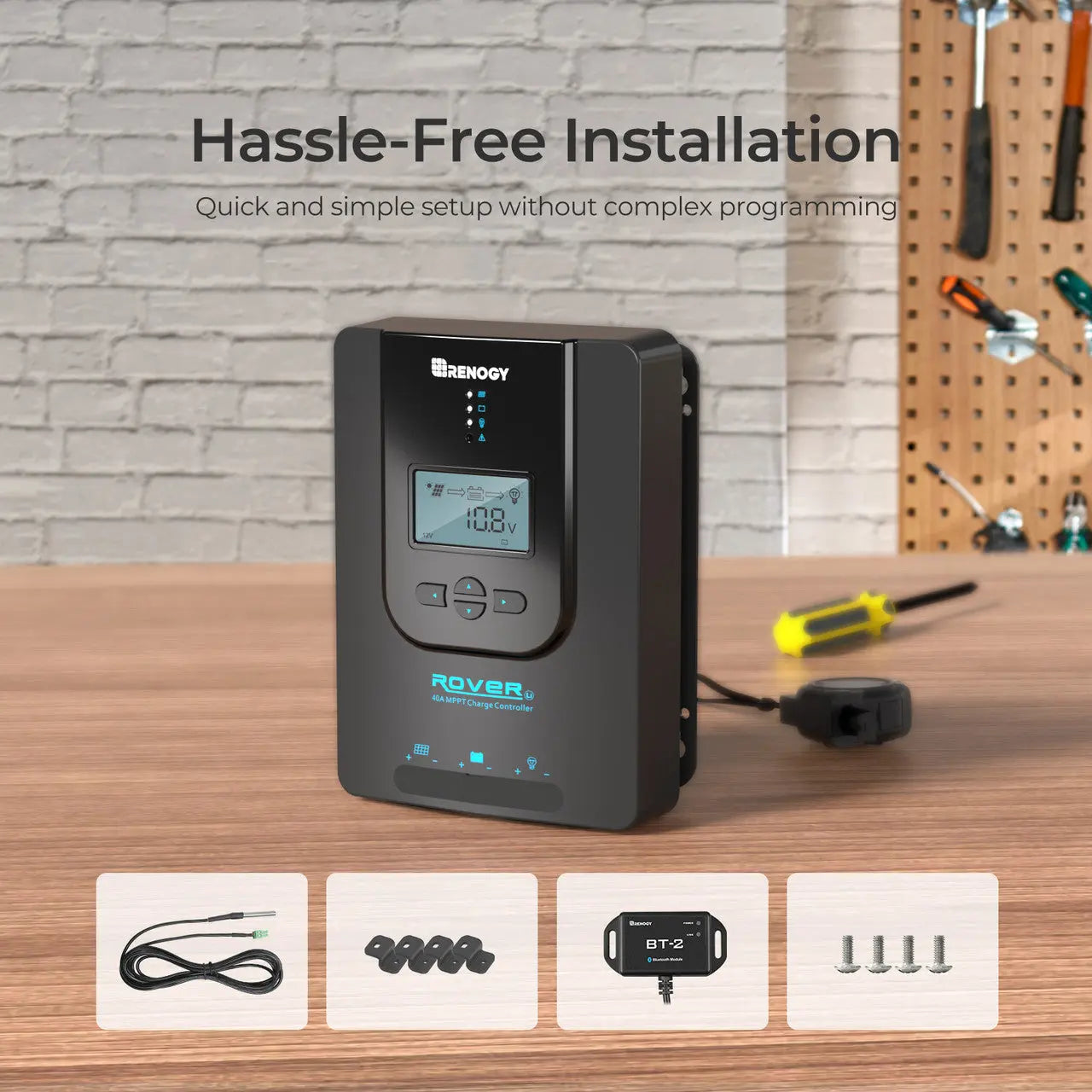

Simple and Intuitive Programming: Customize settings and monitor charging parameters with ease.
Multiple Protections for Various Battery Types: The Rover Charge Controller offers comprehensive protection for your batteries, guarding against overcharging, over-discharging, short-circuiting, overloading, reverse polarity, and reverse current, while also providing temperature compensation for enhanced efficiency and safety.

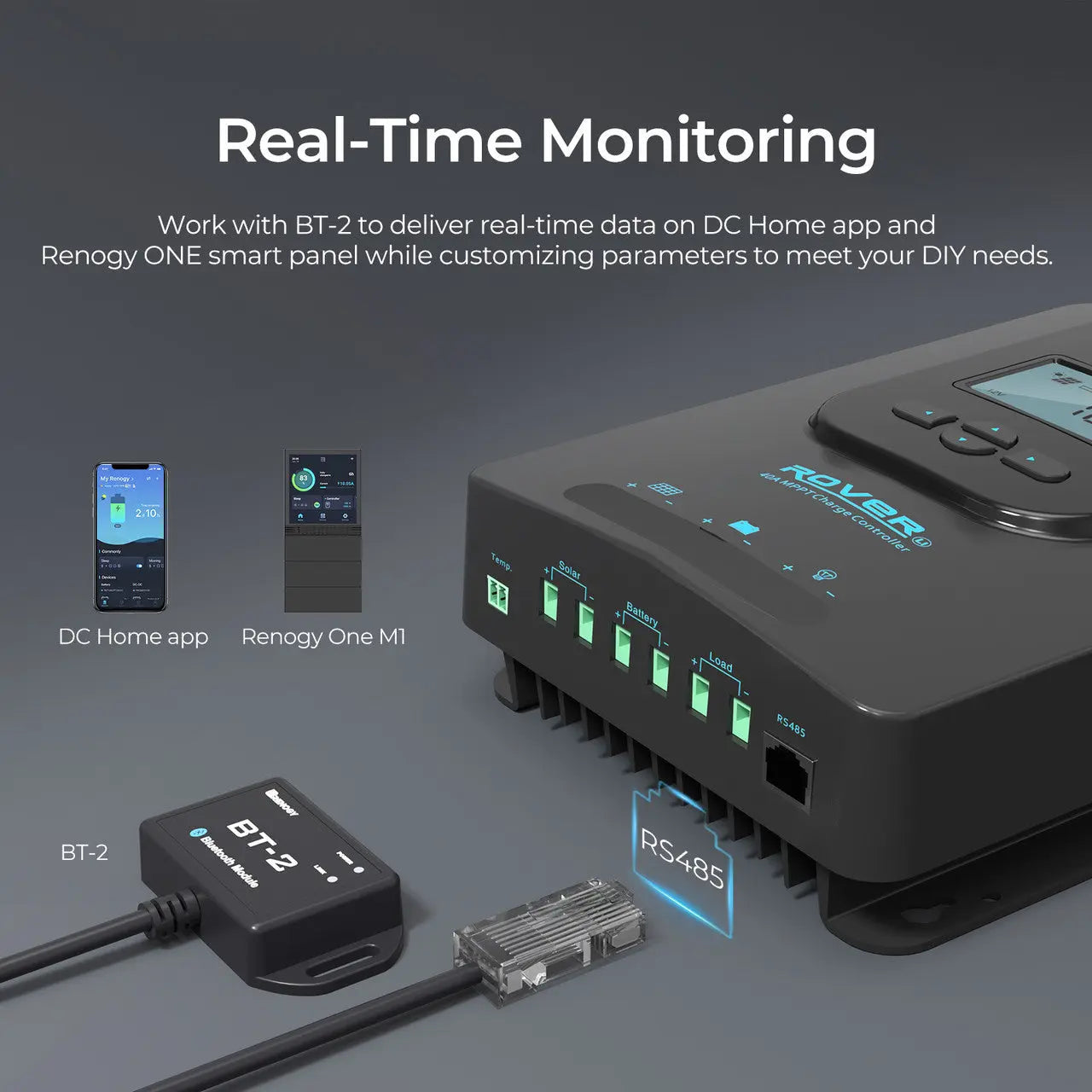

Enhanced Connectivity for a Superior Experience: Monitor, control, and optimize charging anywhere with Renogy Charge Controller's Bluetooth connectivity.

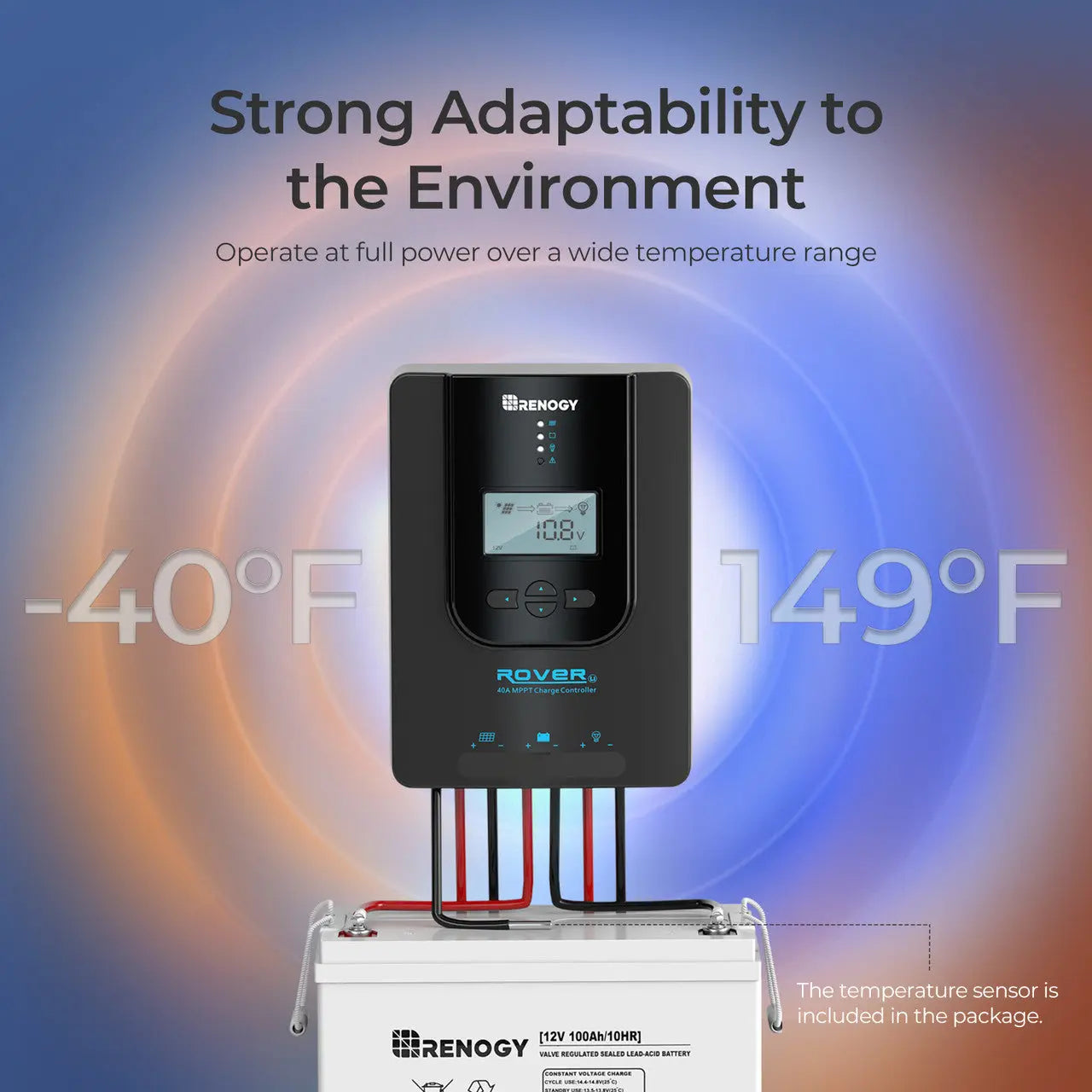

Powerful Heat Dissipation: Operates at peak performance even in extreme temperatures, ensuring your system is always running smoothly and efficiently.

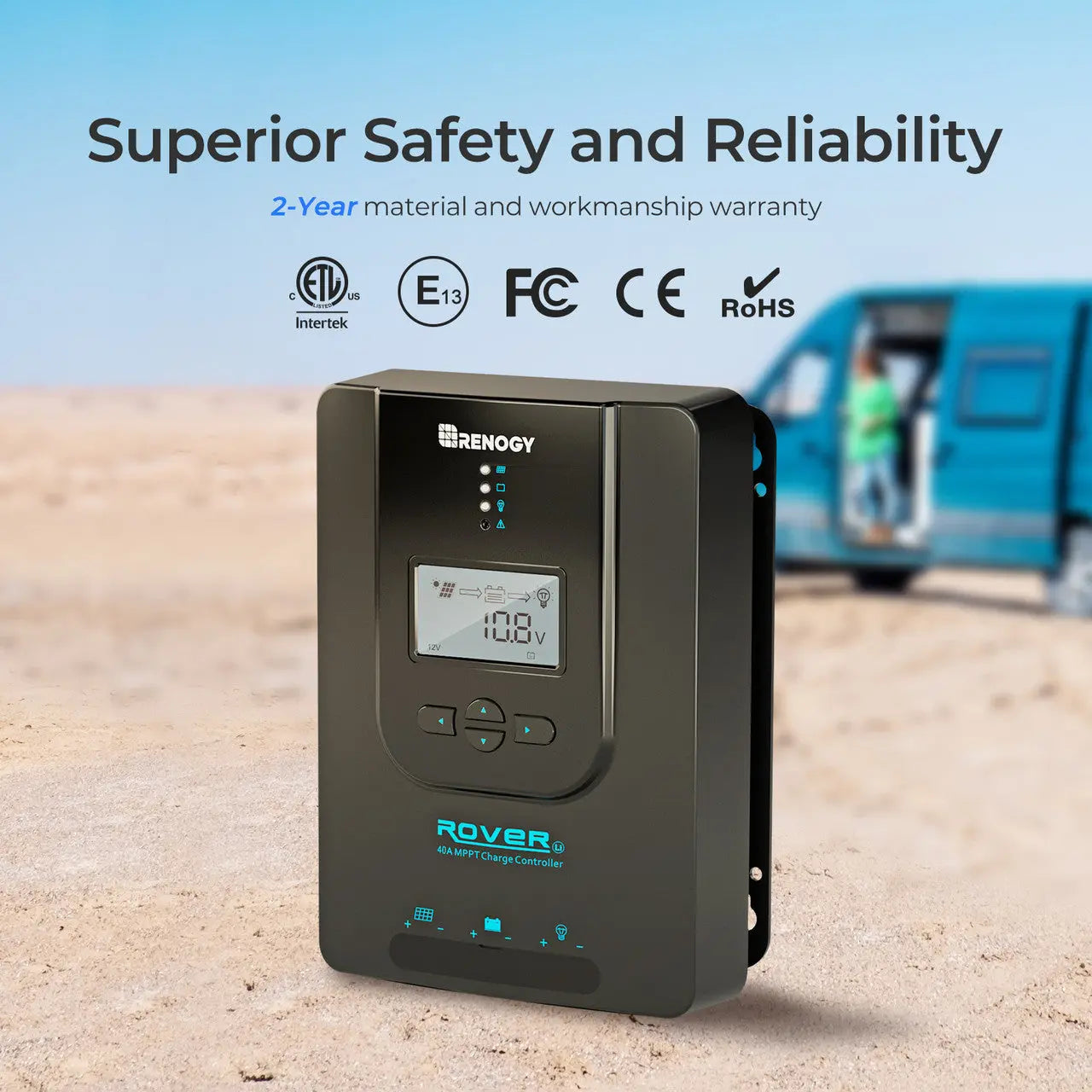

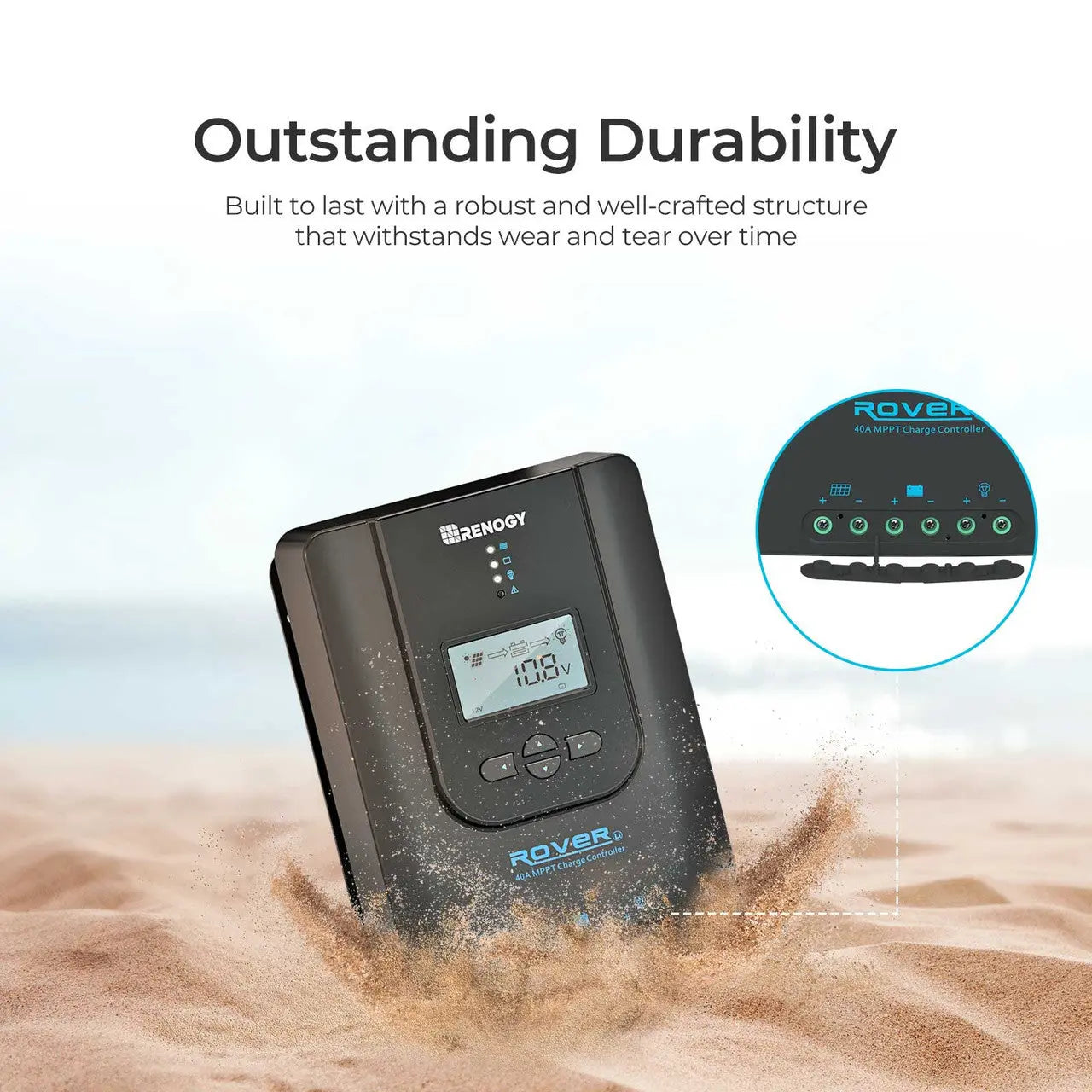

Exceptional Resilience and Long-lasting Performance: Crafted with rust- and corrosion-resistant materials and coatings, the Rover Charge Controller ensures long-lasting durability and reliable performance for your solar energy system.
Features
Features

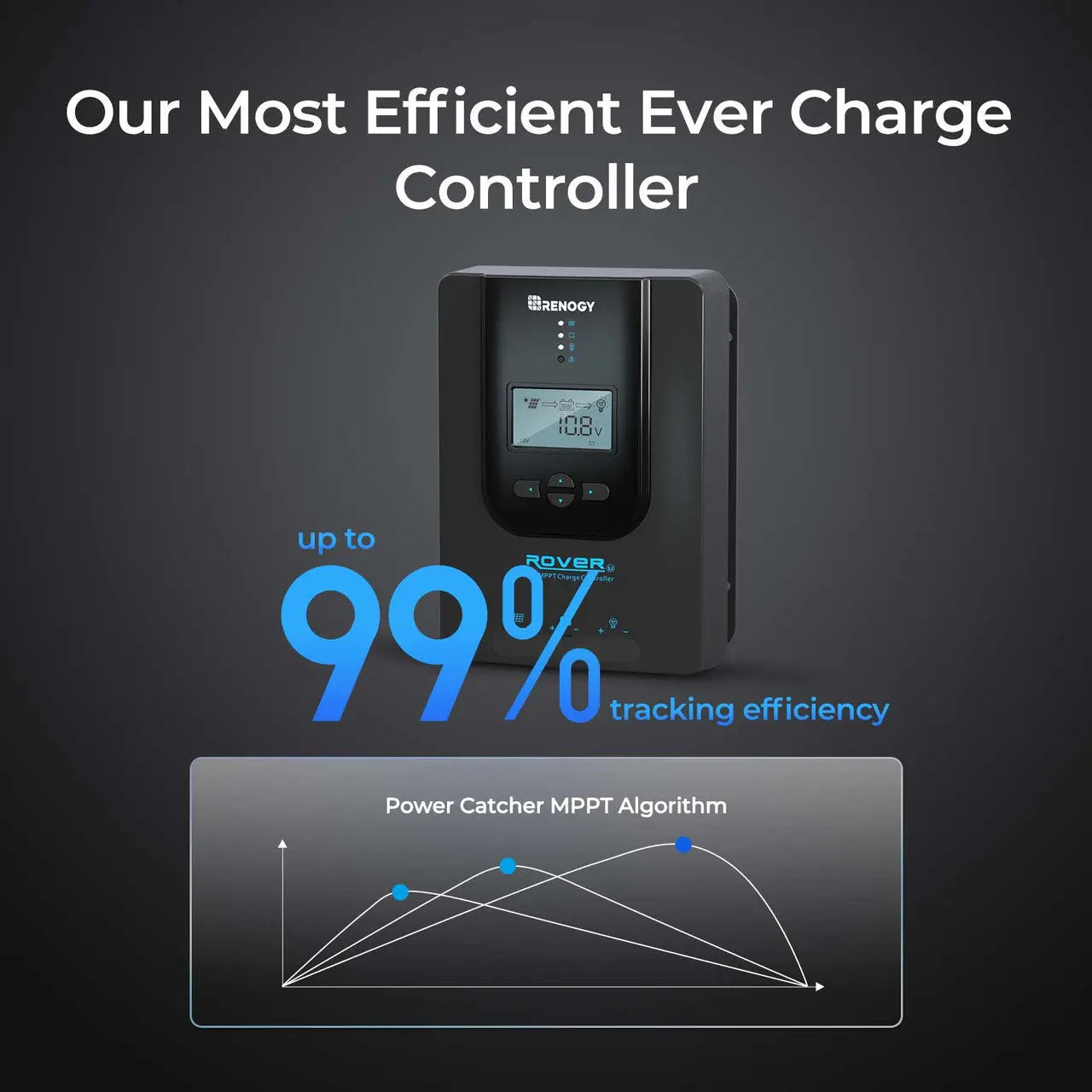

- 99% tracking efficiency, 98% peak conversion efficiency.

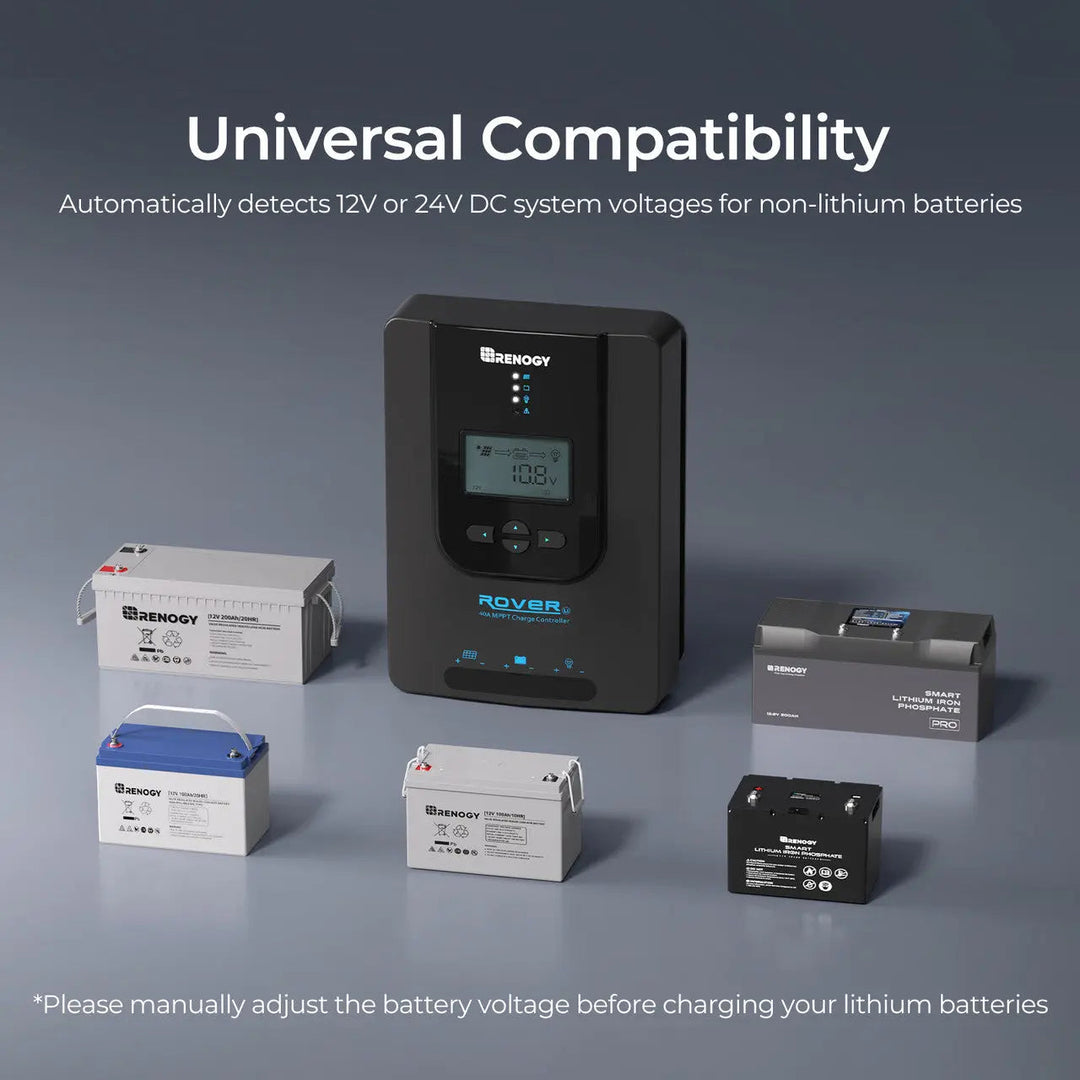

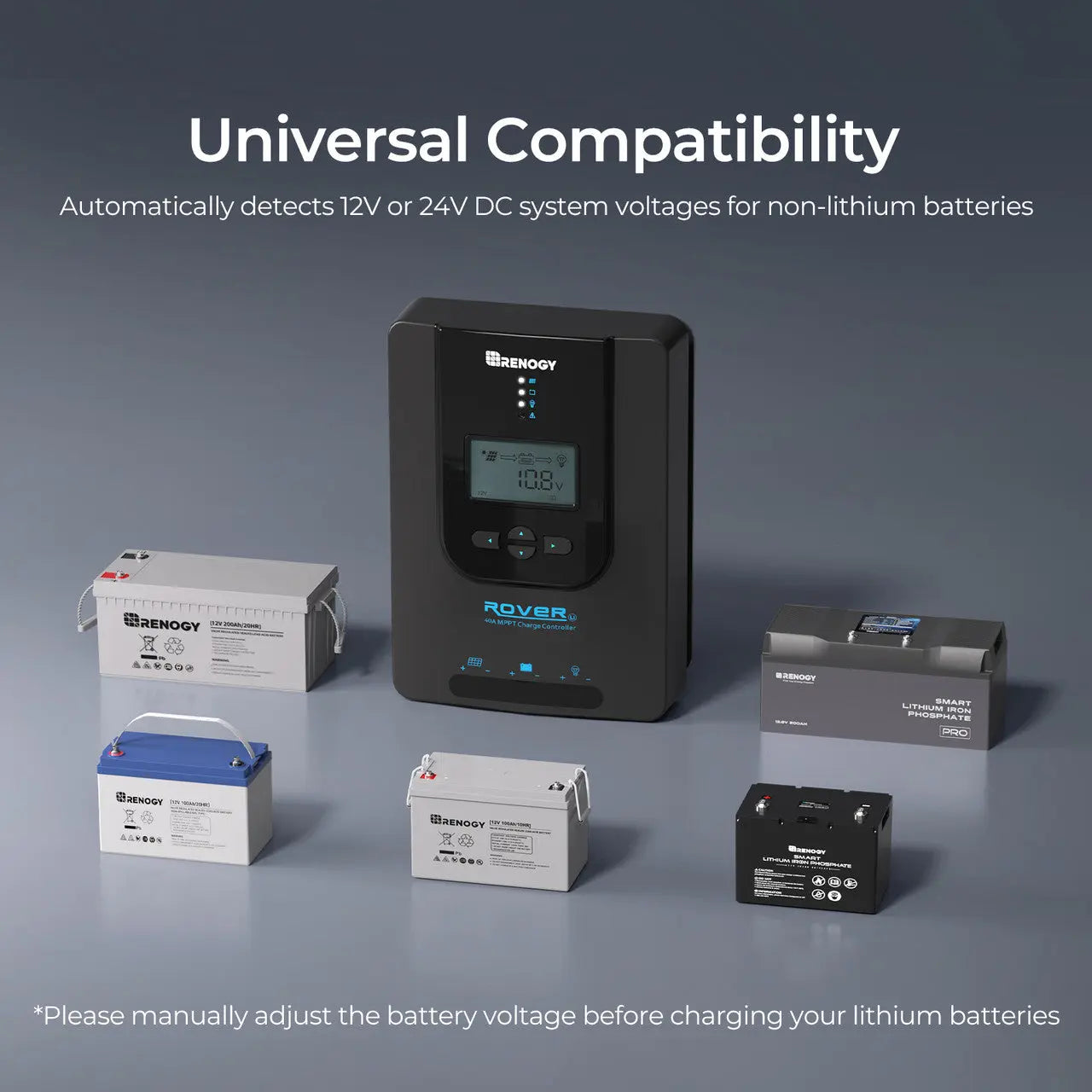

- Auto-detects 12V/24V system (non-lithium batteries).
- Comprehensive protection to secure your system.
- Safe and efficient 4-stage charging.
- Diverse load control options and remote monitoring.
ROVER Bluetooth Module Guide
Identify the correct BT-1 or BT-2 module based on your controller's interface.
Wiring Steps
Do not insert the wires into the space below the socket/hatch. This will damage terminals because of loose connections.
Specifications
Specifications
-
Electrical Parameters
- Nominal System Voltage: 12/24V Auto-Detect
- Rated Charge Current: 40A
- Solar Input Voltage Range (Voc): 15VDC~100VDC
- Max. PV Input Power: 12V/520W, 24V/1040W
- Power Consumption: ＜100mA/12V; ＜58mA/24V
- Battery Input Voltage Range: 10VDC~32VDC
- Communication:
- G1 Version: RS232
- G2 Version: RS485
- Electrical Protection: Overcharging, over-discharging, overload, and short circuit. Capable of charging over-discharged lithium batteries.
-
Environmental Data
- Protection Level: IP32
- Operating Temperature Range: -35°C to 45°C; -31°F to 113°F
- Storage Temperature Range: -35°C to 75°C; -31°F to 167°F
- Operating / Storage Humidity: ≤ 90%, No Condensation
- Temperature Compensation: -3mV/°C/2V
-
Mechanical Specifications
- Dimensions: 238 x 172 x 77 mm; 9.38 x 6.78 x 3.05 in
- Weight: 2.0kg / 4.41 lb
- Max. Terminals Size: 8 AWG 10mm2
-
Accessories
- Temperature Sensor: 9.8ft cable length
-
Certifications
- CE: YES
- FCC Class B Part 15 Compliant: YES
-
Warranty
- Material and Workmanship Warranty: 3 Year
-
Compatibility
- Compatible MPPT Charge Controller:
- RNG-CTRL-RVR40
- RNG-CTRL-RVR60
- RNG-CTRL-RVR100
- Compatible App: Renogy DC Home App available in both the App Store and Google Play
-
Operation Specifications
- Communication Protocol: RS485 Modbus
- Port Type: RJ12
- Input Voltage: 5V
- Protection Grade: IP54
- Standby Power Consumption: 0.04W
- Operating Power Consumption: 0.05W
- Serial Baud Rate: Fixed Baud Rate 9600bps
-
Mechanical Specifications
- Communication Range: ≤82ft (25m)
- Cable Length: 16.4 ft (5.00m)
- Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)
- Weight: 4.58oz (130g)
- Operating Temperature: -31℉ to 113℉ / -35℃ to 45℃
- Storage Temperature: -31℉ to 167℉ / -35℃ to 75℃
- Operating Altitude: ≤3000m
-
Certifications
- FCC Class B Part 15 Compliant: YES
-
