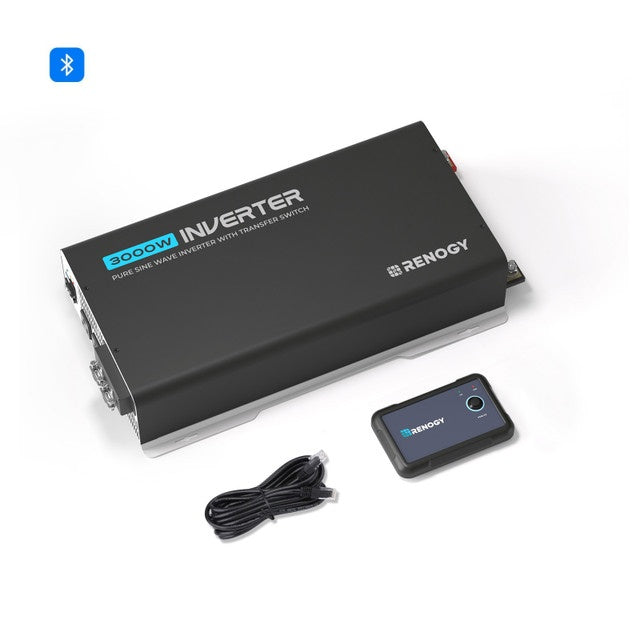

Renogy 3000W 12-Volt Pure Sine Wave Inverter w/ UPS Transfer Switch w/ Bluetooth
The Renogy 3000-Watt Pure Sine Wave Inverter is a high-performance power solution designed to provide clean and stable electricity for your sensitive electronics. This advanced model features a built-in UPS transfer switch, ensuring that your devices stay powered without interruption by automatically switching between shore power and battery power. Whether you're upgrading an RV, a marine vessel, or building a tiny home off-grid, this inverter offers the power and reliability needed to run high-demand appliances like microwaves, coffee makers, and air conditioners with ease.
Features
Features
Seamless UPS Transfer: The integrated transfer switch seamlessly switches between AC and DC power, providing an uninterruptible power supply for your critical electronics.

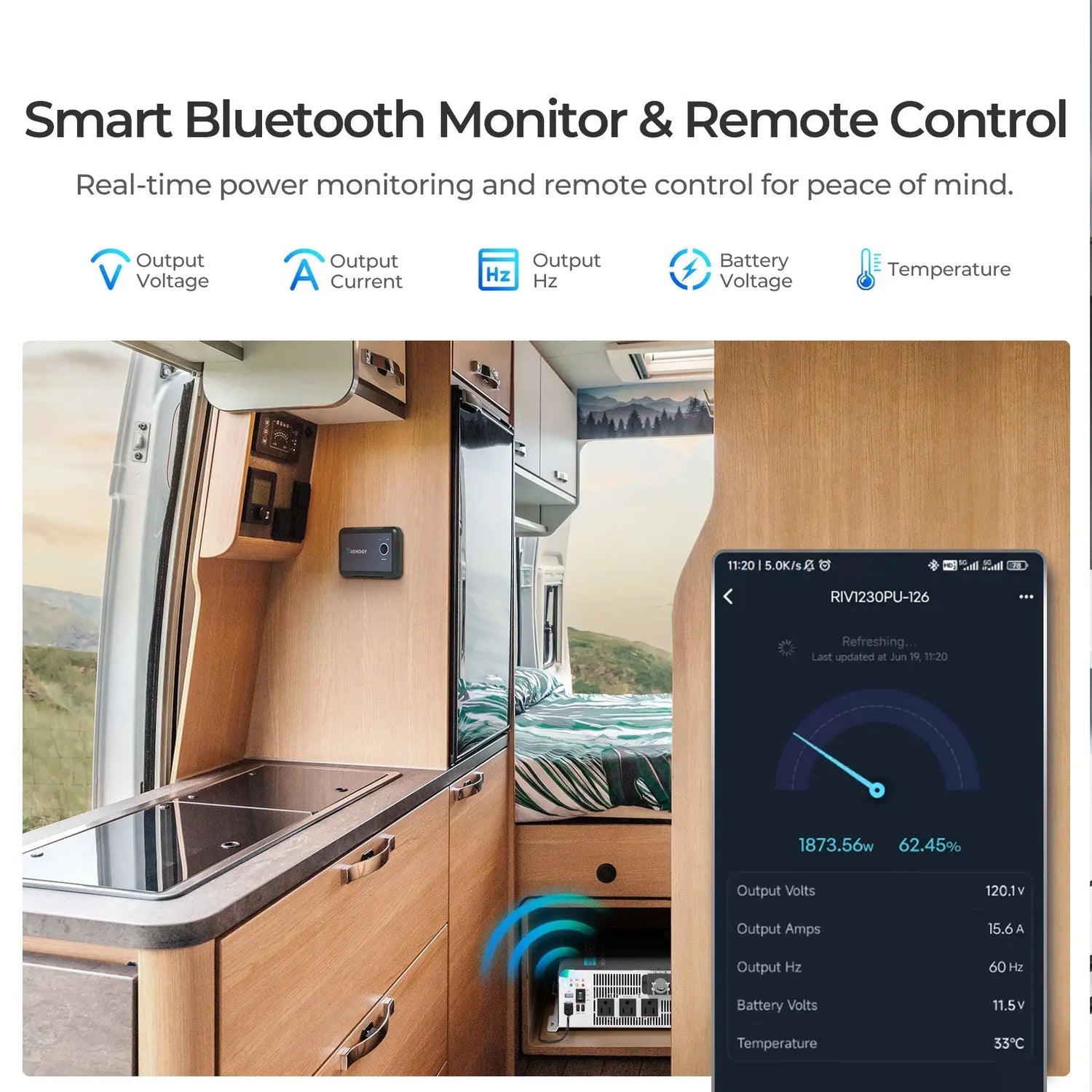

Wireless Remote Monitoring: Stay informed about your system’s status; track performance and control settings remotely via Bluetooth using the Renogy DC Home app.

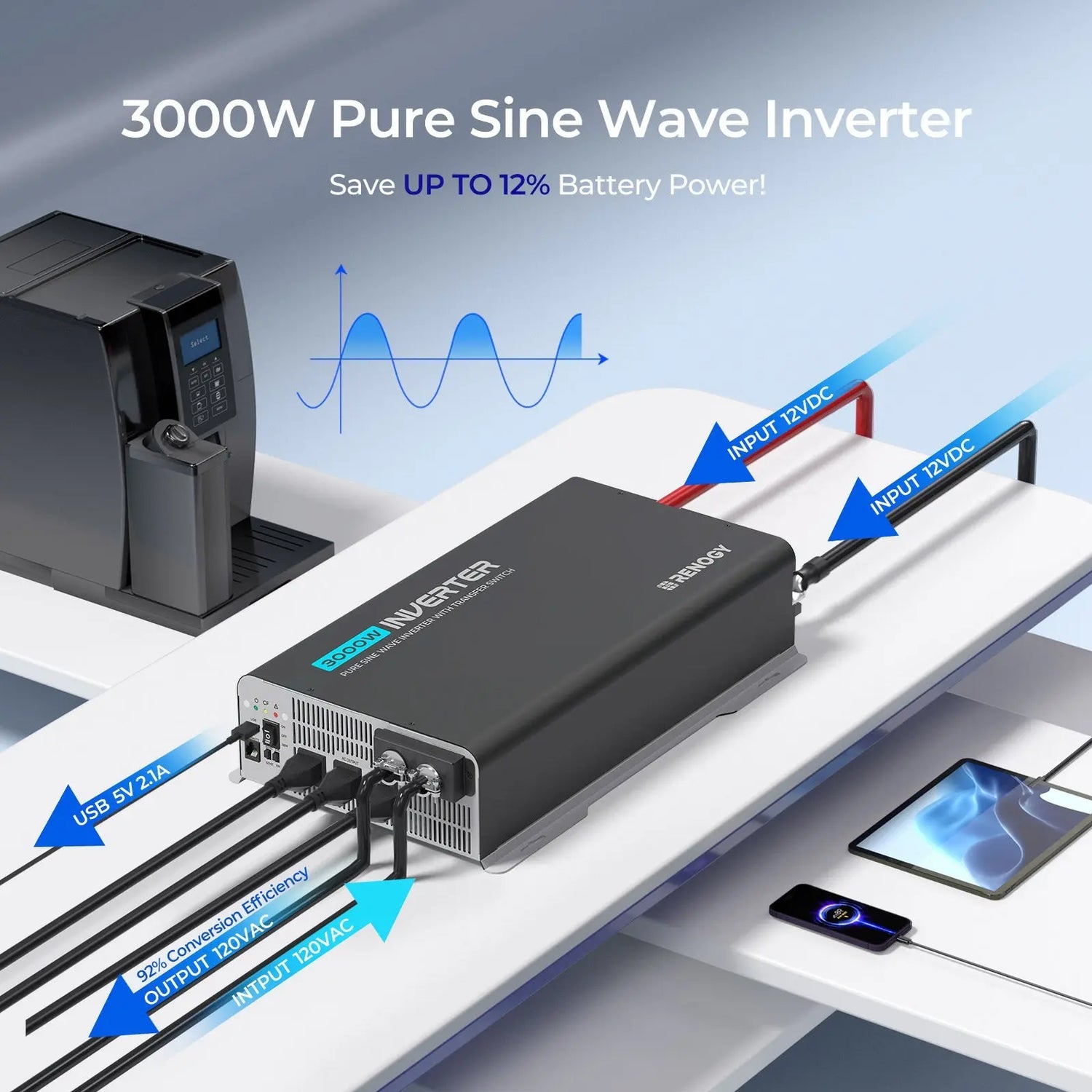

High Conversion Efficiency: Engineered for performance, this unit achieves over 92% efficiency, ensuring optimal power conversion and reducing energy waste from your battery bank.

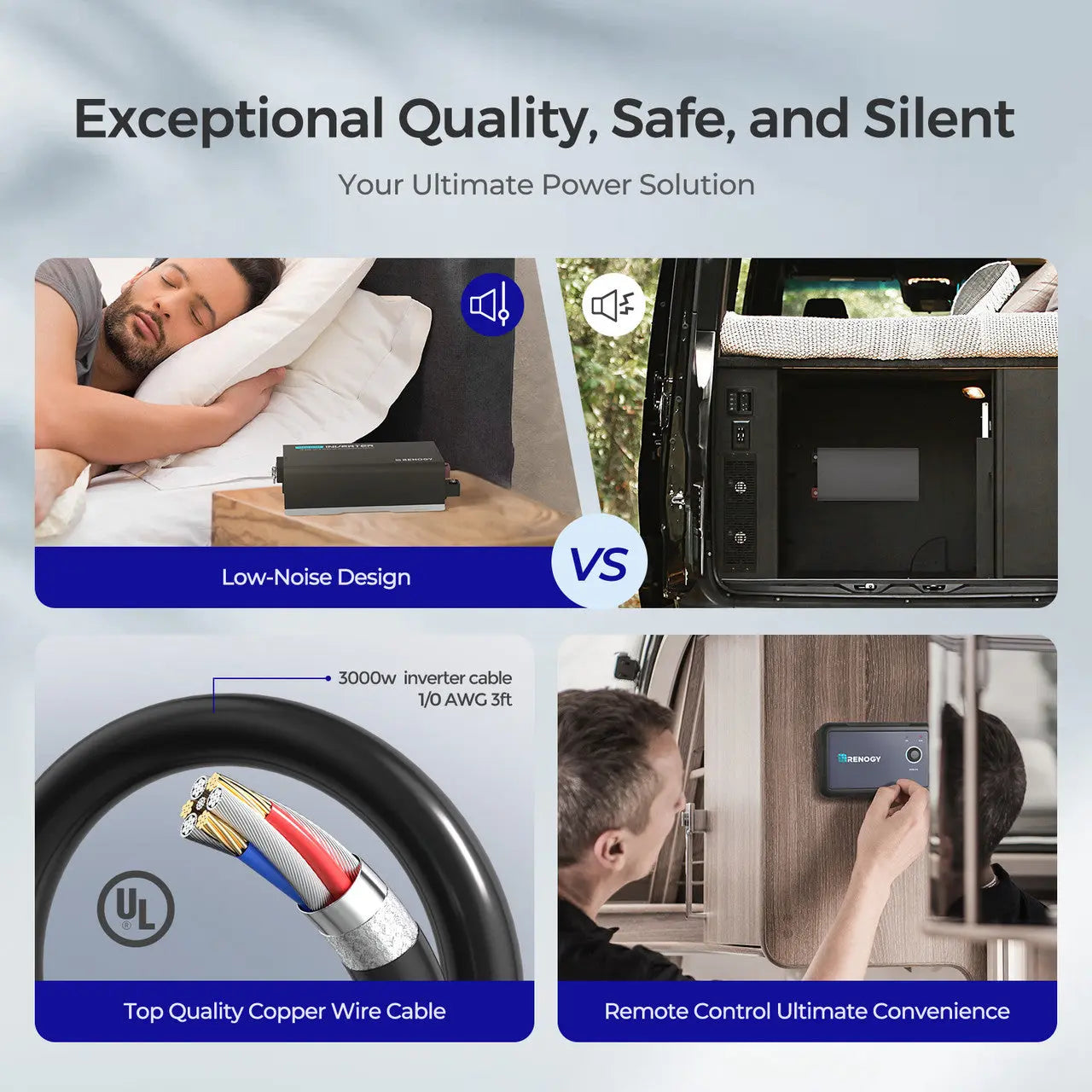

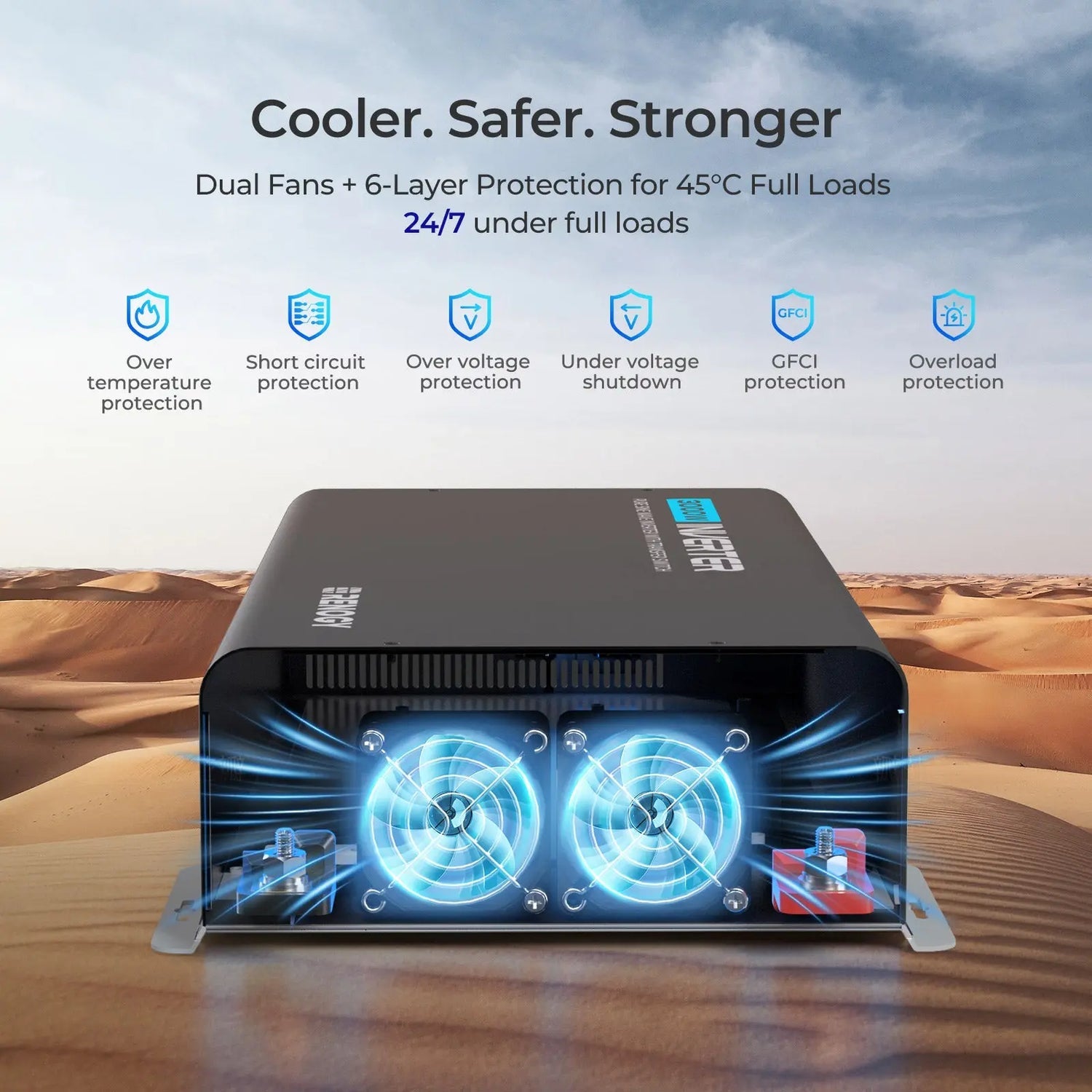

Ultra-Quiet Operation: Designed for comfort, the cooling fans run at under 55dB, ensuring a peaceful living space even while supporting heavy electrical loads.
Comprehensive Circuit Protection: Safety is a priority, featuring robust protection against voltage spikes, current surges, and short circuits to safeguard both the inverter and your appliances.
Applications
RV & Motorhomes:Â Power household kitchen appliances and entertainment systems while boondocking.
Marine & Boats:Â Provide reliable AC power for navigation equipment and cabin comforts.
Emergency Backup:Â Use as a home UPS to keep medical devices or refrigerators running during power outages.
Off-Grid Living:Â The primary AC power source for cabins, sheds, and tiny homes.
Dimensional Reference Guide
Before installing the inverter, leave 1.97 inches of space for the top of the inverter and at least 4 inches on the side with busbars.
Specifications
Specifications
| Specification |
Details |

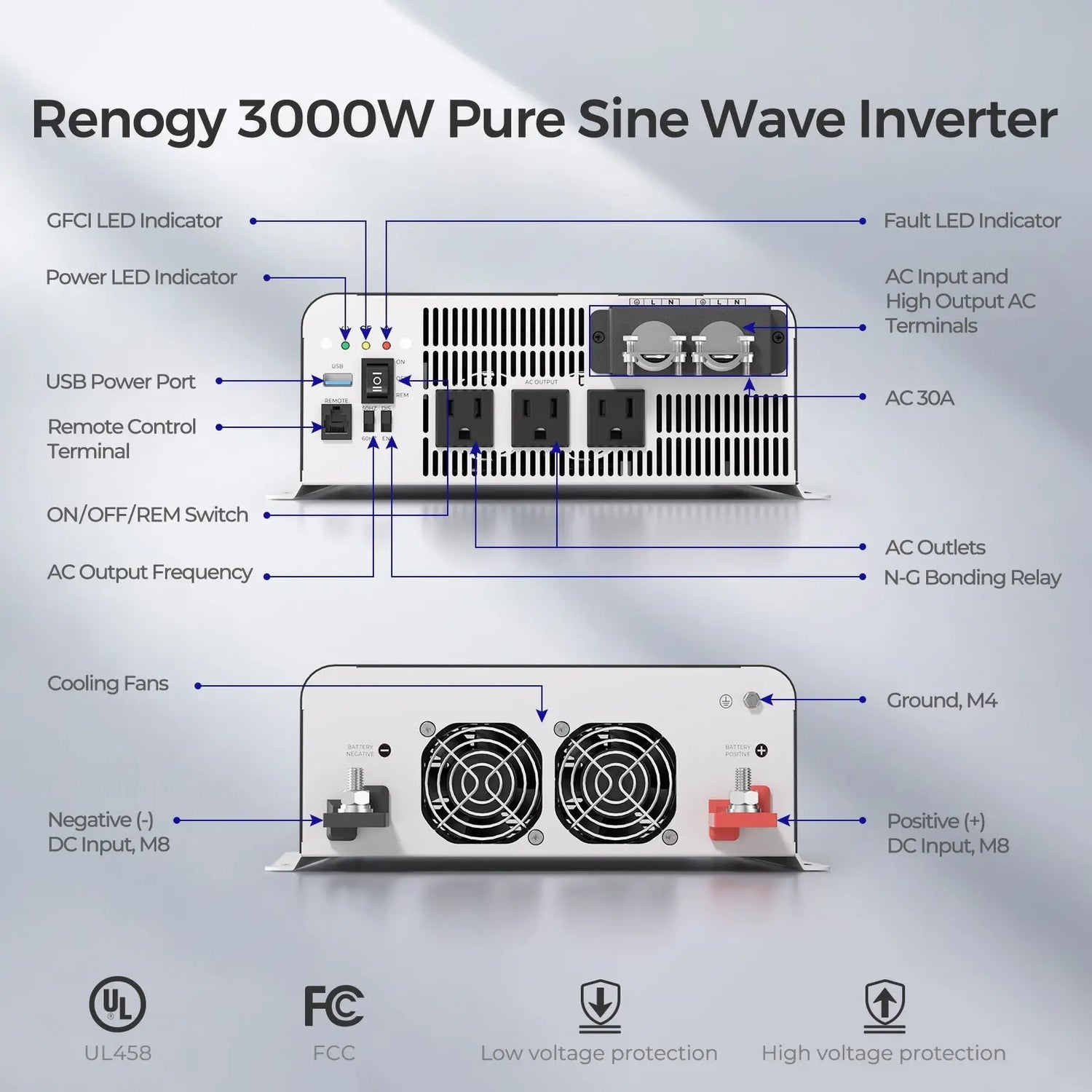

| AC Terminals |
3 x AC Sockets + Terminal Block |
| DC Terminals |
M8-25 |
| Operating Temperature |
-4°F ~ 113°F / -20℃ ~ 45℃ |
| Storage Temperature |
-40°F ~ 158°F / ﹣40℃～70℃ |
| Humidity |
Max 95%, Non-condensing |
| Temperature |
Thermally Controlled Fans |
| Enclosure Rating |
IP20 |

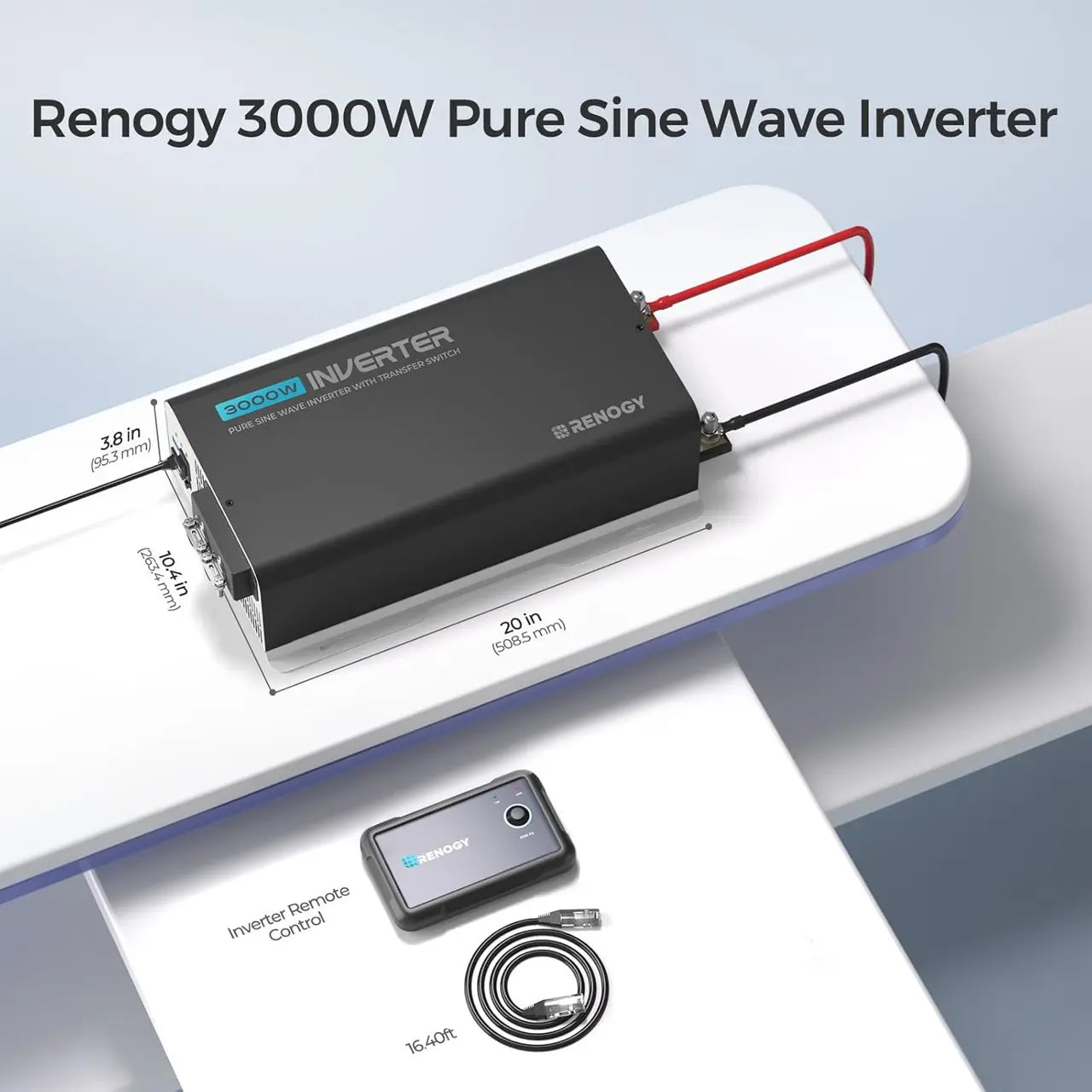

| Dimensions (LxWxH) |
19.2 ×10.4× 3.8 in / 488.8 × 263.4 × 95.3 mm |
| Weight |
6.7kg/14.8lb |
| Regulatory and Safety Specifications |
UL458,FCC Prat15 ClassB |
| Material and workmanship warranty |
1 Year |
![]()
| Specification |
Details |
| Continuous Output Power |
3000W |
| Total Harmonic Distortion (THD) |
≤3% |
| Power Factor |
1.5A |
| Surge Rating |
6000W (@ 2s) |
| Output Voltage |
120V AC±3% |
| Output Frequency |
50/60Hz |
| Rated Battery Input Voltage |
12VDC |
| Battery Input Voltage Range |
11-15.5VDC |
| Maximum Continuous Battery Output Current |
310A |
| Inverter Efficiency |
>92% |
| Full Load Efficiency |
>87% |
| Power Consumption |
<18W |
| Battery Overoltage Shutdown |
16.0VDC±0.3VDC |
| Battery Low Voltage Alarm |
11.0VDC±0.3VDC |
| Battery Low Voltage Shutdown |
10.5VDC±0.3VDC |
| Transfer Switch Rating |
30A |
![]()
| Specification |
Details |
| Front Plate Dimensions |
4.3x2.6x1.3 in /108x67x32 mm |
| Wired Length |
16.40ft |
![]()
FAQs
Frequently Asked Questions

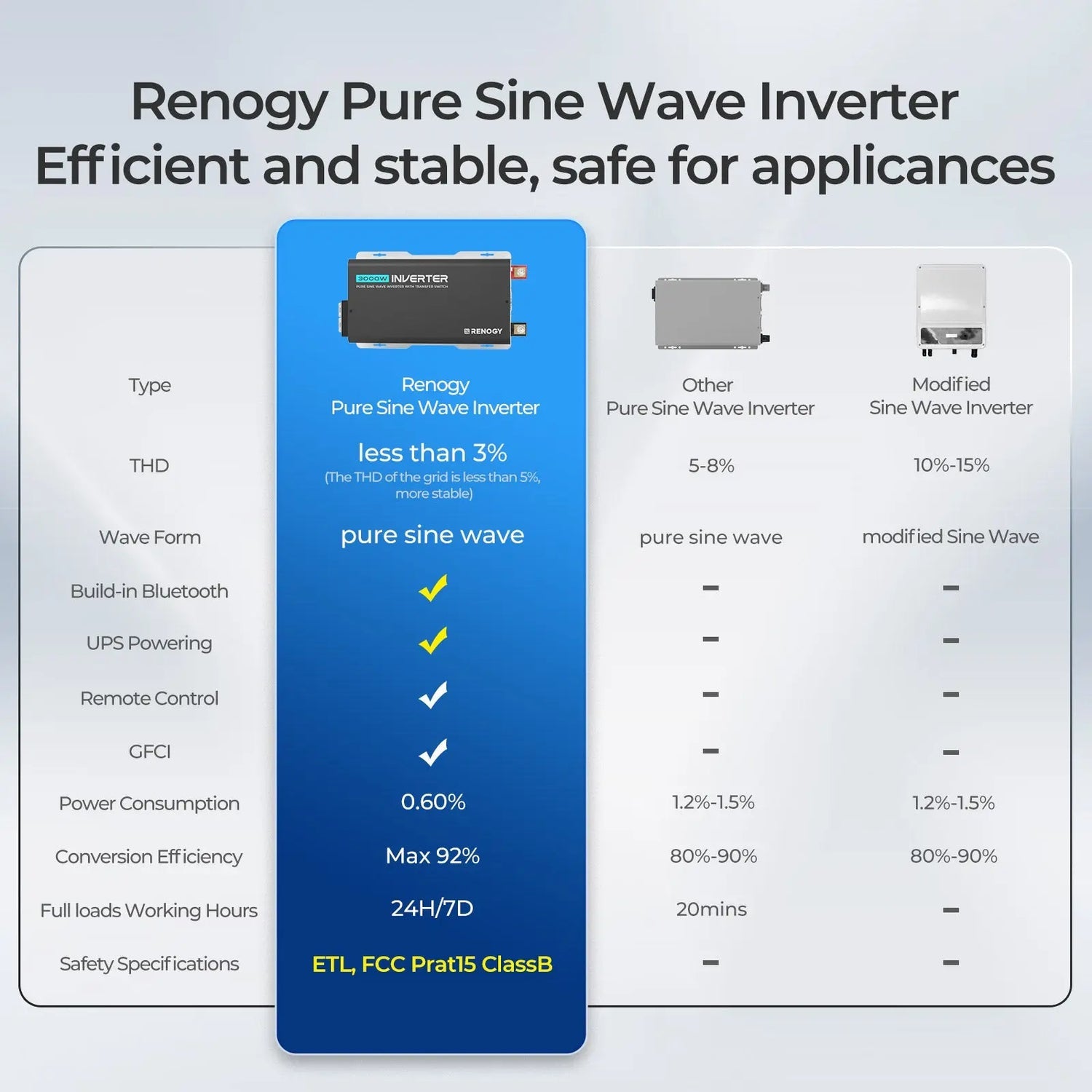

What is the benefit of a Pure Sine Wave inverter?
Pure Sine Wave inverters provide high-quality electricity identical to the power you get from a wall outlet at home. This is essential for sensitive electronics like laptops, CPAP machines, and high-end audio equipment to prevent damage or interference.
How does the UPS function work?

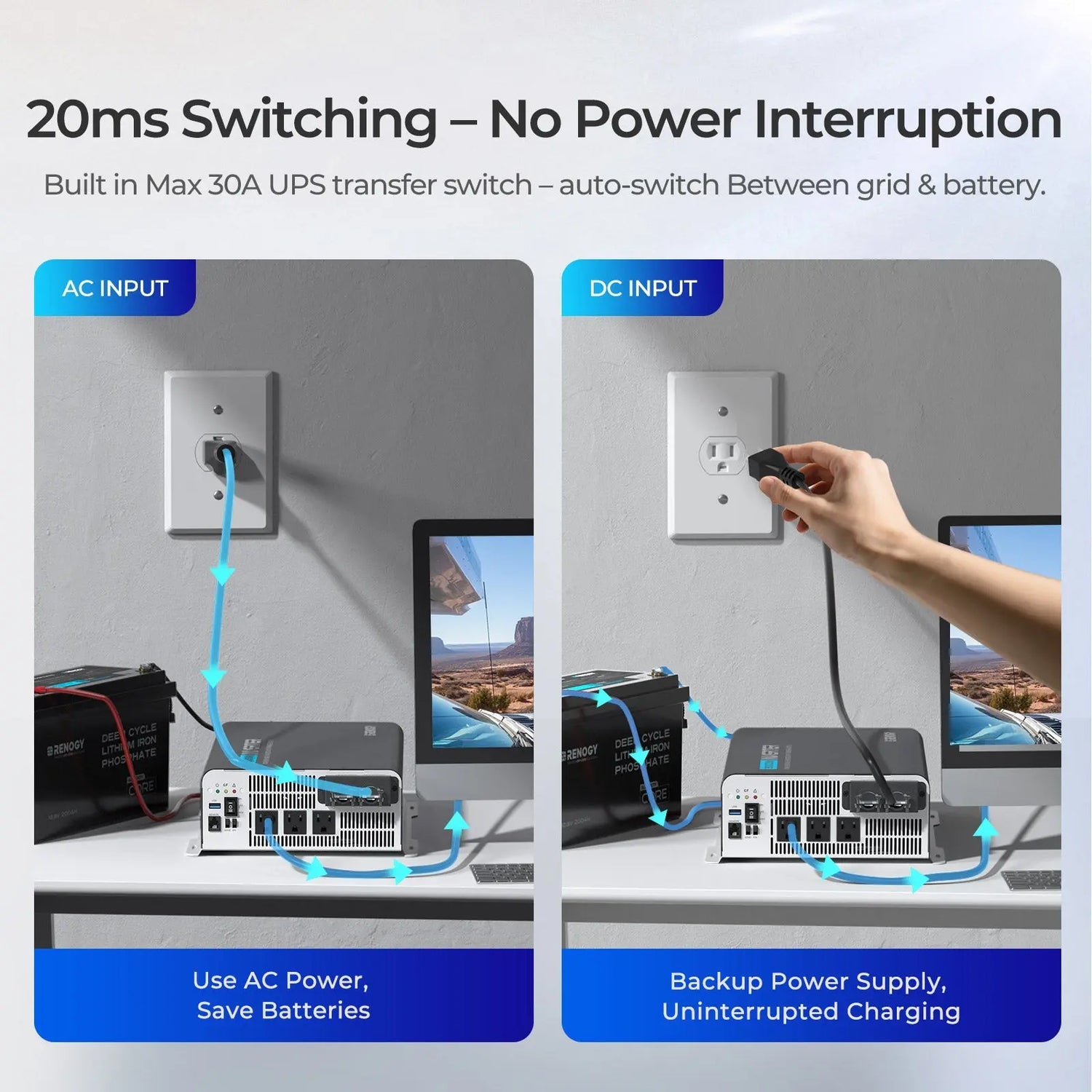

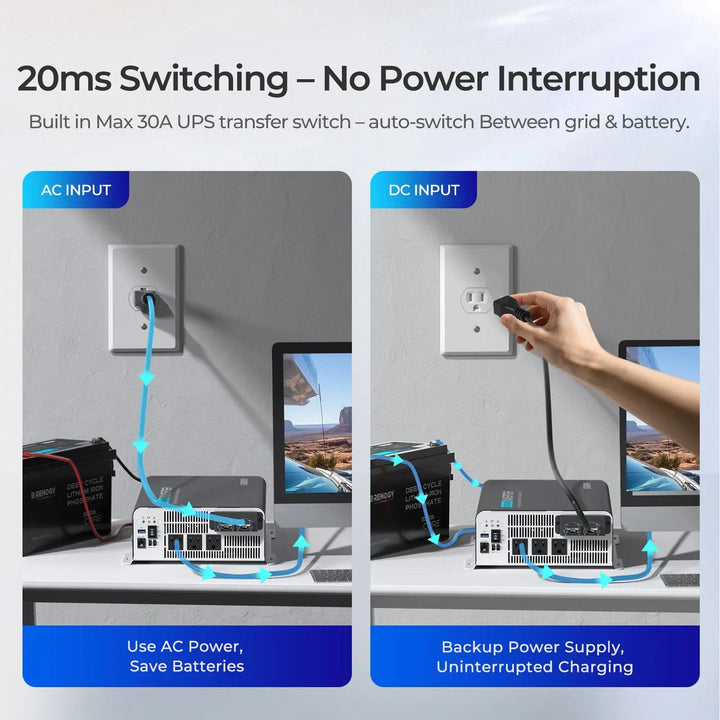

When connected to shore power (AC), the inverter passes that power through to your appliances. If the shore power is cut or fails, the inverter automatically switches to battery power in less than 10 milliseconds, keeping your electronics running without a reset.
Can I monitor this inverter on my phone?
Yes. This model has built-in Bluetooth, allowing you to sync it with the Renogy DC Home app to monitor input voltage, output wattage, and temperature in real-time.
