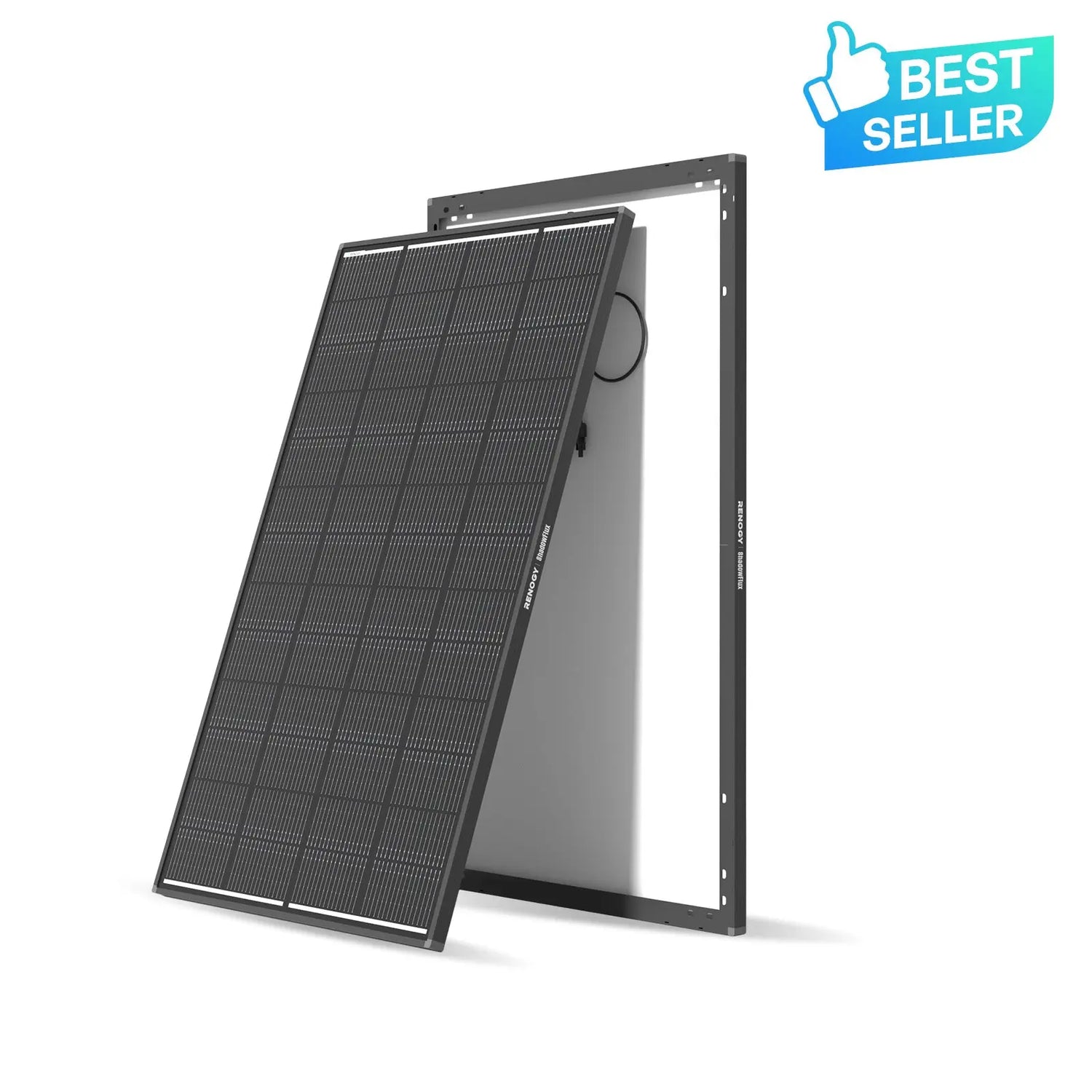

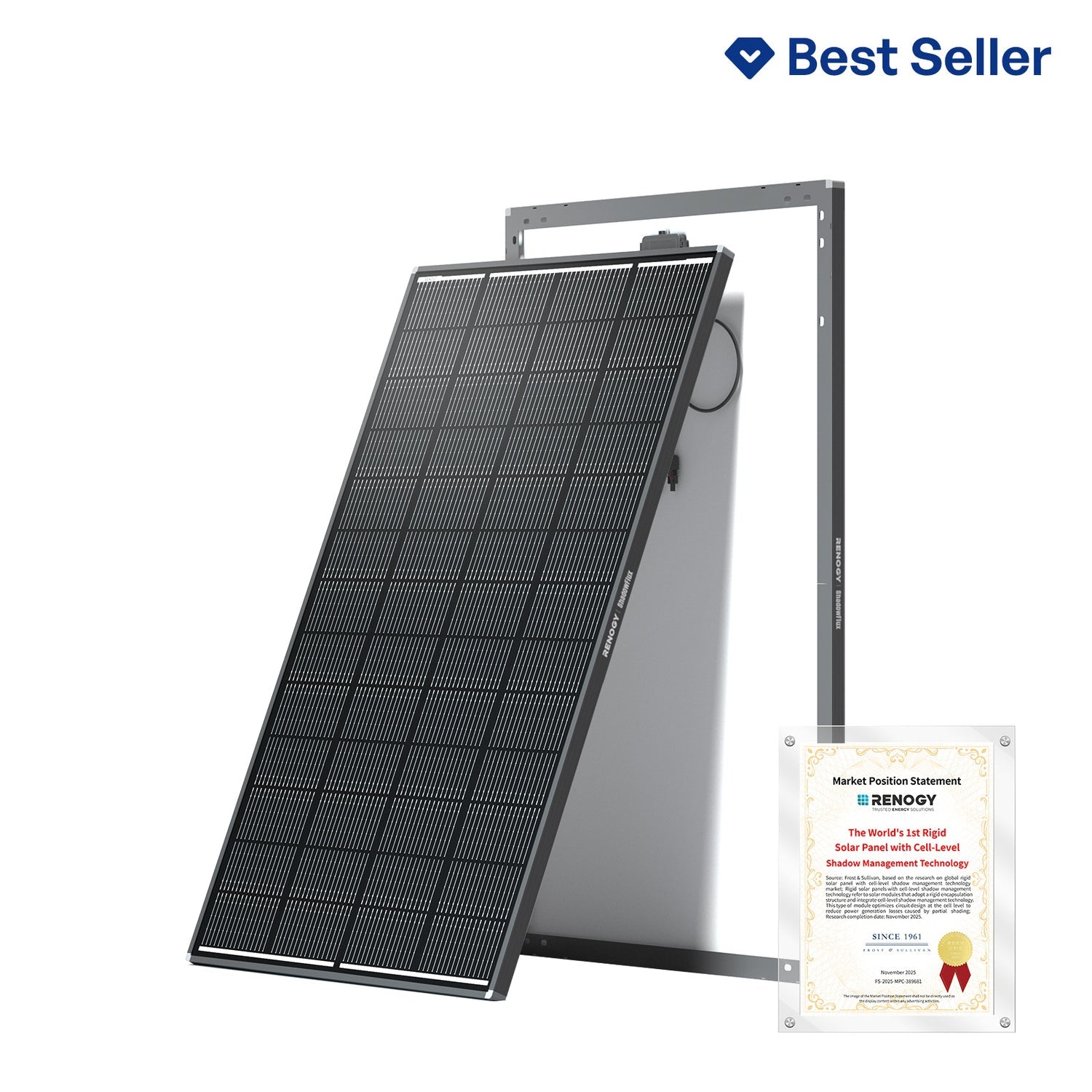

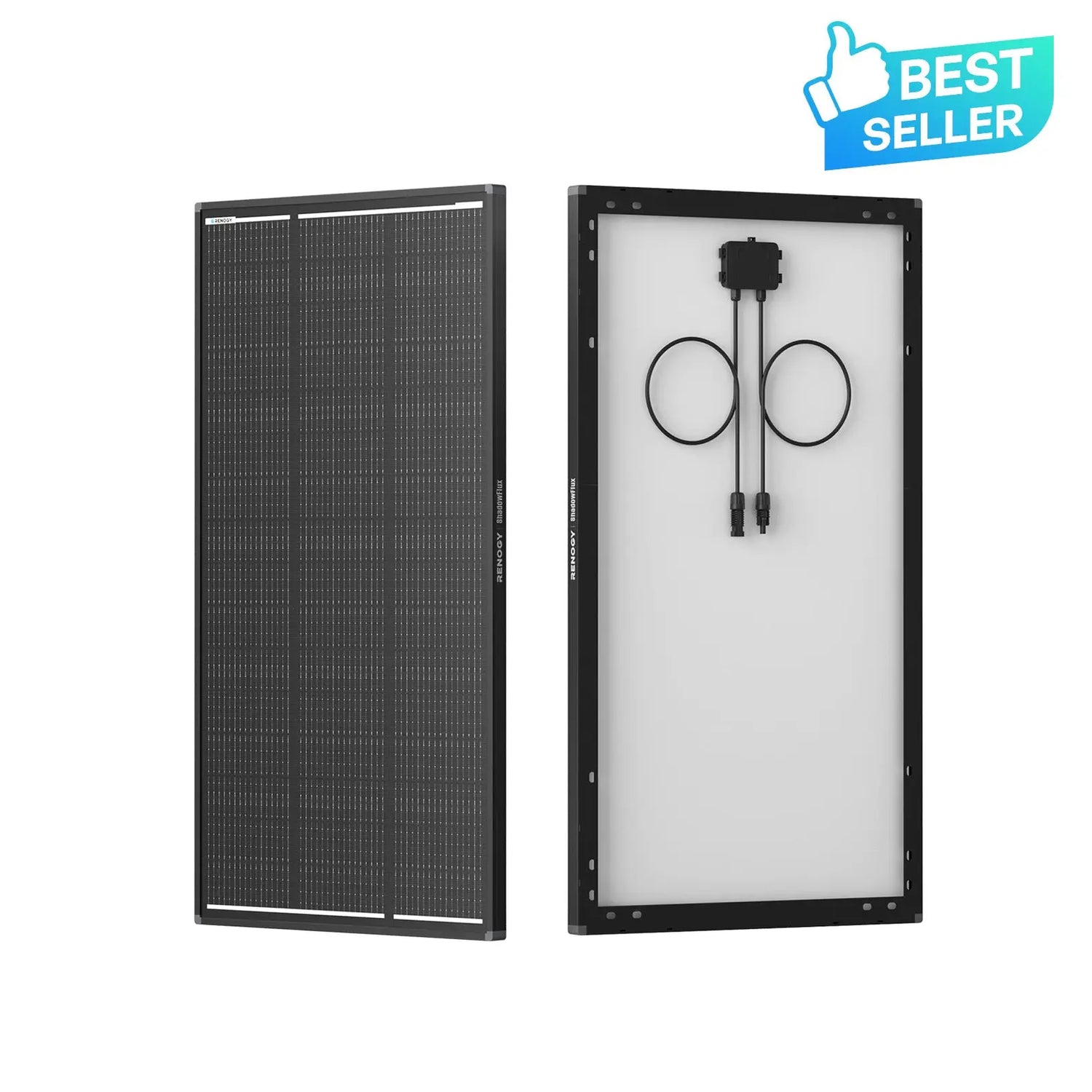

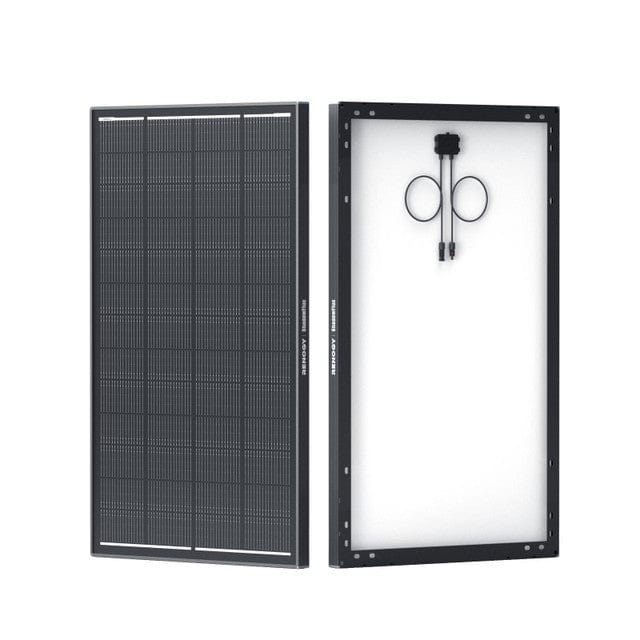

Renogy 200W ShadowFlux Anti-Shading N-Type Solar Panel
The Renogy 200W ShadowFlux Anti-Shading N-Type Solar Panel is an innovative high-performance solar panel engineered to maximize energy production even in partially shaded conditions. Featuring Renogy's ShadowFlux™ anti-shading technology, advanced N-Type 16BB solar cells, and an impressive 25% conversion efficiency, this panel delivers superior power generation, durability, and reliability for RVs, off-grid cabins, residential solar systems, and commercial installations. Its ultra-compact design allows for higher power density, while the IP67-rated construction ensures dependable operation in harsh outdoor environments.
Features
Features

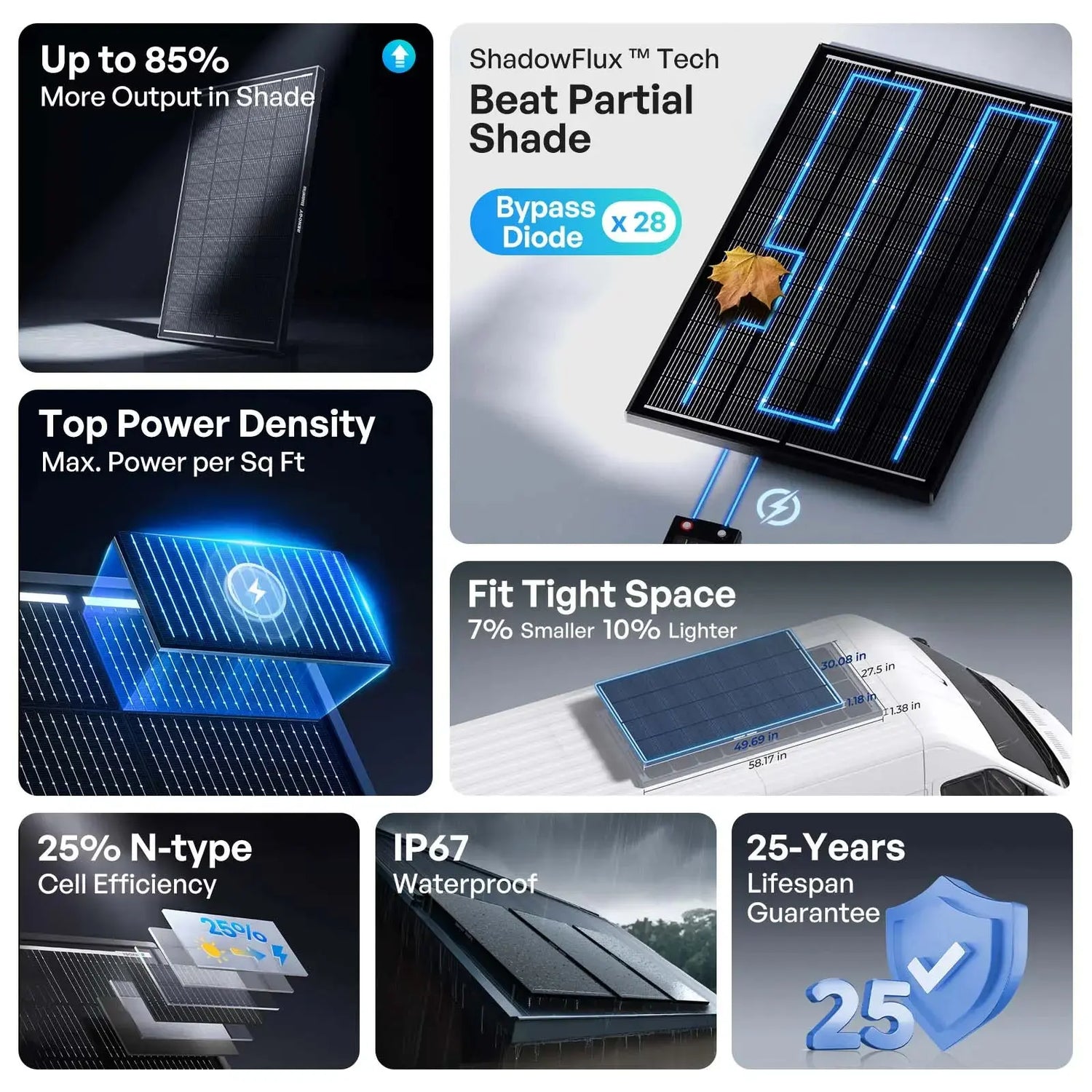

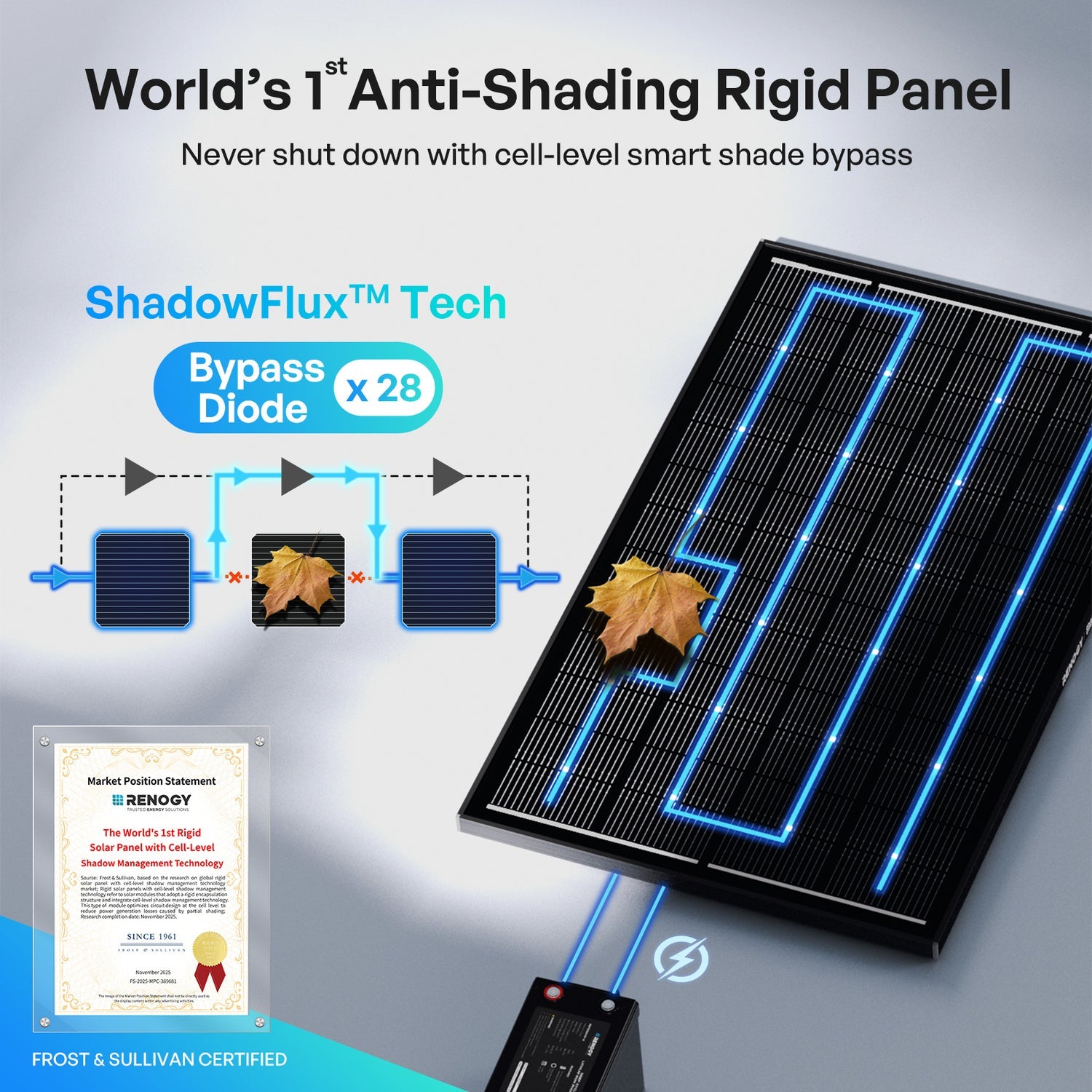

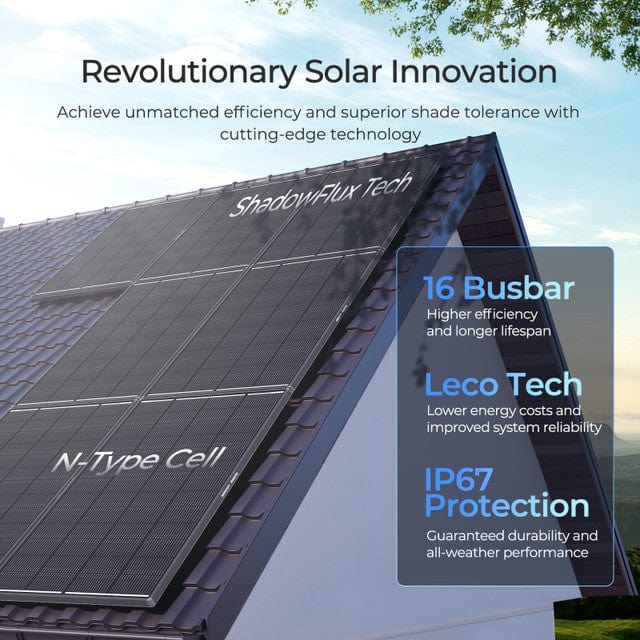

ShadowFlux™ Anti-Shading Technology - Innovative ShadowFlux™ technology delivers up to 85% more energy output under partial shading, allowing the panel to continue generating power when sections are shaded by trees, vents, antennas, or nearby obstacles.

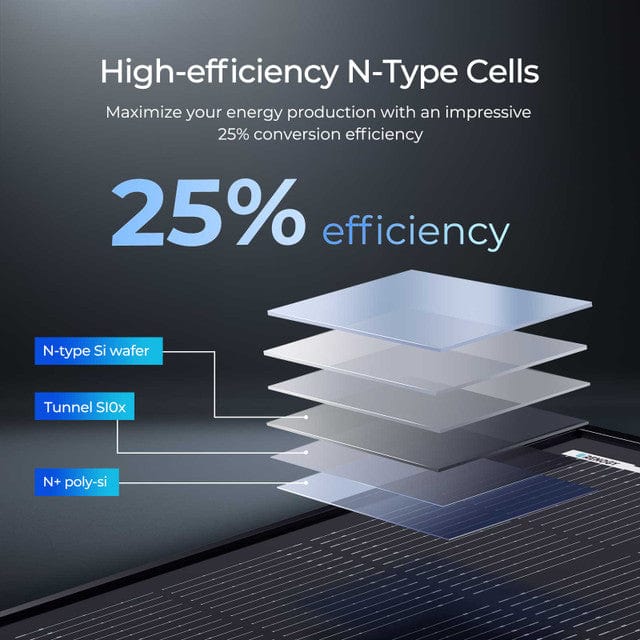

25% High Conversion Efficiency - Advanced N-Type monocrystalline solar cells with 16BB technology achieve up to 25% conversion efficiency, providing superior energy production in both high-temperature and low-light conditions.
Ultra-Compact High Power Density - The compact design maximizes wattage while minimizing roof space requirements, making it ideal for RVs, camper vans, boats, and installations where mounting space is limited.

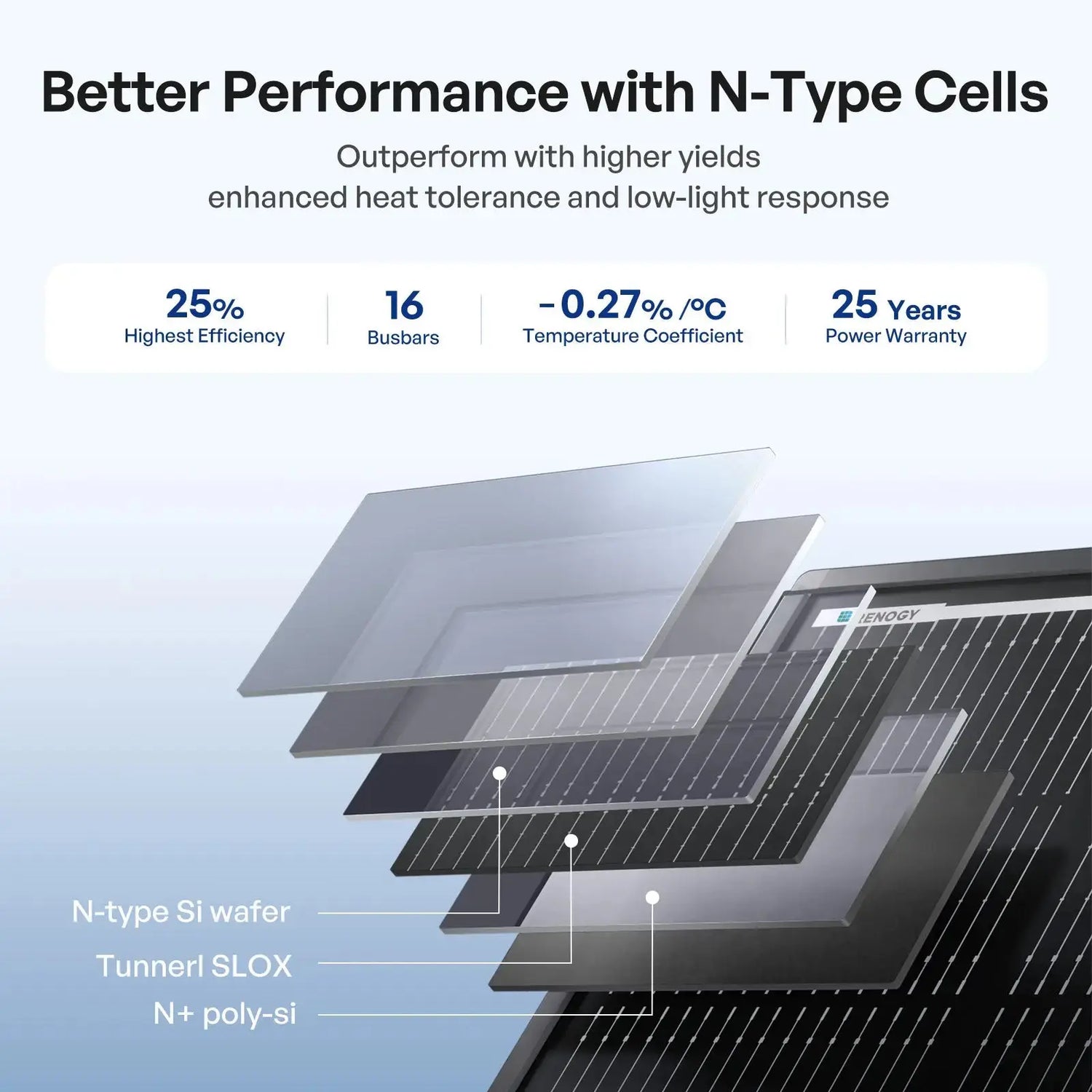

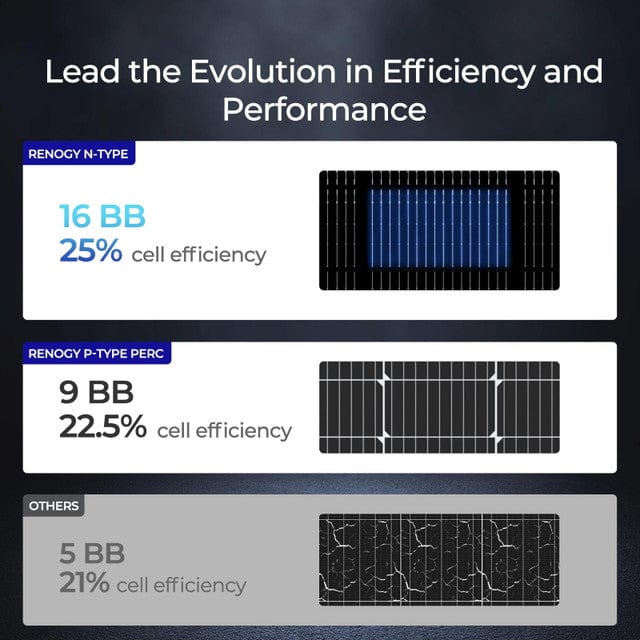

Advanced 16BB N-Type Cell Technology - High-efficiency 16 busbar (16BB) N-Type cells improve current collection, reduce resistance losses, and enhance long-term performance compared to conventional solar cells.

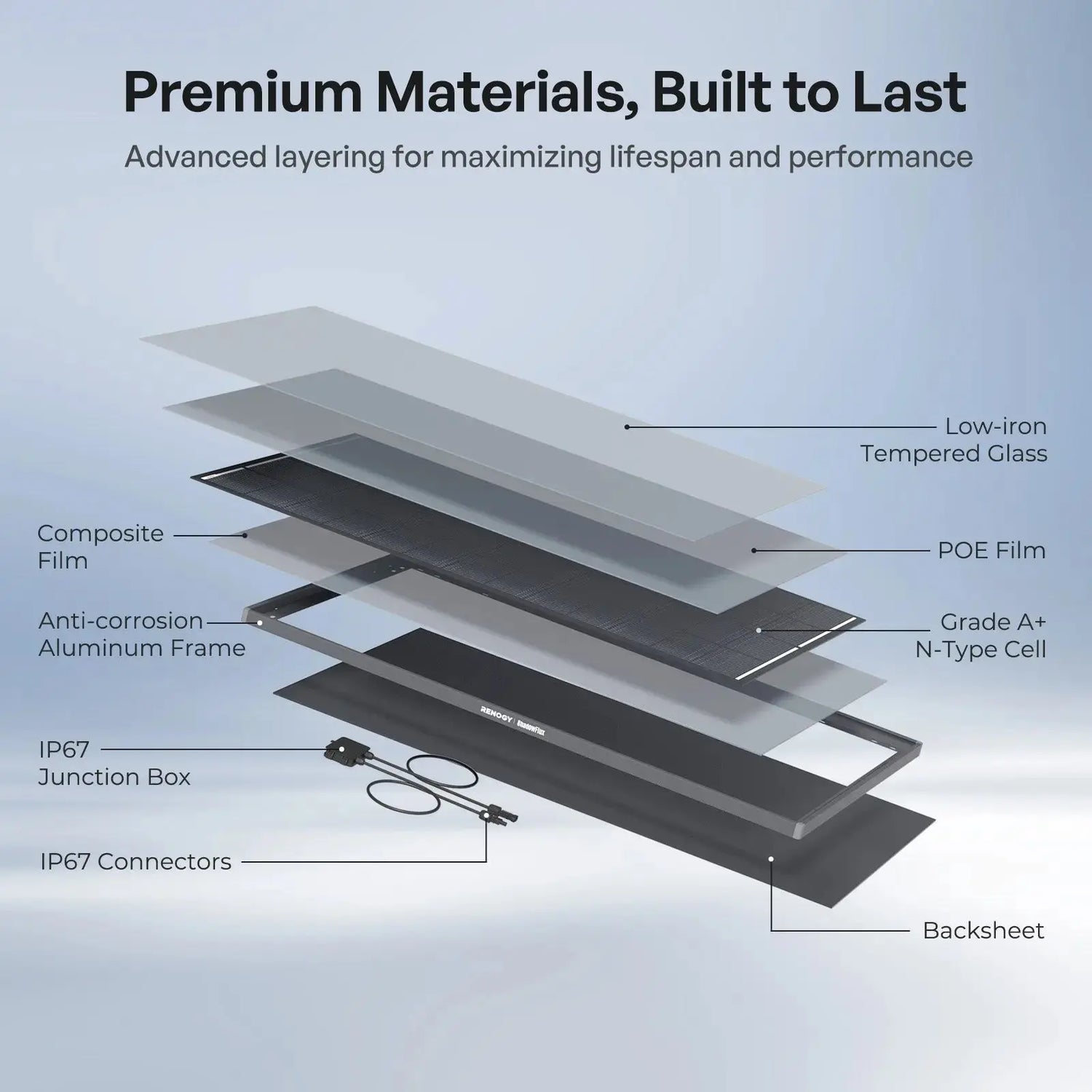

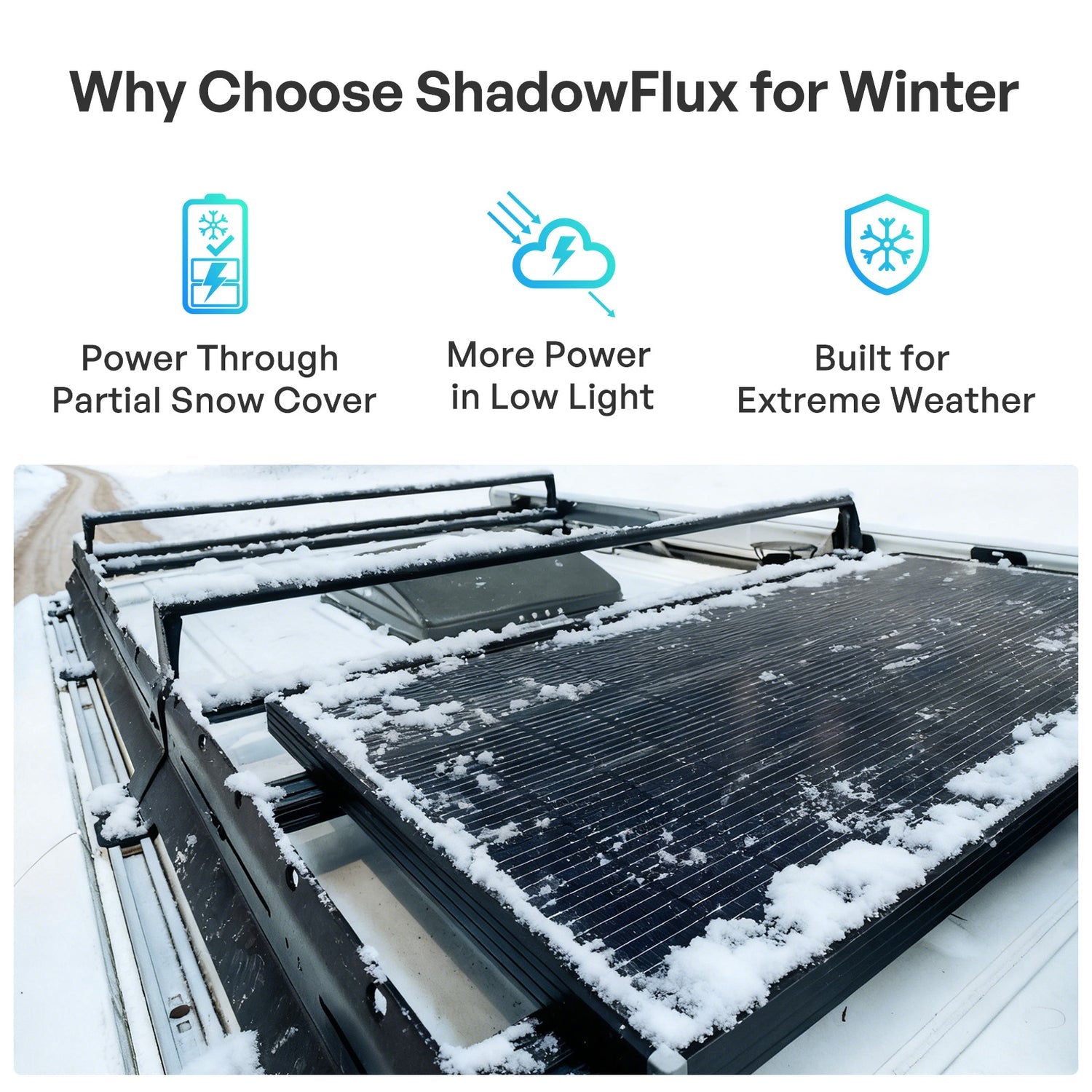

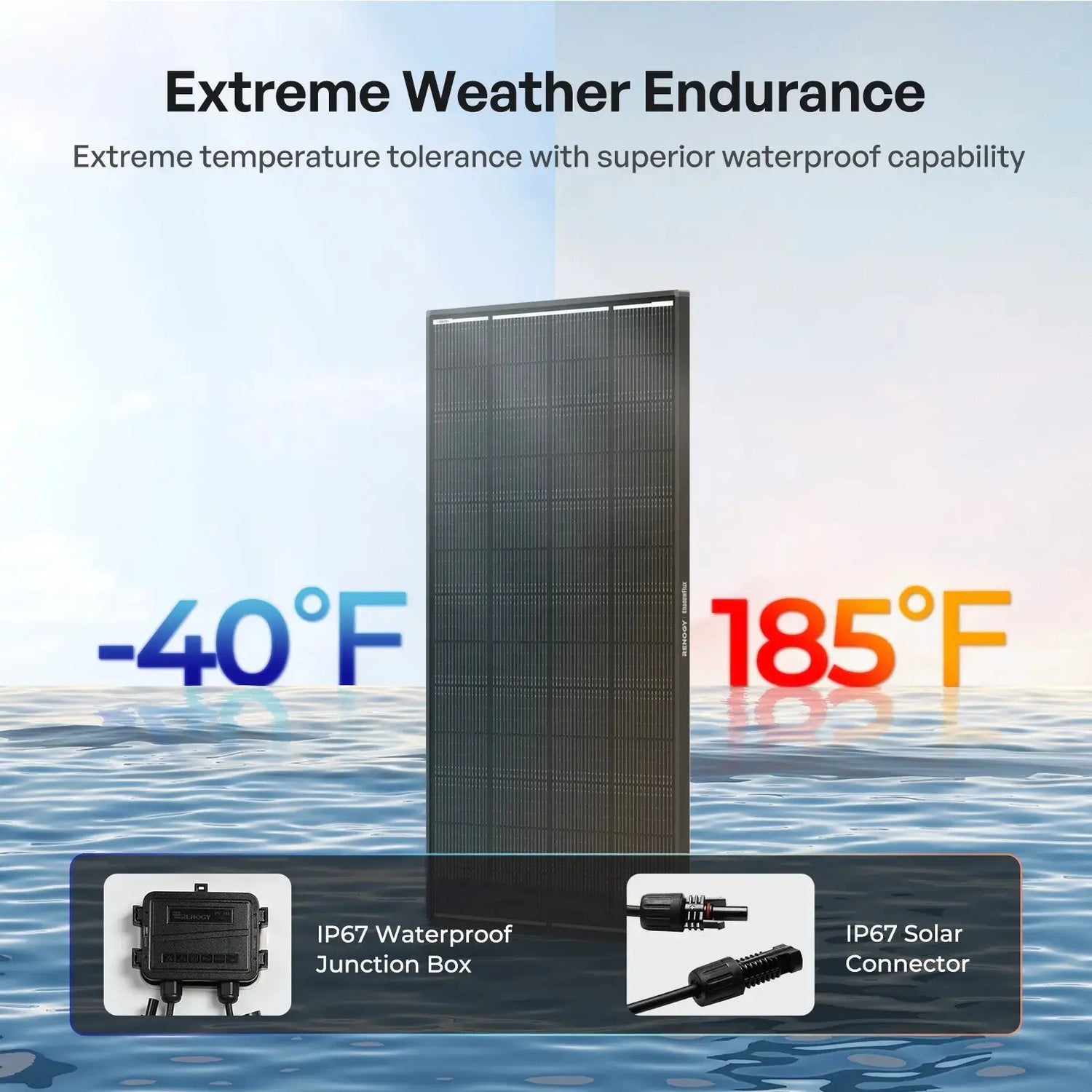

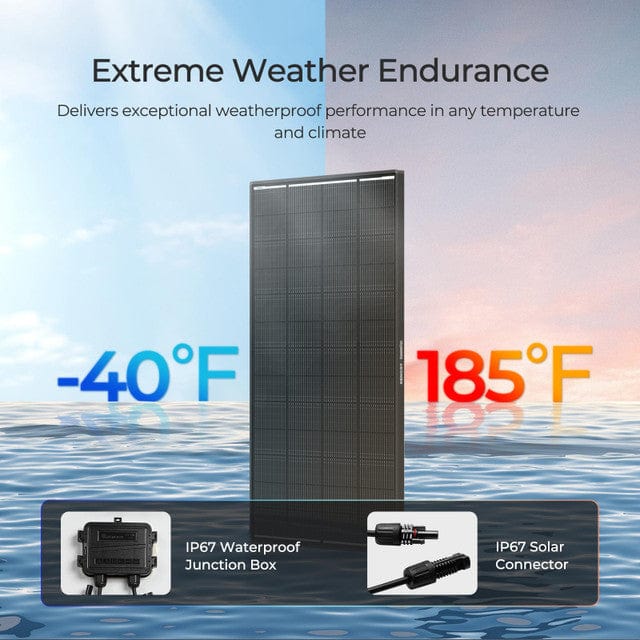

Built for Extreme Weather - The IP67 waterproof construction is designed to withstand rain, snow, dust, vibration, and harsh outdoor environments for dependable year-round operation.
Compatible with Standard MPPT Controllers - Designed for 12V and 24V battery systems, the panel works seamlessly with standard MPPT charge controllers for easy system integration.
Reliable Long-Term Solar Performance - Premium construction and advanced cell technology provide excellent durability, stable energy production, and long service life for both residential and mobile solar applications.
Applications
RV and motorhome solar systems – Maximizes energy production even when roof accessories create partial shading.
Camper van conversions – Provides high-output solar charging while conserving valuable roof space.
Marine and boating applications – Delivers dependable solar power in demanding marine environments.
Off-grid cabins and tiny homes – Supplies efficient renewable energy for remote living.

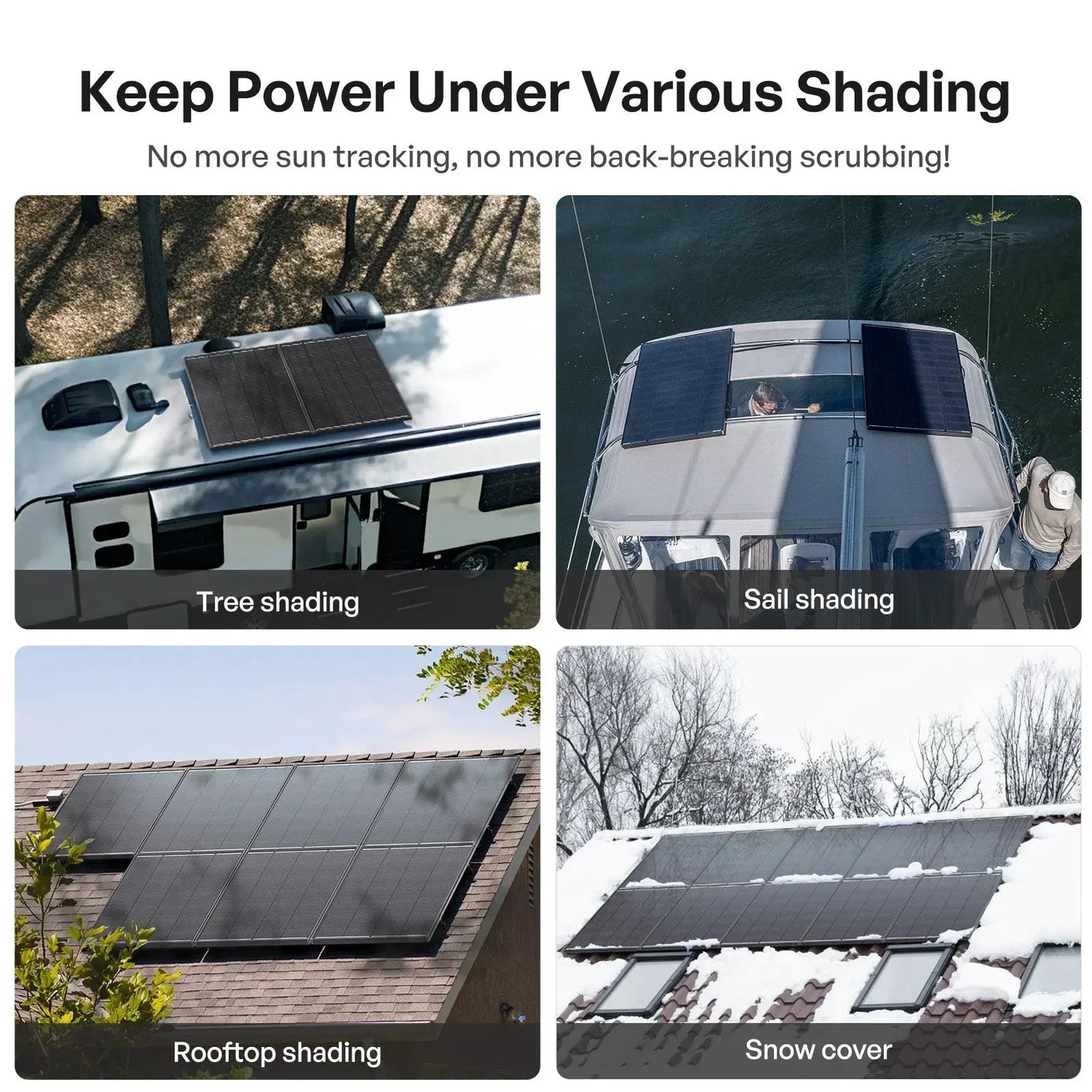

Residential rooftop solar systems – Improves energy production on roofs affected by chimneys, vents, or nearby trees.
Backup battery charging systems – Keeps battery banks charged during utility outages.
Agricultural solar installations – Powers remote pumps, fencing, and monitoring equipment.
Telecommunications equipment – Supplies reliable solar energy for communication systems.
Portable off-grid power systems – Excellent for mobile renewable energy projects.
Commercial solar installations – Increases energy harvest in installations where partial shading is unavoidable.
What's Included
Everything you need is included with your product.
1 x Renogy ShadowFlux™ N-Type Anti-Shading 200W Solar Panel
User Manual
Specifications
Specifications
Max Power at STC: 200W
Open Circuit Voltage: 36.5V
Short Circuit Current: 6.86A
Optimum Operating Voltage: 31.3V
Optimum Operating Current: 6.38A
Maximum System Voltage: 1000VDC
Maximum Series Fuse Rating: 15A
Module Efficiency: 20.7%
Operating Temperature: -40°F~185°F / -40℃~85℃

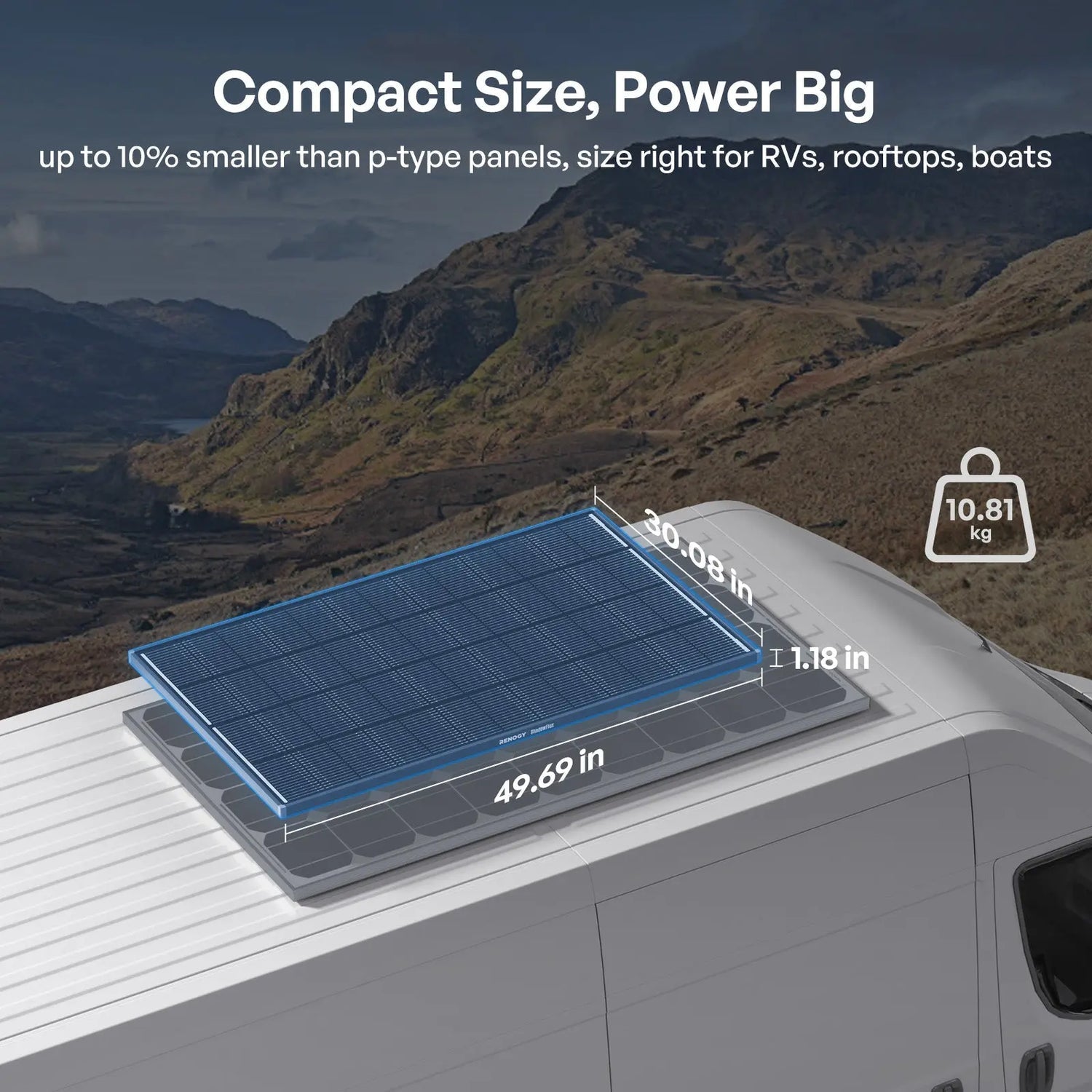

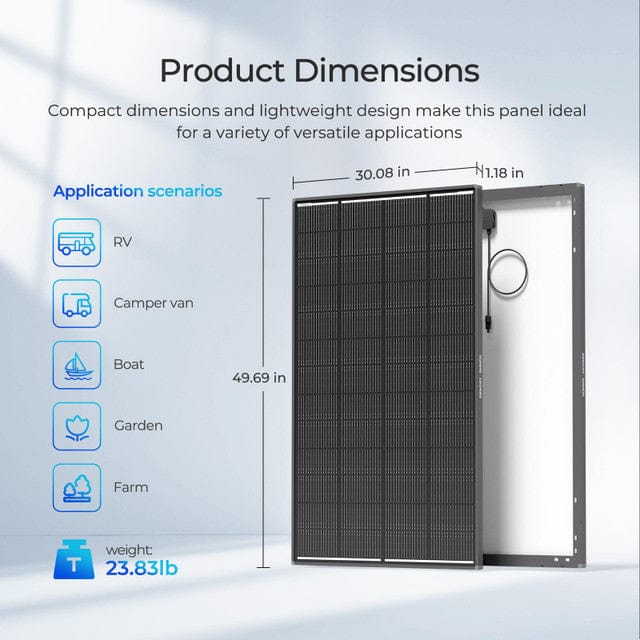

Dimensions: 49.69” x 30.08” x 1.18”
Weight: 10.81kg/23.83lb
Material and Workmanship Warranty: 5 Years
Performance Warranty: 25 Years 80% Output Warranty
CE: Yes
Manufactured in a Certified ISO 9001 Facility: Yes
Rohs: Yes
FAQs
Frequently Asked Questions
What is ShadowFlux™ anti-shading technology?

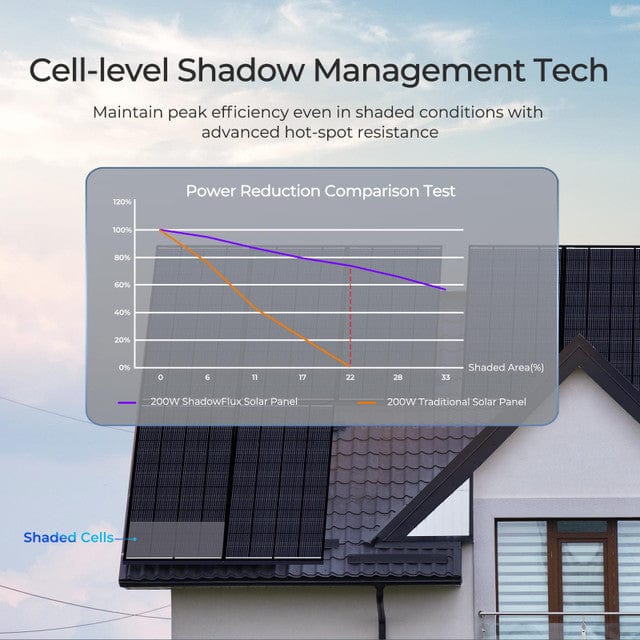

ShadowFlux™ technology allows the solar panel to continue producing significantly more power under partial shading, delivering up to 85% higher output than conventional panels in shaded conditions.
What are the benefits of N-Type 16BB solar cells?
N-Type 16BB cells offer higher conversion efficiency, lower degradation, improved heat tolerance, and better low-light performance compared to traditional P-Type solar cells.
Can this panel be used with a 12V battery system?
Yes. The panel is designed for both 12V and 24V battery systems when paired with a compatible MPPT charge controller.
Is the panel waterproof?
Yes. It features an IP67 waterproof rating, making it suitable for outdoor installations exposed to rain, snow, dust, and harsh weather.
Why is this panel more compact than traditional 200W panels?
Its high-efficiency N-Type cells produce more power in a smaller footprint, allowing users to maximize energy generation when roof space is limited.
Is this panel suitable for RV and marine installations?
Absolutely. Its compact size, anti-shading performance, weather-resistant construction, and high efficiency make it an excellent choice for RVs, boats, camper vans, and other mobile solar systems.
