Outequipro 12V RV Air Conditioner – 10,000 BTU

Outequipro 12V RV Air Conditioner – 10,000 BTU

VERSATILE COMFORT ON THE GO

Tailored for RVs, campers, trucks, and vans, this air conditioner delivers both cooling and heating, designed for use while driving or parked.

HIGH COOLING & HEATING CAPACITY

Boasts a 10,000 BTU cooling and 4,500 BTU heating capacity, quickly adjusting your vehicle's temperature for immediate comfort.

INVERTER TECHNOLOGY FOR OFF-GRID EFFICIENCY

Built with inverter technology, the air conditioner adjusts compressor speed based on demand, maintaining steady temperature while minimizing power draw—ideal for saving battery life during off-grid use.

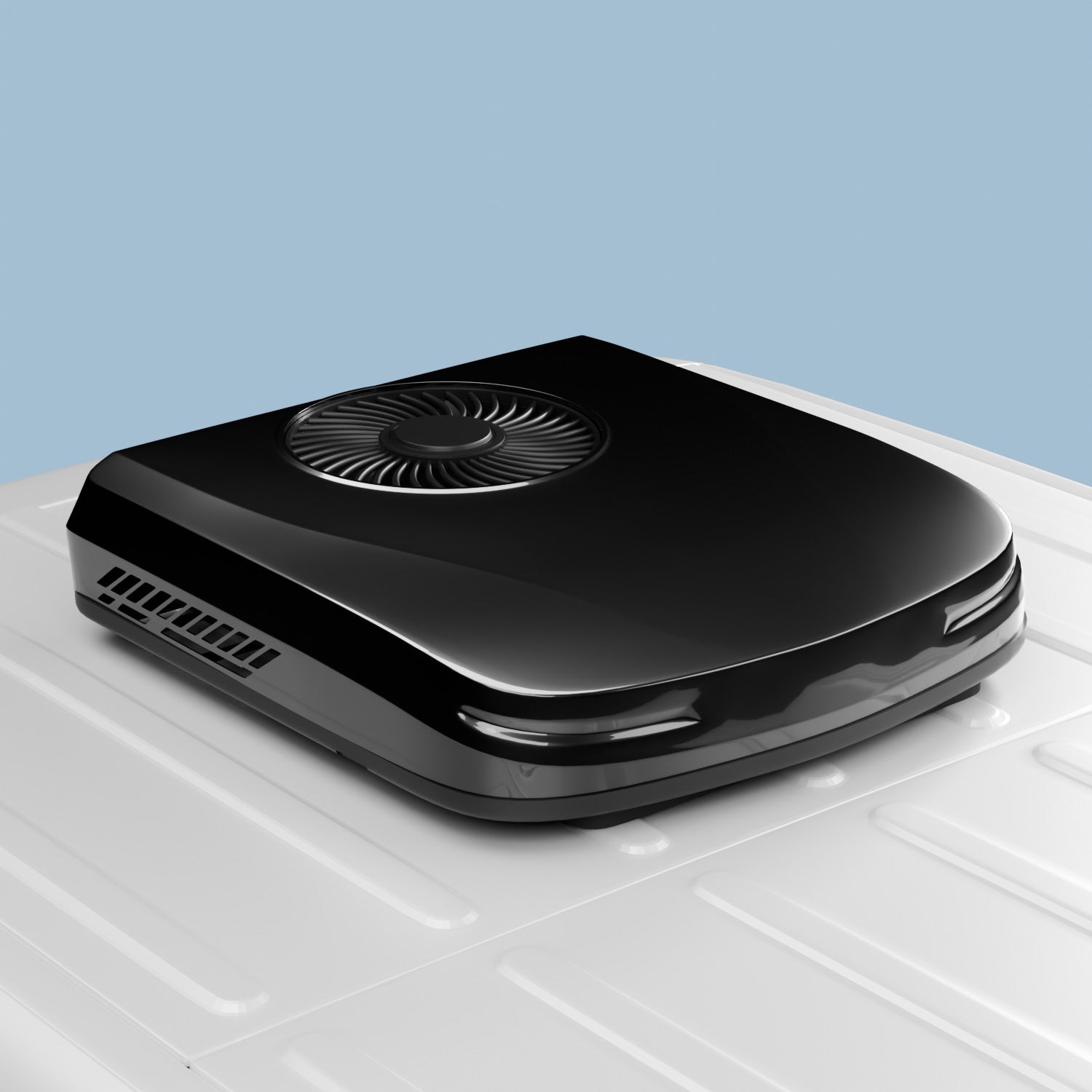

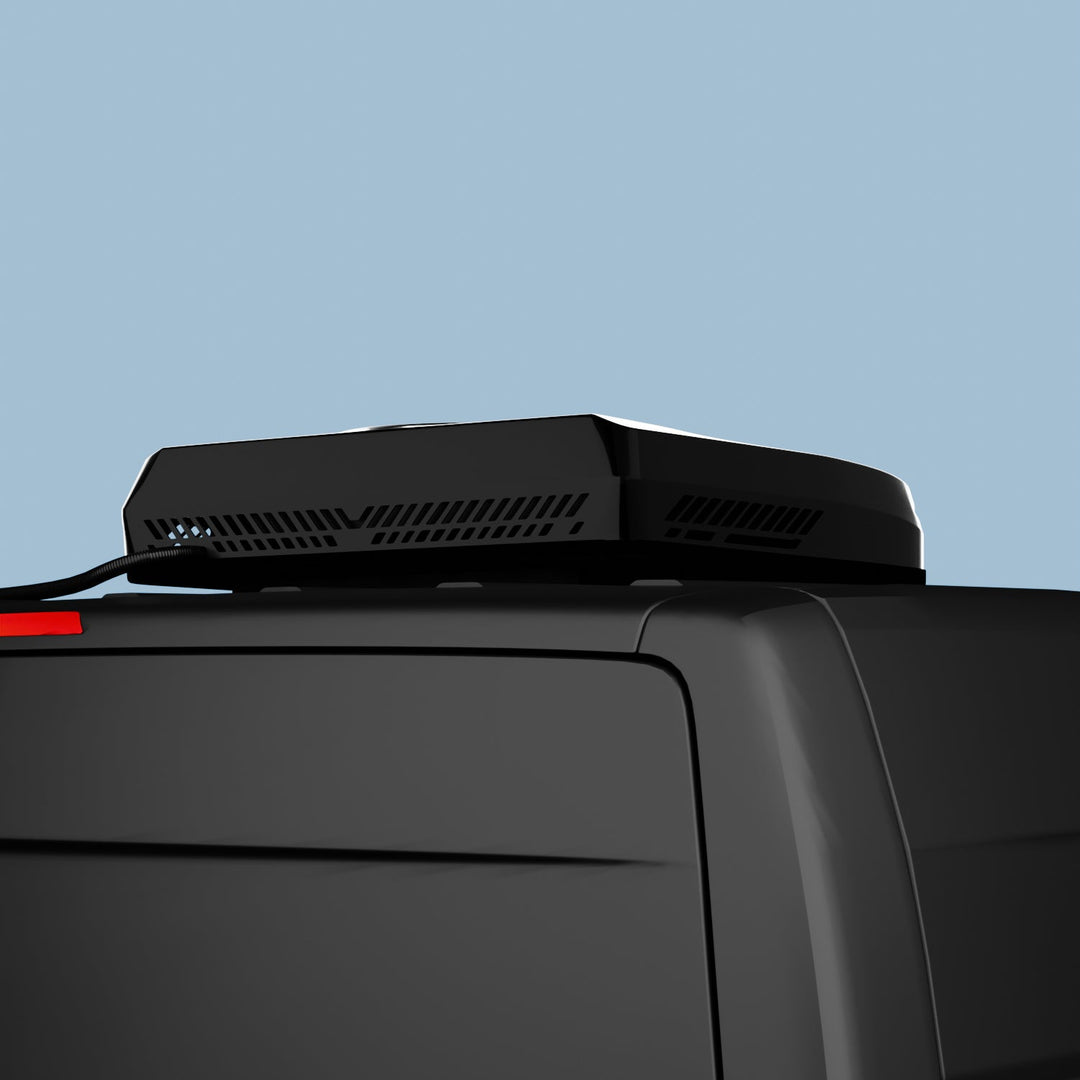

LOW-PROFILE LIGHTWEIGHT BUILD

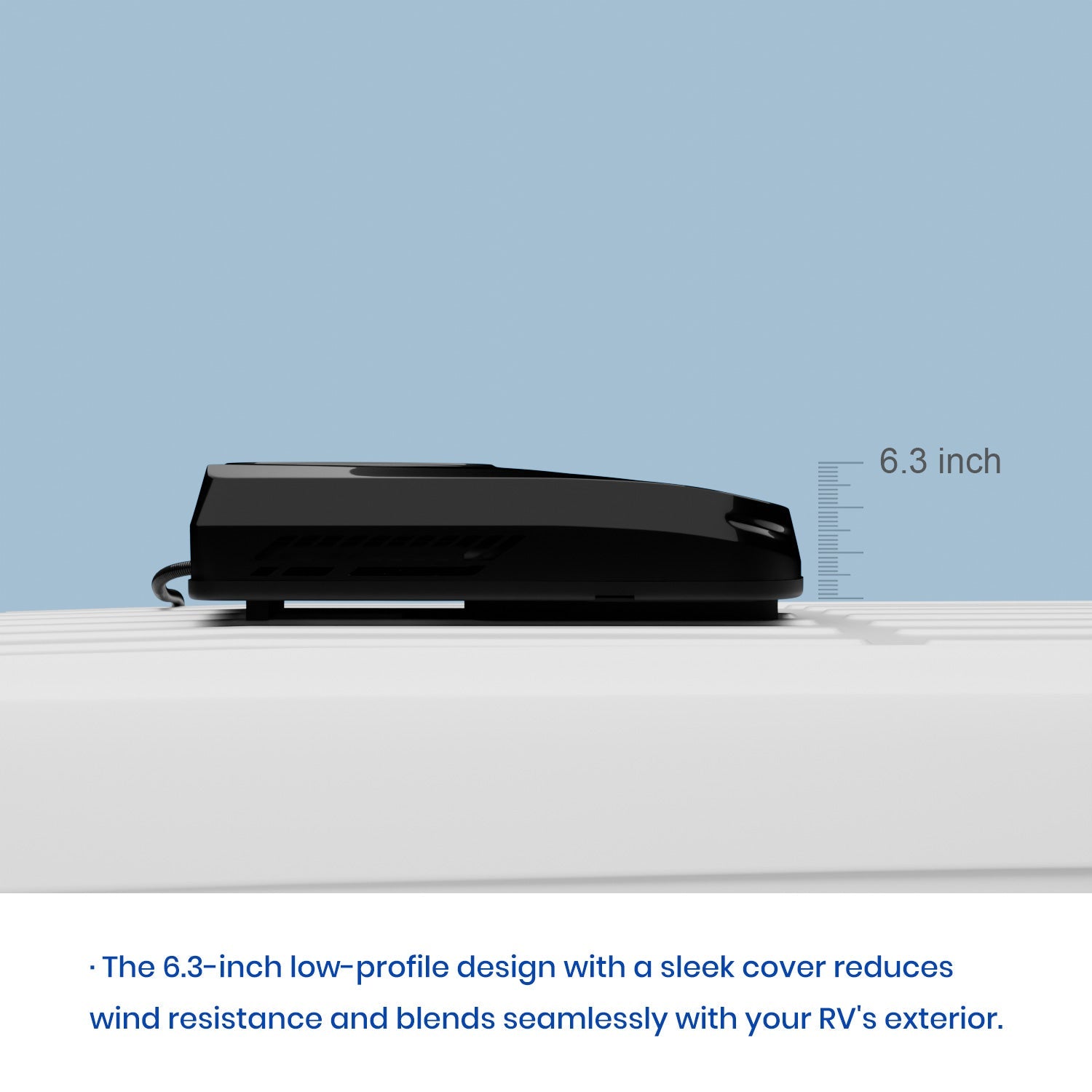

This rooftop air conditioner weighs just 45lb and stands only 6.3 inches high, reducing vehicle load and wind resistance. This low-profile, lightweight design protects your roof structure, boosts fuel efficiency, and extends your cruising range—all with a simple, streamlined installation.

ADVANCED CLIMATE CONTROL

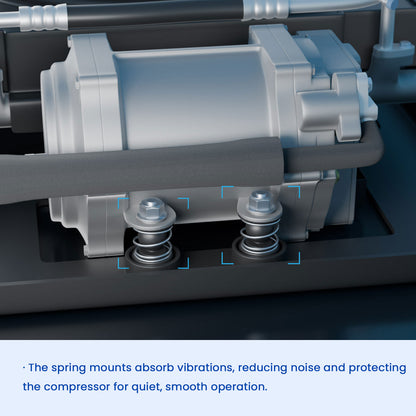

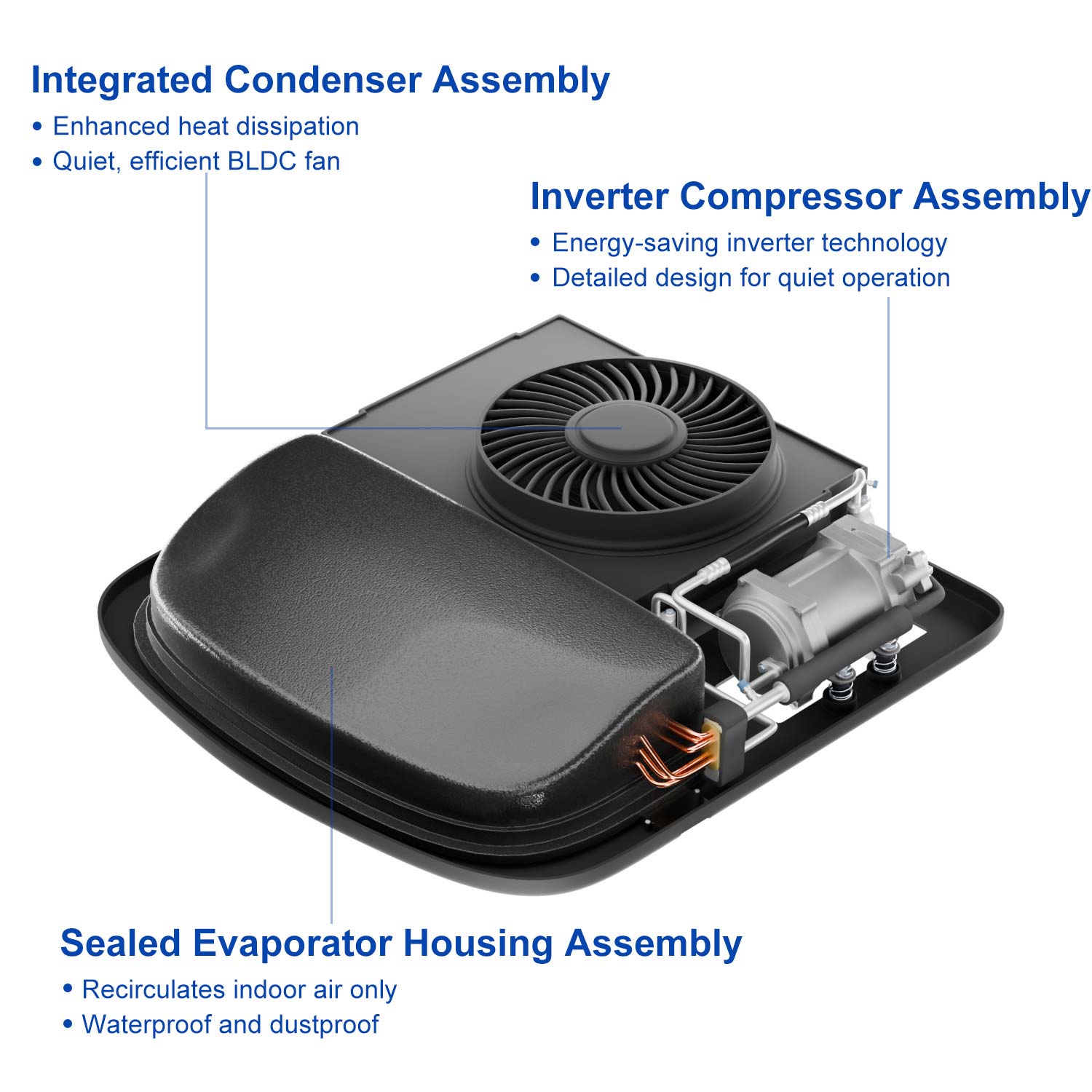

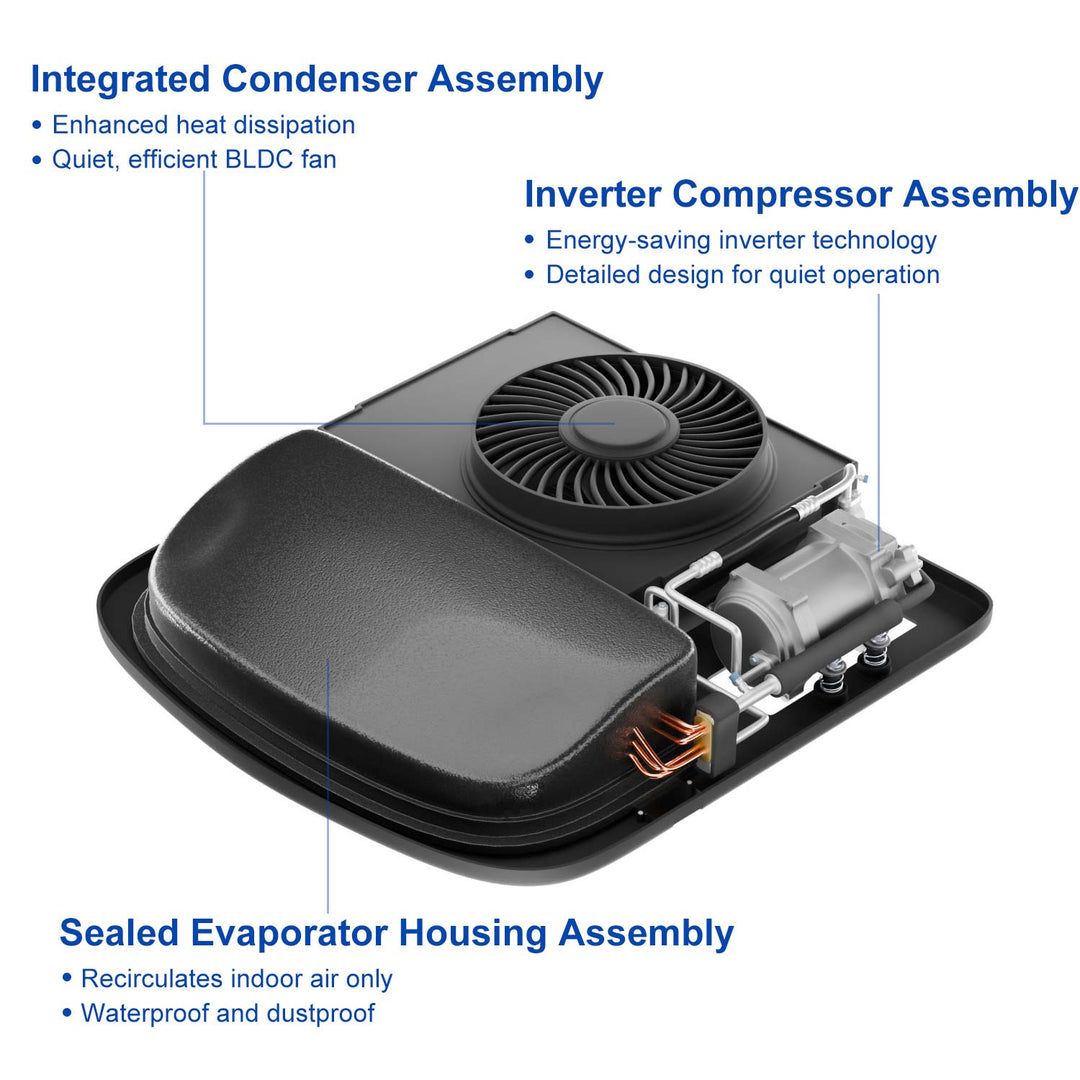

Features a 12V DC Scroll Compressor and a corrosion-resistant condenser, coupled with quiet, efficient fans and a PTC heater for energy-efficient, consistent climate management.

RELIABLE BATTERY PROTECTION

Equipped with comprehensive protection against overtemperature, undervoltage, overvoltage, and overload, including an undervoltage feature that prevents excessive battery drain.

Features

Product Details

• Dual Cooling/Heating: 10,000 BTU cooling, 4,500 BTU heating for all-season comfort.
• Pre-Filled for Convenience: Comes pre-filled with refrigerant, ready for immediate use upon installation.
• Inverter Technology: Variable-speed scroll compressor adjusts cooling power as needed, reducing battery usage and maximizing off-grid efficiency.
• Low-Profile: Outdoor unit stands only 6.3 inches high, reducing wind resistance and maintaining a sleek roofline.
• Smart Heating: Energy-saving PTC heater for consistent warmth.
• Fast Climate Control: Quickly adjusts vehicle temperatures for instant comfort.

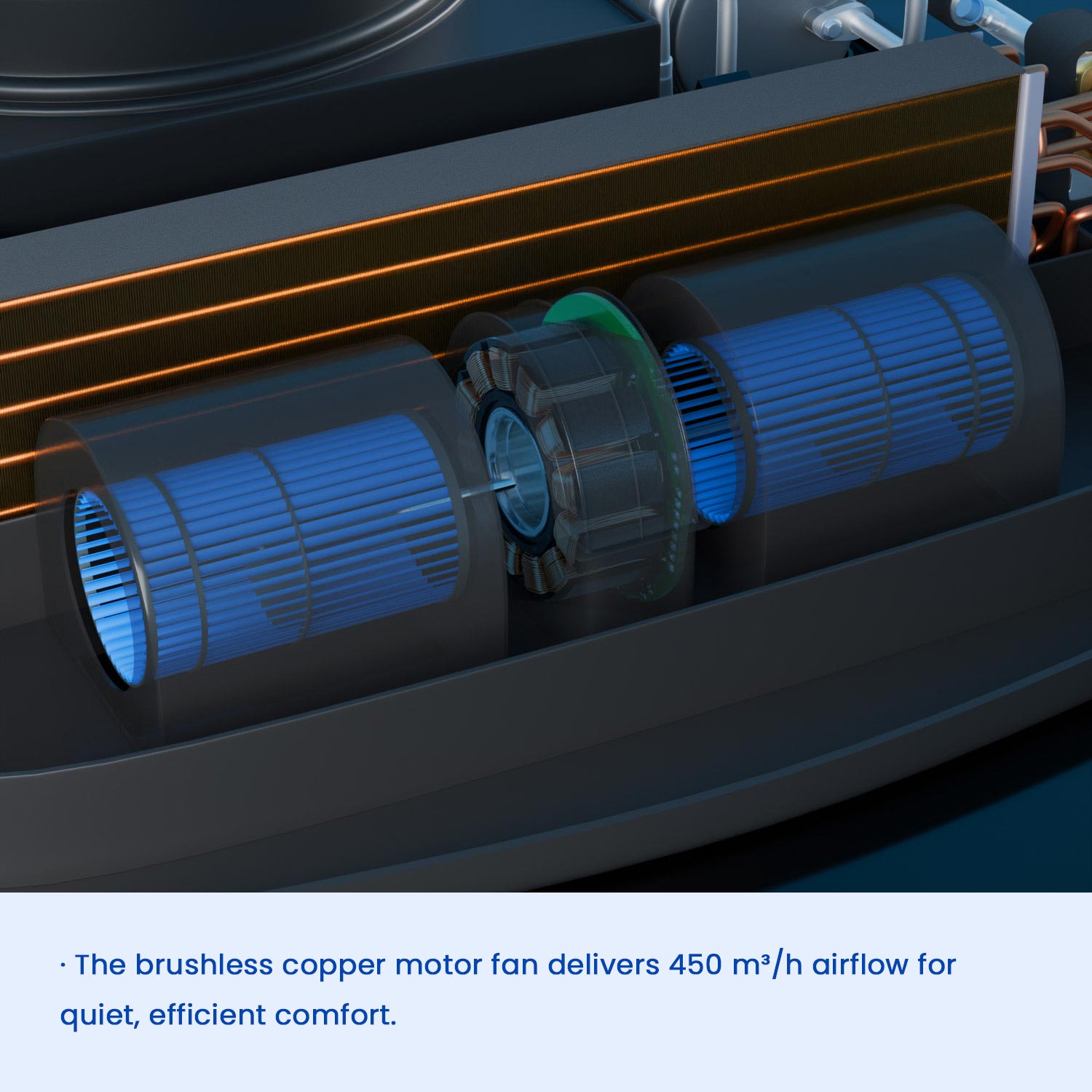

• Quiet Operation: Low-noise fans ensure a peaceful environment.
• Battery Protection: Guards against overtemperature, undervoltage, and overload.
• Lightweight: The ultralight 45lb design minimizes vehicle weight for better fuel economy—all without sacrificing high performance.
• Durable Construction: Corrosion-resistant condenser for longevity.
• Eco-Friendly: Uses sustainable materials and technology.
• Easy Install: Designed for straightforward setup in various vehicles.

Rapid Cooling for Immediate Comfort

• Cool your RV in just 15 minutes with our powerful 10,000 BTU air conditioner.
• Fast temperature adjustments and a 450 m³/h air volume ensure comfort in any season.

Safe Heating for Cozy Comfort

• The 4,500 BTU PTC heater provides supplementary warmth, ideal for mild temperatures and small spaces, but is not suitable as a primary heat source in extreme cold or very large spaces.

Effortless Cooling Anywhere

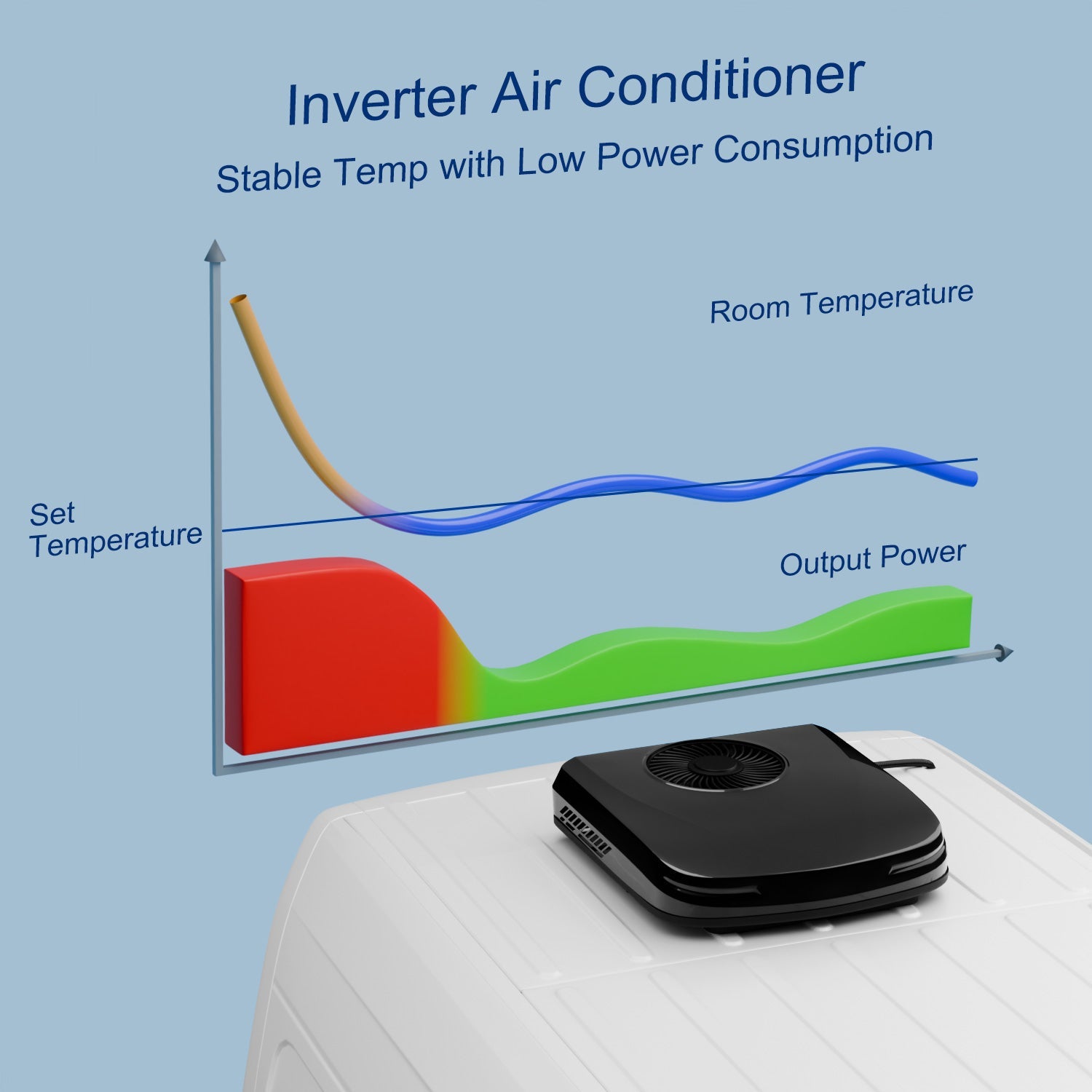

• Inverter technology adjusts power consumption based on demand, extending battery life and ensuring efficient, consistent cooling.
• Get up to 8-9 hours in max cooling mode with a 12V 480Ah battery and 10-11 hours with a 12V 600Ah battery when parked—ideal for off-grid adventures.

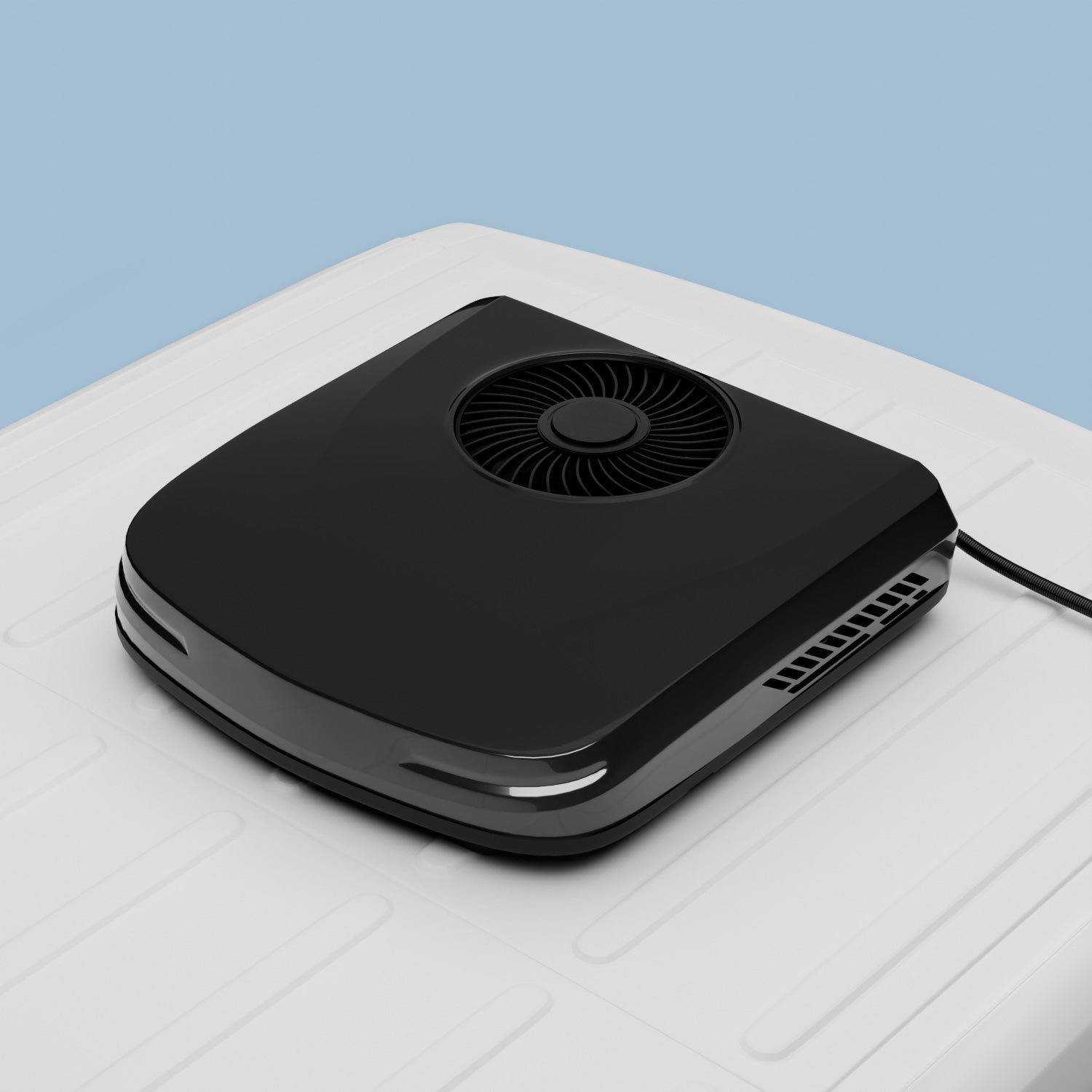

Lightweight & Low-Profile Design

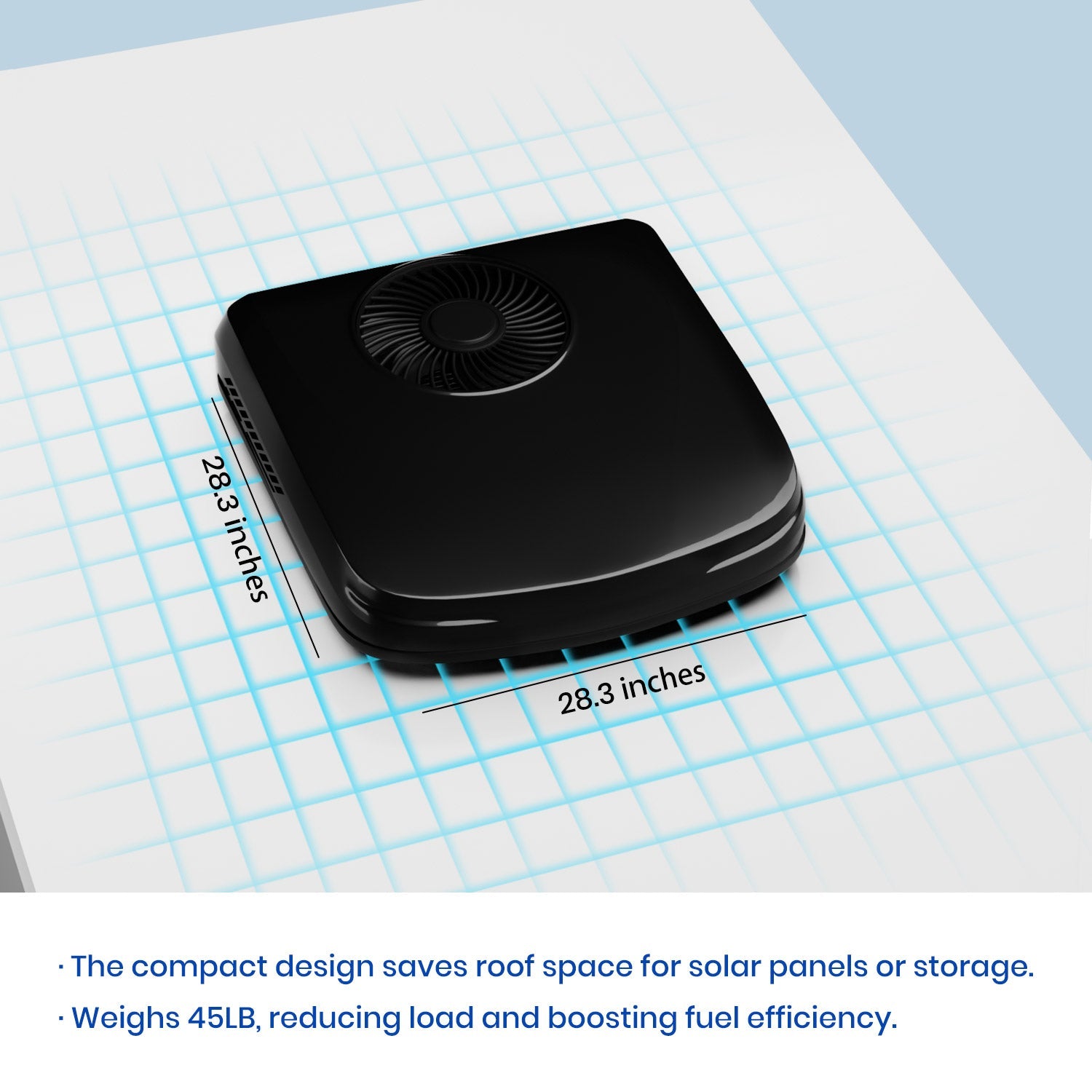

• Only 45LB total weight and just 6.3 inches high—lighter and sleeker than traditional RV air conditioners.
• Minimizes vehicle load, improves fuel efficiency, reduces wind resistance, and protects roof integrity, perfect for your journeys ahead.

Battery-Safe Comfort

• With overtemperature, undervoltage, overvoltage, and overload protections, our system keeps your battery safe while delivering uninterrupted air comfort.

Specifications

Tech Specs

Design
Model name: Summit 2
Model no. OEP2500
Layout structure: Top-Mounted
Color: Black

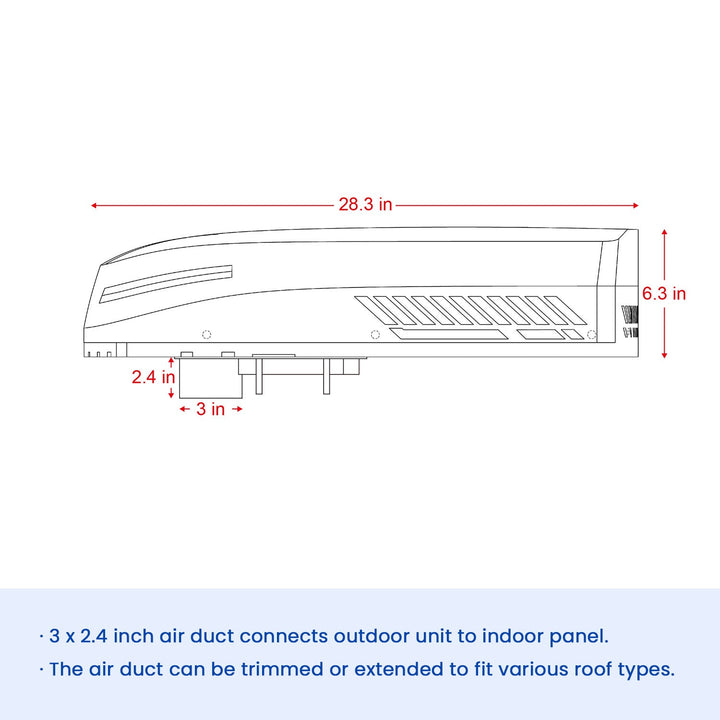

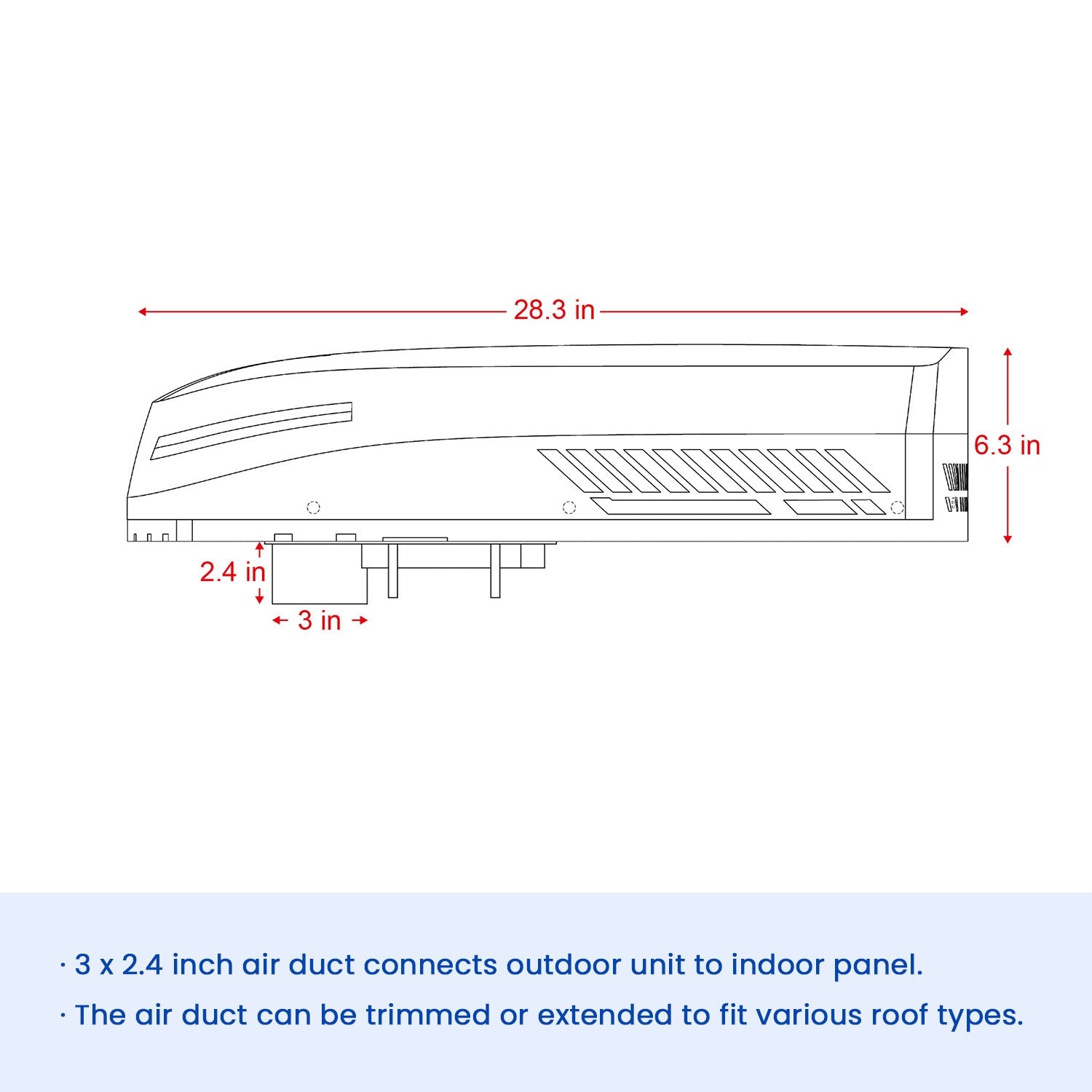

Rooftop unit dimension: 28.3 x 28.3 x 6.3 inches (720 x 720 x 160 mm)

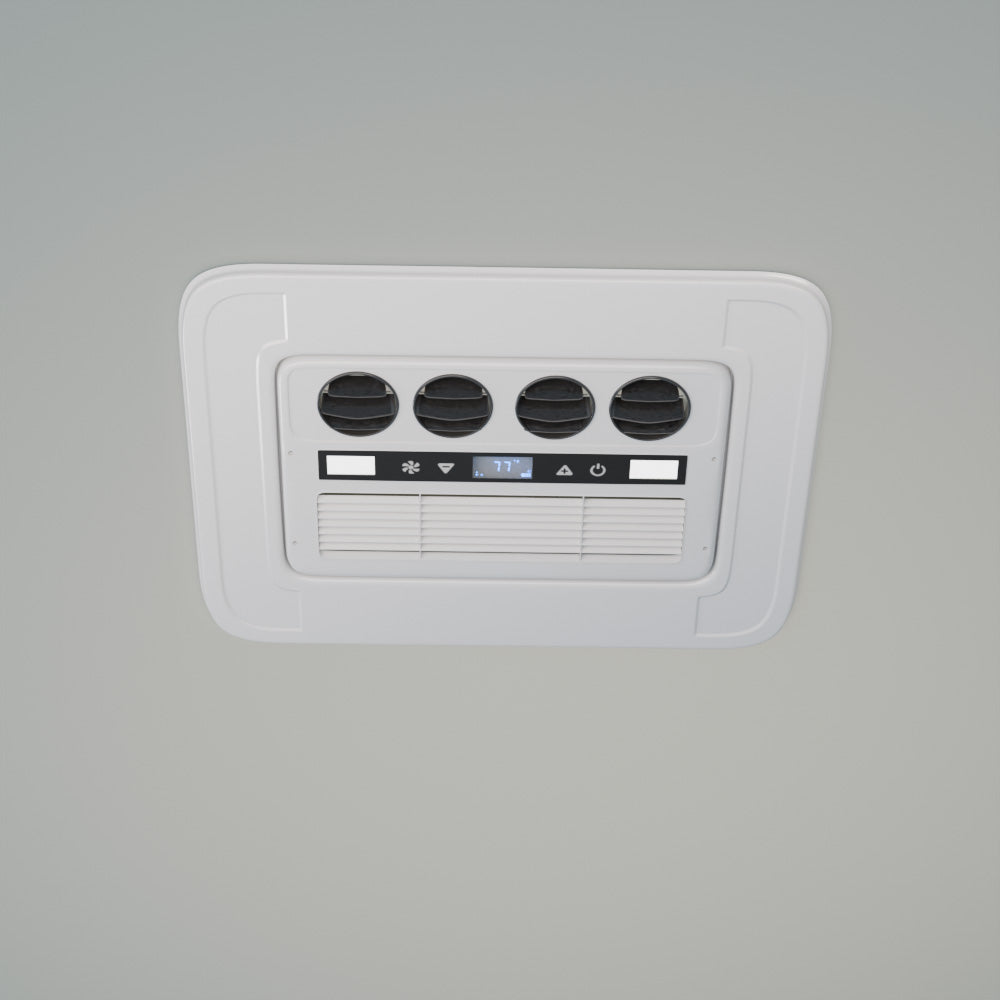

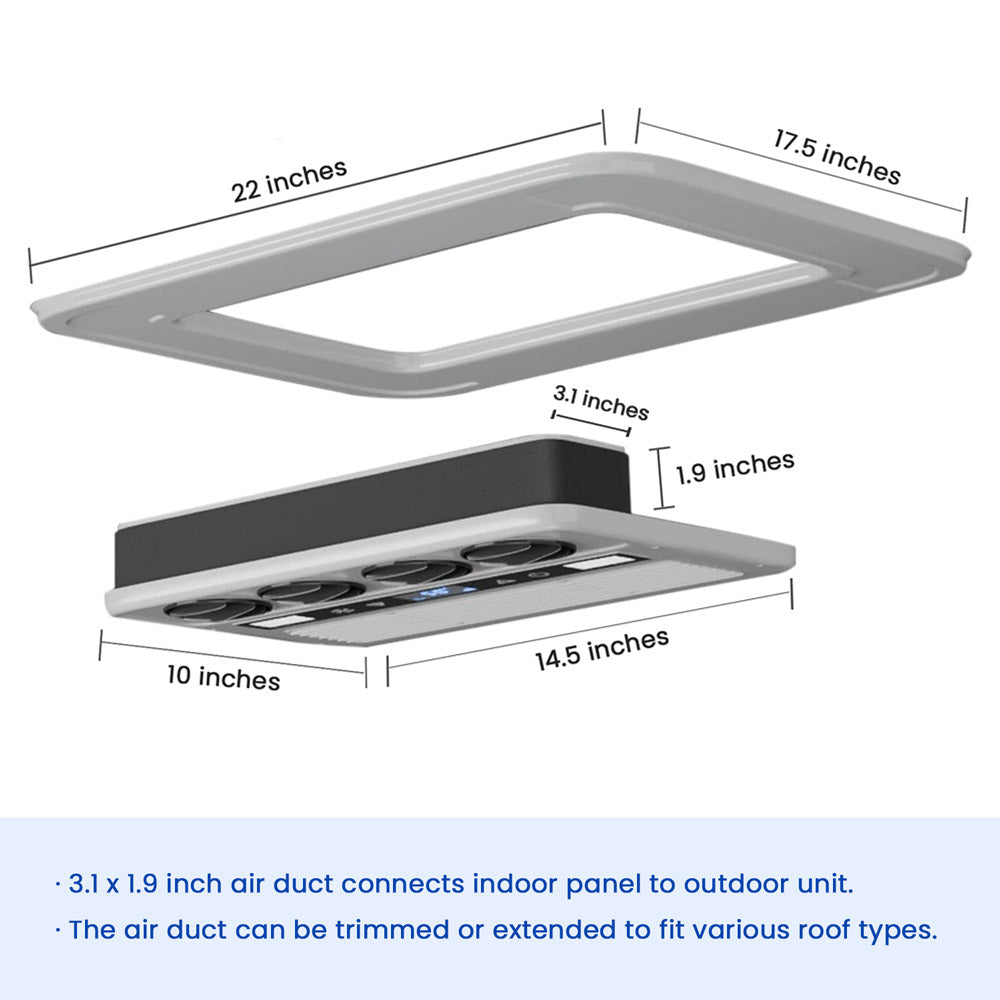

Indoor panel dimension: 14.5 x 10 x 0.59 inches (368 x 254 x 15 mm)
Panel trim dimension: 22 x 17.5 x 0.59 inches (559 x 445 x 15 mm)
Rooftop unit net weight: 43 Lb.
Indoor panel net weight: 2 Lb.

Performance (12V/24V)
Rated cooling capacity: 10,000 BTU/11,000 BTU
Rated heating capacity: 4,500 BTU/4,500 BTU

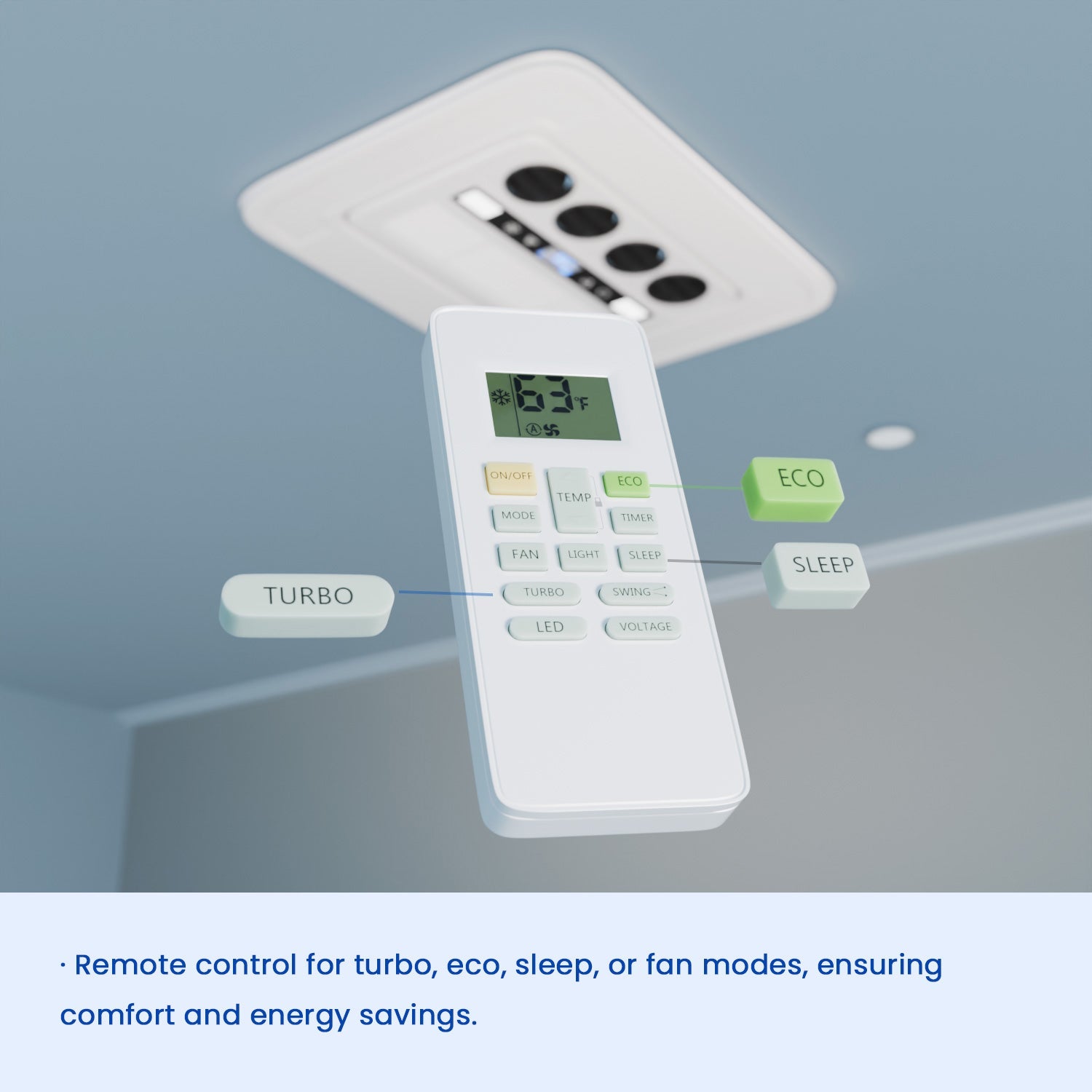

Modes: Turbo/Eco/Sleep/Fan
Set temp. range: 63°F to 86°F
Air volume: 450 m³/h
Sound pressure level: 53/48/40 dB
Remote control: Yes
Timer: Yes
Led night lights: Yes
Warranty: 1-Year Limited Manufacturer Defect warranty

Electrical
Rated voltage: DC 12V / 24V
Current range: 21-58A / 15-35A
Standby power: 1W
Soft start function: Yes
Pre-installed inline fuse: 100A / 80A
Power cord specification: 6AWG / 8AWG

Note: Most starter batteries can’t handle the continuous 58A (@12V) draw in Turbo mode. Use a LiFePO₄ battery with a 100A+ BMS or a 1000W+ AC-to-DC converter connected to your power station’s AC output for stable voltage and reliable, worry-free comfort.

Cooling (Pre-filled)
Refrigerant: R134A 400g-600g
Refrigerant oil: 90ml-120ml POE68

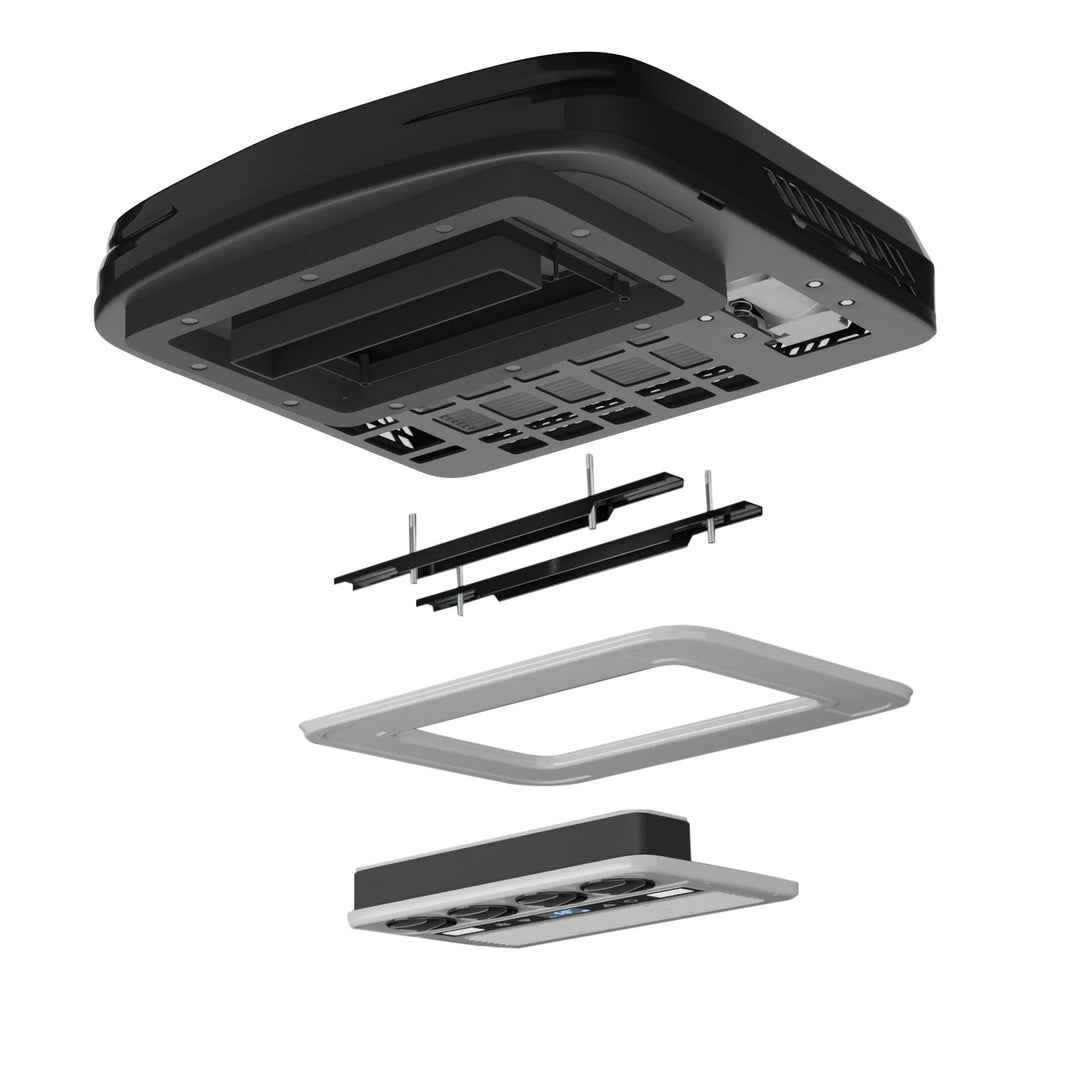

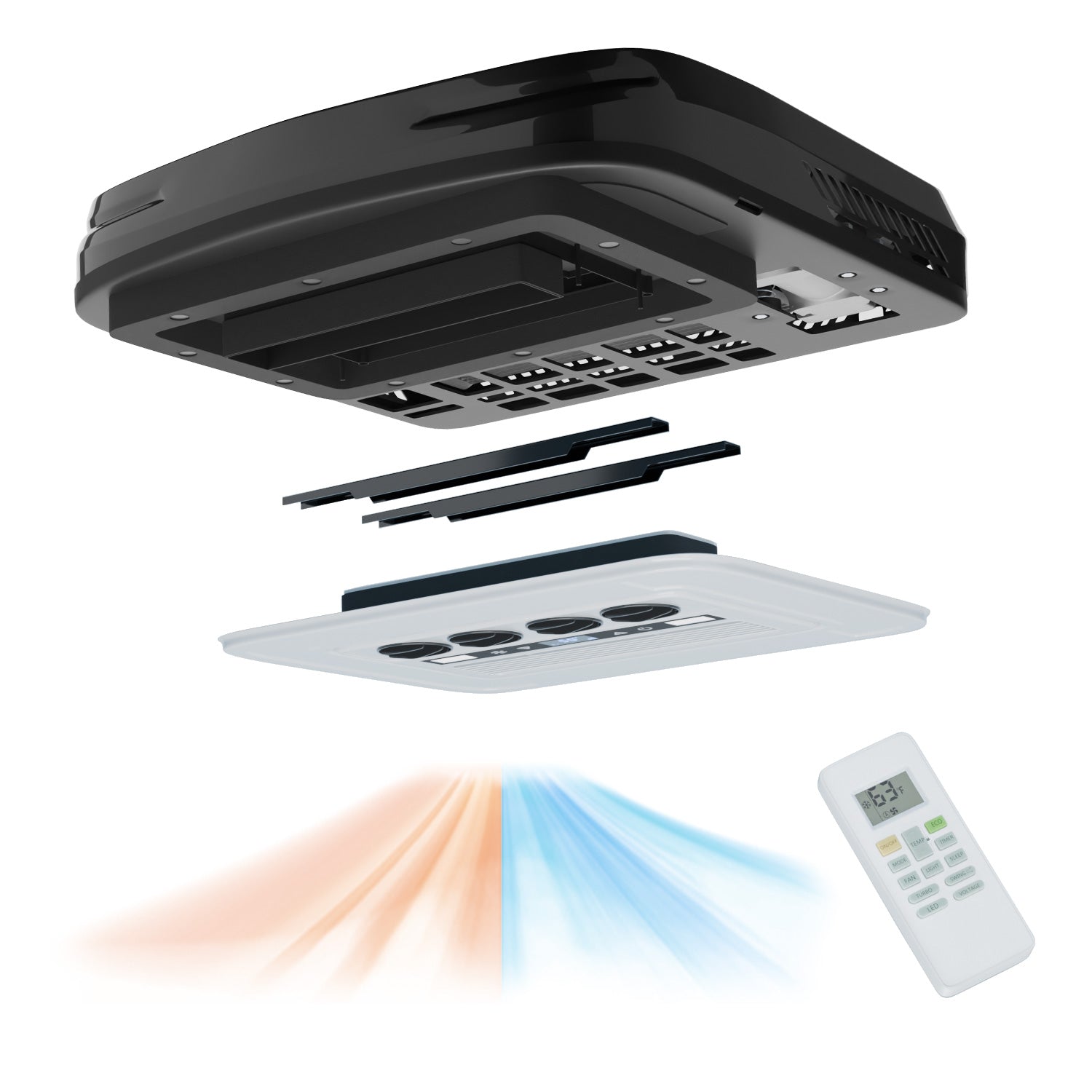

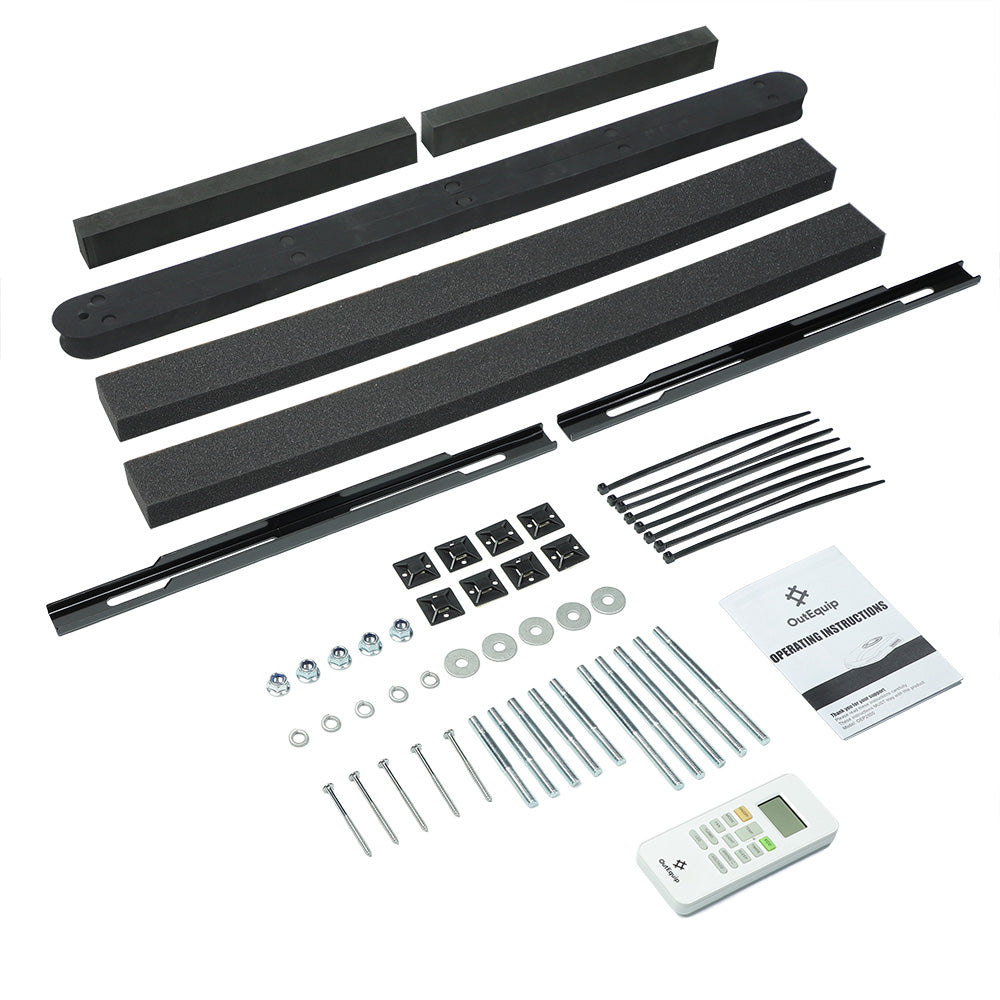

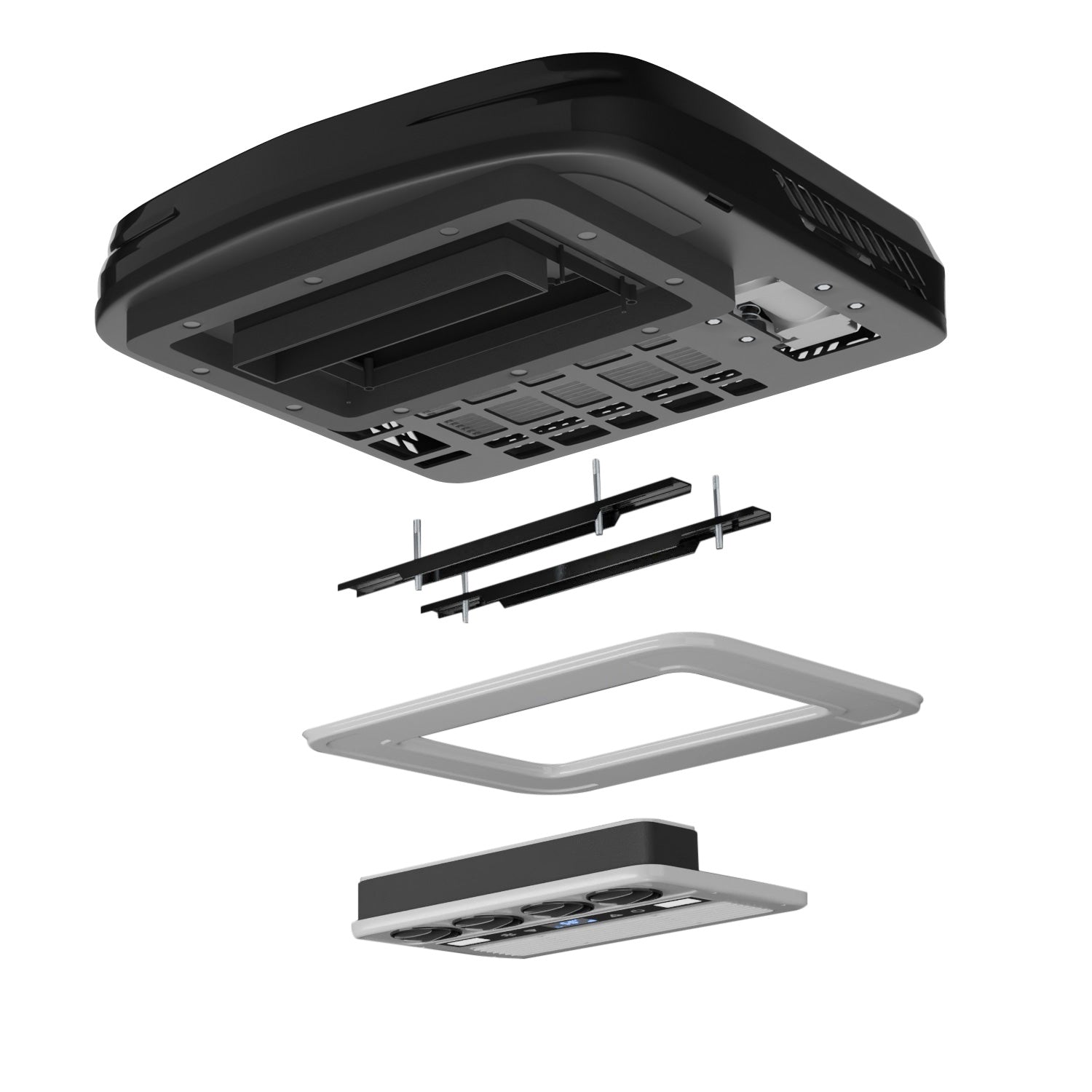

Package Includes

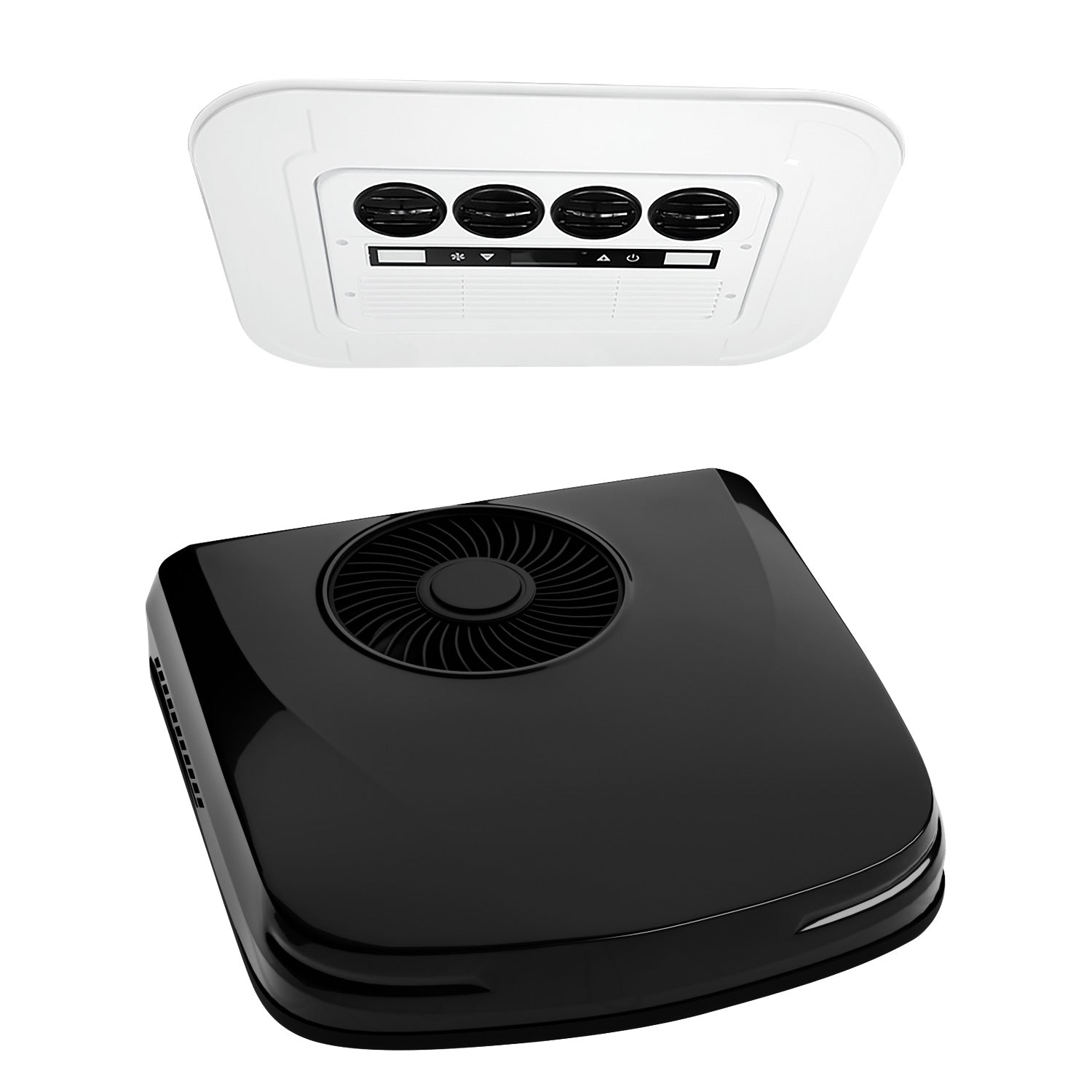

Rooftop unit: 1

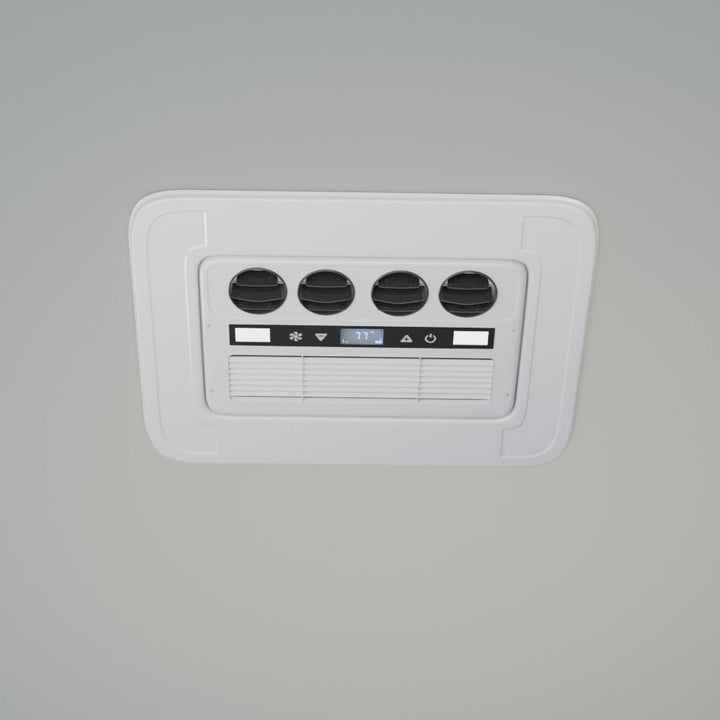

Indoor panel: 1
Indoor panel trim: 1

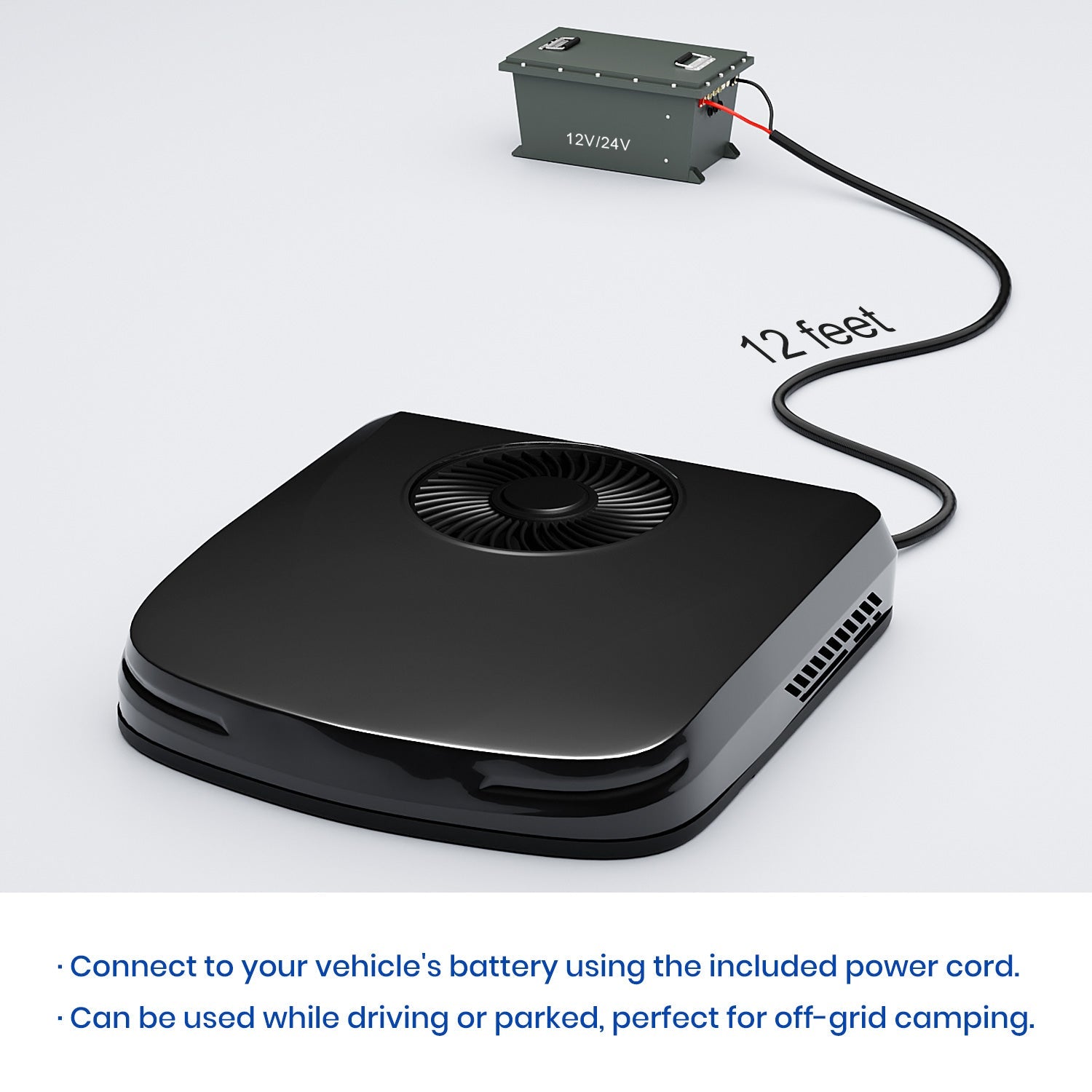

Power cord (12 feet in length): 1

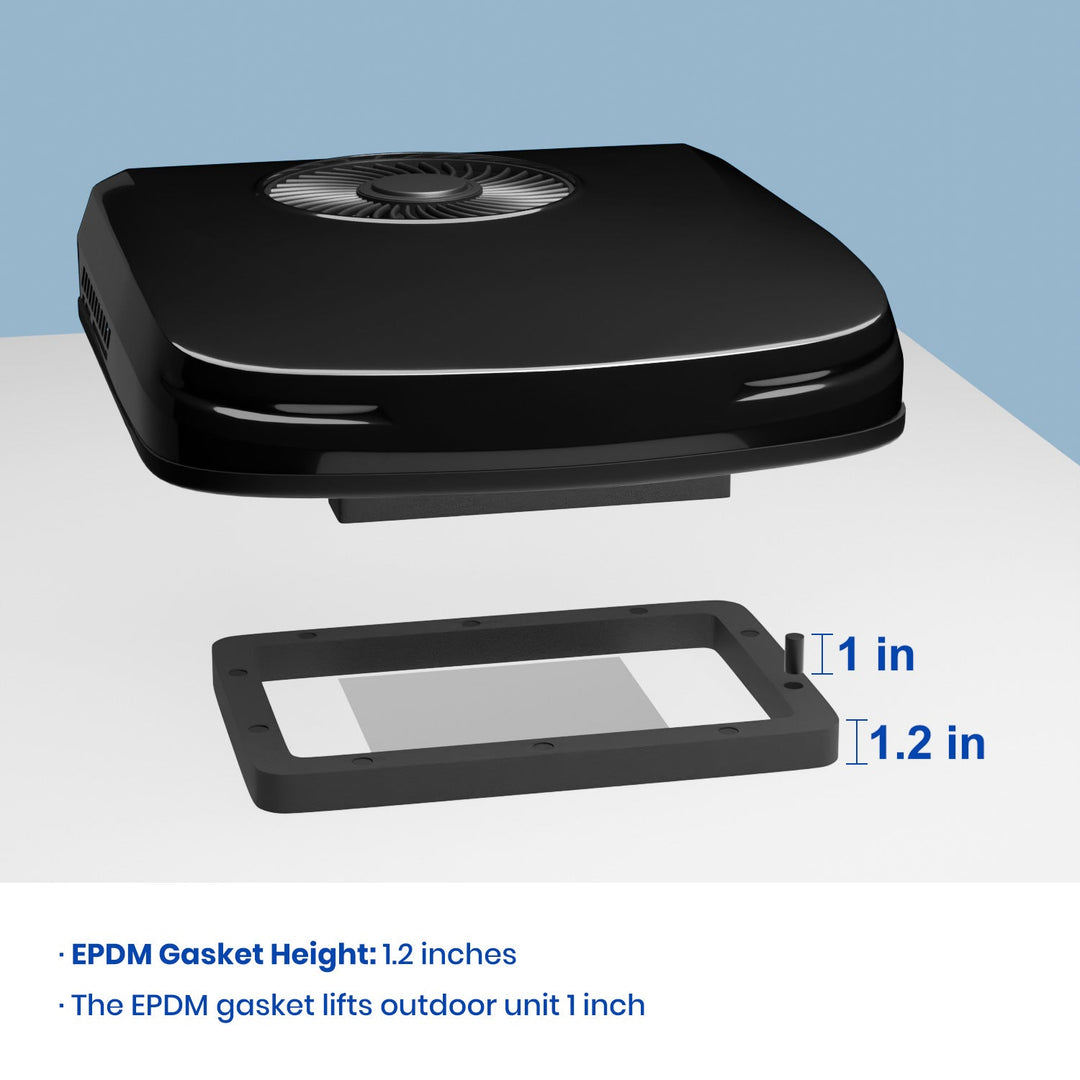

Set of insulation gasket: 1
C-shaped steel bracket: 2
Remote control: 1
Pack of universal screw: 1
User manual: 1

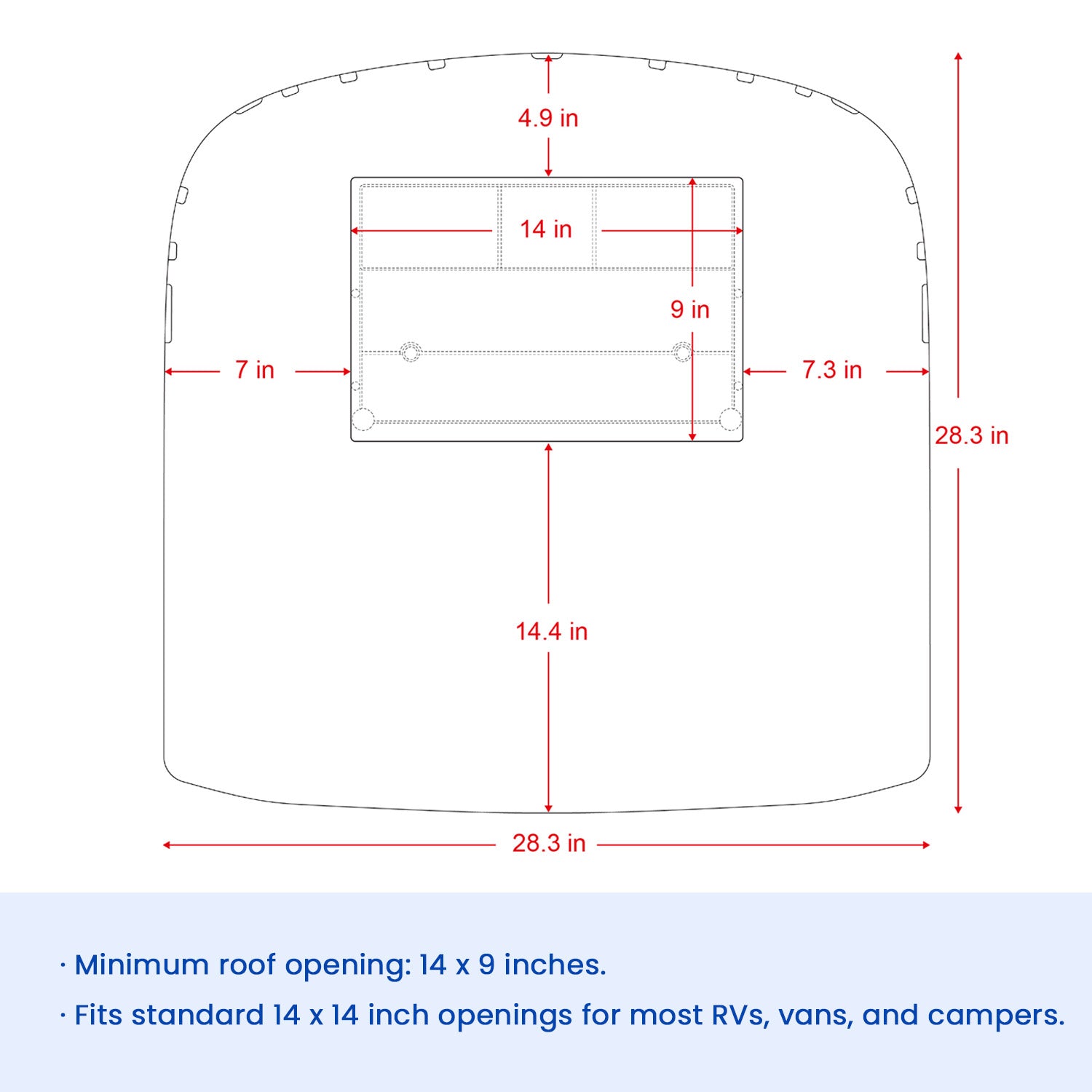

Important Note: Please ensure your roof opening dimensions are within the following parameters:

Minimum size: 14 x 9 inches (355 x 230 mm)
Maximum size: 16.5 x 15.7 inches (420 x 400 mm)

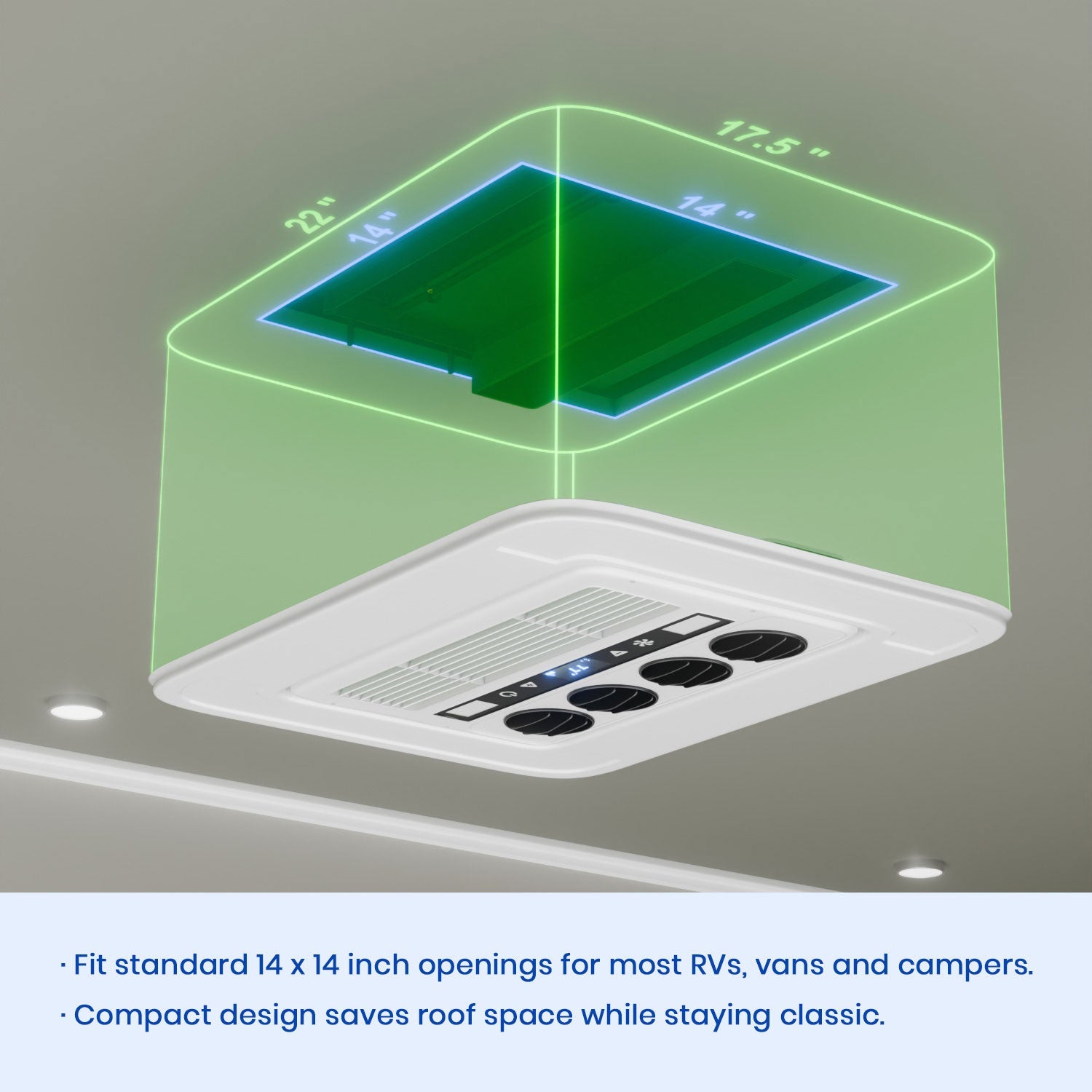

Also fit standard 14 x 14 inch rooftop cutouts, ideal for most RVs, vans and campers.
