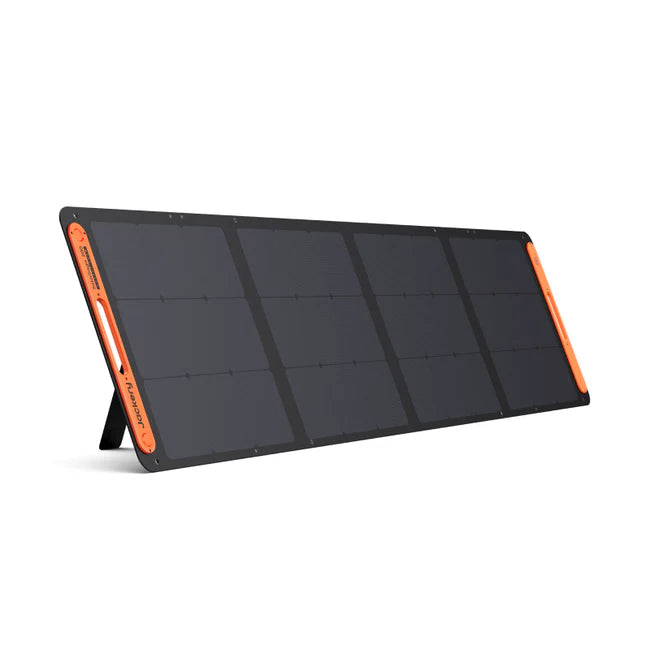

Jackery SolarSaga 200W (Solar Panel Only)
Features
Product Details
Full 200W Solar Power: Harness the sun with Jackery's SolarSaga 200W Solar Panel. Recharge compatible Jackery power stations faster and extend your off-grid adventures.
High Efficiency ~ 25% Conversion Rate: Topcon monocrystalline cells capture up to 25% of sunlight, turning even partly-cloudy days into reliable power. The bifacial design adds extra energy from reflected sunlight for better daily output.
All-Weather Ready (IP68): Durable and designed for the elements. Dustproof and waterproof, it performs reliably in rain, snow, dust, sand, and dirt.
Simple & Speedy Setup: Lightweight, fold-and-go design with adjustable stands for quick DIY setup, perfect for life on the go.
Year-Round Reliability: Operates in a wide temperature range (-10–65 °C / 14–149 °F) ensuring steady all-season performance.
Charge Multiple Devices: With built-in USB-A and USB-C ports, you can charge your small electronics directly from the panel.
Sunlight Simplified: Jackery's SolarTarget helps you manually angle your panel for maximum sun exposure so you can get more energy from every ray.
Package List: SolarSaga 200W Solar Panel*1, 3 meters multi-functional cable (with USB charing ports)*1, DC8020 to DC7909 Adapter*1, User Manual*1
Accessory Ready: To connect the SolarSaga with different Explorer portable power stations or other extension functions, please check the accessories it requires.
Specifications
Tech Specs
General
Weight: 13.67 lbs ± 0.66 lbs (6.2 kg ± 0.3 kg)
Protection Class: Class II
Waterproof Rating: IP68
Operating Temperature: -4~149°F (-20~65°C)
Warranty: 3-year limited manufacturer defect warranty
Ports
USB-A Output: 5V⎓2.4A
USB-C Output: 5V⎓3A
Solar
Maximum System Voltage: 60V
Maximum Reverse Current: 15A
Bifaciality Coefficient (back/front): Pmax >30%, Voc >95%, Isc >32%
Voltage Temperature Coefficient: -0.268%/°C
Power Temperature Coefficient: -0.29%/°C
STC (1000W/㎡, 25℃, AM 1.5)
Peak Power (Pmax): 200W ±5%
Open Circuit Voltage (Voc): 24.8V ±5%
Short Circuit Current (Isc): 11.2A ±5%
Power Voltage (Vmp): 20V ±5%
Power Current (Imp): 10A ±5%
BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5)
Peak Power (Pmax): 208W ±5%
Open Circuit Voltage (Voc): 25V ±5%
Short Circuit Current (Isc): 11.4A ±5%
Power Voltage (Vmp): 20.2V ±5%
Power Current (Imp): 10.3A ±5%
Dimensions
Folded: 24.21 x 21.73 x 1.57 in (615 x 552 x 40 mm)
Unfolded: 92.13 x 21.73 x 0.98 in (2340 x 552 x 25 mm)
FAQs
Frequently Asked Questions
Why can the solar panel not produce 200W when charging to a Jackery power station?
As you may know, solar panels are affected by many factors, such as light intensity and the angle at which the panel is positioned. The 200W rating is measured under ideal laboratory conditions. In real-world use, light intensity constantly changes, and the angle of sunlight hitting the panel shifts as the sun moves throughout the day. For best results, please test the solar panel under full, direct sunlight and ensure that no shadows are cast on the panel.
Is the solar panel waterproof?
The solar panel is rated IP68 water-resistant, which offers protection against water splashes. Please avoid exposing it to heavy rain or submerging it in water.
How to clean the solar panel surface?
This is outlined in the user manual. Use a soft cloth to remove dust and dirt from the surface. Then, use a damp cloth to wipe the solar module and remove any remaining residue. Any bird droppings or other adhesive substances should be removed as soon as possible to prevent a reduction in performance.
