Jackery MC4 to DC Solar Panel Converter 6ft

Jackery MC4 to DC Solar Panel Converter 6ft

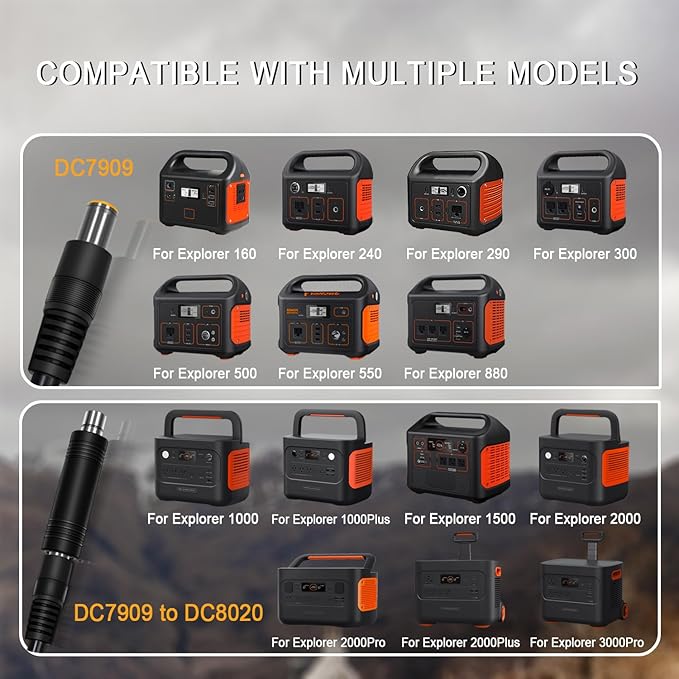

Wide Application: Compatible with Jackery portable power stations and other 12V solar generators with DC7909, DC8020, or DC5525 input ports. Works with a wide range of solar power stations, battery packs, and 12V charging systems.

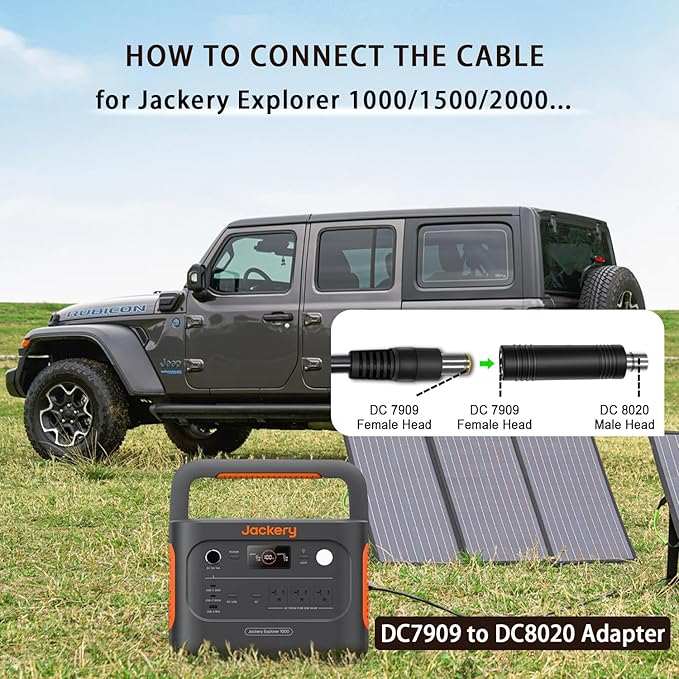

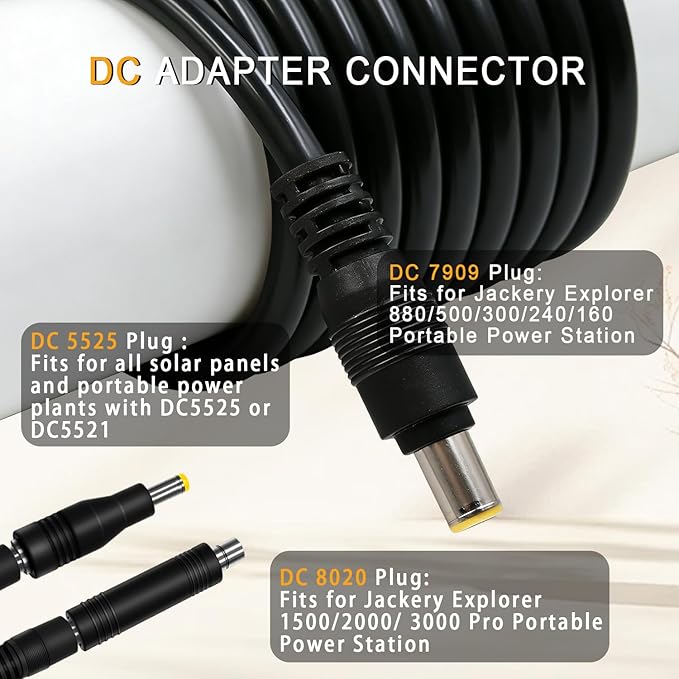

DC7909 to DC8020/DC5525 Connectors: When using Jackery Explorer 1500/2000, 300 Plus/600 Plus/1000 Plus/1000 v2/2000 Pro portable power stations, use the DC7909 to DC8020 connector. When using power stations with a DC 5.5×2.5mm port, use the DC7909 to DC5525 connector.

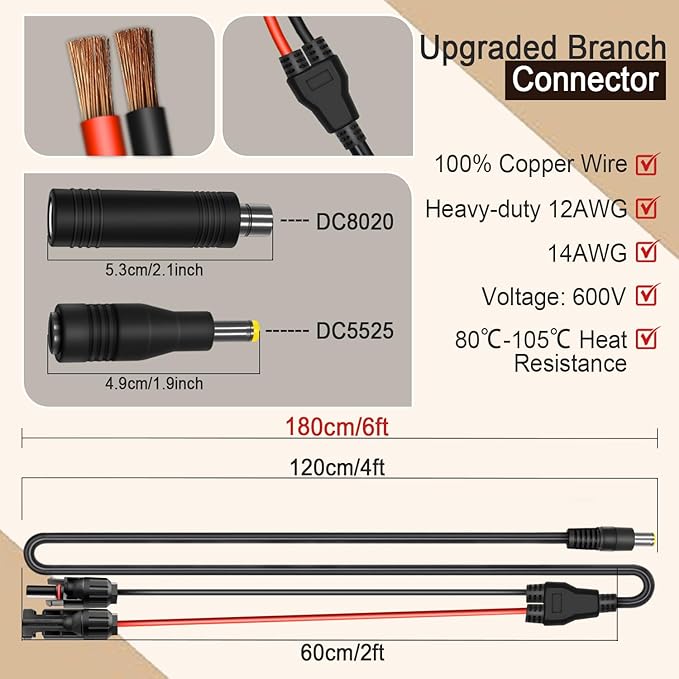

Heavy Duty 12AWG + 14AWG Wiring: Built with heavy-duty 12AWG + 14AWG wires to provide stable current. Features a double PVC jacket with 80°C–105°C heat resistance. Universal solar panel connector supports up to 15A. Output: 8mm DC plug (8–10A). Cable length (including connectors): 6 ft (1.8 m).

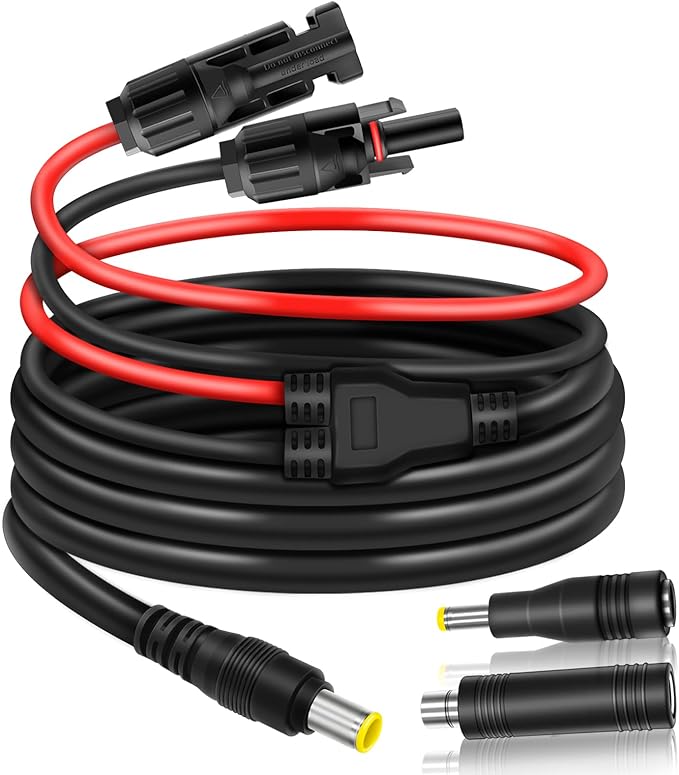

What You Get: 1× MC-4 Solar Connector to DC 8mm (DC 7.9×0.9mm) adapter, 1× DC5525 converter, 1× DC8020 converter.

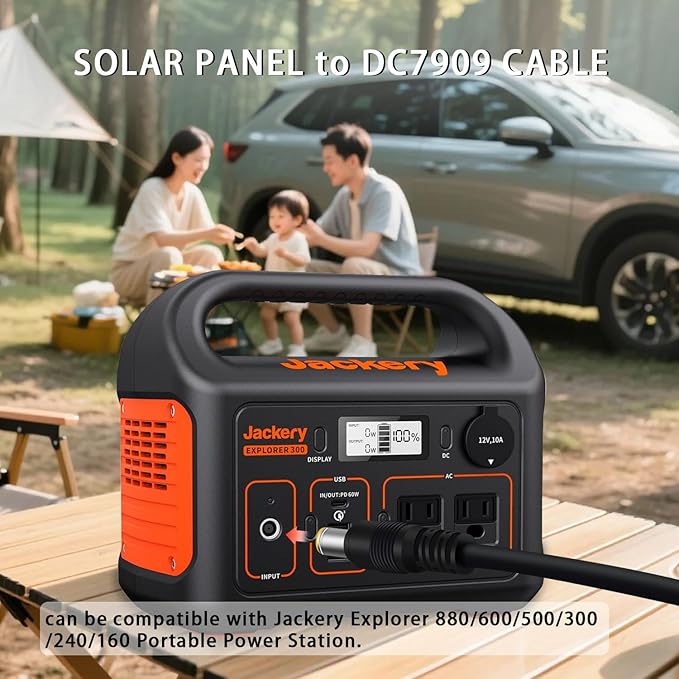

Plug and Play: Easy to use with no installation required. Ideal for charging portable solar generator power stations and home RV setups. Please check and confirm the DC input port size before use. Ensure your power station has a DC5525, DC7909, or DC8020 port, and select the correct adapter for proper compatibility.

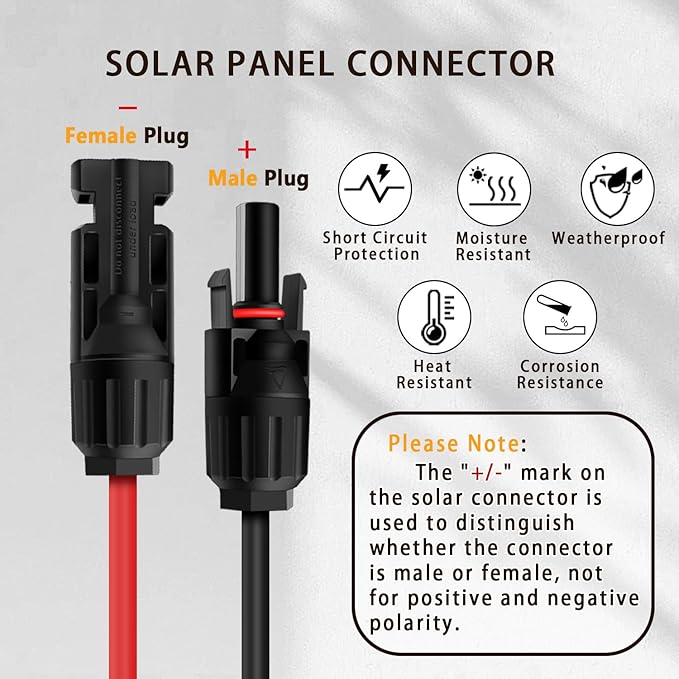

Note: Different brands of solar panel connectors may have different polarities. The female plug of the solar connector is positive (male = negative, female = positive). The red wire is positive (+) and the black wire is negative (−). The “+/-” marking on the connector indicates male or female type, not polarity.

Specifications

Specifications

• Connector Type: Solar Panel Connector
• Cable Type: Solar Panel Connector Cable
• Connector Gender: Male-to-Female
• Number of Pins: 4
• Maximum Current: 15 Amps
• Maximum Voltage: 600 Volts
• Wire Gauge: 12 AWG
• Cable Length: 6 ft
• Compatibility: Compatible with solar generator power stations (DC7909, DC8020, DC5525 ports)
• Recommended Use: Charging portable solar generator power stations
• Usage: Outdoor
• Special Features: Water Resistant
