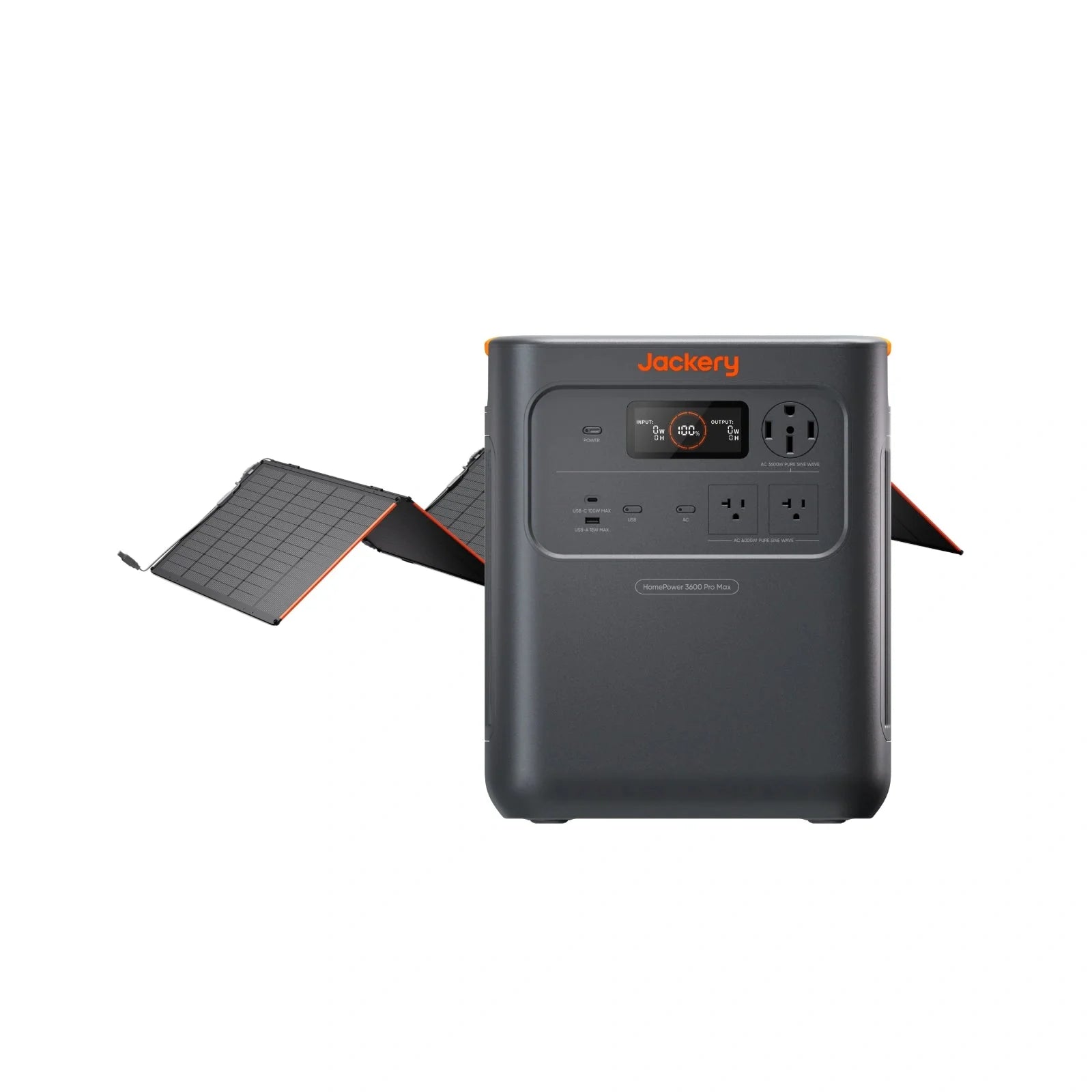

Jackery HomePower 3600 Pro Max + SolarSaga 500X Solar Panel

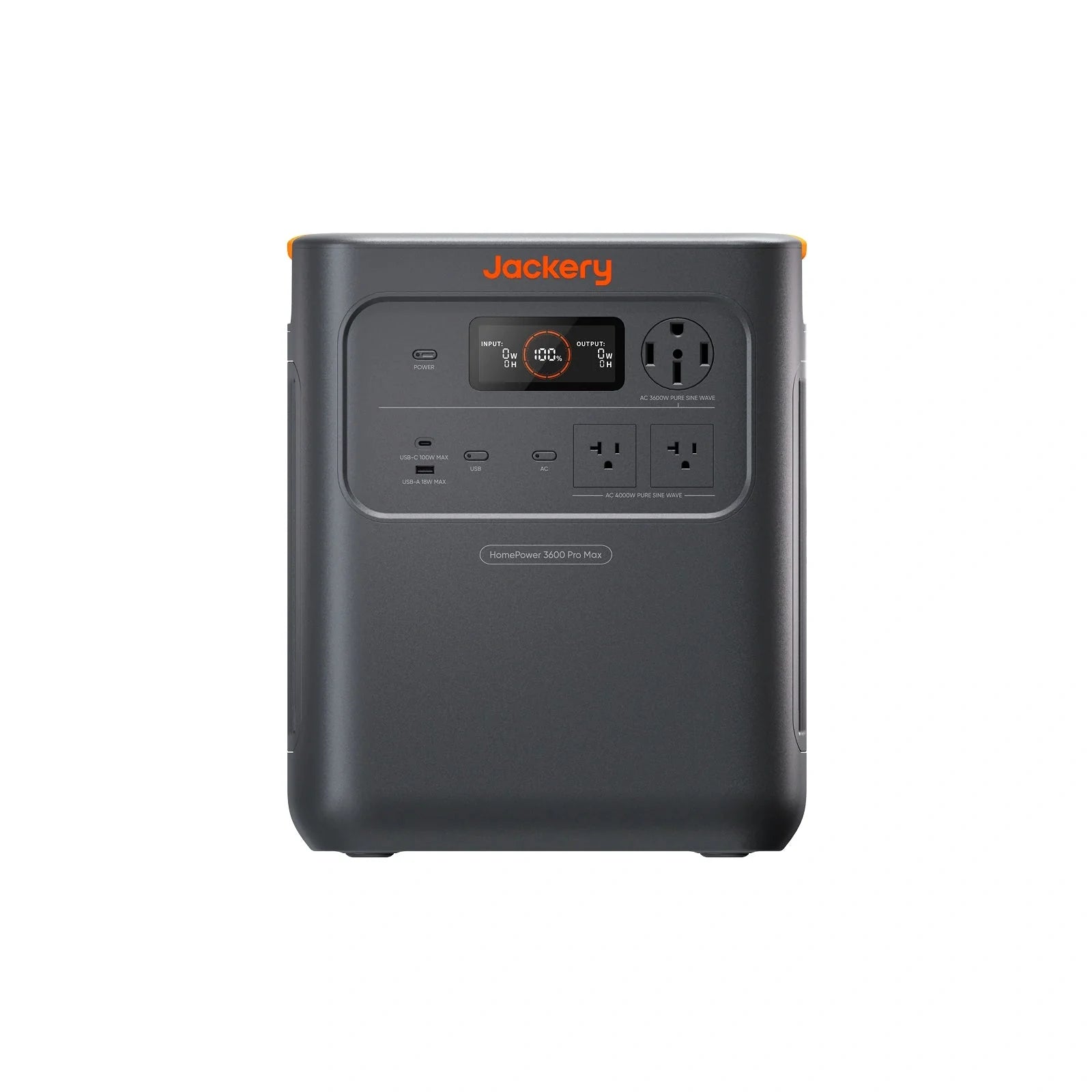

Jackery HomePower 3600 Pro Max
Experience True Seamlessness
Thanks to a sub-10ms UPS switch that operates faster than a blink, your computers and appliances keep running without a hitch, saving you from manual restarts forever.
True 240V Performance from a Single Unit
Get 4000W of 240V or 2000W of 120V power from one unit. Expandable up to 21.5 kWh for a single unit, and up to 43 kWh in parallel, able to run both 240V and 120V appliances in your home simultaneously.
Safe Inside & Out: Home Storage You Can Trust
Experience the gold standard in safety with EV-grade LFP cells rated for 6,000 charge cycles. With UL 9540 certification, 5VA-grade fireproofing, and a dedicated EPO emergency stop, the attention to detail allows you to power your home with total confidence.
Stay Quiet, Stay Powered
Operating at under 30dB to stay as quiet as a library, the 3600 Pro Max keeps things peaceful for you and the neighborhood. With 8 ways to recharge, including gas generator compatibility, you always have a backup for your backup.
Time-of-Use Mode
The system automatically charges when rates are lowest and powers your home when rates spike, so you shave your peak-rate usage without thinking about it.

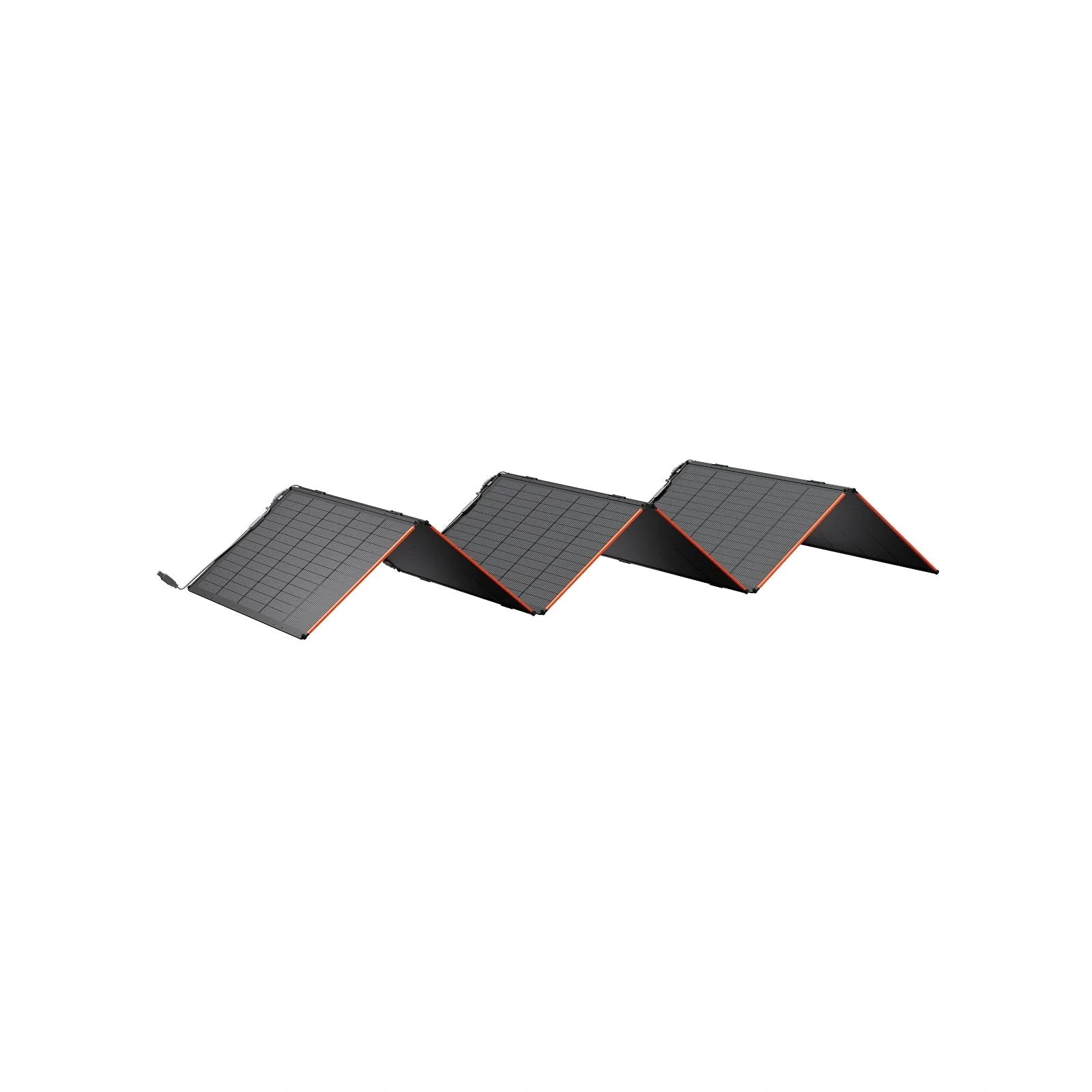

Jackery SolarSaga 500 X Solar Panel
500W High Power Output
Fast solar charging that keeps you powered up at all times, with fewer grid cycles for high-demand power needs.
Modular Six-Panel Design
The SolarSaga 500 X consists of six SolarSaga 85 panels, each of which can be used individually - deploy all six or just a few.
TOPCon Bifacial Technology
Captures direct and reflected light from both sides for high energy yield in real-world conditions.
Rugged Outdoor Performance
Withstands -40 C to 85 C with an IP68 water and dust rating, including winds up to level 10 with the M-shaped array and ground stake design.
Portable All-in-One Design
Lightweight foldable panels with easy connectors install on rooftops, balconies or in a field with minimal hassle.
5-Year Warranty
Long-lasting, reliable performance backed by a 5-year Jackery manufacturer warranty.
Features
Features
Jackery HomePower 3600 Pro Max
Seamless UPS Protection: Sub-10ms switchover keeps computers, routers and appliances running through an outage with no manual restarts.
True 240V from One Unit: 4000W at 240V or 2000W at 120V from a single unit, running 240V and 120V appliances at the same time.
Expandable Capacity: 3.6 kWh base, expandable to 21.5 kWh as a single unit and up to 43 kWh in parallel.
EV-Grade LFP Safety: LFP cells rated 6,000 cycles, UL 9540 certified, 5VA-grade fireproofing and a dedicated EPO emergency power off.
Quiet Operation: Under 30dB in Quiet Mode, measured at 1 meter.
Eight Ways to Recharge: AC, solar, vehicle and gas-generator compatible charging.
Manual Transfer Switch Ready: Pairs with a manual transfer switch for 4kW-8kW at 240V or 2kW-4kW at 120V of home backup.
Jackery SolarSaga 500 X Solar Panel
Full 500W Output: Delivers a full 500W for faster solar charging and fewer grid cycles.
TOPCon Bifacial Cells: Captures direct and reflected light from both sides for high real-world energy yield.
Six Independent 85W Panels: Every SolarSaga 500 X includes six 85W panels; each works on its own, so you deploy only what you need.
Parallel-Only Connection: Plug in and charge. Do not connect panels in series, and do not exceed six panels per DC8020 input port.
Extreme-Weather Build: -40 C to 85 C operating range and IP68 water and dust protection; M-shaped array and ground stakes handle winds to level 10.
Not for Permanent Installation: Designed for deployable use; the panel is not intended for permanent rooftop installation.
Specifications
Specifications
Jackery HomePower 3600 Pro Max
General
Capacity: 3.6 kWh, expandable to 21.5 kWh single unit / 43 kWh in parallel
Cell Chemistry: EV-grade LFP (LiFePO4)
Cycle Life: 6,000 cycles
Weight: 33.5 kg (73.9 lbs)
Noise Level: Under 30dB in Quiet Mode at 1 m
No-Load Power Consumption: 25W
Certification: UL 9540, 5VA-grade fireproofing, EPO emergency power off
Warranty: Standard 3-year Jackery manufacturer warranty
Output
AC Output: 2000W at 120V; 4000W at 240V from a single unit
AC Outlets: NEMA 14-50R and NEMA 5-20R
USB-C Output: 1x 100W
USB-A Output: Yes
UPS Switchover: Under 10ms
Input
DC Input: 2x DC8020 ports, up to 1200W
AC Input: Yes, with AC expansion port
Expansion: DC expansion port, AC expansion port, parallel communication port
Jackery SolarSaga 500 X Solar Panel
Solar
Peak Power: 500W
Maximum System Voltage: 90V DC
Maximum Reverse Current: 15A
Bifaciality Coefficient (back/front): Pmax >80%, Voc >97%, Isc >80%
Voltage Temperature Coefficient: -0.26%/C
Power Temperature Coefficient: -0.32%/C
General
Weight: 22.05 lbs +/- 2.20 lbs (10.5 kg +/- 0.5 kg)
Protection Class Against Electric Shock: Class II
Waterproof: IP68
Operating Temperature Range: -40 to 185 F (-40 to 85 C)
Warranty: 5 years
Dimensions
Folded: Around 39.21 x 20.71 x 3.82 in (996 x 526 x 97 mm)
Unfolded: Around 98.15 x 39.21 x 11.57 in (2493 x 996 x 294 mm)
Compatibility
Explorer 5000 Plus, 3000 Pro, 2000 Plus, 2000 v2, 1000 Plus and 1000 v2
FAQs
Frequently Asked Questions
What is the operating temperature range of the SolarSaga 500 X?
The SolarSaga 500 X can operate in temperatures ranging from -40C to 85C (-40F to 185F), ensuring reliable performance in various weather conditions.
Which power stations can the SolarSaga 500 X charge?
The SolarSaga 500 X can be used to charge power stations such as the Jackery Explorer 5000 Plus, 3000 Pro, 2000 Plus, 2000 v2, 1000 Plus, and 1000 v2.
How should the SolarSaga 500 X be stored?
After use, fold the solar panels and store them in the provided storage bag. Ensure the panels are kept in a dry place, avoiding exposure to corrosive substances or physical damage during storage.
Can the SolarSaga 500 X be left outdoors permanently?
While the panels are designed for outdoor use, it is recommended to retract or store them during extreme weather conditions, such as strong winds or hail, to prevent damage.
How do I clean the SolarSaga 500 X panels?
Do not immerse the panels in water. Instead, clean them with a damp cloth. Avoid using corrosive substances or abrasive materials that might scratch the panels.
Can the Jackery SolarSaga 500X be permanently installed?
The panel is not intended for permanent installation. Before installing a rooftop solar system, check your local building codes and obtain all required permits from the appropriate city or county authority.
