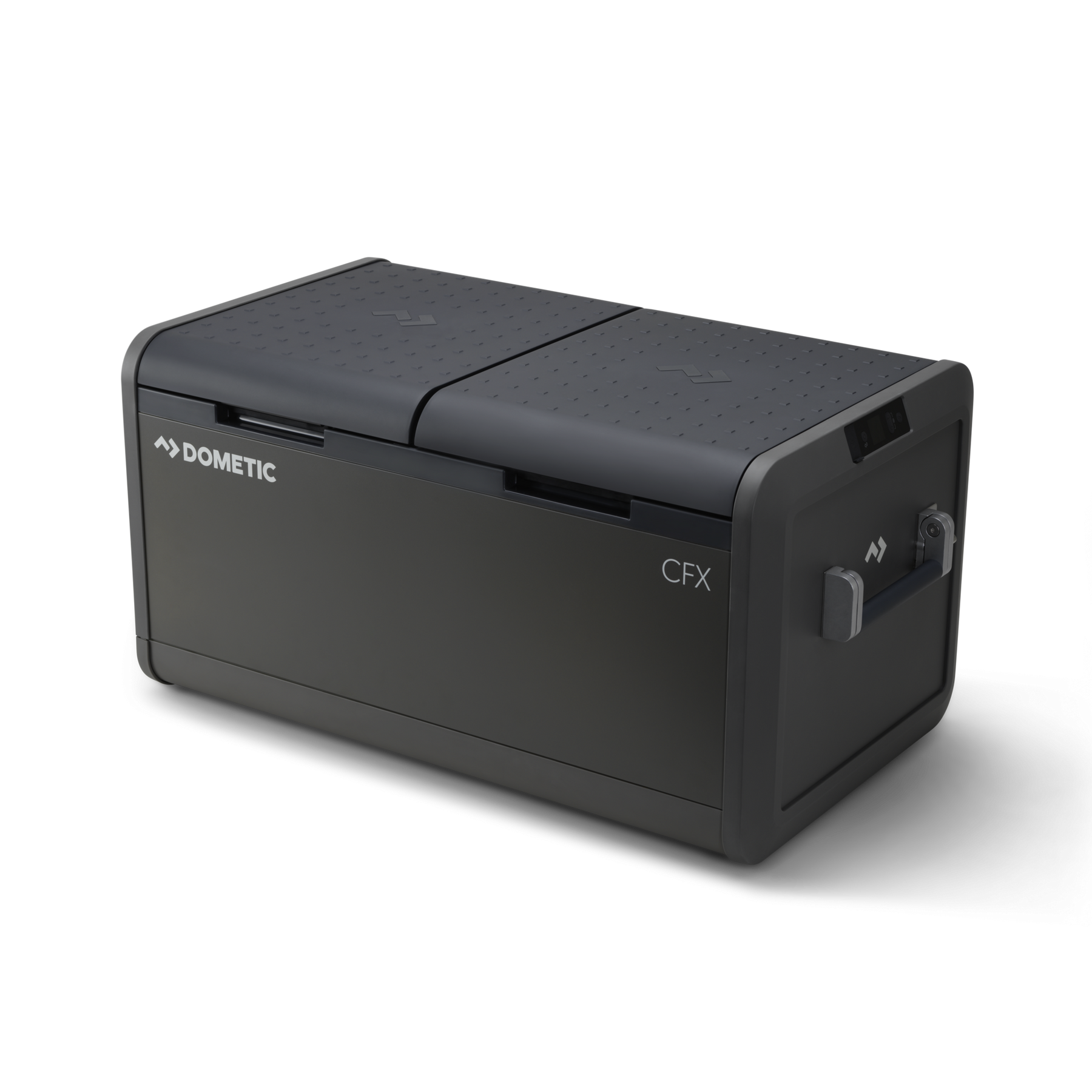

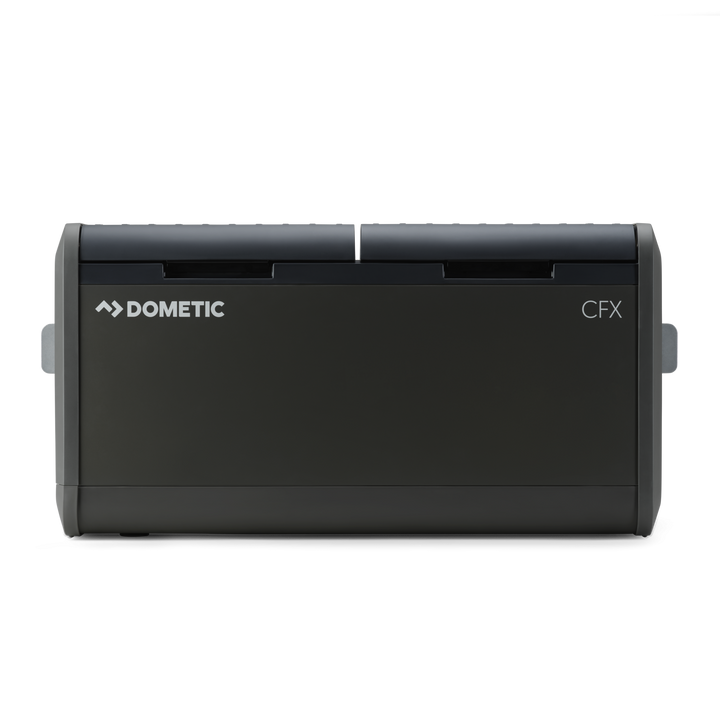

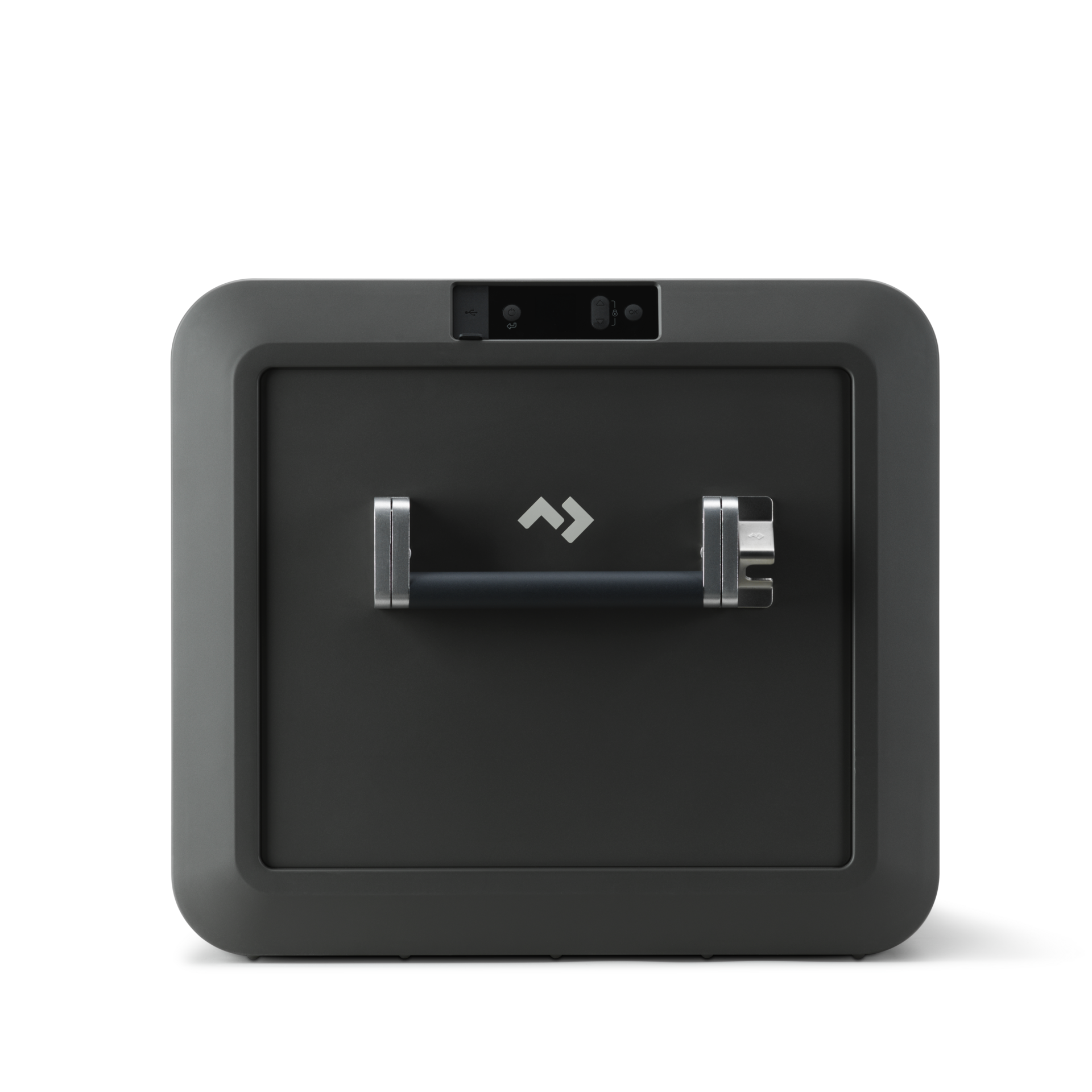

Dometic CFX5 95DZ Electric Cooler
Advanced Materials and Design in a 95L DZ Dual-Zone Electric Cooler. This is the Big One — dual-zone cooling and a capacity that lets you get nomadic for a while, or go all out with campsite dinners. Vacuum Insulated Panels deliver outstanding insulation, and two cooling compartments keep everything at the right temp so ice cream won’t melt and cheese won’t freeze. Control it from the smartphone app, a carbon steel frame protects it, and — cheers — a bottle opener is built in.
94 L dual-zone capacity — up to 121 cans (12oz/375ml)
Powerful VMSO 3.5 variable-speed compressor
12/24V DC and 100–240V AC power
Temperature range +20°C (68°F) down to −22°C (−7°F)
VIP Vacuum Insulated Panels for superior efficiency
Features
Features

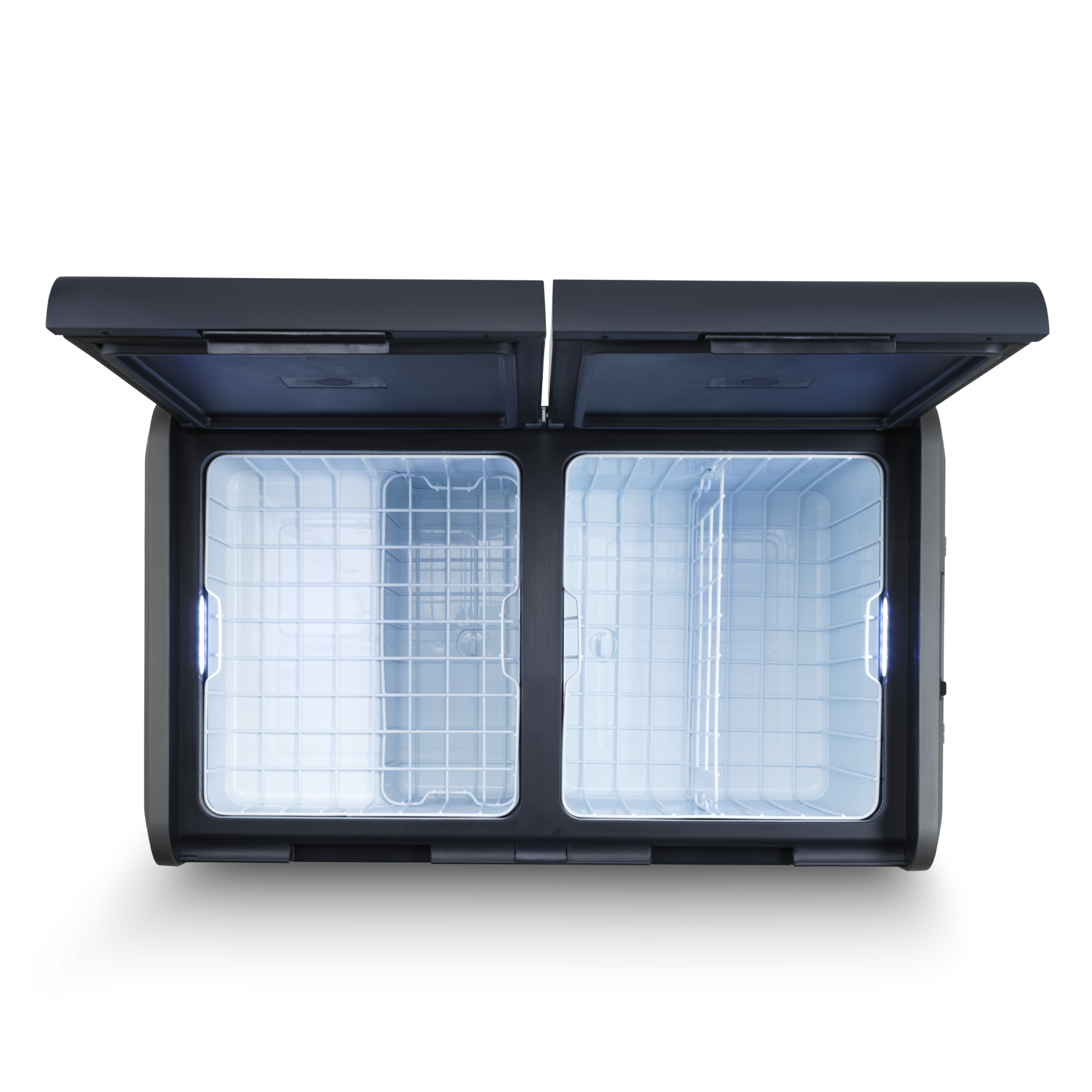

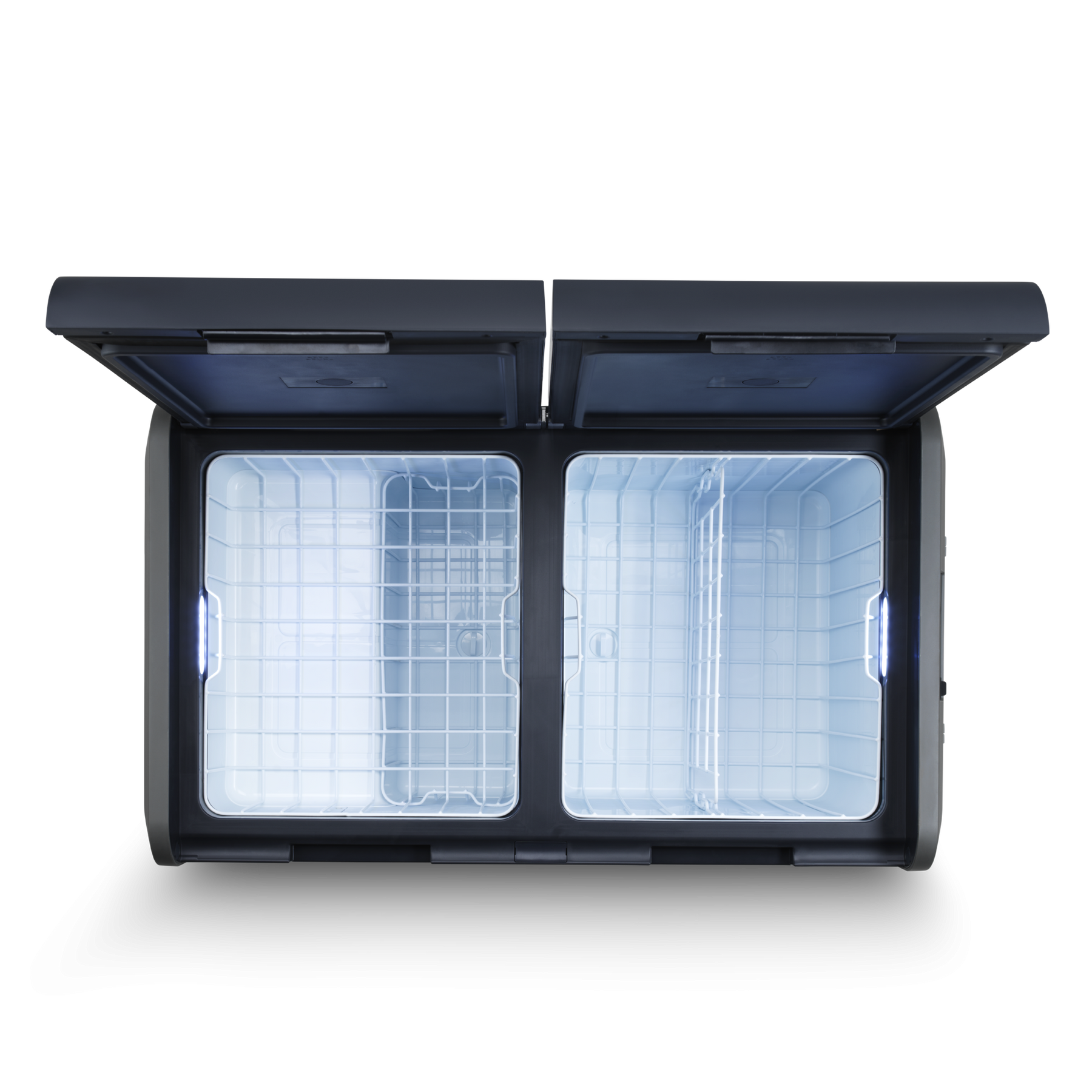

Two Cooling Zones
Dual zones let you set separate temps in separate compartments — one side cool, one side frozen. Bring refrigerated and frozen foods all at once.
VIP — Vacuum Insulated Panels
Exceptionally efficient insulation. Vacuum Insulated Panels have superb energy efficiency, minimizing thermal transfer through superior sealing and air-removal techniques.
Powerful VMSO 3.5 Compressor
Variable Motor Speed Optimization Technology 3.5 automatically adjusts compressor speed for optimal performance and efficiency.

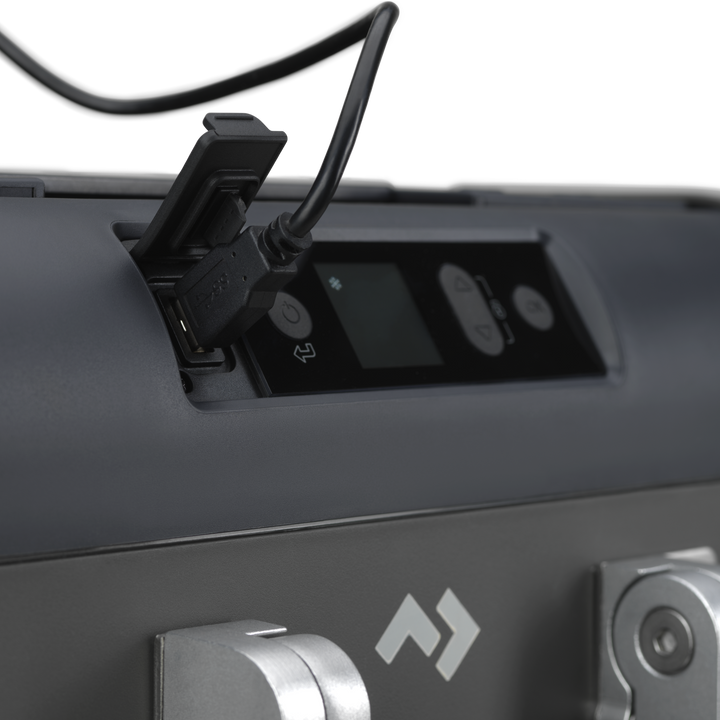

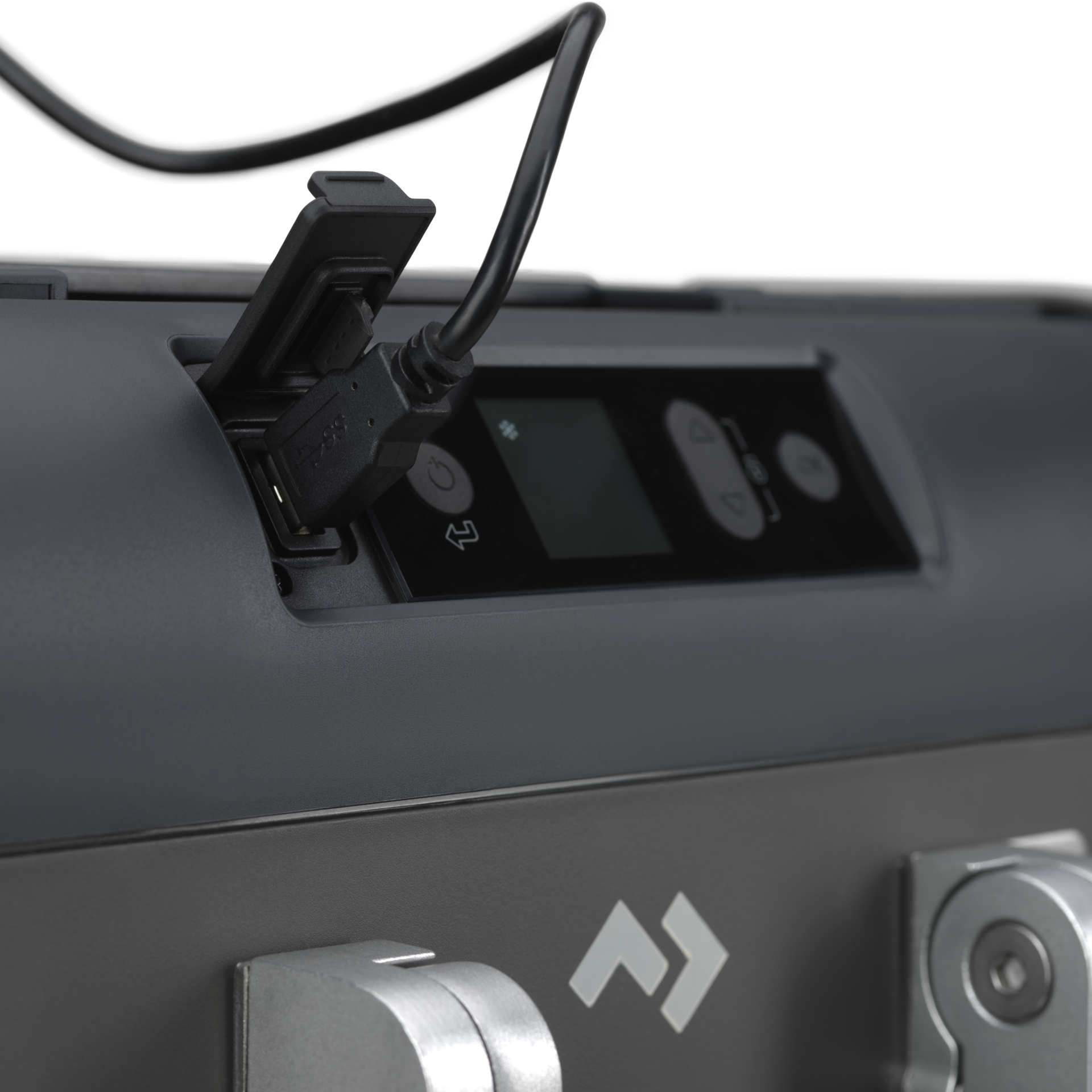

Weatherproof High-Resolution Display
Easy-to-read, weatherproof, high-resolution TFT color operating display, with an 18W QC 3.0 USB port and soft-touch buttons.
Reliable & Stable Interior
Internal components are mounted on dampers to isolate noise and endure sustained vibration off road.
Premium Design Details

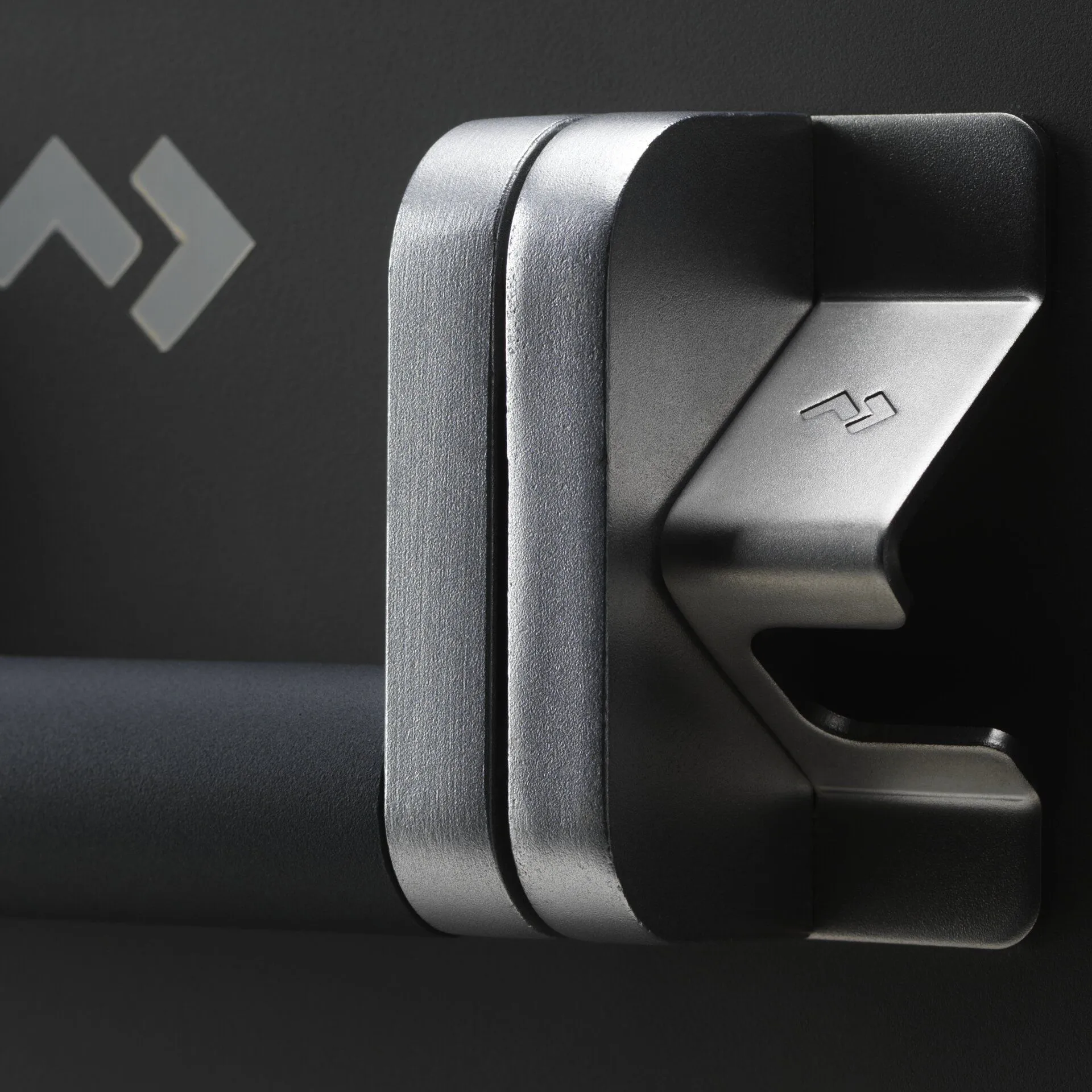

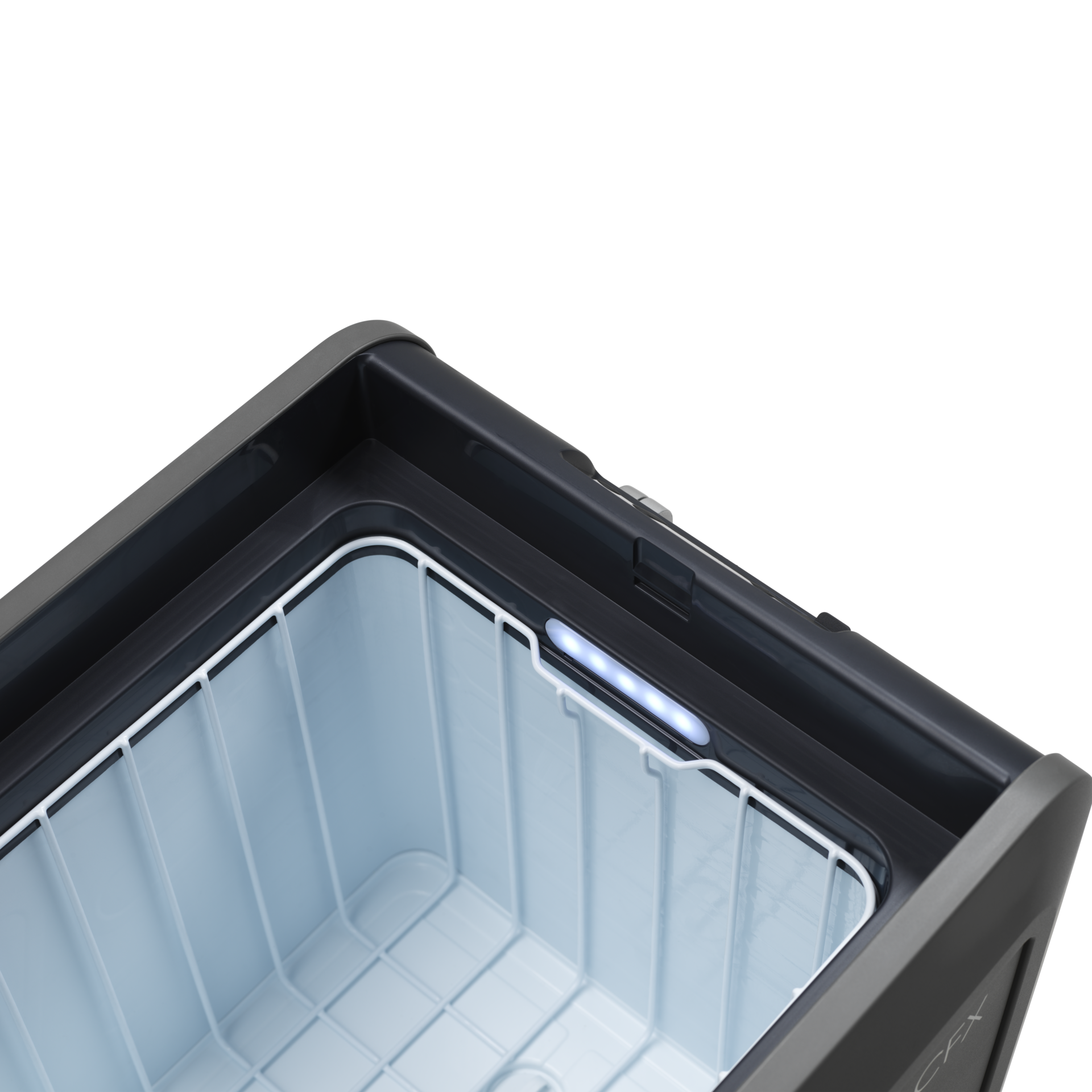

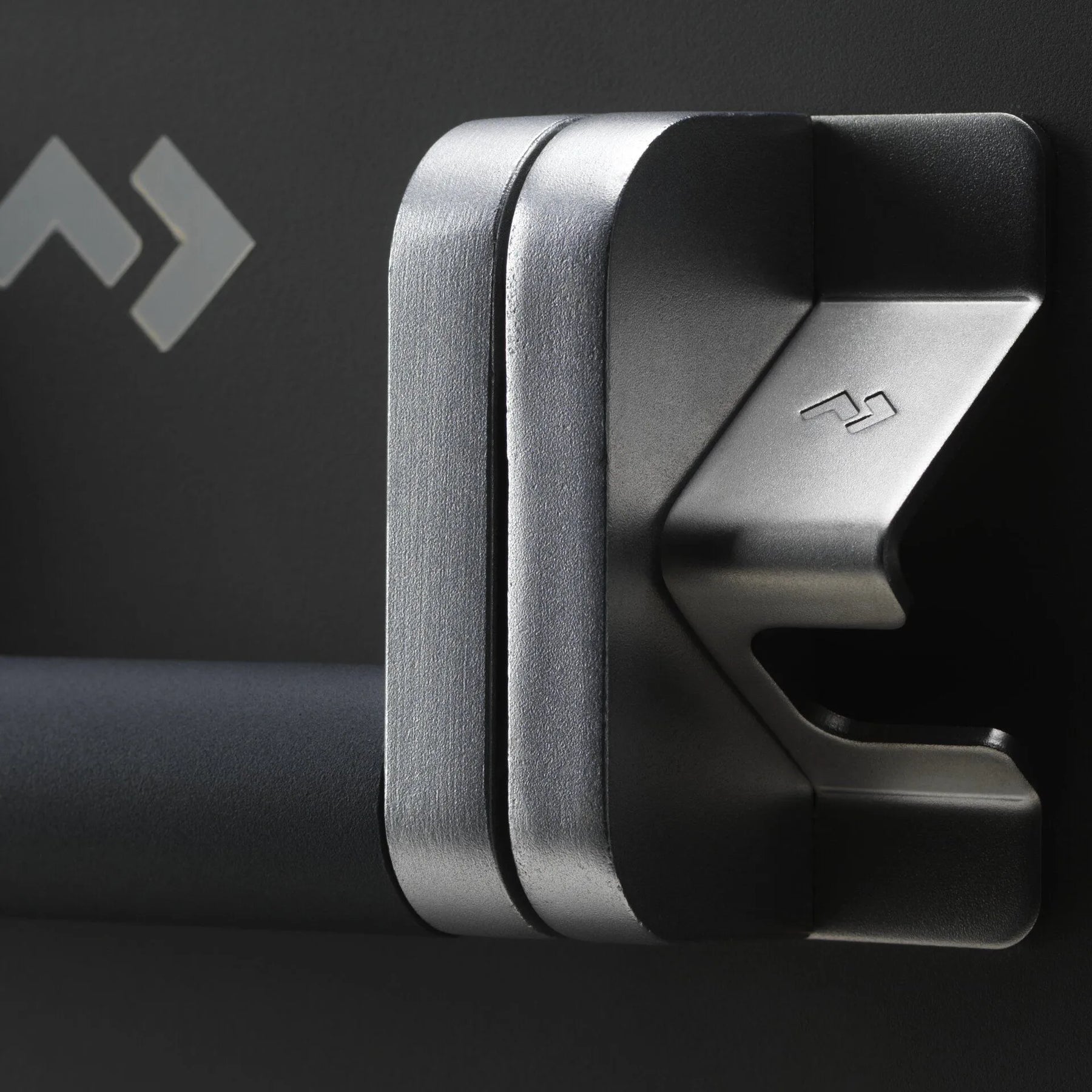

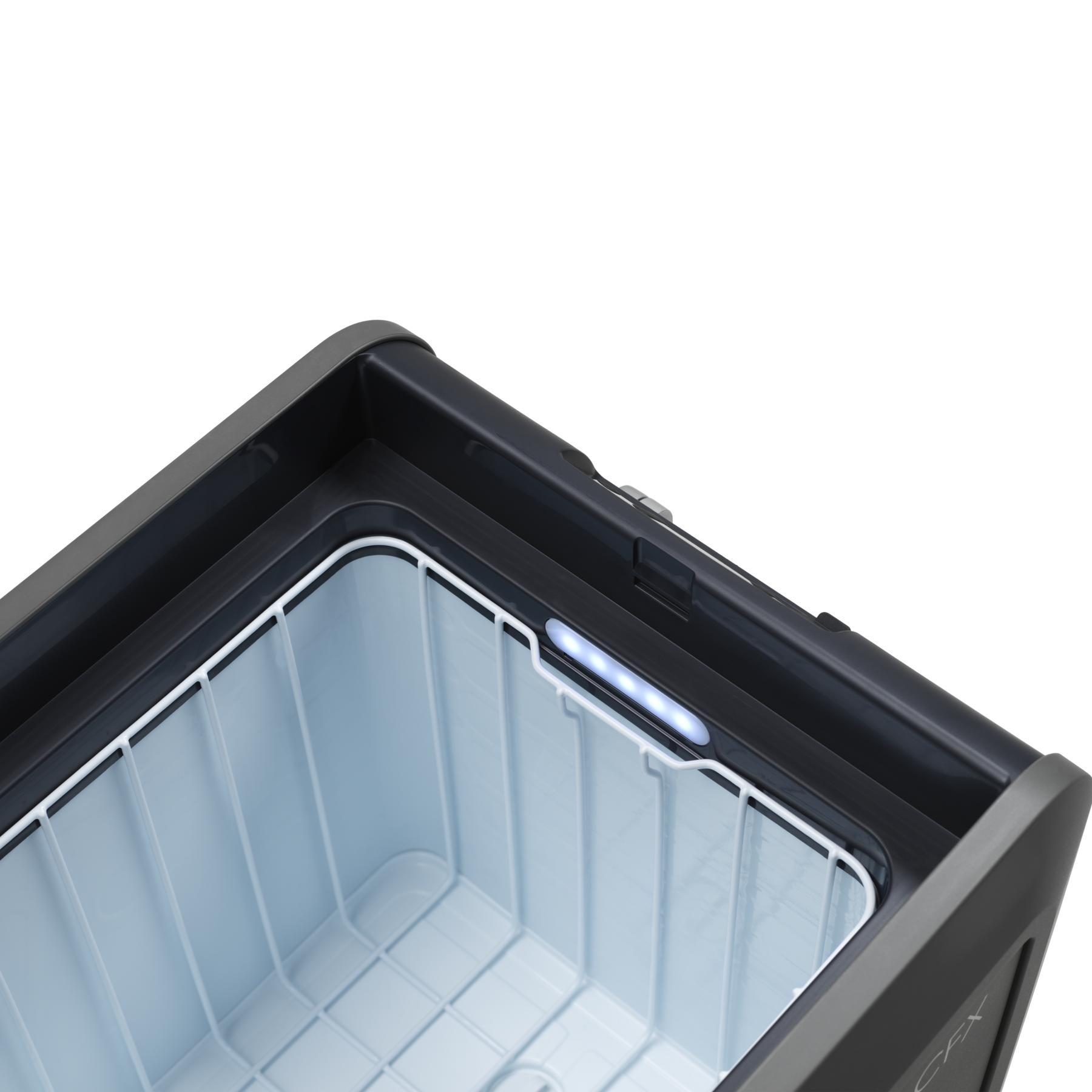

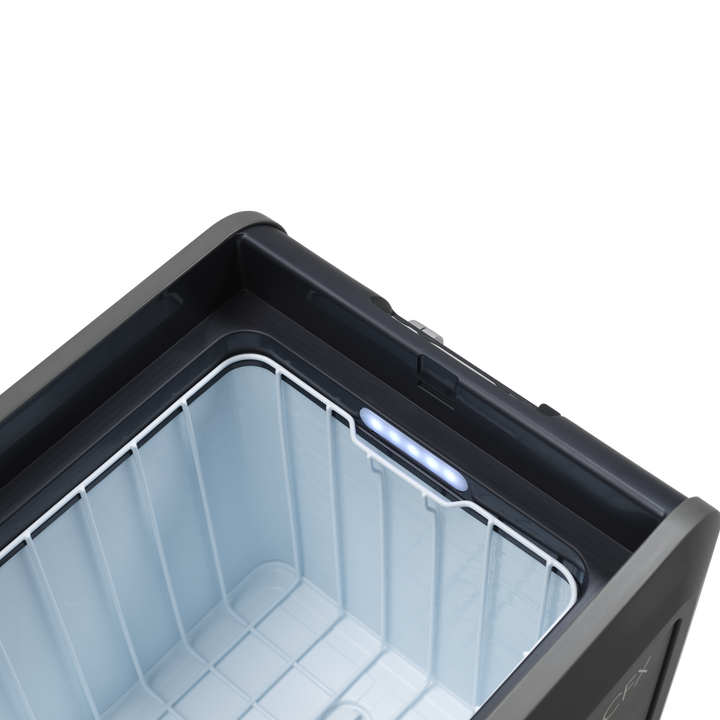

Removable wire divider, interior LED light, self-folding aluminium alloy handles, an integrated bottle opener, TPE gaskets for a tight lid seal, and a removable lid with a textured non-slip logo.
Smart App Control
Track energy consumption and monitor temperature with the cooler’s Bluetooth smartphone app; be alerted when the lid is left open, monitor history, and connect multiple devices at once.
Battery Protection
A 3-stage dynamic battery protection system actively monitors inbound power to prevent draining a vehicle battery, or allows a deeper draw on dual batteries.
Power Anywhere
Powered by AC (100–240V) or DC (12/24V) — or go off-grid with Dometic batteries and solar panels.
Specifications
Specifications
Model: CFX595DZ
Total Volume (IEC 62552-3): 94 L
Capacity: 121 cans (12oz/375ml)
Cooling Zones: Dual
Temperature Range: +20°C to −22°C (+68°F to −7°F)
Compressor Type: VMSO 3.5 (Variable Motor Speed Optimization)
Refrigerant: R1234yf (GWP 0.5)
Insulation Type: PU (Polyurethane) with Vacuum Insulated Panels (VIP)
Net Weight: 63.50 lbs
Input Voltage (AC): 100–240V
Input Voltage (DC): 12/24V
Input Frequency: 50/60 Hz
Rated Input Power (AC): 65 W
Rated Input Current (AC): 1.15A at 100V, 0.48A at 240V
Rated Input Current (DC): 9.8A at 12V, 4.5A at 24V
Energy Consumption (12VDC, 4°C internal, 32°C ambient): 1.53 Ah/h
Energy Consumption (12VDC, 4°C large / −15°C small zone, 32°C ambient): 3.26 Ah/h
Climate Class (EN 62552): N/T
Thermostat Control: Electronic
Connectivity: Bluetooth
USB Port: Yes (18W QC 3.0)
Interior Light: Yes, LED

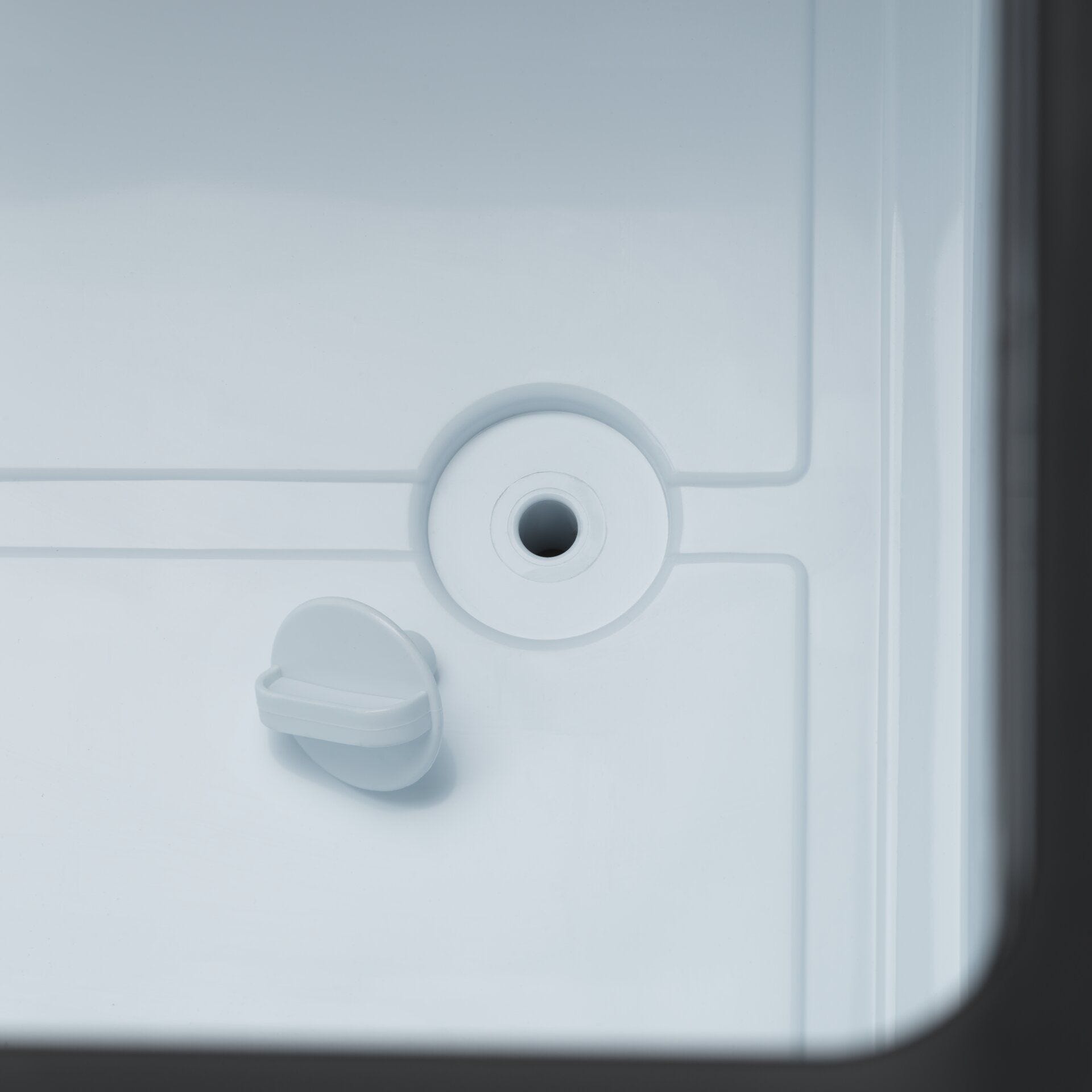

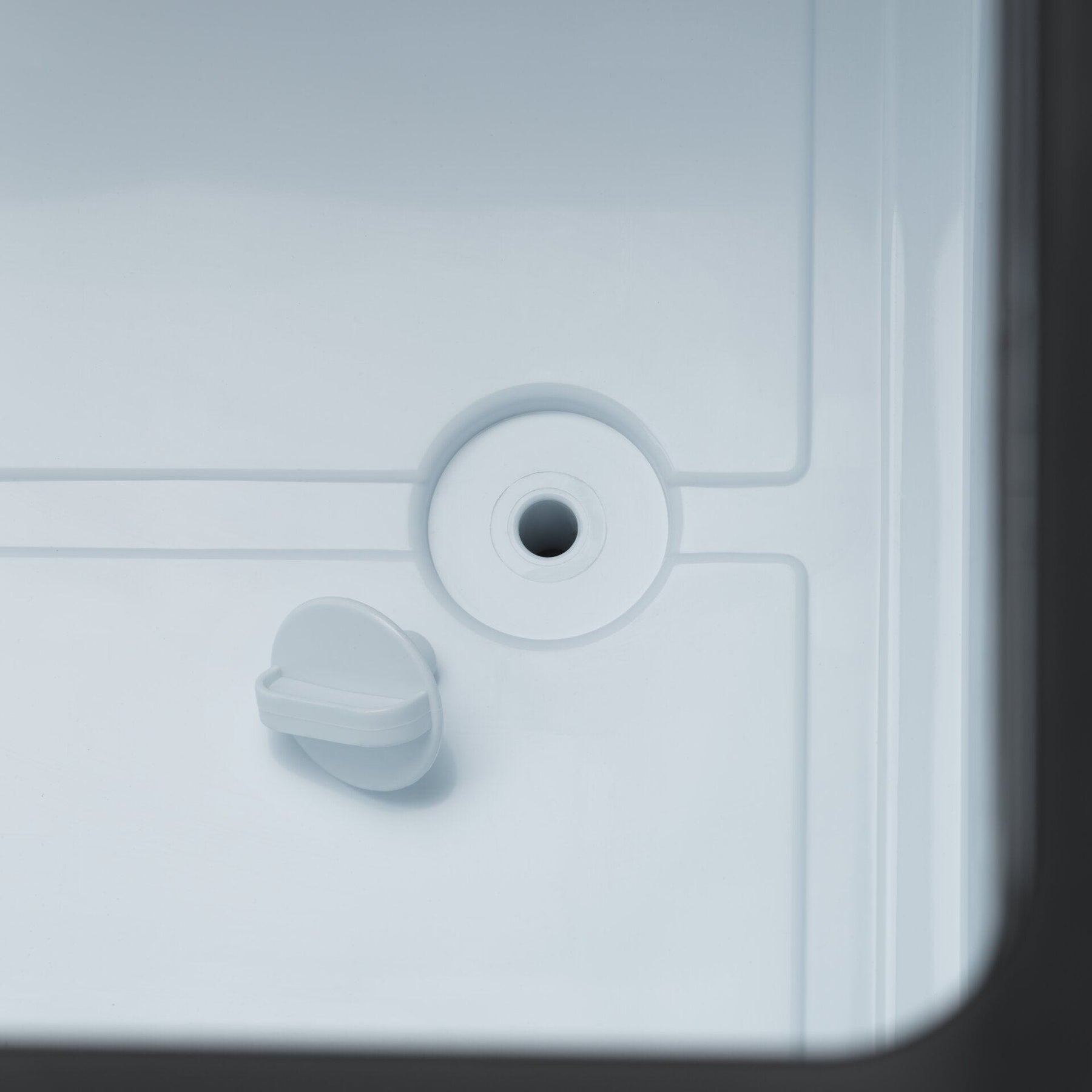

Drain Plug: Yes
Anti-Condensation Coil: Yes
Priority (Battery Protection) Circuit: Yes, integrated
Mounting Inserts: M6 threaded inserts in base
Scope of Delivery: 1 cooler, 1 manual, 1 warranty card, 12/24V DC cable, 100–240V AC cable, removable wire baskets, bottle opener
Dimensions
Product Width: 20.87 in
Product Depth: 37.87 in
Product Height: 18.58 in
Parcel Width: 22.44 in
Parcel Depth: 39.57 in
Parcel Height: 20.47 in
Parcel Weight: 71.72 lbs
