AC to DC Converter 1000W 83A

AC to DC Converter 1000W 83A

Dual Voltage Input New Version Converter: Supports input voltage: AC 110V / 220V (85–145V / 185–265V). Output current depends on the device, such as DC 12V 10A (120W), 30A (360W), 50A (600W), 66.7A (800W), with a peak current of 83.33A and peak power of 1000W. For resistive devices, required SMPS peak power should be at least 1.25× the device power. For motor-driven devices, peak power should be more than 2× the motor’s power.

3-in-1 Connectivity Design: Features an integrated wire design with three connection methods (direct wire, terminal block, plug-in). Includes a built-in on/off switch and a wall-mountable four-hole bracket for flexible placement in homes, offices, or RVs.

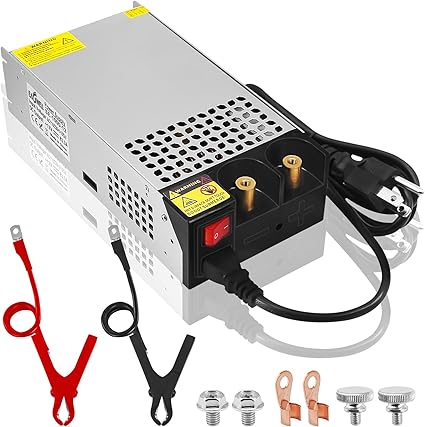

Plug-and-Play Setup with All-Inclusive Kit: Includes UL-listed power cord, 12V 1000W power supply, ring terminals, alligator clips, and screw kit. Dual wiring options (direct wire and terminal clamps) support DIY, RV, or industrial setups. No extra tools required.

Intelligent Cooling System with Dust-Proof Design: Built with an aluminum alloy shell, multi-directional heat dissipation holes, a built-in silent fan, and a dust-proof net. The fan activates automatically at high temperatures to prevent overheating, extend lifespan, and maintain low noise levels.

Safety Protection + UL/CE/RoHS Certified: Equipped with overload protection, over-voltage protection, thermal cut-off, and short circuit protection. Features high reliability, low temperature rise, and a built-in EMI filter. 100% full-load burn-in tested. All components (cord, plug, converter) meet UL, CE, and RoHS safety standards.

Works with 1000+ 12V Devices: Powers a wide range of 12V equipment including diesel heaters, DC 12V pumps, air compressors, winches, car jacks, car stereos, amplifiers, radios, LED light strips, brushless motors, household electronics, automation equipment, and DIY electronics projects. Ensure the device’s starting current does not exceed the 83.33A peak limit.

Specifications

Specifications

• Power Source: Corded Electric
• Mounting Type: Wall Mount
• Current Rating: 83.33 Amps
• Frequency Range: 50–60 Hz
• Item Weight: 16 ounces

• What’s in the Box: 12V Power Supply 1000W, Power Cord, Ring Terminals, Alligator Clips, Screw Kit
