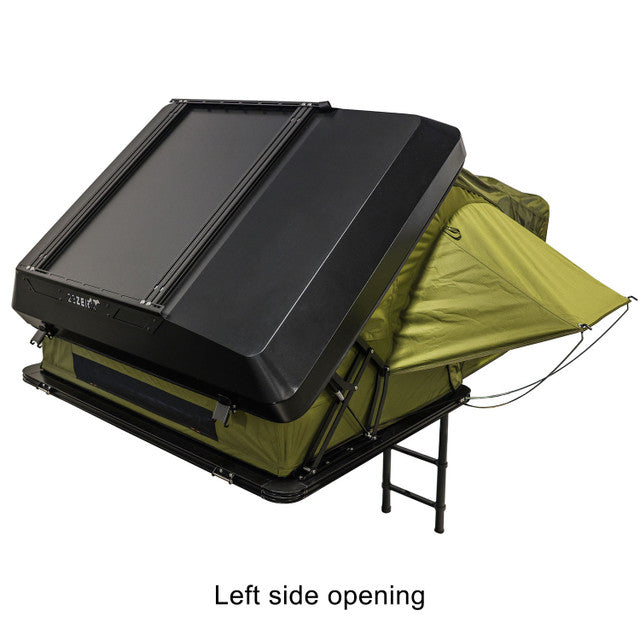

23ZERO Armadillo Horizon 2 Hardshell Tent (Left Only)

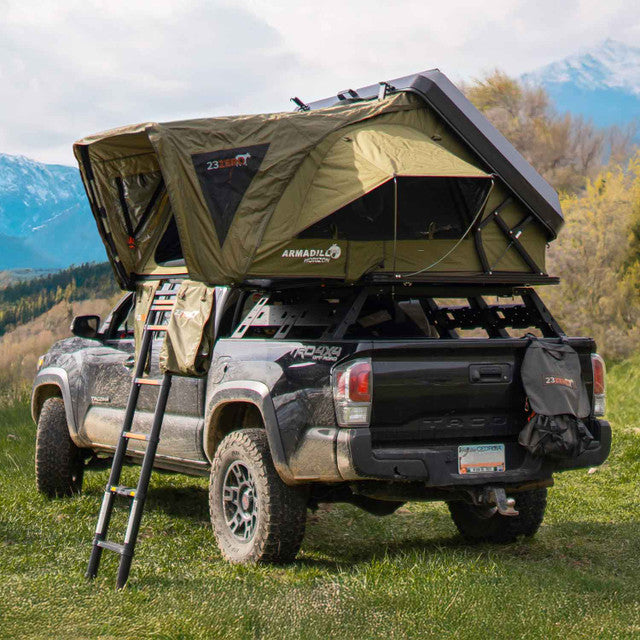

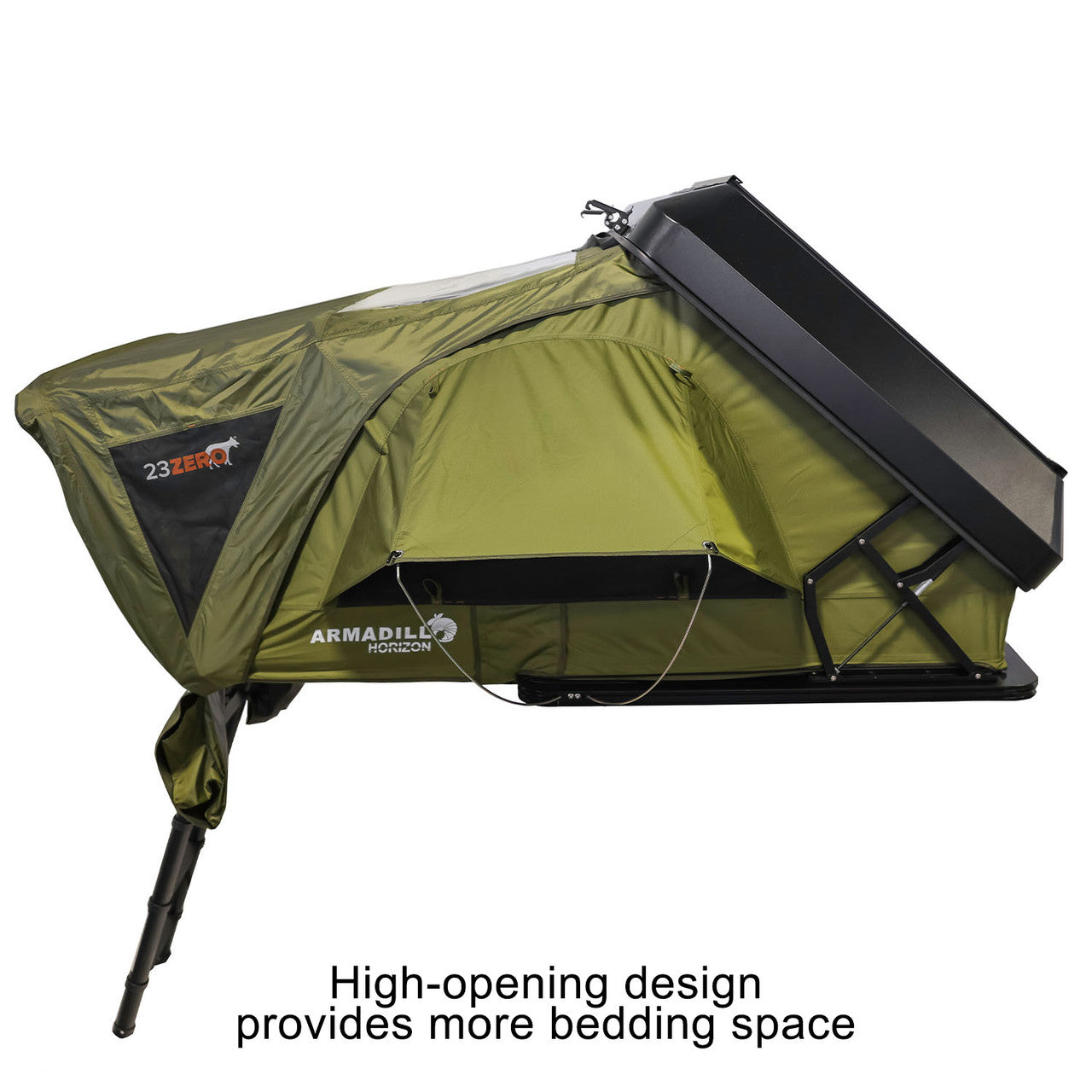

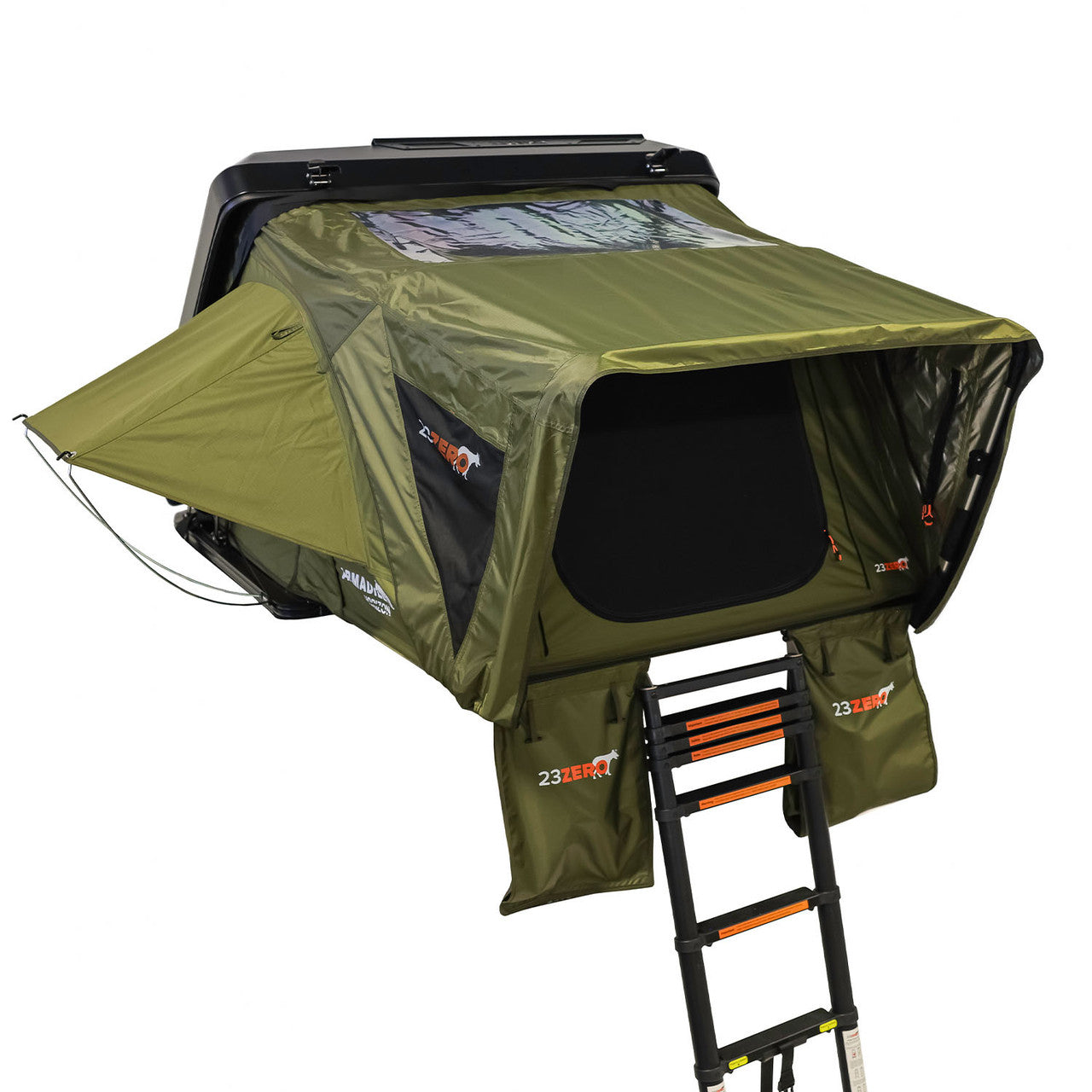

The 23Zero Armadillo Horizon 2 is a rugged, feature-rich aluminum hardshell roof tent built for serious overland exploration. With a new high-opening design, 3" self-inflating mattress, and unmatched ventilation, this rooftop tent hardshell blends durability, comfort, and convenience.

• Mounting Footprint: 52.5” W x 62” L x 13.25’ H, 205 lbs (with mounting rails & ladder)
• Sleeping Footprint: 51” W x 78” L x 43” H
• Open Dimensions: 62” W x 80” L x 49” H

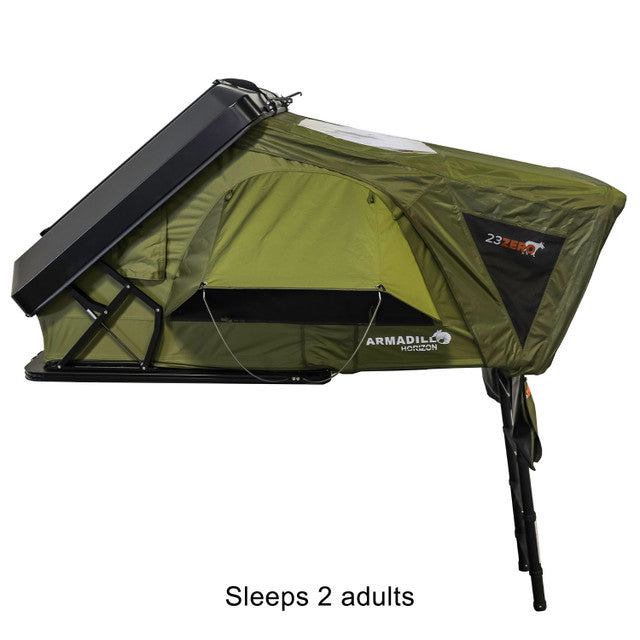

• Sleeps: 2 Adults

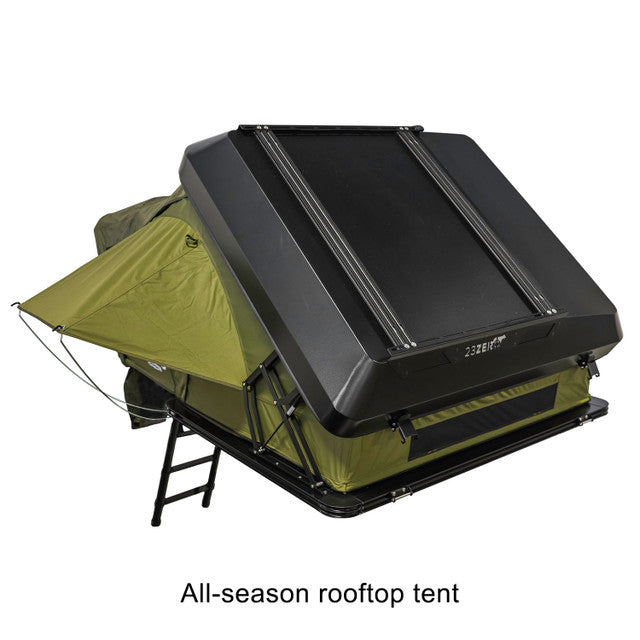

• Seasons: 4 Season

Key Features

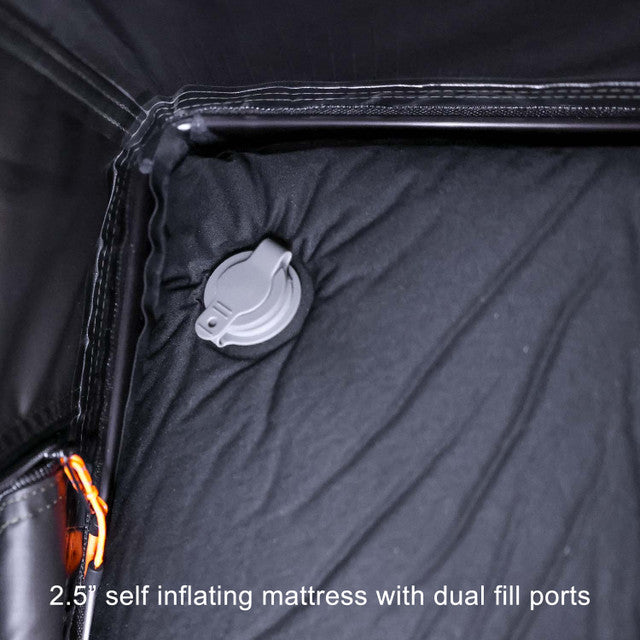

• Comfortable Sleeping Experience: Two and a half (2.5) inch self-inflating mattress offers excellent comfort and support with dual fill ports for easy inflation and top off—plus, it compresses easily to allow room for bedding during transit. Interior bedding storage keeps your gear stowed inside the tent (up to 12” W x 50” L x 12” H), so you’re always ready to roll (pump not included).

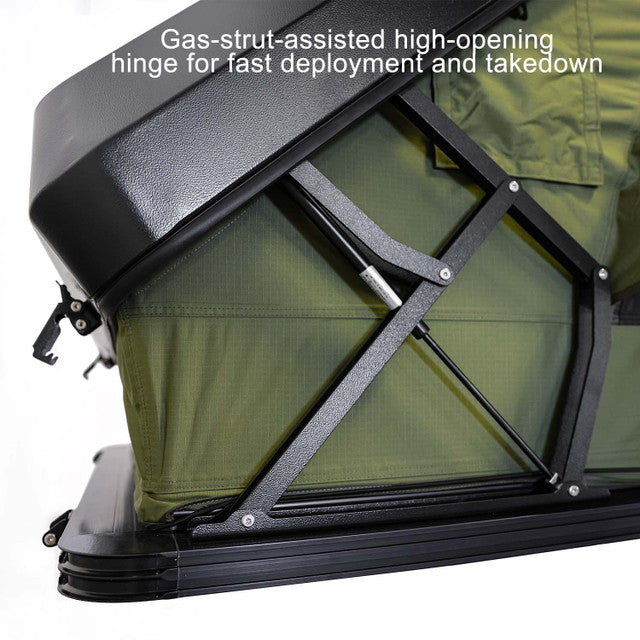

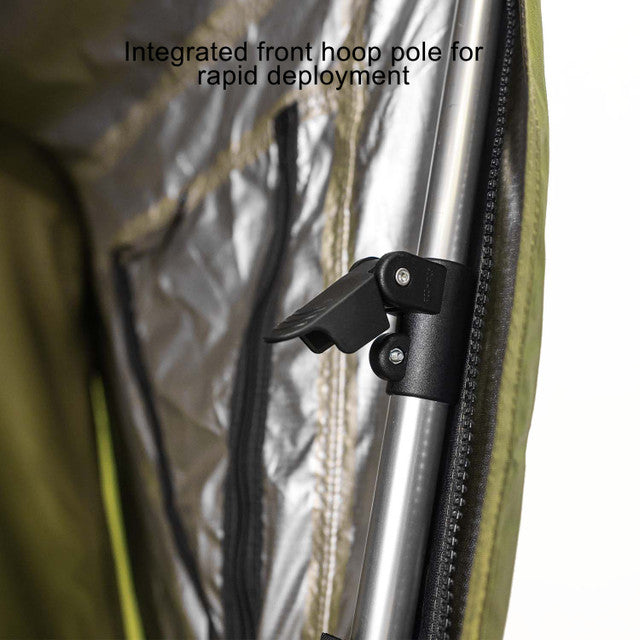

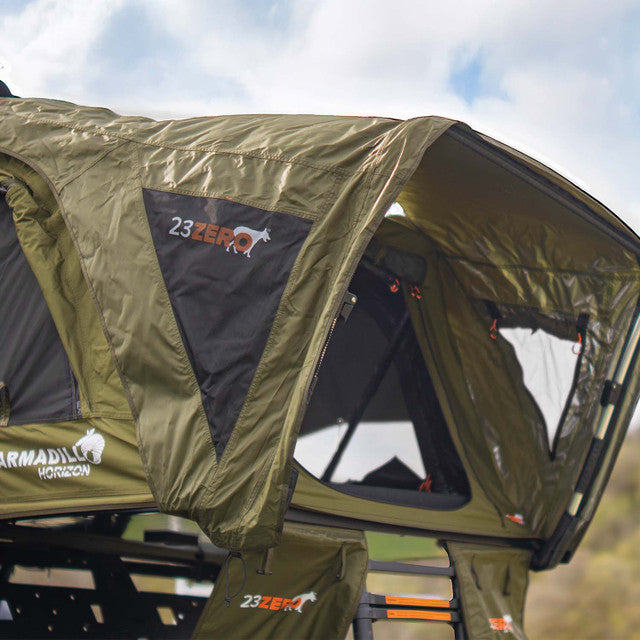

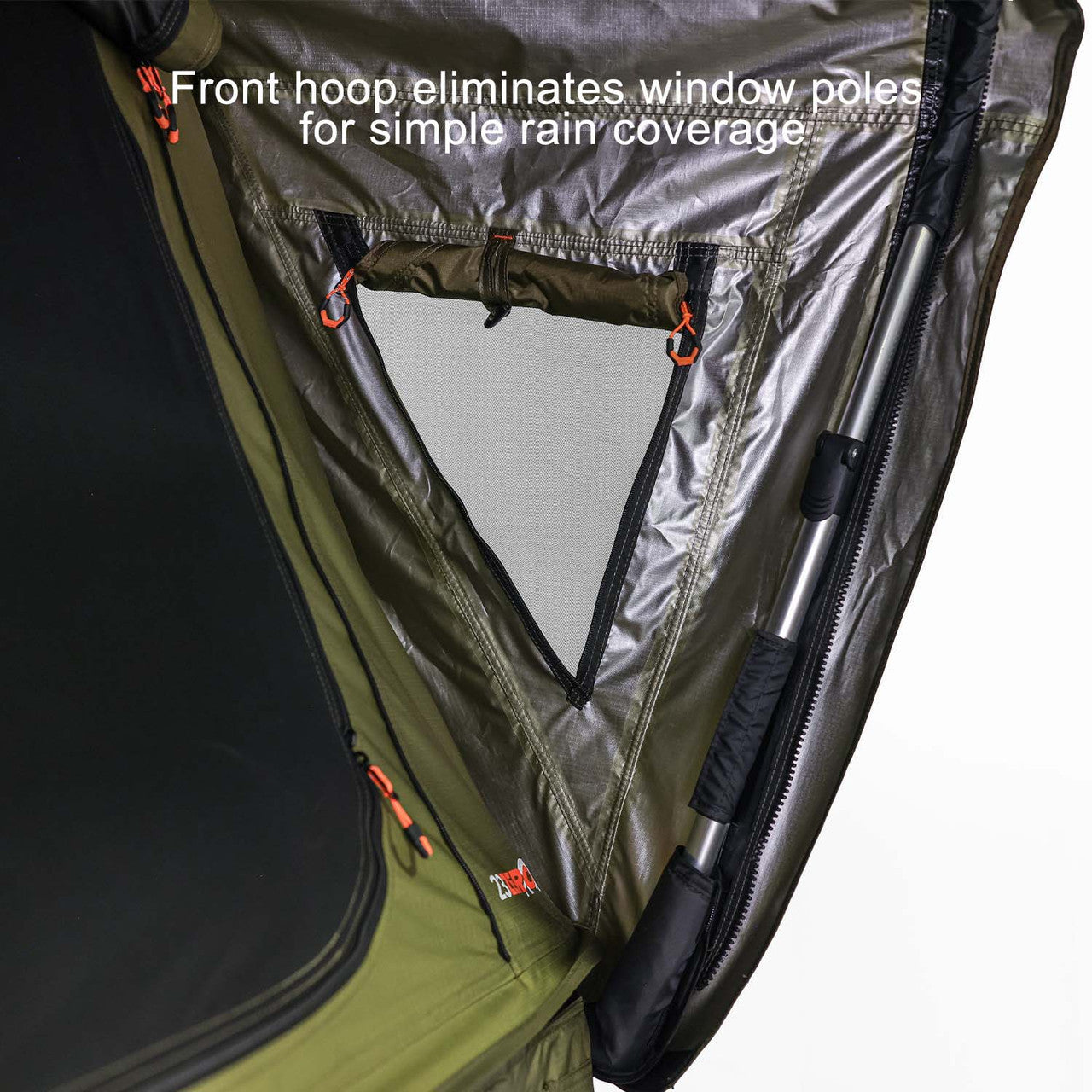

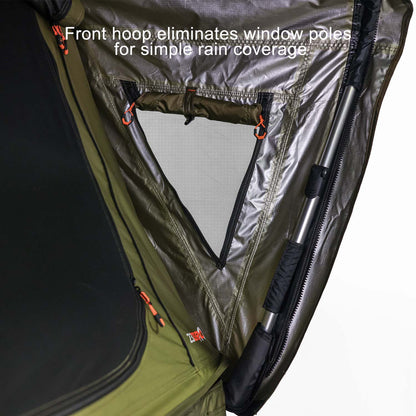

• Fast, Simple Setup: Gas-strut-assisted hinge system delivers lightning-fast deployment and takedown—perfect after a long day on the trail. Front rainfly hoop design replaces spring poles, making setup even easier while maintaining weather protection.

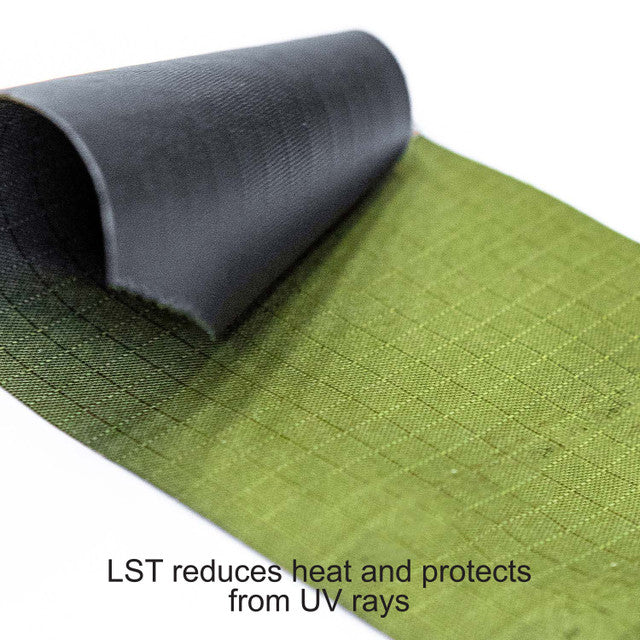

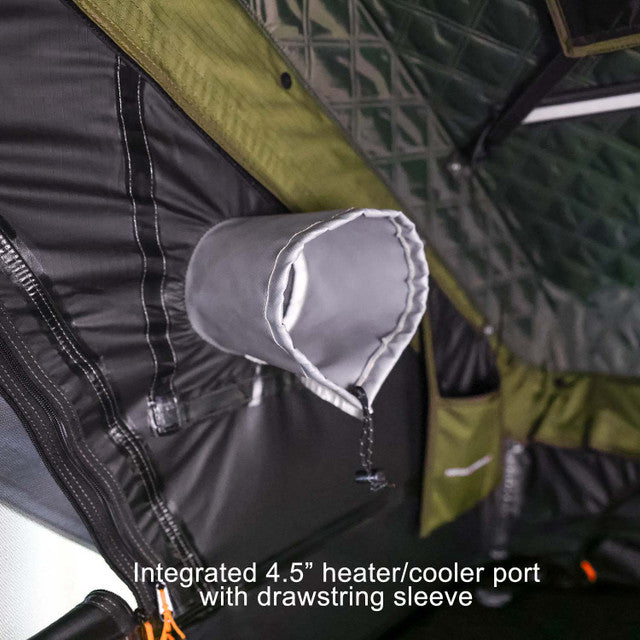

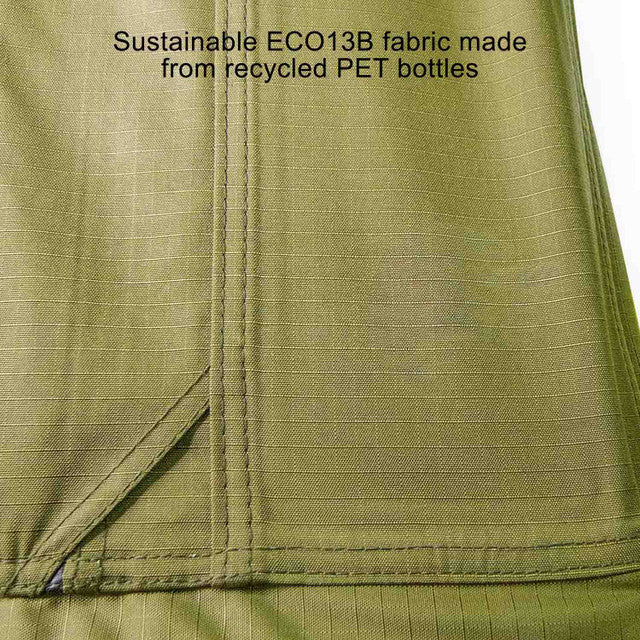

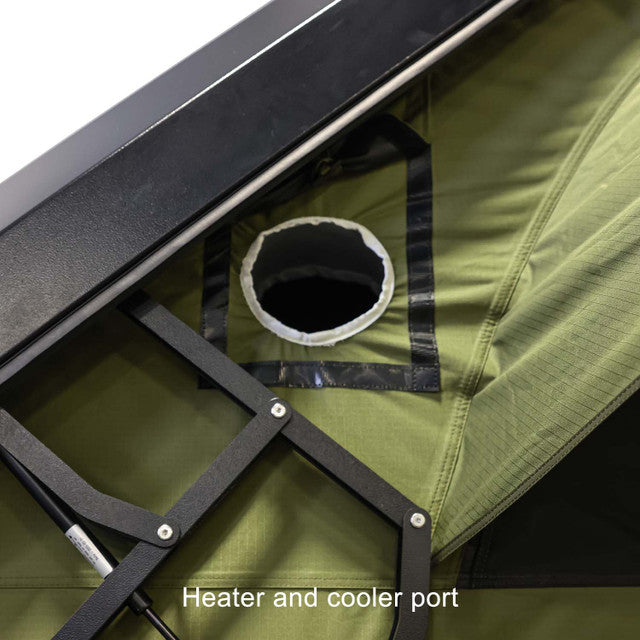

• Superior Climate Control: 23Zero ECO13B fabric with Light Suppression Technology (LST) keeps your sleeping area cooler and darker, minimizing sun exposure so you can sleep in longer. Integrated heater/cooler port accepts up to 4.5” ducting and includes a locking drawstring sleeve—perfect for running a diesel heater or portable A/C system.

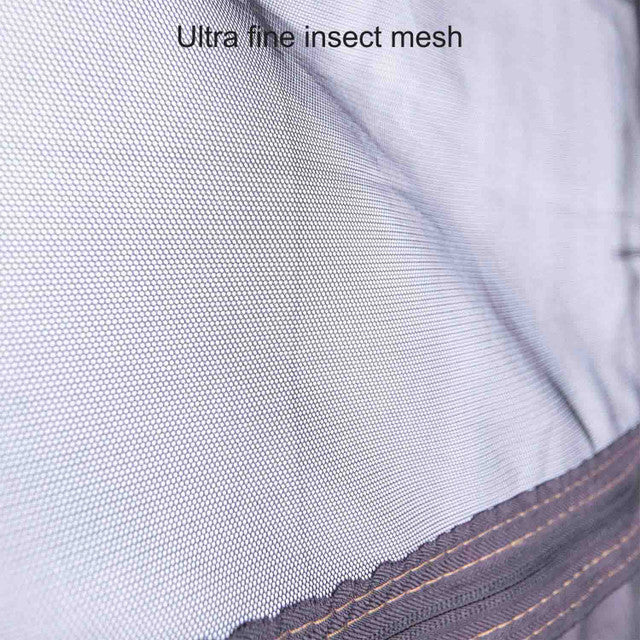

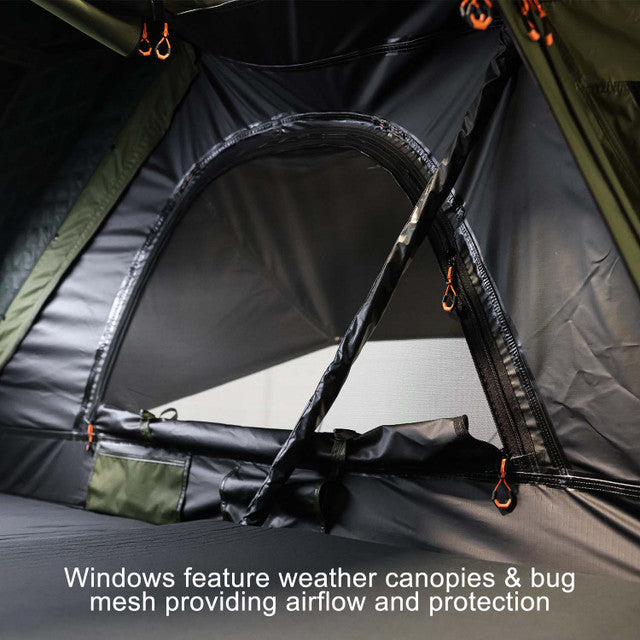

• Unmatched Views & Ventilation: All windows feature weather canopies and bug mesh, providing airflow without sacrificing protection or privacy. 360° visibility and airflow with oversized mesh-screened windows:

• • Entry door (28” x 30”)

• • Side windows (40” x 23”)

• • Head-space window (43” x 7”)

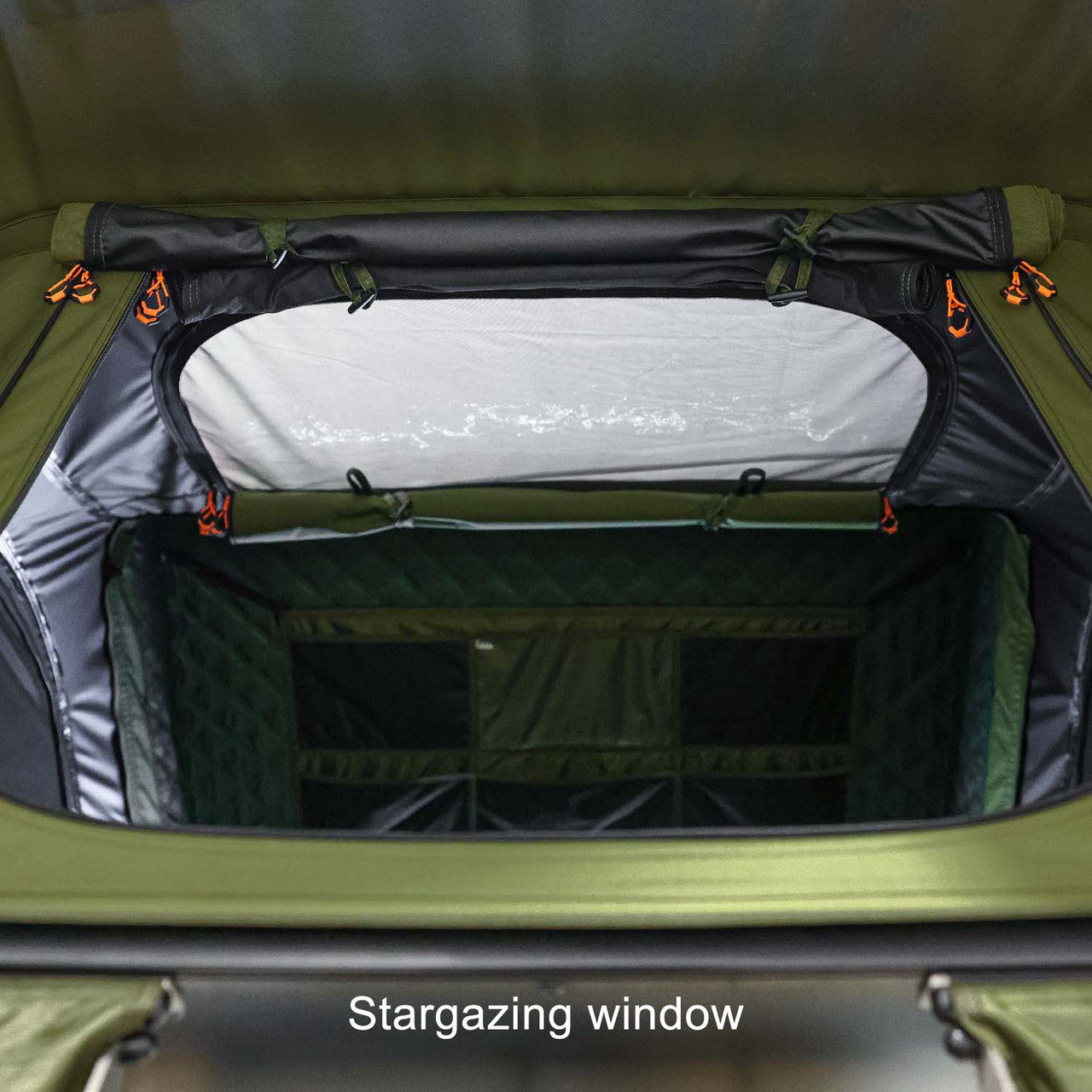

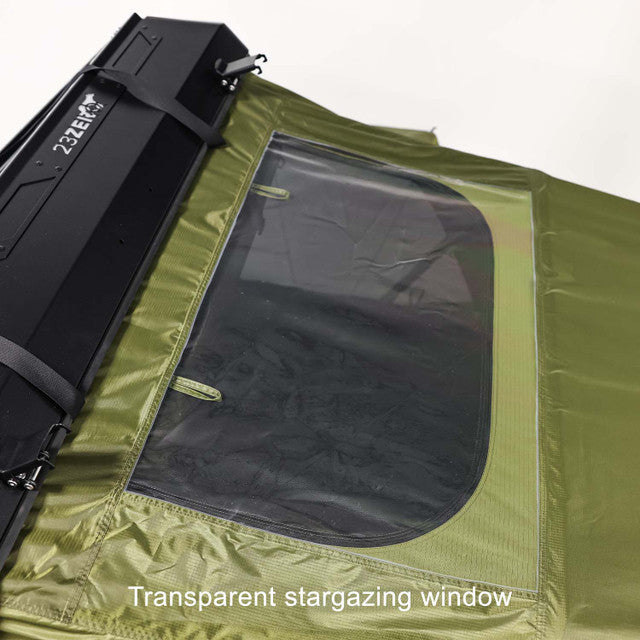

• • Stargazer / Sunroof Sky (36” x 20”)

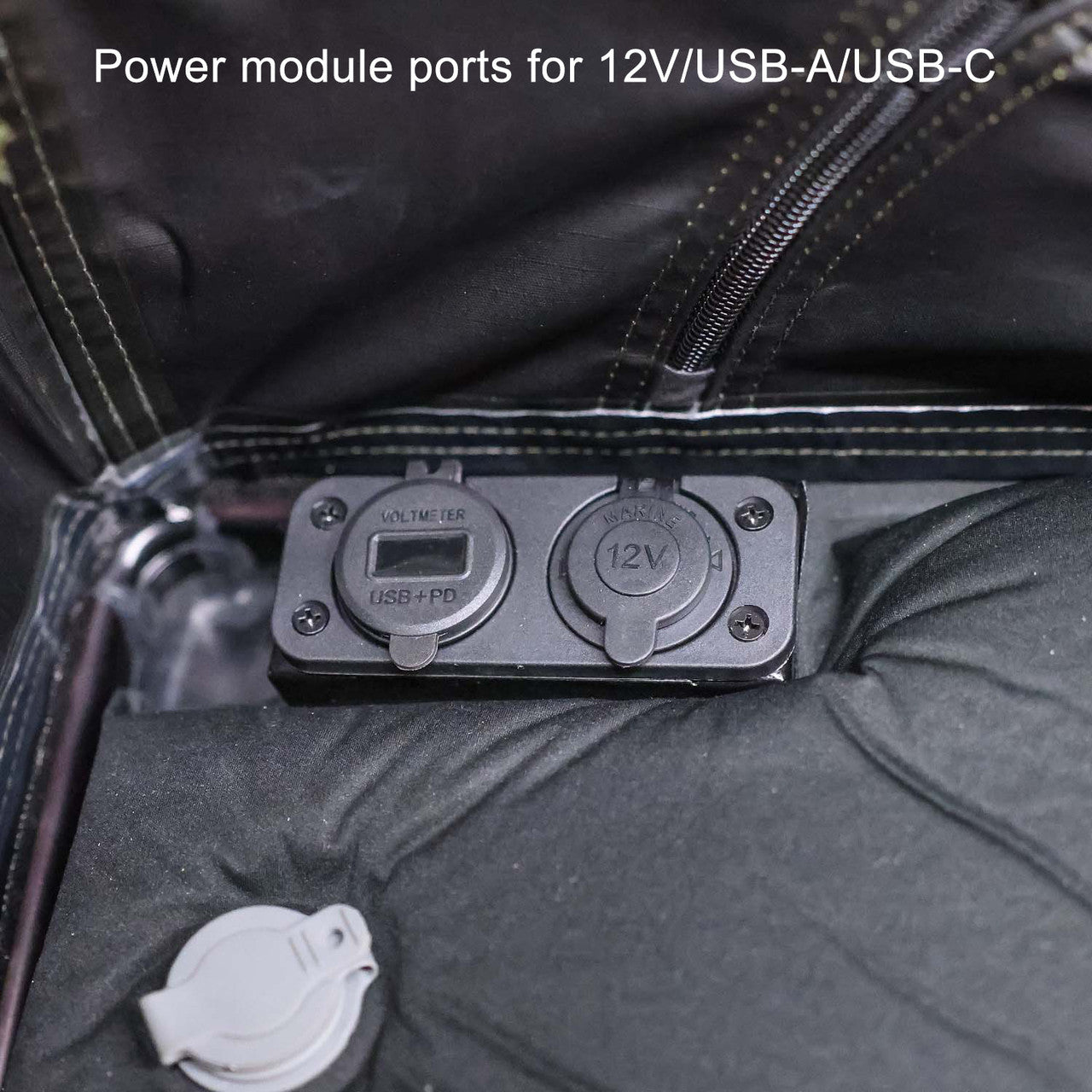

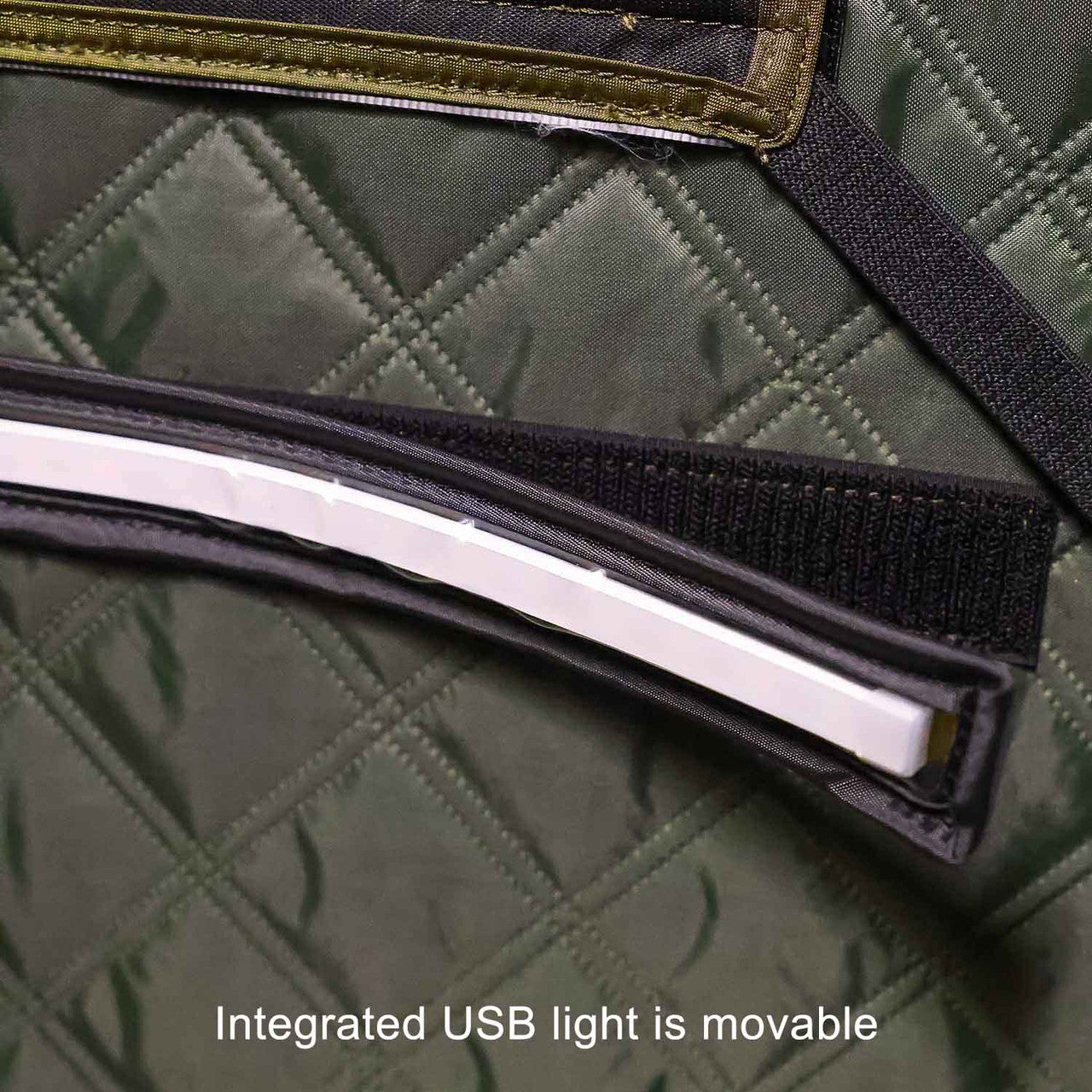

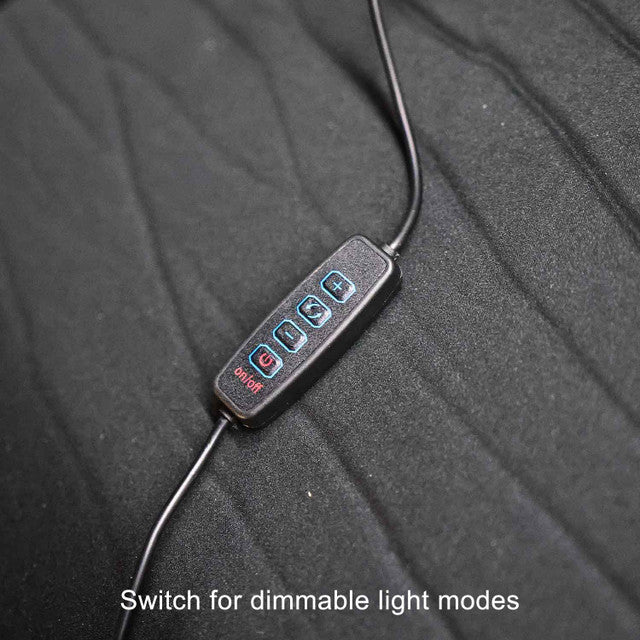

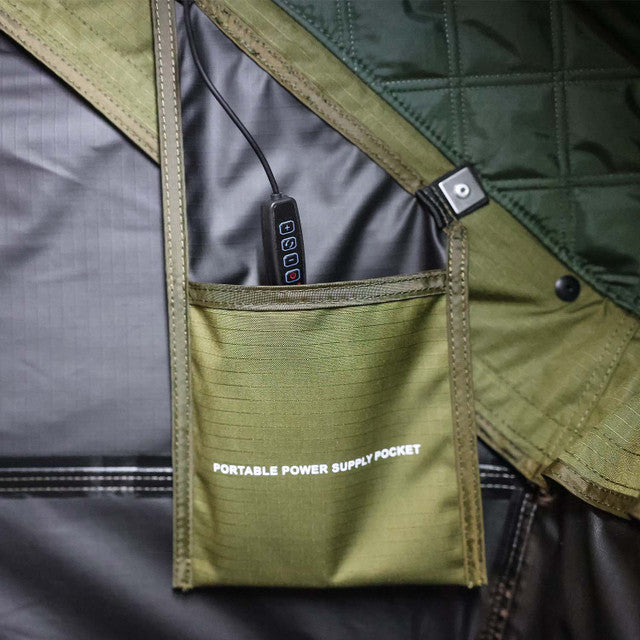

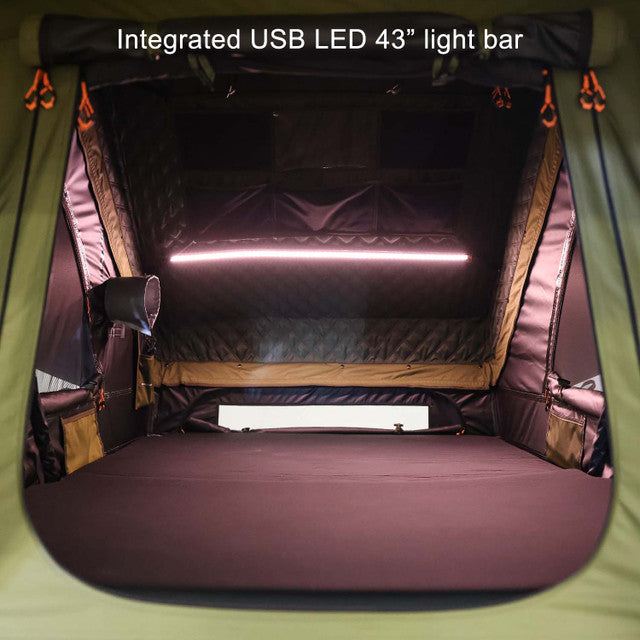

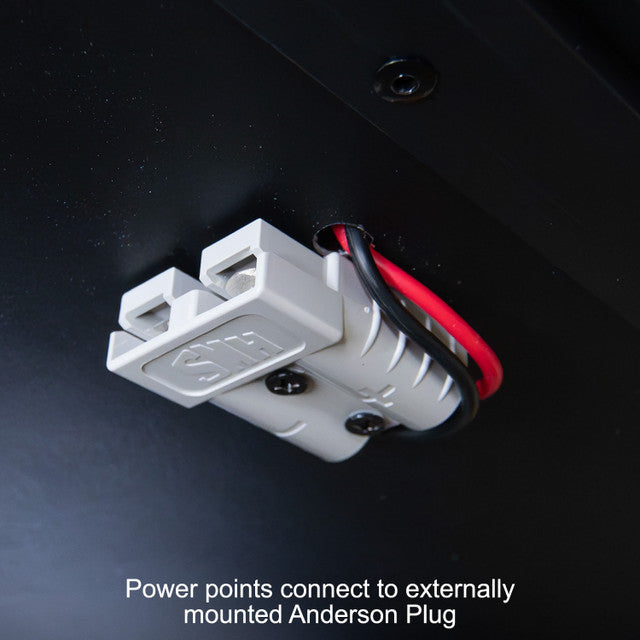

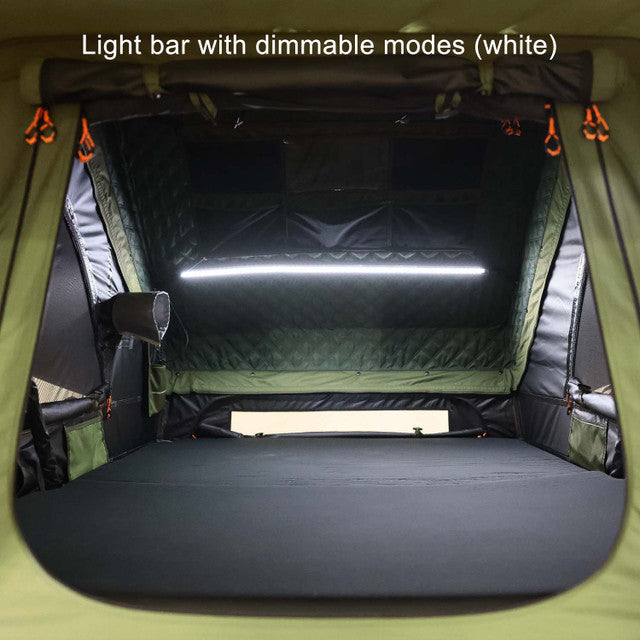

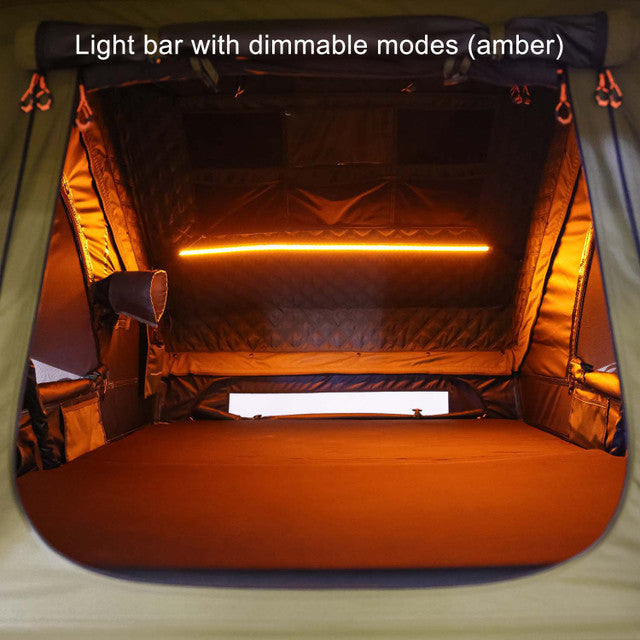

• Integrated Power & Lighting: USB LED light bar (43”) with dimmable white, amber, and blended modes creates the perfect ambiance (power supply not included). Power module with 12V socket, USB-A, and USB-C ports wired to a preinstalled AP-50 Anderson plug at the front right corner for easy power access (cable to power source not included).

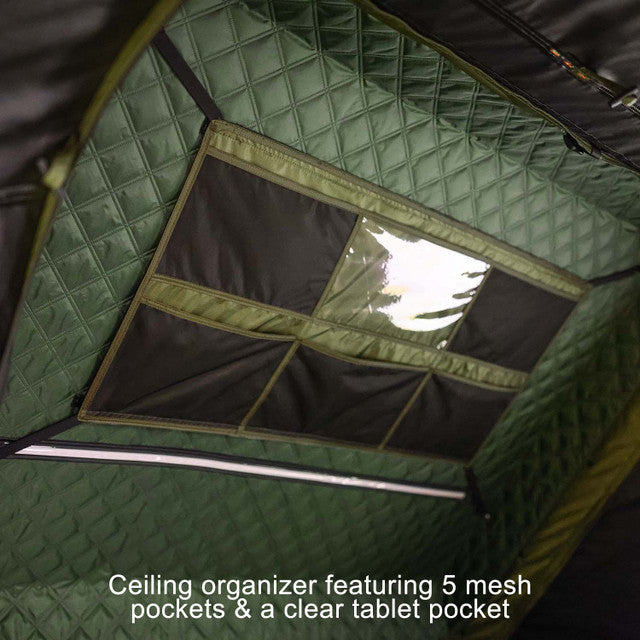

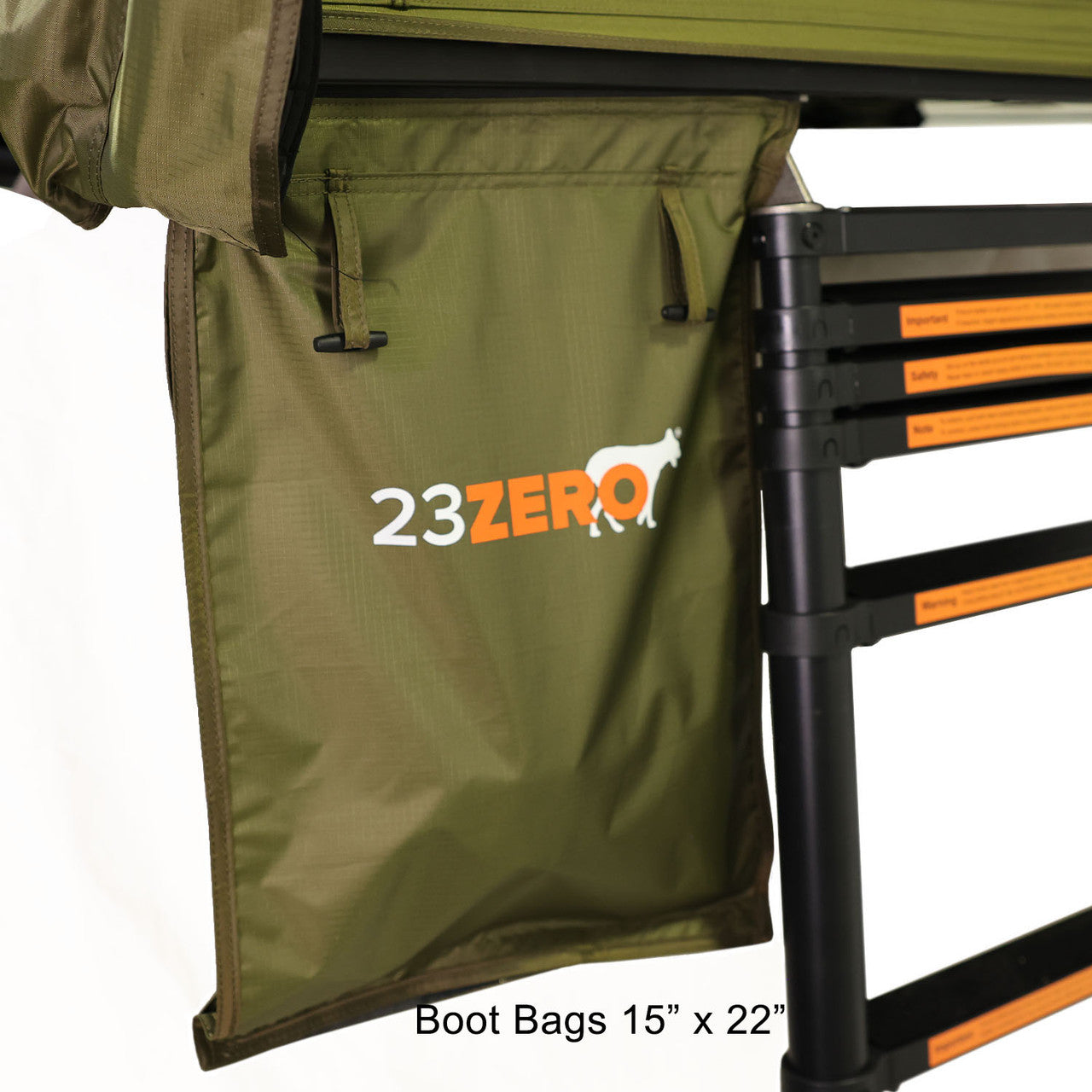

• Smart Storage Solutions: Overhead gear loft (38” x 22”) includes one clear tablet pocket (13” x 9”), one large mesh pocket (13” x 9”), and four smaller mesh pockets (11” x 9”). Two bedside storage pockets (11” x 5”) and head/foot pockets (7” x 7”) keep essentials within reach. Included boot bag (15” x 22”) with dual shoe compartments and a hanging gear bag (15” x 22”) with five organization pockets store gear off the ground and out of the way.

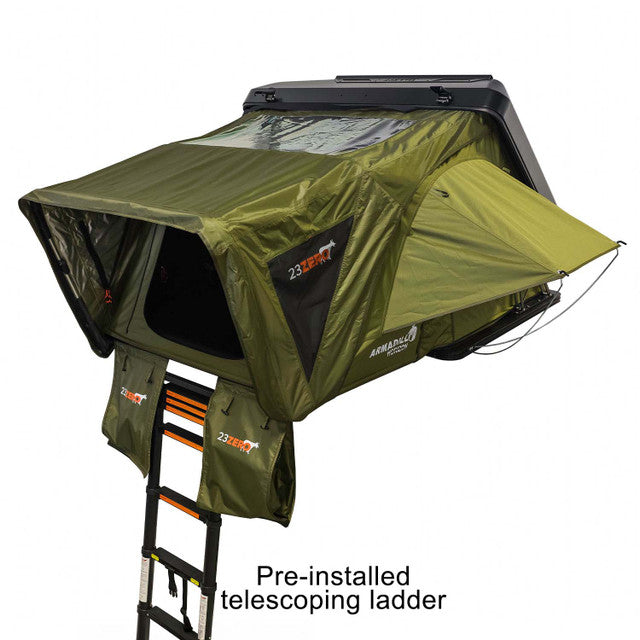

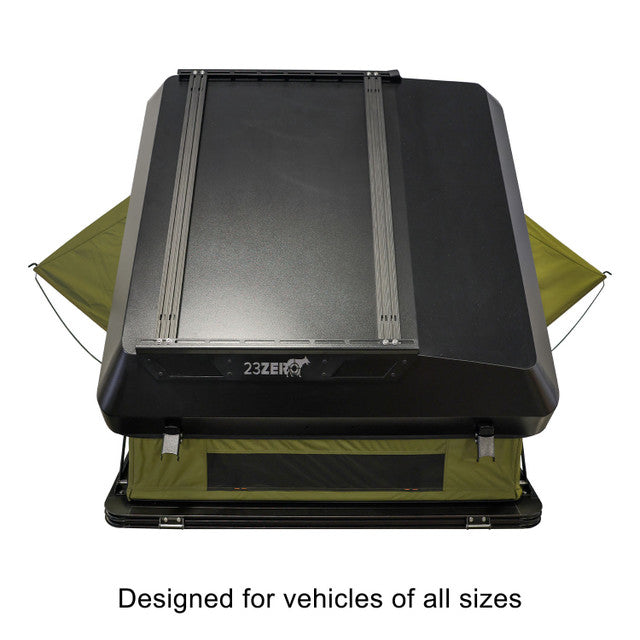

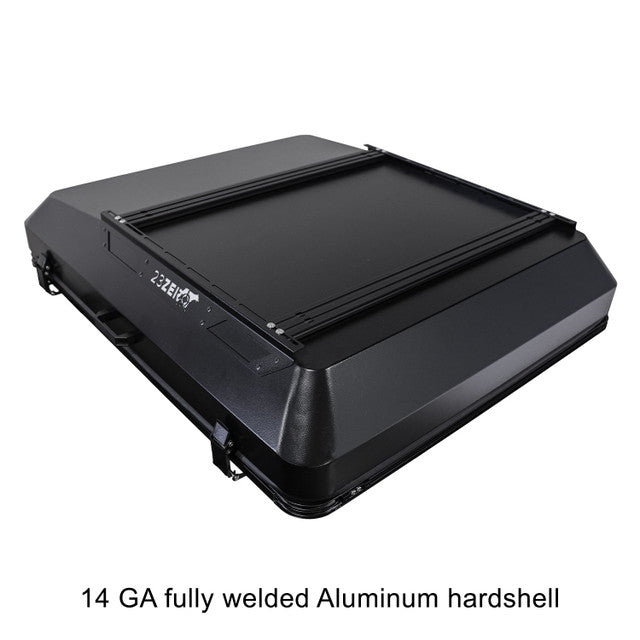

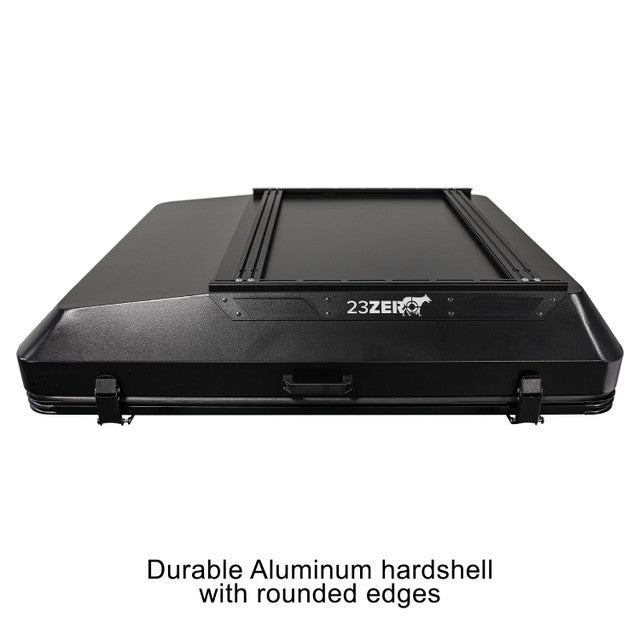

• Rugged, Aerodynamic Design: 14 GA fully welded aluminum hardshell is trail-tested for strength and durability while staying lightweight. Rounded corner design reduces wind resistance and road noise while adding modern aesthetics. Preinstalled ladder and mounting kit make setup on a wide range of vehicles quick and easy.

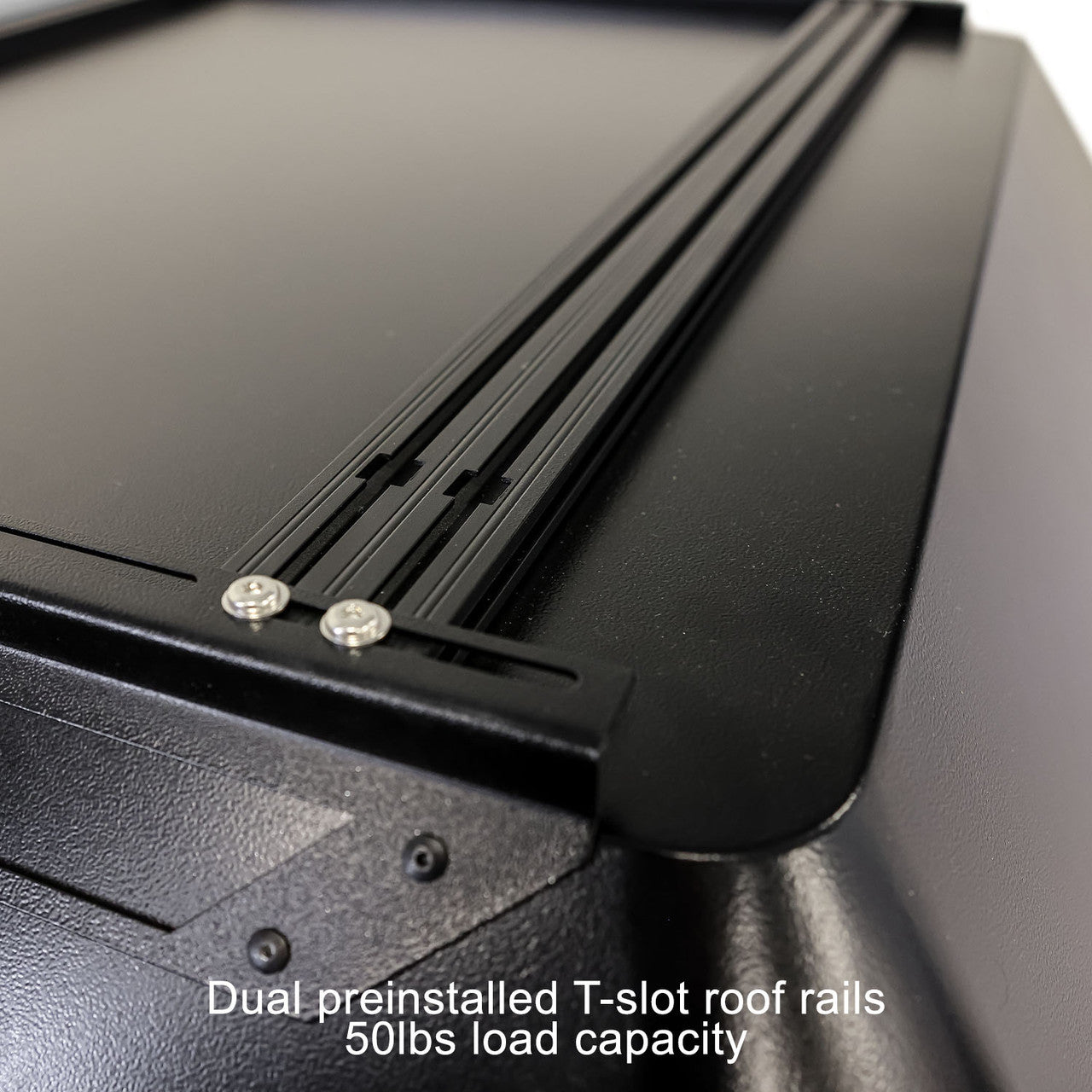

• Tent-Top Utility:  Dual adjustable T-slot roof rails (41” x 2.75”) offer a 50 lbs load capacity—perfect for solar panels and more.

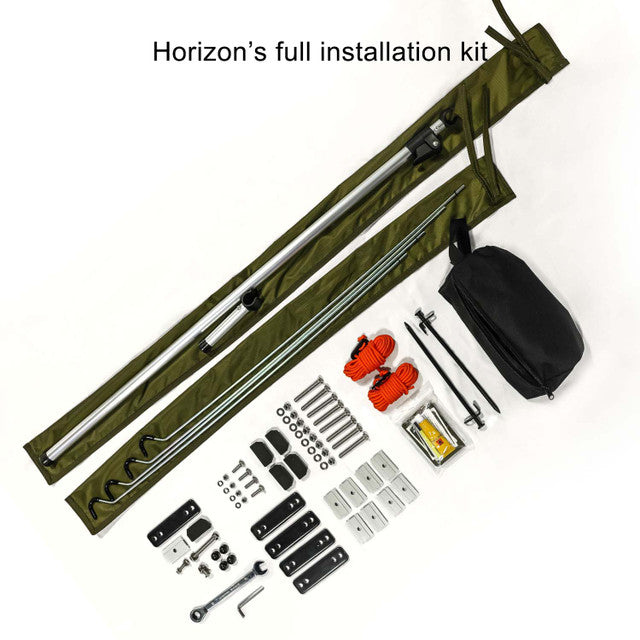

Horizon’s Full Kit Includes:

• Four (4) window poles with storage bag – 32.75” long
• Four (4) mounting plates
• Eight (8) sliding mounting plate sets (plate, bolt [M8 1.25 – 2.5”] , washer, nylock nut [13mm])
• 13mm ratcheting box wrench
• 5 mm Allen wrench
• Two (2) guy lines
• Two (2) stakes
• Four (4) rail end caps

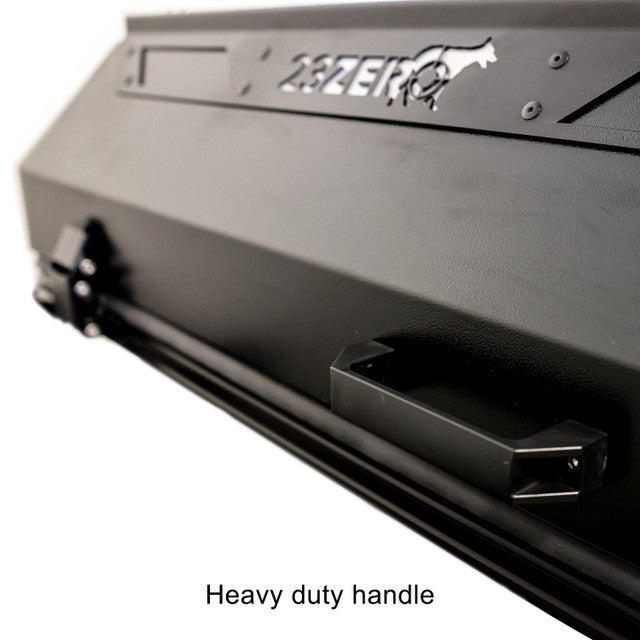

• Two (2) handles with hardware (M8 1.25 – 0.75”, 5 mm hex head)
• Four (4) T-Bolts, washers, and nylock nuts compatible with the rails (M6 1.0 – 0.875”)
• Small repair kit
• Spare parts bag
• Storage pouch
