23Zero Armadillo Horizon 3 Annex Room

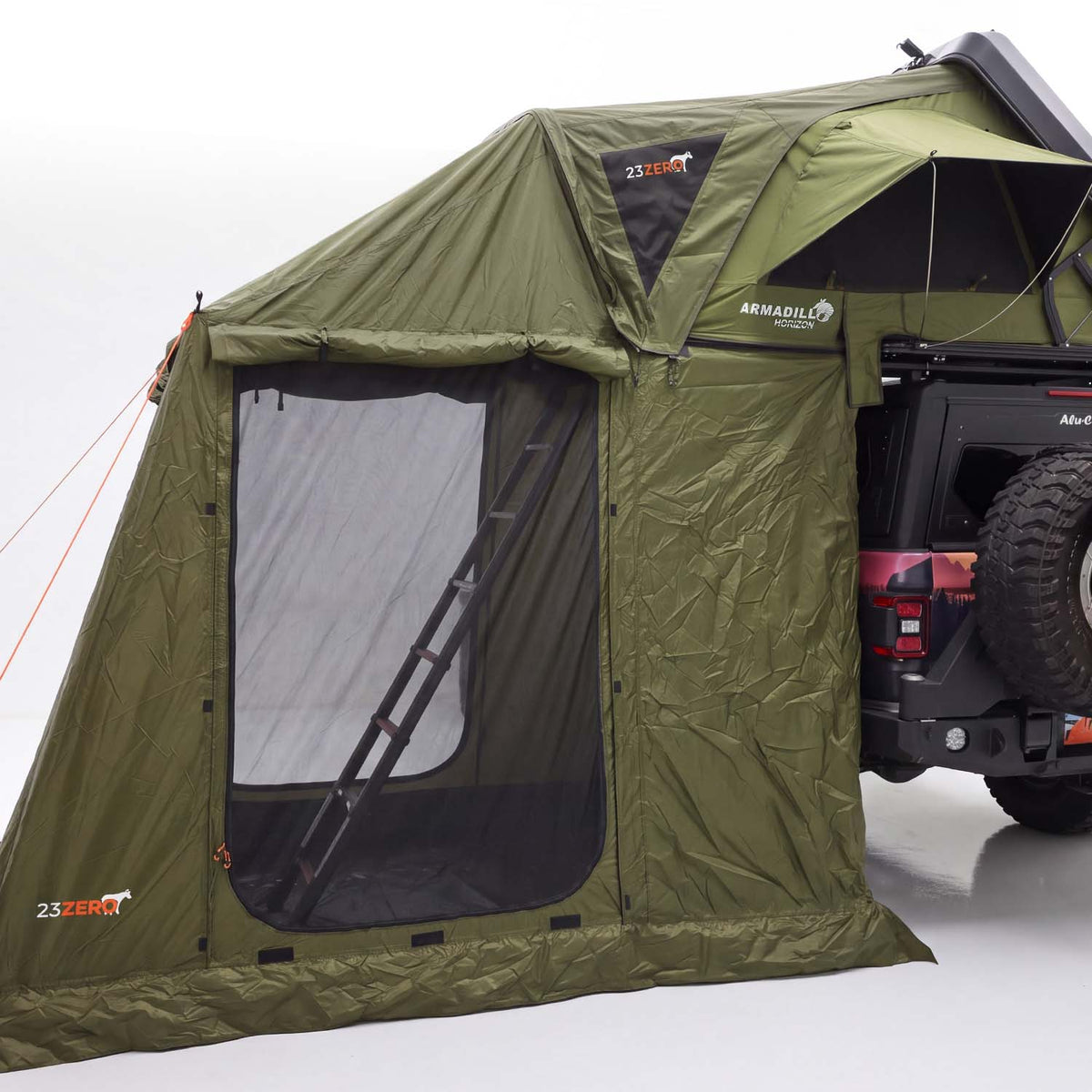

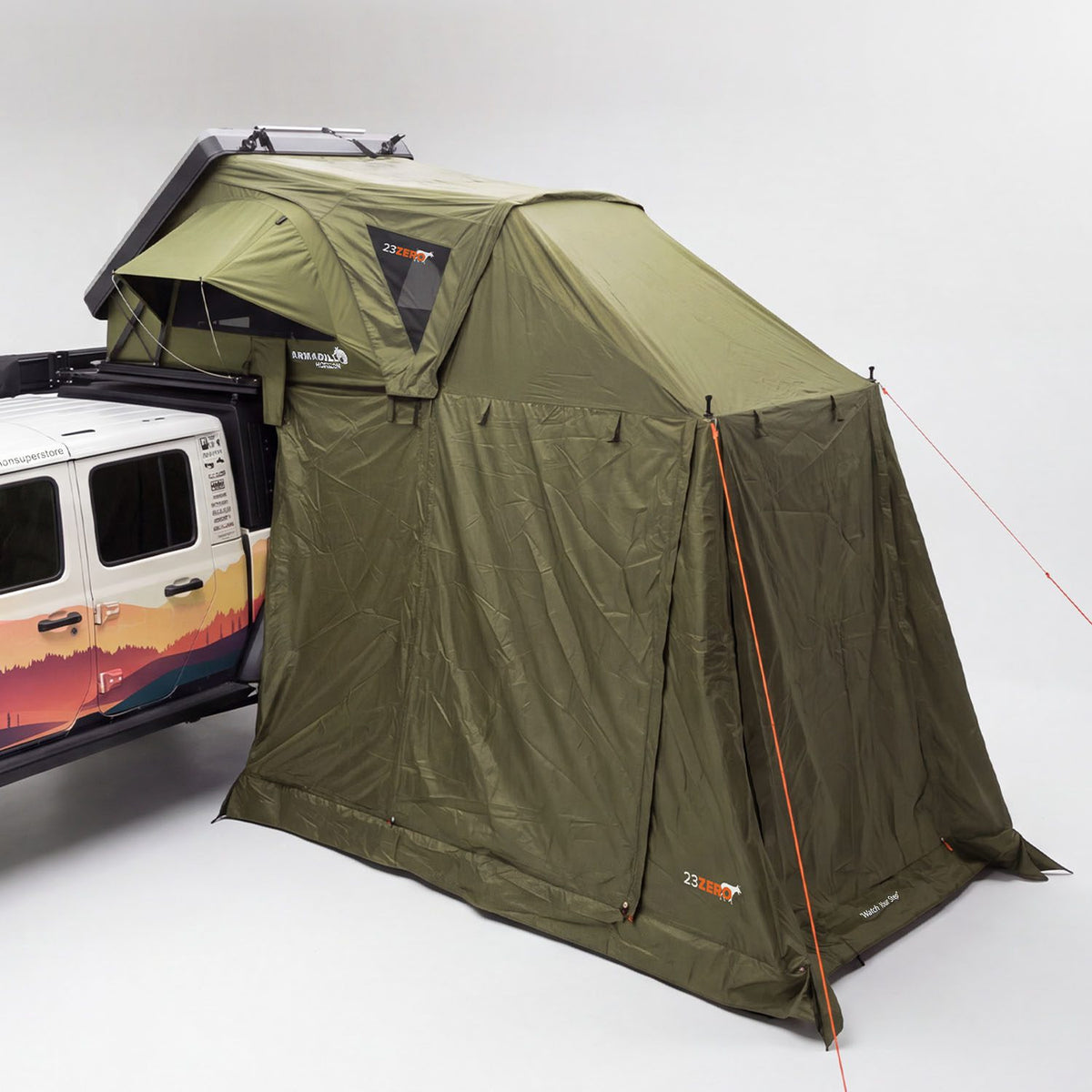

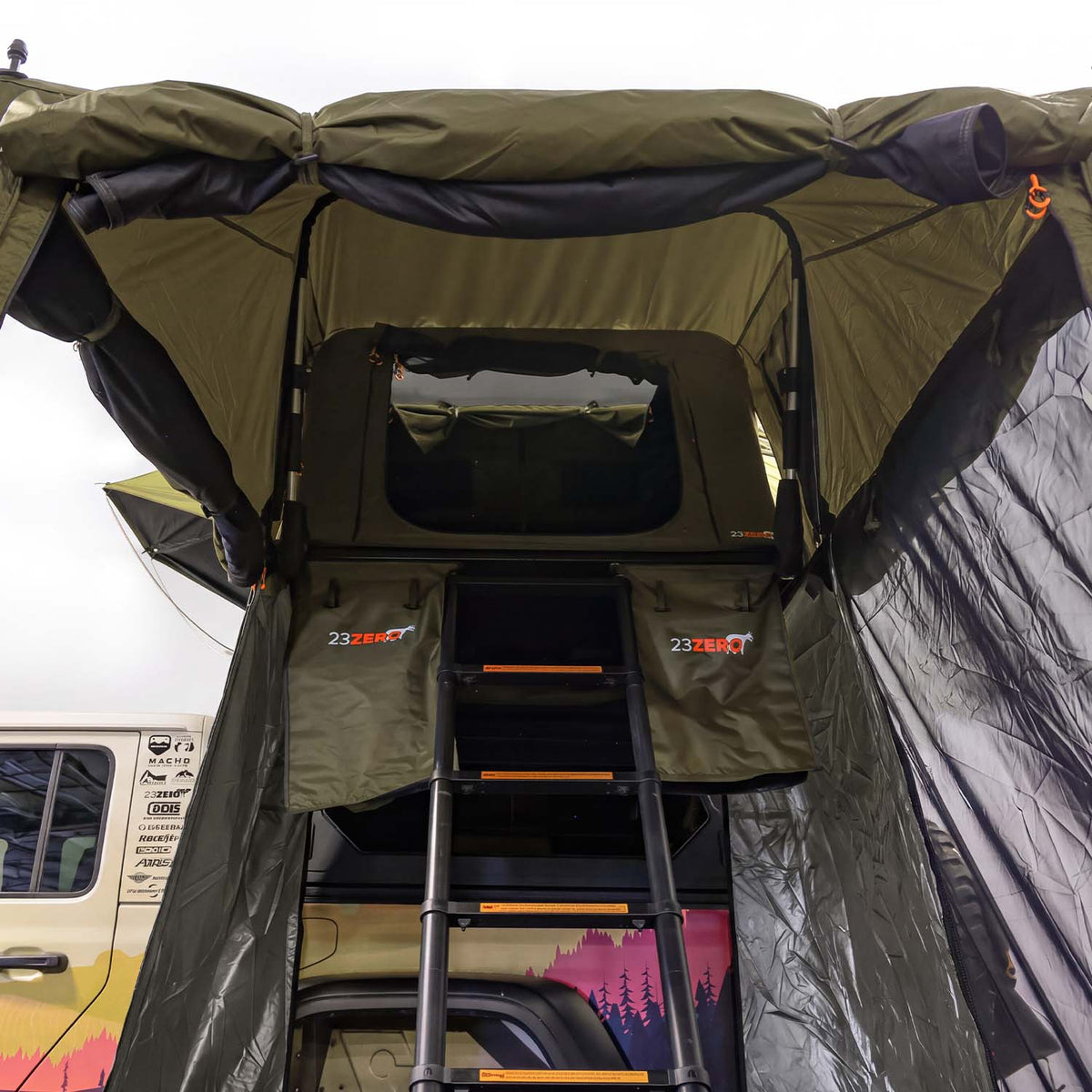

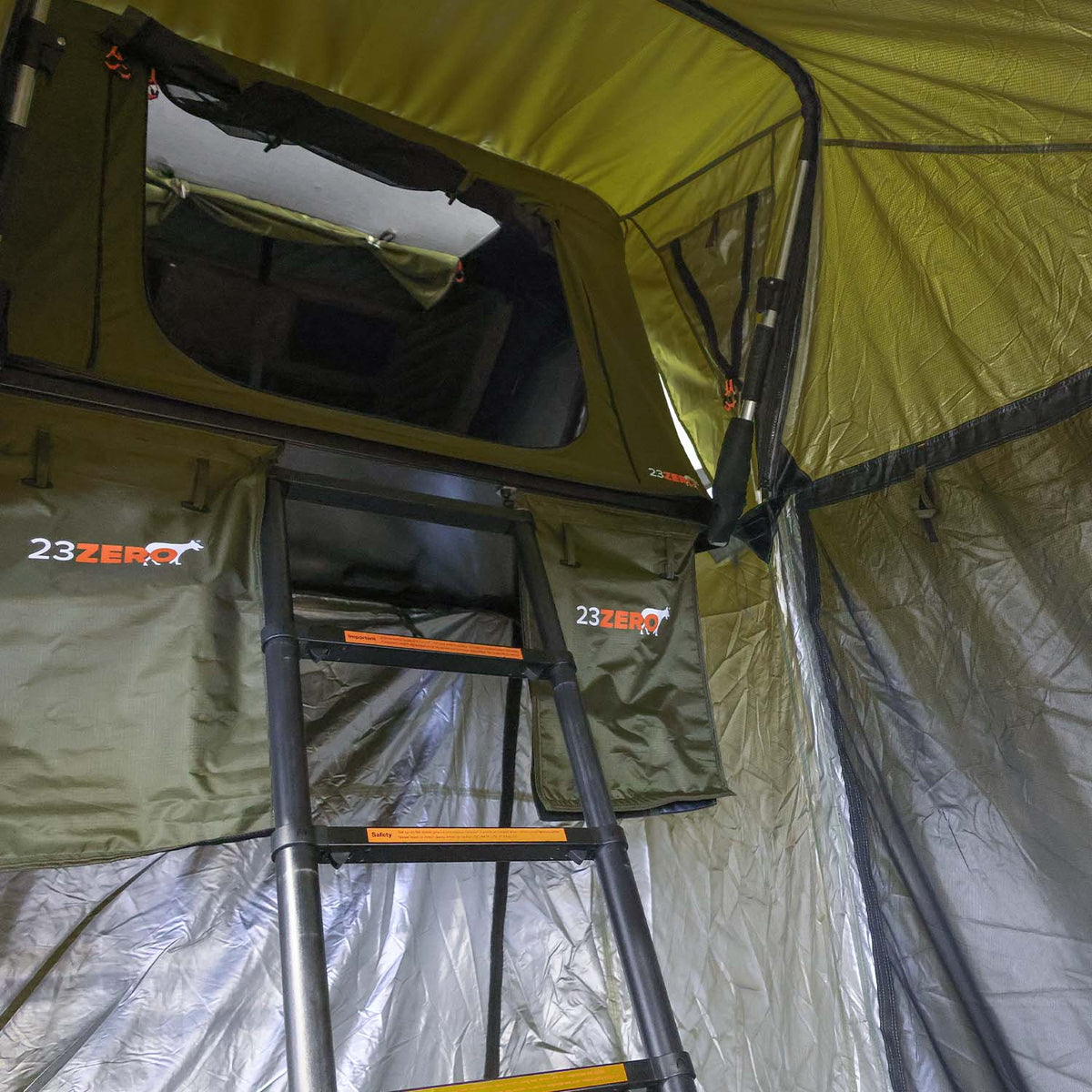

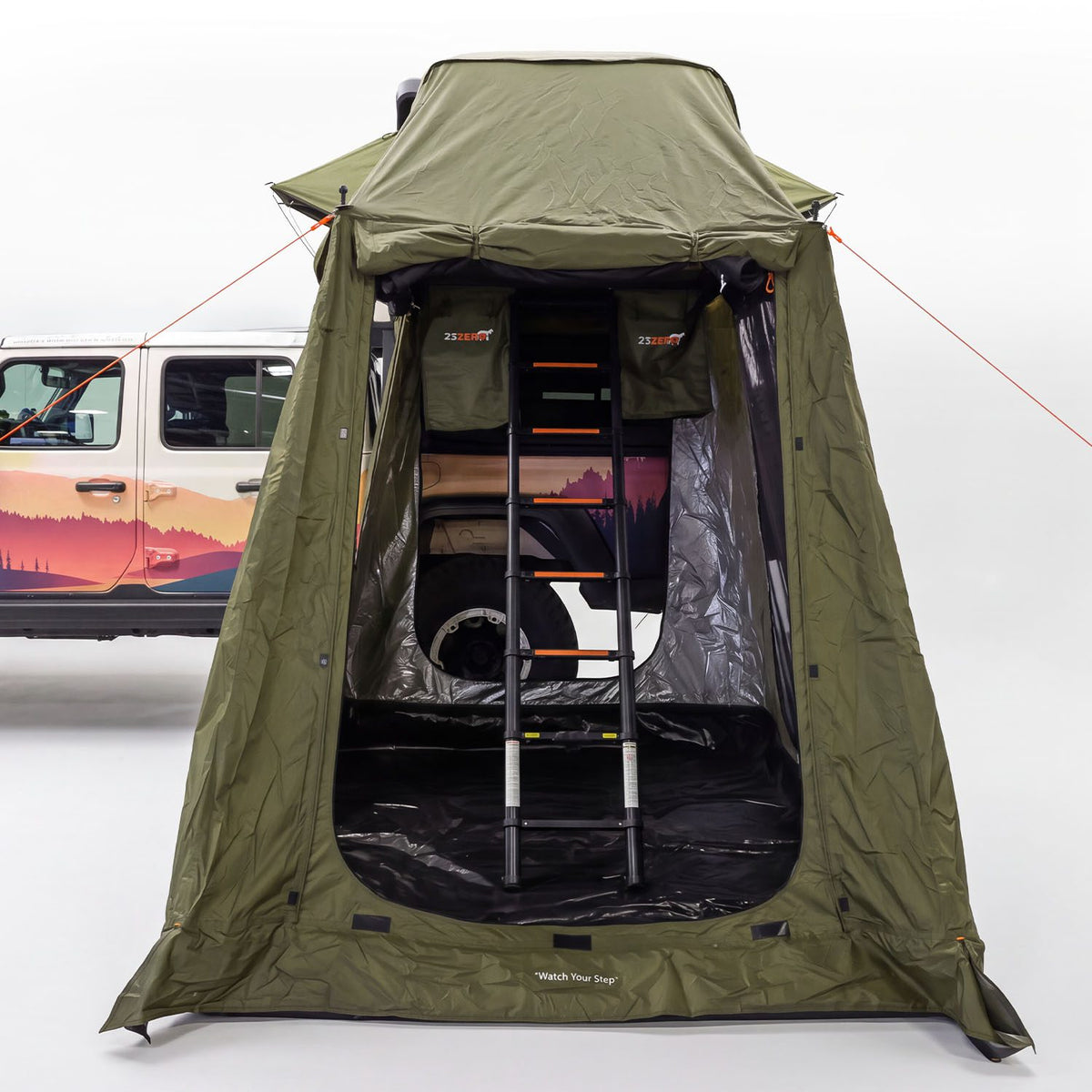

The Armadillo Horizon 3 Annex creates a fully enclosed, weather-protected living space beneath your rooftop tent for enhanced comfort and flexibility at camp.

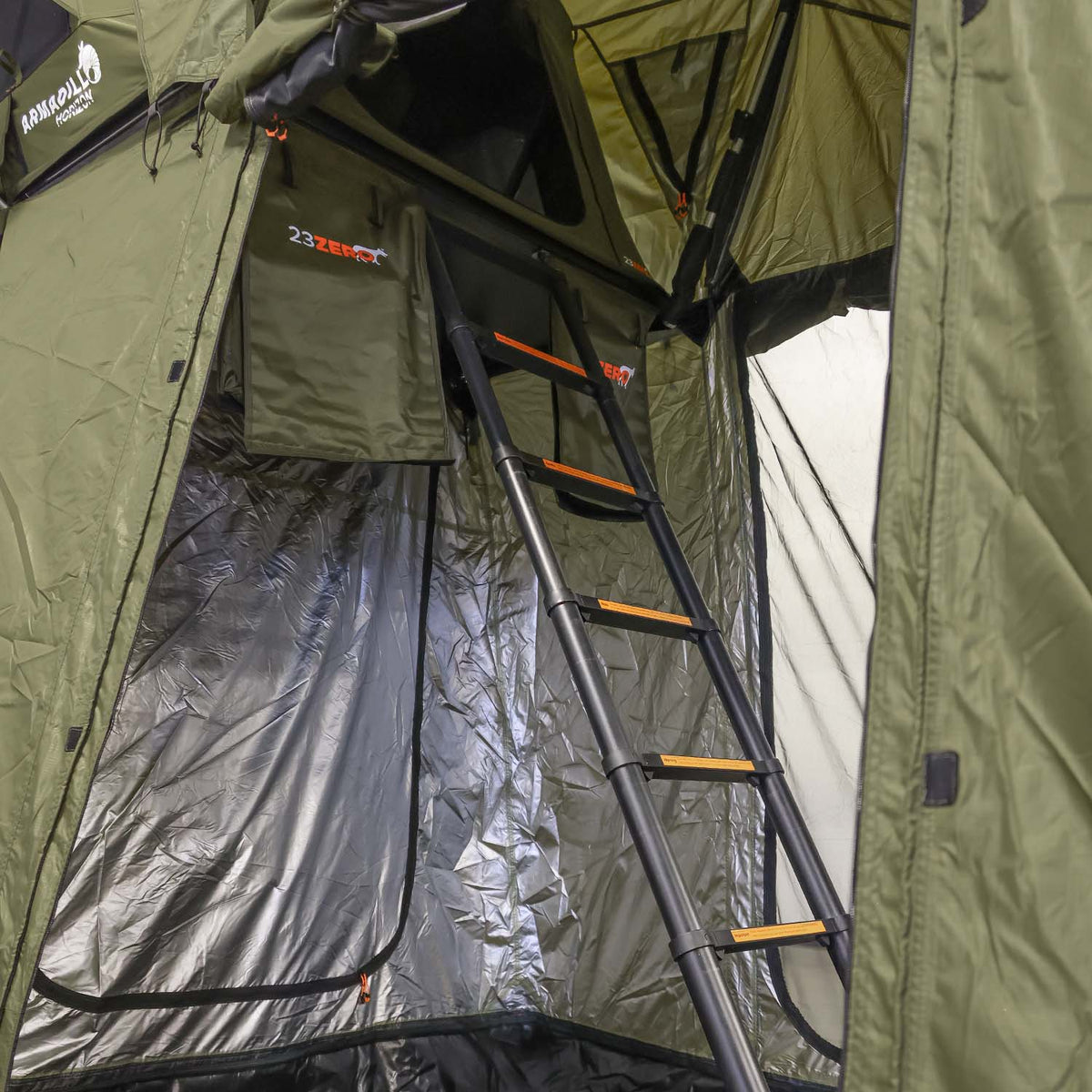

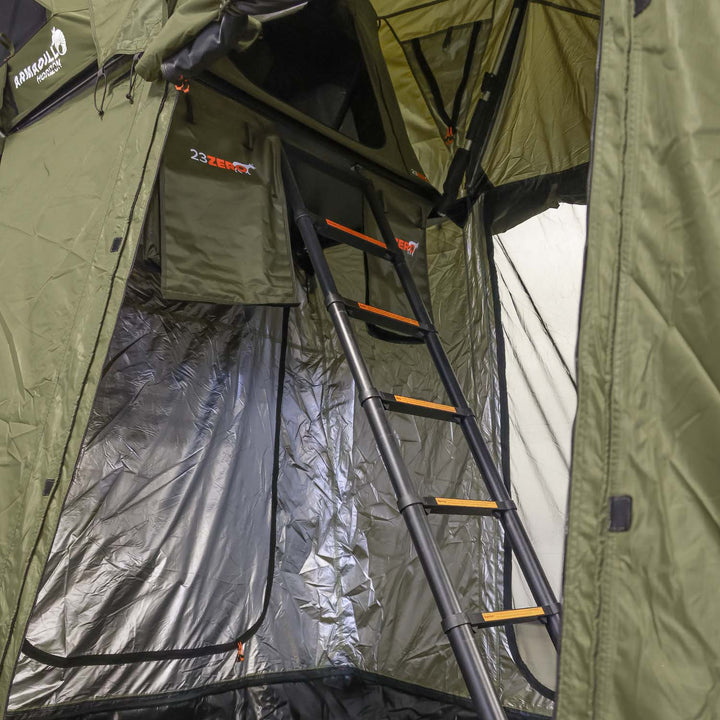

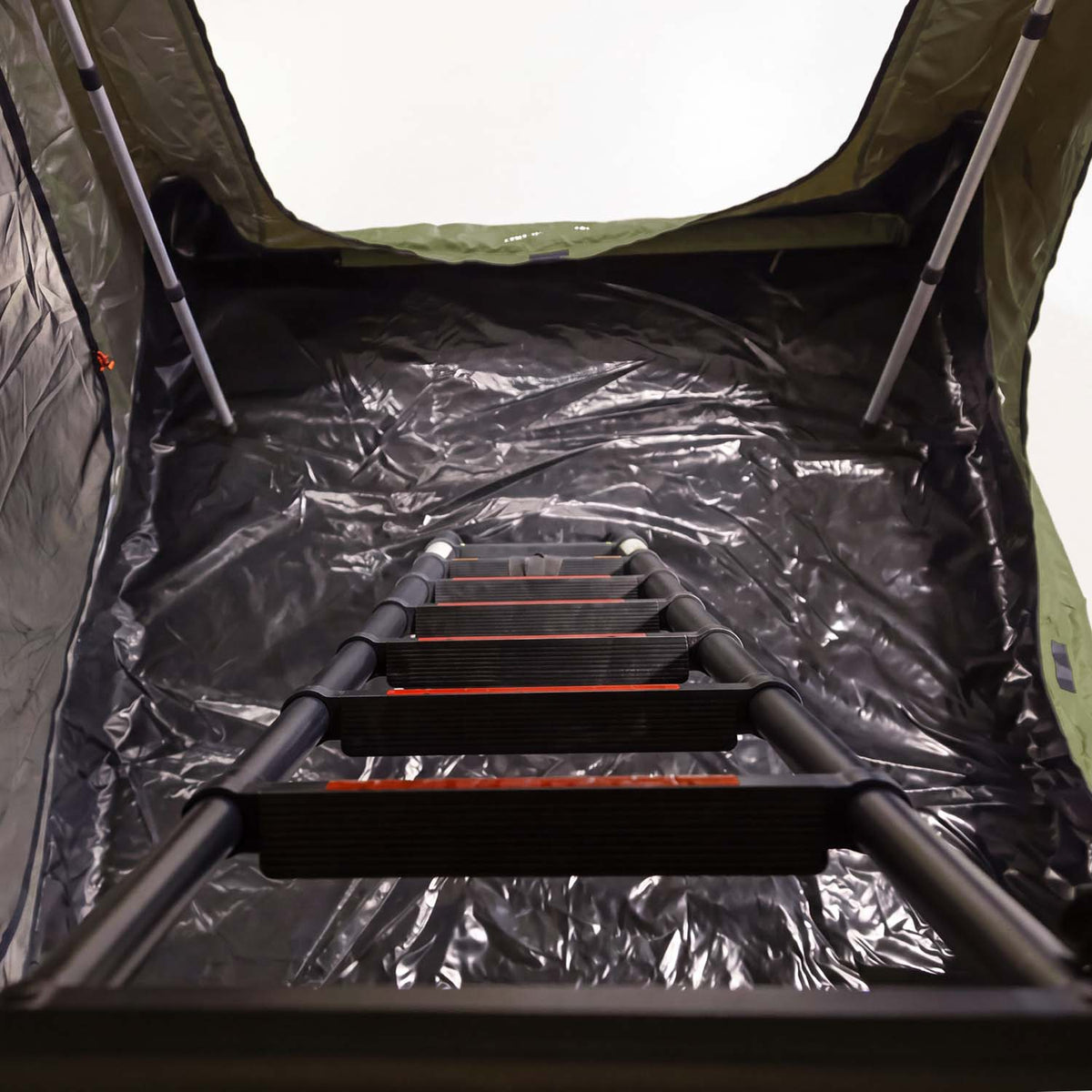

Designed specifically for the Armadillo Horizon 3 rooftop tent, this annex expands your setup with a large sheltered area for changing clothes, housing pets or kennels, setting up a private toilet space, staging gear, handling meal prep, or adding additional sleeping space. The annex is not a standalone shelter and requires a compatible Horizon tent.
Features
Features
Expanded Living Space: Adds 70 sq ft of enclosed area for privacy, shelter, and flexible camp use.
Multi-Use Functionality: Ideal for changing, pets, gear storage, toilets, meal prep, or additional sleeping space.

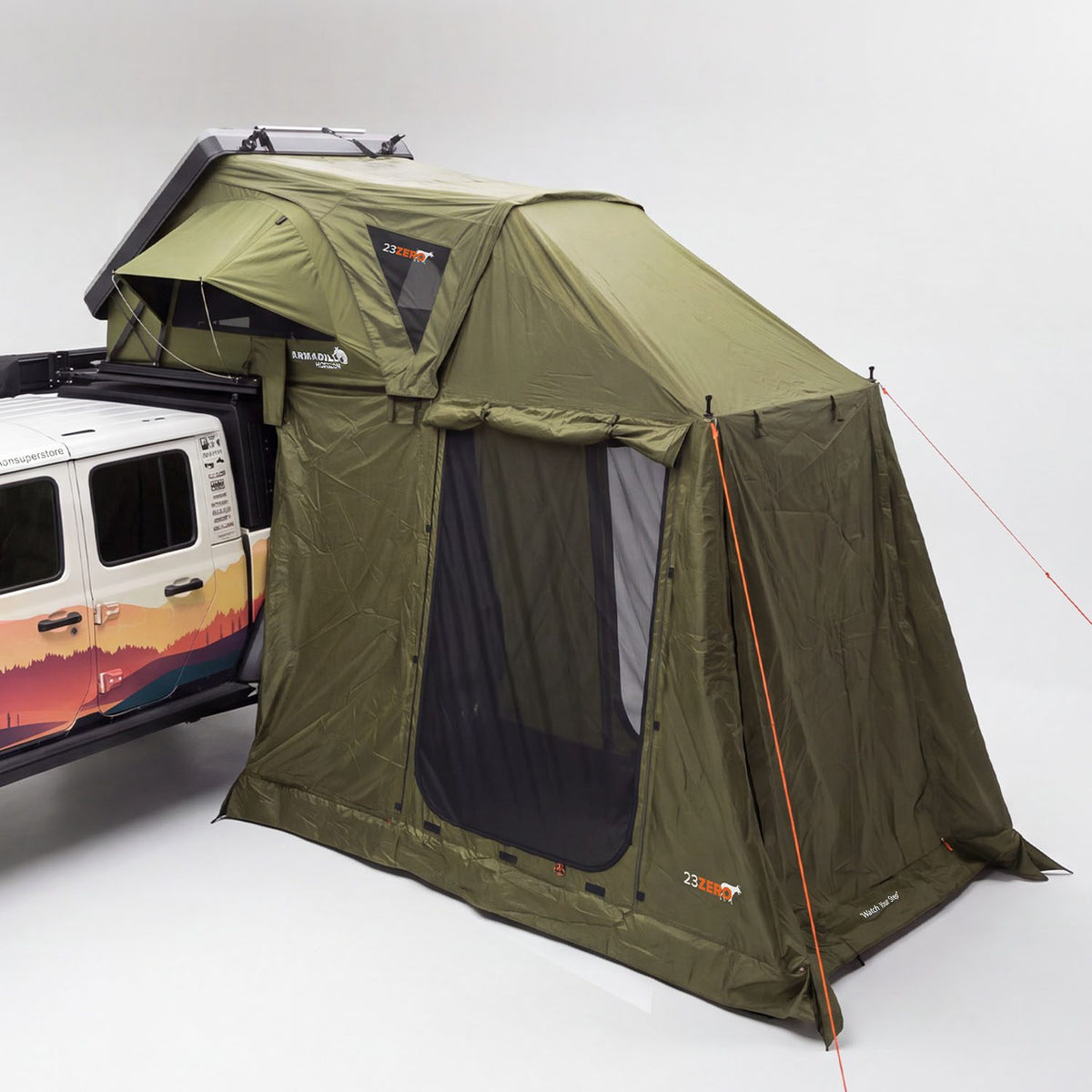

Multiple Access Points: Front, side, and rig-side doors improve movement and usability around camp.
Weather Protection: 8″ storm flaps and enclosed walls help block wind, moisture, and debris.
Ventilation and Coverage: Zippered flaps with bug netting balance airflow and protection.
Specifications
Specifications
Added Living Area: 70 sq ft

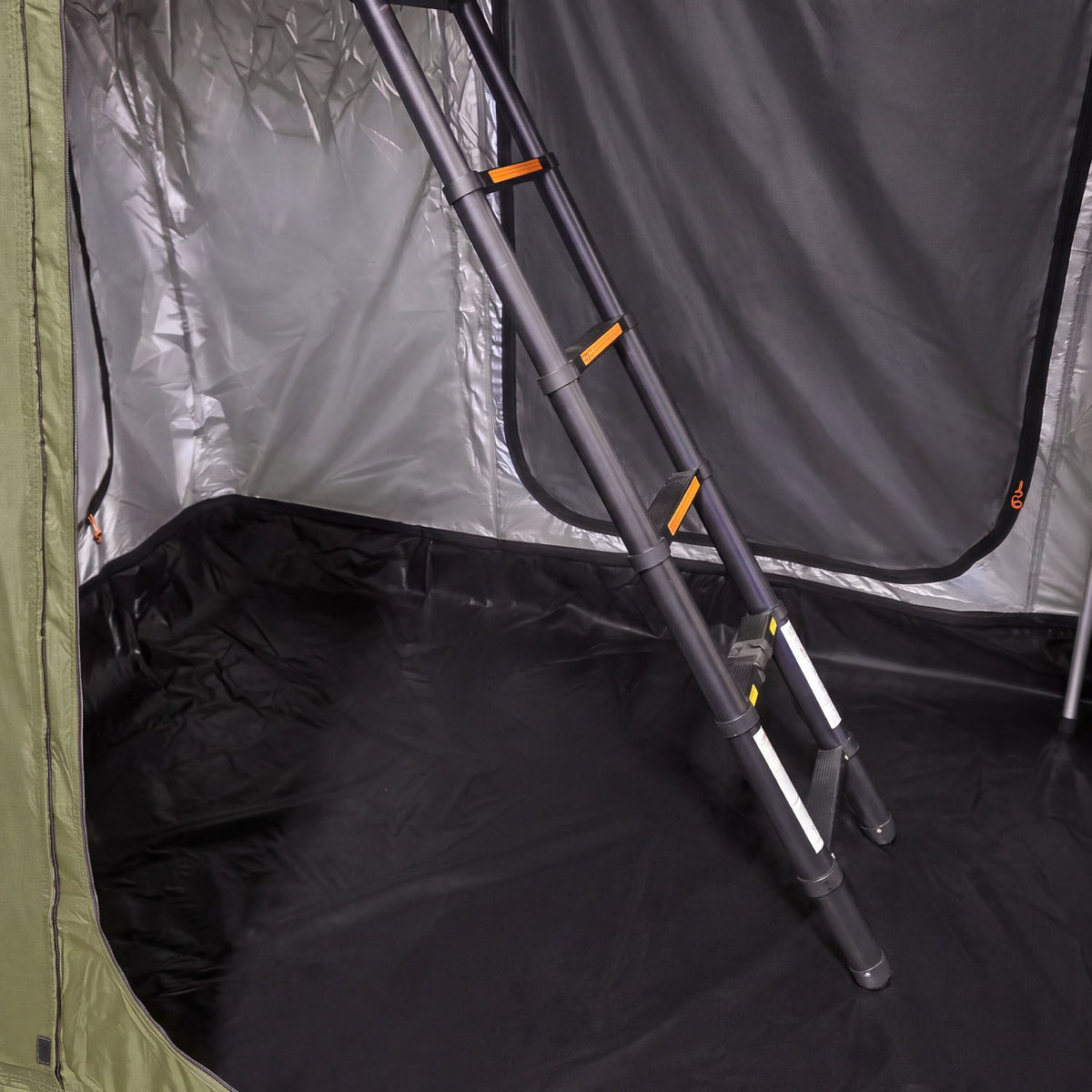

Floor Size: 91” W x 116” L (extending from the rig)
Front Door: 55” W x 70” H
Side Doors: 45” W x 65” H
Rig-Side / Rear Door: 50” W x 64” H
Storm Flaps: 8” on external walls
Storage Size: 39” W x 11” L x 12” H (Bag Tag = L)
Packed Weight: 31 lb
Pole Range: 31.5” to 94.5”
Optimum Tent Mounting Height: 72” off the ground

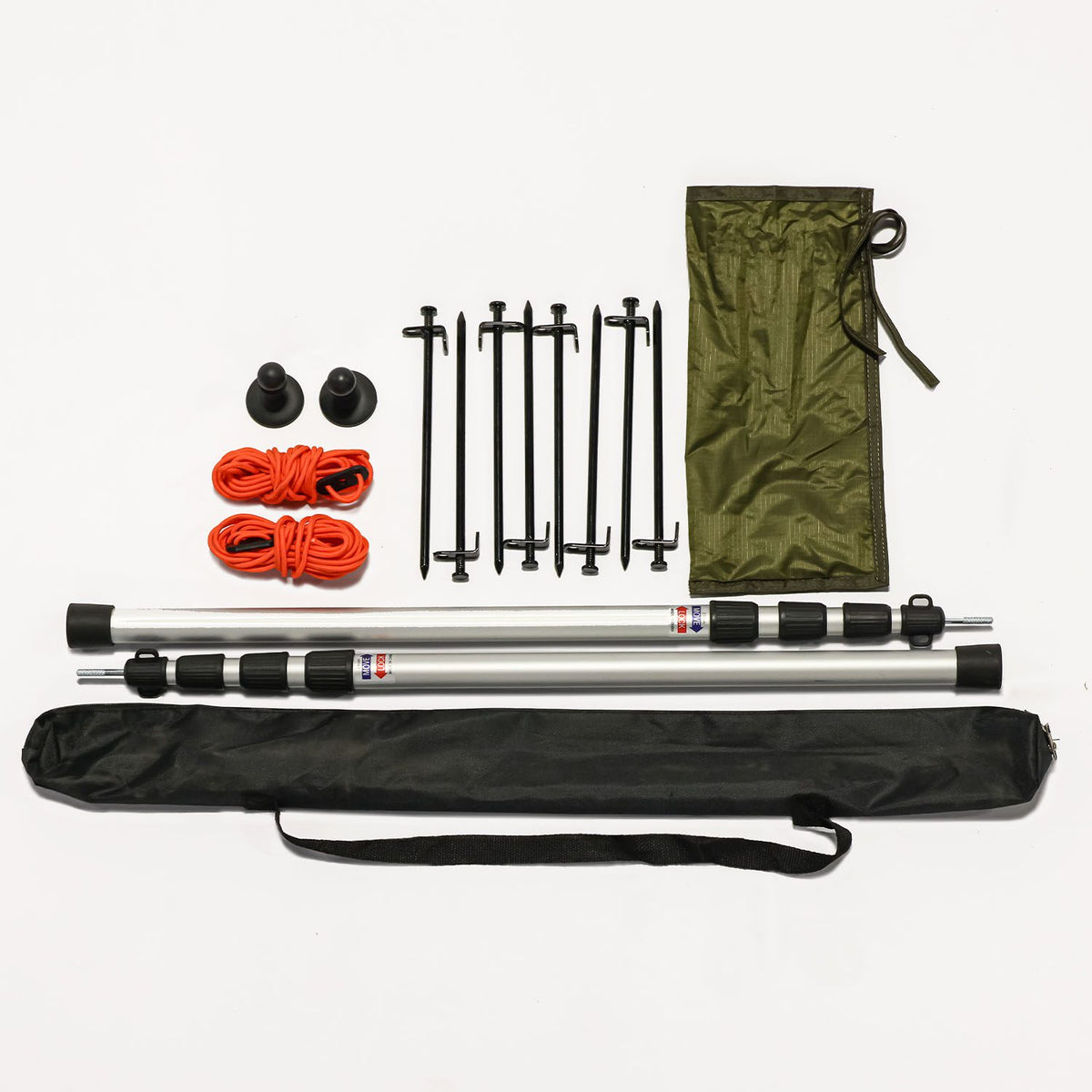

What’s Included

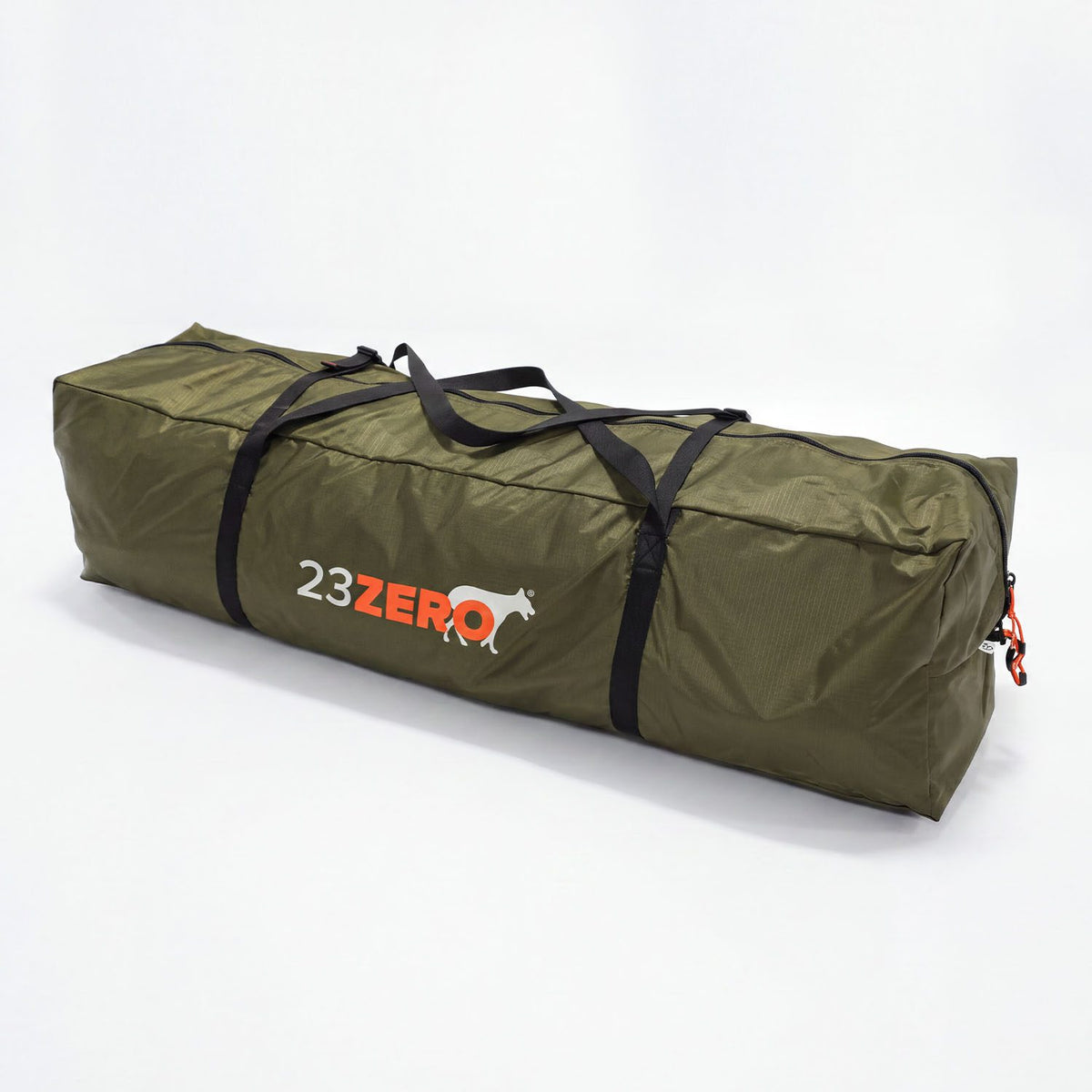

Annex with storage bag
Two (2) telescoping poles with pole storage bag
Two (2) pole weather caps

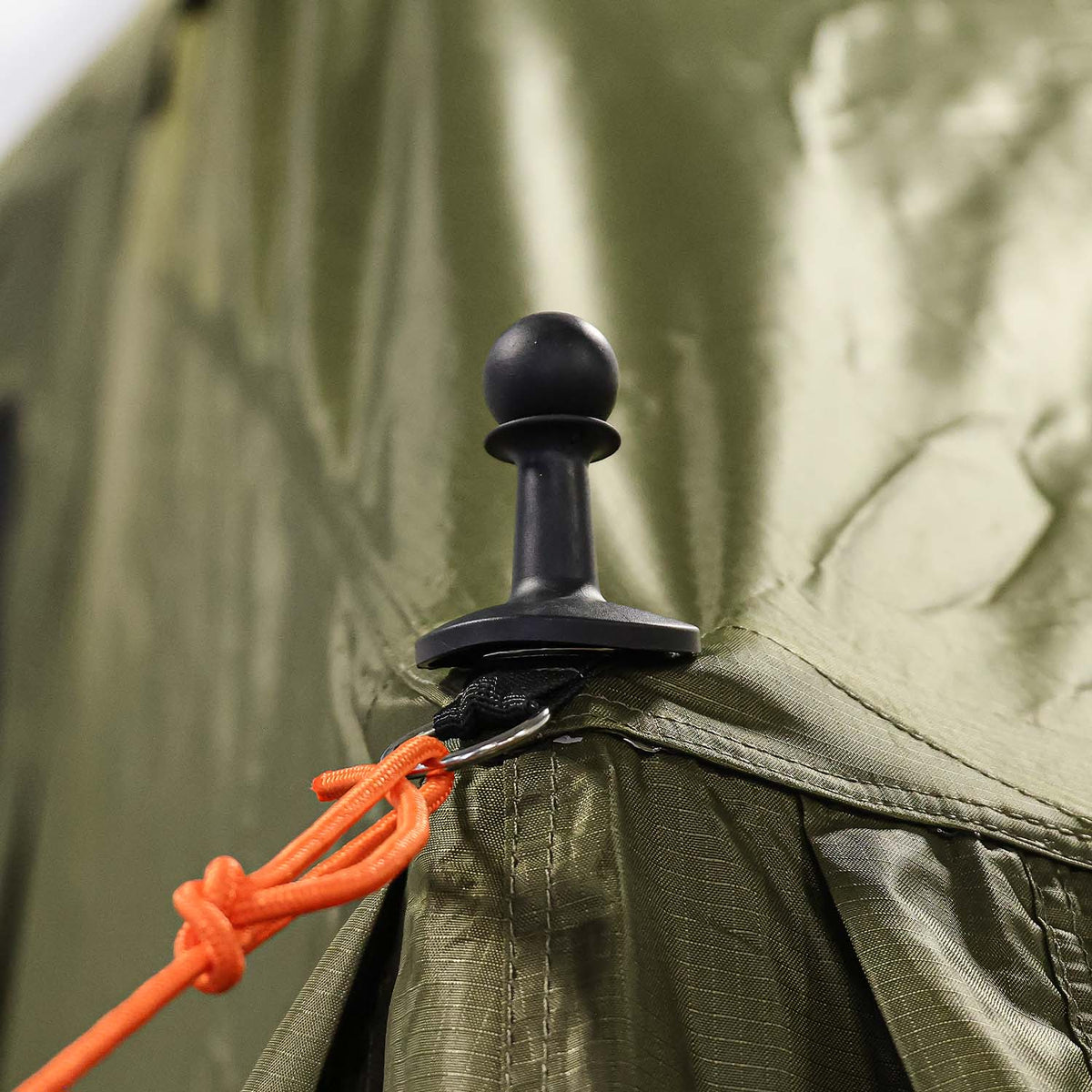

Two (2) guy lines with tensioners
Eight (8) stakes
Two (2) cinch straps
Fitment
Designed specifically for 23Zero Armadillo Horizon 3 rooftop tents
Requires compatible Horizon tent for installation
Best performance when mounted at approximately 72” height
Setup & Usage Notes
Install rear keder track first, followed by side keders, then zip the annex top to the tent
Poles, guy lines, and stake-out points must be fully secured for proper performance
If mounted higher than recommended height, removing the floor may help prevent damage
If mounted lower, excess material may rest on the ground
Annex is not a standalone shelter
Storage Notes
Lay flat, fold lengthwise in thirds, insert poles, and roll tightly
Use included cinch straps for compact storage
If stored wet, air out later to prevent mold
