Kingpin Power Supply Kit, 5A

Save Time And Simplify Your Build

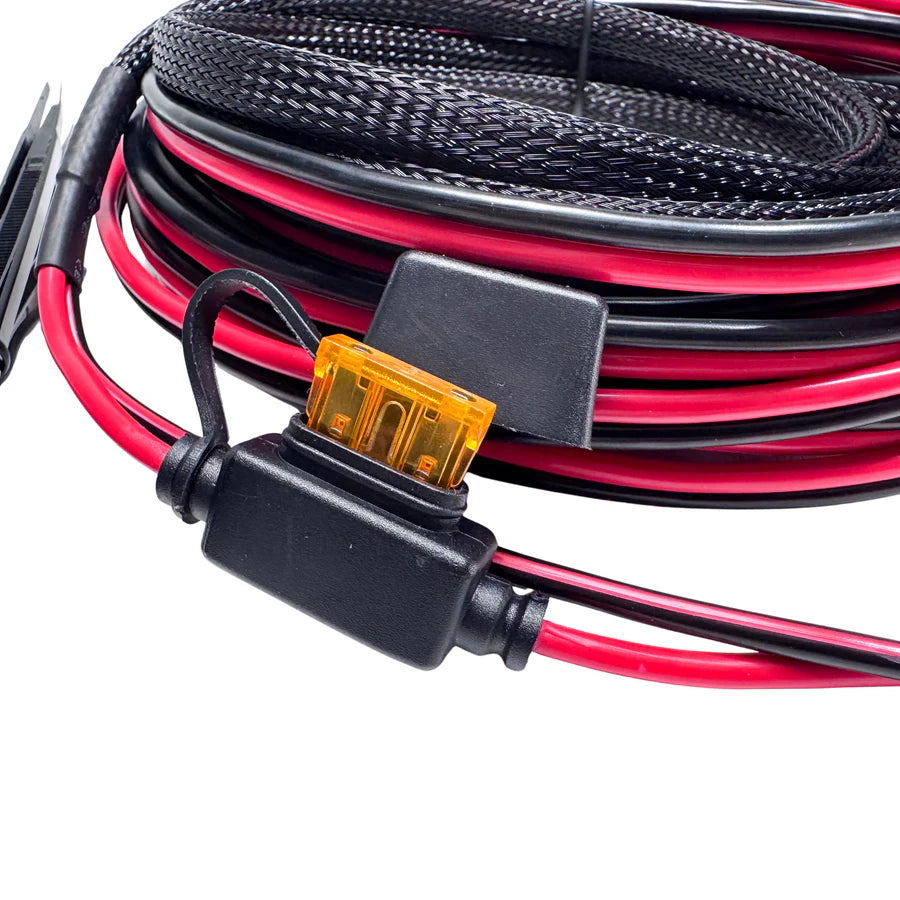

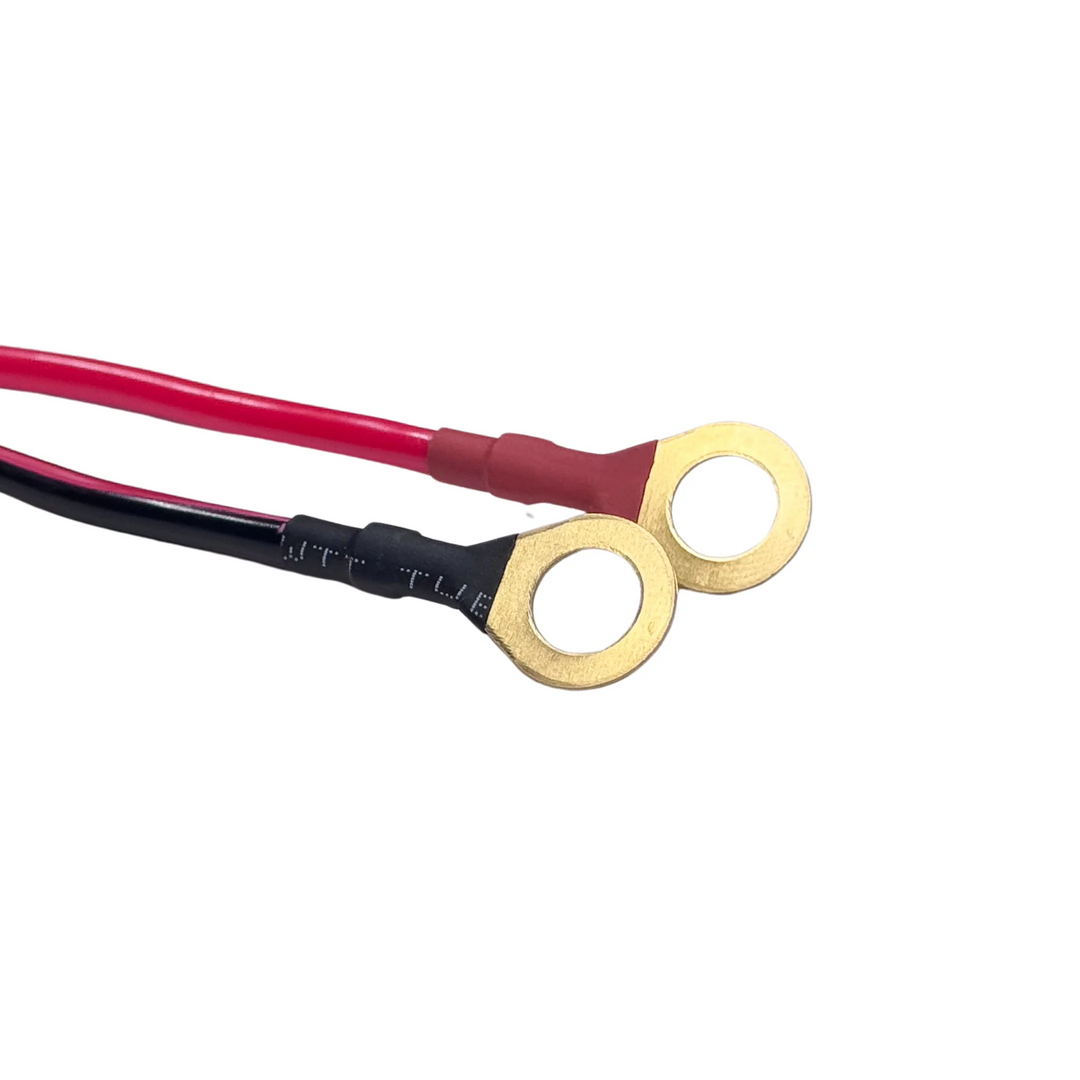

Install 5A of weatherproof 12-volt power up to 25 Feet from your battery with the Kingpin Power Supply Kit. Includes high-quality cable and components and weather-tight ring terminals for easy connection to most standard automotive batteries.  A standard 5A automotive fuse comes pre-loaded in the fuse holder.

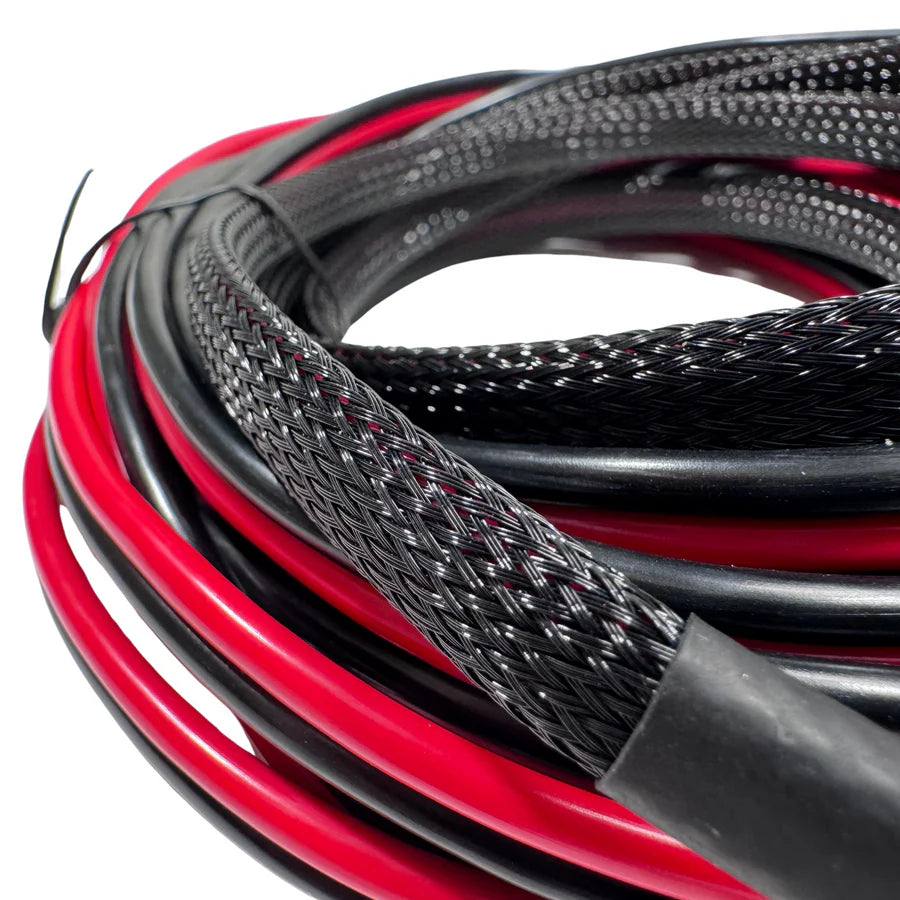

The high-quality 14AWG 2-conductor wire harness is protected with a durable outer "dragon skin" covering for the first 6FT, providing ultimate protection and a clean appearance.

The included zip ties allow you to securely fasten the wires neatly along your frame or whatever.

Product Details:

• Voltage: 12V DC

• Current: 5 Amps max continuous

• Length: 25 Feet

• Wire Gauge: 14AWG 2-conductor

• Fuse: Standard 5A automotive blade fuse

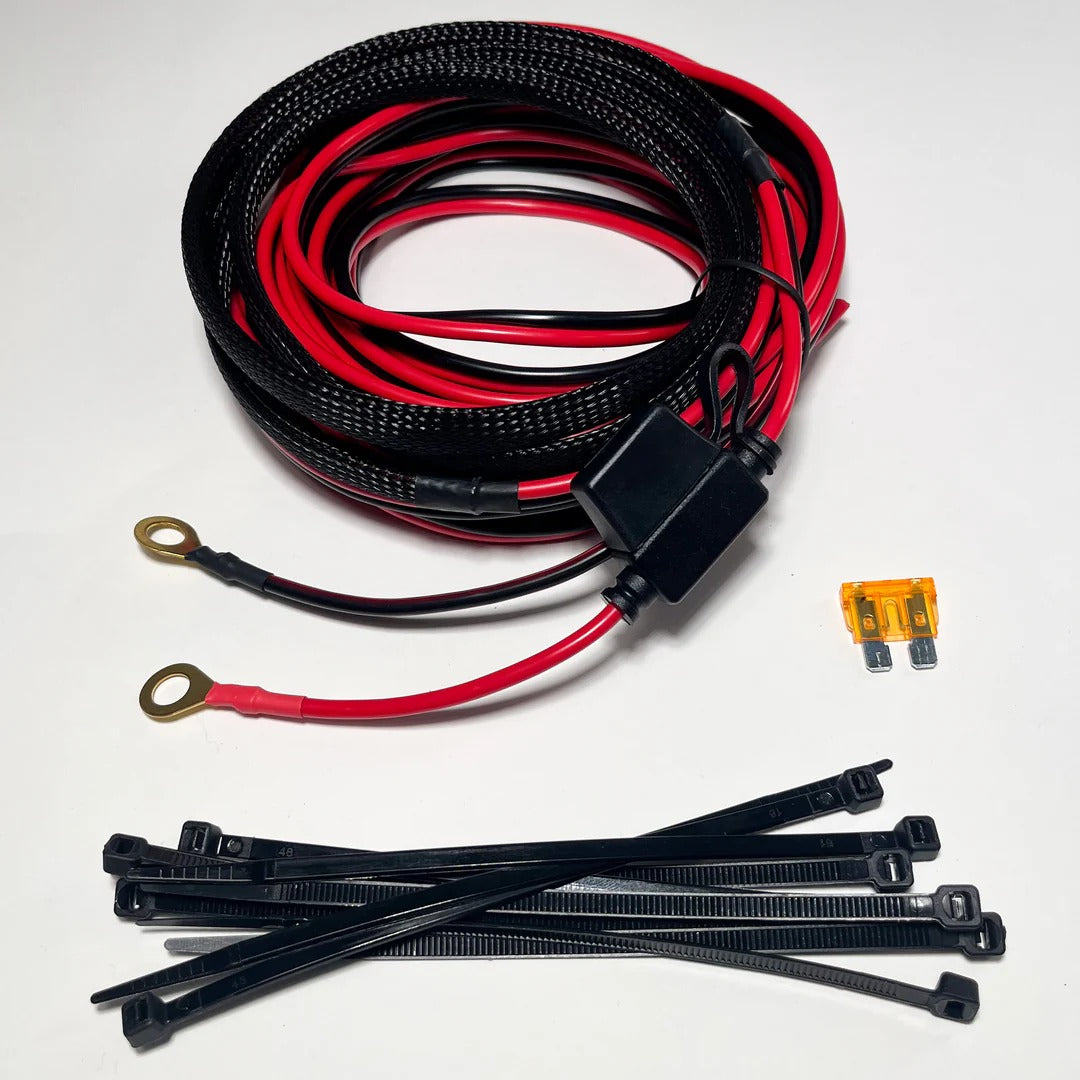

What's Included

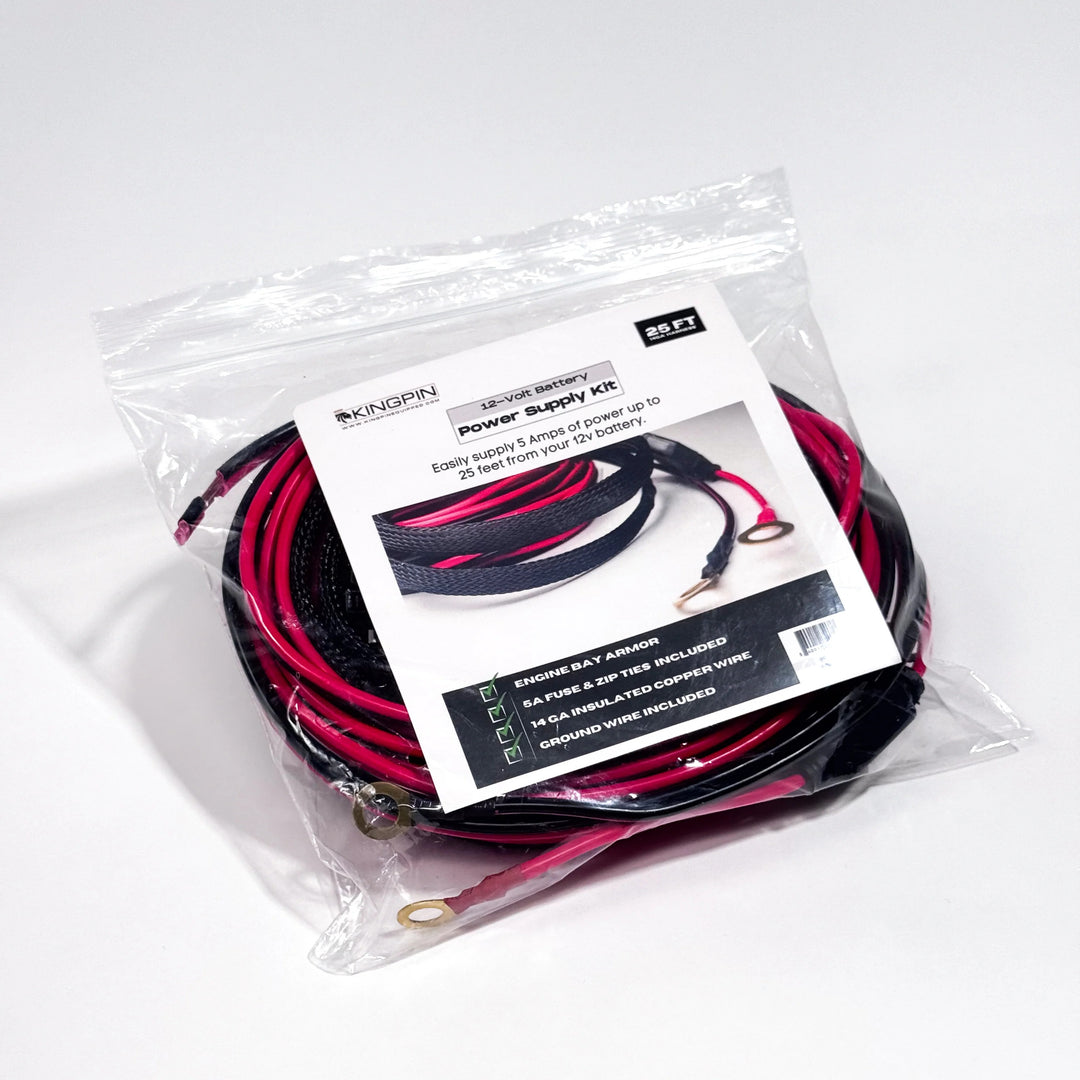

• Kingpin Power Supply Kit, 5A
• Zip Ties

Kingpin Pro Tip

Since the included fuse in this harness is rated for 5A, consider your peak continuous power draw (i.e., how many lights will be on at once). If you like simple and easy, limit your build to the maximum number of lights per harness to stay under 5 Amps:

(3x) 40's | OR (8x) 12's | OR (2x) 40's AND (6x)12's
