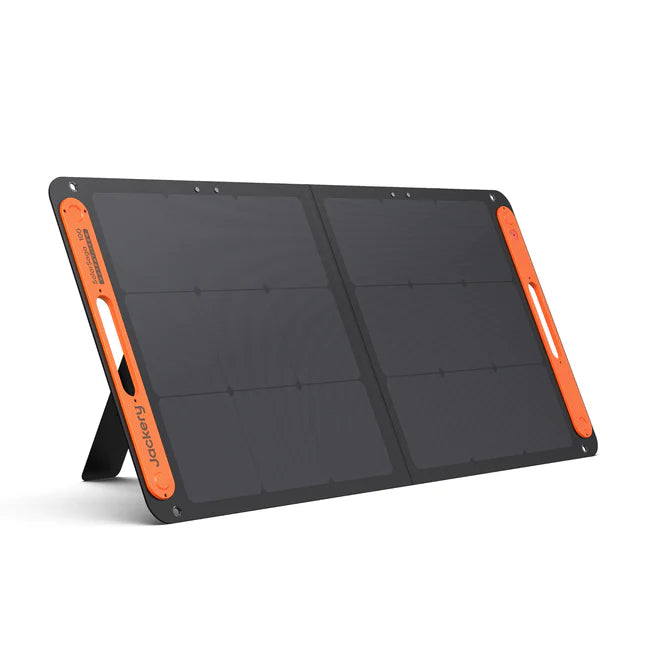

Product Details
-
Delivers 100W±5W solar output with high conversion efficiency
-
IP68 waterproof rating ensures reliable outdoor performance
-
Equipped with USB-A and USB-C ports for direct device charging
-
Bifacial design enhances light absorption for higher power generation
-
Lightweight and foldable build for effortless portability
-
Works seamlessly with Jackery Explorer and Solar Generator series
-
Designed for quiet, clean, and sustainable energy use
-
Built with durable ETFE material for enhanced longevity
Tech Spec
General
-
Weight: 7.94 lbs ± 0.66 lbs (3.6 kg ± 0.3 kg)
-
Protection Class: Class II
-
Waterproof Rating: IP68
-
Operating Temperature: -4~149°F (-20~65°C)
-
Warranty: 3 Years
Ports
-
USB-A Output: 5V⎓2.4A
-
USB-C Output: 5V⎓3A
Solar
-
Maximum System Voltage: 60V
-
Maximum Reverse Current: 15A
-
Bifaciality Coefficient (back/front): Pmax>30%, Voc>95%, Isc>32%
-
Voltage Temperature Coefficient: -0.268%/°C
-
Power Temperature Coefficient: -0.29%/°C
STC (1000W/㎡, 25℃, AM 1.5)
-
Peak Power (Pmax): 100W±5W
-
Open Circuit Voltage (VOC): 24.8V±5%
-
Short Circuit Current (Isc): 5.4A±5%
-
Power Voltage (Vmp): 20.0V±5%
-
Power Current (Imp): 5.0A±5%
BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5)
-
Peak Power (Pmax): 104W±5W
-
Open Circuit Voltage (Voc): 25V±5%
-
Short Circuit Current (Isc): 5.8A±5%
-
Power Voltage (Vmp): 20.1V±5%
-
Power Current (Imp): 5.2A±5%
Dimensions
-
Folded: 24.0 x 21.7 x 1.4 in (610 x 552 x 35 mm)
-
Unfolded: 48.03 x 21.73 x 0.79 in (1220 x 552 x 20 mm)
What's Included:
-
SolarSaga 100W Solar Panel
-
3-meter Multi-functional Cable (with USB Charging Ports)
-
DC8020 to DC7909 Adapter
-
User Manual
